Advanced Synthesis of Beta-Chloro Tetra-Substituted Alkenyl Sulfones for Commercial Pharmaceutical Applications
Advanced Synthesis of Beta-Chloro Tetra-Substituted Alkenyl Sulfones for Commercial Pharmaceutical Applications
The pharmaceutical and fine chemical industries are constantly seeking robust methodologies for constructing complex molecular scaffolds, particularly those containing sulfone motifs which are prevalent in bioactive molecules. Patent CN114195687A introduces a groundbreaking approach for the synthesis of beta-chloro tetra-substituted alkenyl sulfone compounds, addressing critical challenges in selectivity and operational simplicity. This technology leverages a palladium-catalyzed multicomponent reaction that efficiently couples alkyne sulfones, olefins, and chlorides under mild thermal conditions. For R&D directors and procurement managers, this represents a significant opportunity to access high-purity pharmaceutical intermediates with improved supply chain reliability. The method's ability to construct tetra-substituted alkenes with precise stereocontrol opens new avenues for the development of covalent protease inhibitors and neuroprotective agents, sectors where structural complexity often hinders scalable production.
The Limitations of Conventional Methods vs. The Novel Approach
The Limitations of Conventional Methods
Traditional synthetic routes for phenylsulfonyl olefin compounds have historically relied on cross-coupling reactions between olefins and sulfonyl derivatives or direct halogenation of alkyne sulfones, both of which suffer from significant drawbacks in an industrial setting. Cross-coupling strategies often require harsh reaction conditions, expensive ligands, and generate substantial metal waste, complicating downstream purification and increasing the overall cost of goods sold. Furthermore, direct addition of halogens to alkyne sulfones frequently results in poor stereoselectivity, yielding mixtures of E/Z isomers that are difficult to separate and can compromise the biological activity of the final drug candidate. These legacy methods also struggle with substrate scope, often failing when applied to sterically hindered or electronically diverse substrates, thereby limiting their utility in the rapid iteration required during lead optimization phases of drug discovery.
The Novel Approach

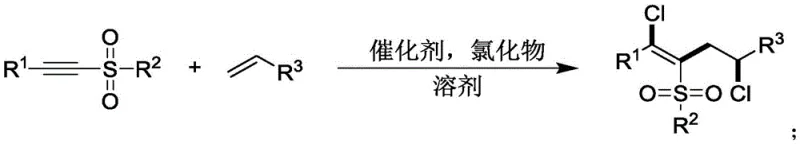

In stark contrast, the novel methodology disclosed in the patent utilizes a bifunctional reaction of alkyne sulfones that proceeds through a highly efficient cis-chloropalladation mechanism, effectively bypassing the selectivity issues of prior art. By employing readily available starting materials such as simple alkyne sulfones, olefins, and inorganic chlorides, the process achieves high regio- and stereoselectivity without the need for exotic reagents or extreme temperatures. The reaction operates smoothly at moderate temperatures ranging from 40°C to 60°C, which significantly reduces energy consumption and enhances safety profiles compared to high-temperature alternatives. This streamlined approach not only simplifies the operational workflow but also ensures that the resulting beta-chloro tetra-substituted alkenyl sulfones are obtained with high purity, minimizing the burden on quality control laboratories and accelerating time-to-market for new therapeutic candidates.
Mechanistic Insights into Pd-Catalyzed Cis-Chloropalladation and Migration Insertion
The core innovation of this synthesis lies in its intricate catalytic cycle, which initiates with the cis-chloropalladation of the alkynyl moiety within the alkyne sulfone substrate. This step is crucial as the electron-withdrawing sulfone group directs the addition of the palladium-chloride species, ensuring the formation of a specific vinyl-palladium intermediate that dictates the subsequent stereochemistry of the product. Following this activation, the olefin component undergoes a migratory insertion into the carbon-palladium bond, a step that is facilitated by the specific electronic environment created by the catalyst and the chloride source. This migration is highly selective, preventing the formation of unwanted regioisomers that typically plague radical-based halogenation methods, thus providing a clean reaction profile that is ideal for GMP manufacturing environments.
Furthermore, the final stage of the catalytic cycle involves the cleavage of the carbon-palladium bond and the simultaneous formation of the carbon-chlorine bond, driven by the presence of excess chloride ions in the reaction medium. This mechanism allows the reaction to proceed efficiently even in high-concentration chloride systems, which would typically inhibit similar palladium-catalyzed processes due to catalyst poisoning. The robustness of this mechanism against various functional groups, including esters, nitriles, and halogens, ensures that the impurity profile remains manageable throughout the synthesis. For process chemists, understanding this mechanism is vital for troubleshooting and optimizing reaction parameters, as it highlights the importance of maintaining the correct stoichiometric balance between the chloride source and the palladium catalyst to sustain the catalytic turnover number.
How to Synthesize Beta-Chloro Tetra-Substituted Alkenyl Sulfone Efficiently
Implementing this synthesis route requires careful attention to reagent quality and reaction monitoring to maximize yield and purity, as detailed in the experimental examples provided within the patent documentation. The process begins with the dissolution of the alkyne sulfone, olefin, chloride salt, and palladium catalyst in a polar aprotic solvent such as acetonitrile, followed by heating to the specified range of 40°C to 60°C. Maintaining strict temperature control is essential to prevent side reactions while ensuring sufficient kinetic energy for the migration insertion step to occur effectively. After the reaction period of 10 to 12 hours, the workup procedure involves standard extraction techniques using ethyl acetate and brine, followed by drying and concentration to isolate the crude product.
- Dissolve alkyne sulfone compound, olefin compound, chloride (e.g., CuCl or LiCl), and palladium catalyst (e.g., PdCl2) in an organic solvent such as acetonitrile within a reactor.
- Stir the reaction mixture at a controlled temperature between 40°C and 60°C for a duration of 10 to 12 hours to ensure complete conversion via cis-chloropalladation and migration insertion.
- Cool the reaction liquid to room temperature, extract with ethyl acetate and saturated sodium chloride solution, dry over anhydrous magnesium sulfate, and purify via column chromatography.
Commercial Advantages for Procurement and Supply Chain Teams
From a commercial perspective, this synthetic route offers profound advantages for supply chain stability and cost management, primarily driven by the accessibility of raw materials and the simplicity of the operational protocol. The reliance on commodity chemicals like copper chloride, lithium chloride, and common olefins means that procurement teams are not exposed to the volatility associated with specialized or proprietary reagents, ensuring a consistent supply of inputs for large-scale production. Additionally, the mild reaction conditions eliminate the need for specialized high-pressure or cryogenic equipment, allowing the process to be scaled in standard glass-lined or stainless steel reactors found in most multipurpose chemical manufacturing facilities. This compatibility with existing infrastructure drastically reduces capital expenditure requirements for technology transfer and facilitates faster ramp-up times to meet market demand.
- Cost Reduction in Manufacturing: The elimination of expensive ligands and the use of low-loading palladium catalysts significantly lower the direct material costs associated with each batch production. By avoiding complex purification steps often required to remove heavy metal residues from cross-coupling reactions, the downstream processing costs are also substantially reduced, leading to a more favorable overall cost structure. The high selectivity of the reaction minimizes the formation of by-products, which in turn improves the overall yield and reduces the waste disposal costs associated with hazardous chemical by-products. These factors combine to create a highly economical process that enhances the margin potential for high-value pharmaceutical intermediates.
- Enhanced Supply Chain Reliability: The use of stable and commercially available starting materials mitigates the risk of supply disruptions that can occur with custom-synthesized building blocks. The robustness of the reaction conditions ensures consistent batch-to-batch reproducibility, which is critical for maintaining long-term supply agreements with downstream pharmaceutical customers. Furthermore, the safety profile of the reaction, which avoids hazardous reagents and extreme conditions, reduces the regulatory burden and insurance costs associated with chemical manufacturing, contributing to a more resilient and reliable supply chain network.
- Scalability and Environmental Compliance: The process has been demonstrated to be scalable from gram to multi-gram levels with maintained efficiency, indicating strong potential for ton-scale commercial production without significant re-engineering. The use of common organic solvents that can be easily recovered and recycled aligns with modern green chemistry principles and environmental regulations, reducing the ecological footprint of the manufacturing process. This environmental compliance is increasingly important for multinational corporations aiming to meet sustainability goals, making this technology a strategically sound choice for long-term partnerships.
Frequently Asked Questions (FAQ)
The following questions address common technical and commercial inquiries regarding the implementation and benefits of this patented synthesis technology for beta-chloro tetra-substituted alkenyl sulfones. These answers are derived directly from the experimental data and technical disclosures found in the patent literature, providing a factual basis for decision-making. Understanding these details helps stakeholders evaluate the feasibility of integrating this method into their existing production pipelines or R&D workflows.
Q: What represents the key mechanistic advantage of this synthesis method?
A: The method utilizes a unique cis-chloropalladation-olefin migration insertion-carbon-palladium bond cleavage pathway, which ensures high regio- and stereoselectivity even in high-concentration chloride ion systems, overcoming limitations of traditional cross-coupling reactions.
Q: What are the optimal reaction conditions for scaling this process?
A: The process operates under mild conditions, specifically between 40°C and 60°C, using common solvents like acetonitrile or tetrahydrofuran, with a catalyst loading of 0.1 to 0.2 equivalents relative to the alkyne sulfone substrate.
Q: Is this method suitable for diverse substrate scopes in drug discovery?
A: Yes, the method demonstrates excellent tolerance for various functional groups including esters, cyano groups, and halogens on both the alkyne sulfone and olefin components, making it highly versatile for synthesizing complex pharmaceutical intermediates.
Partnering with NINGBO INNO PHARMCHEM: Your Reliable Beta-Chloro Tetra-Substituted Alkenyl Sulfone Supplier
At NINGBO INNO PHARMCHEM, we possess extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that the transition from laboratory discovery to industrial manufacturing is seamless and efficient. Our state-of-the-art facilities are equipped with rigorous QC labs capable of meeting stringent purity specifications required by global pharmaceutical standards, guaranteeing the quality of every batch of beta-chloro tetra-substituted alkenyl sulfones we produce. We understand the critical nature of supply continuity in the drug development lifecycle and are committed to providing a stable, high-quality source of these valuable intermediates to support your innovation pipeline. Our technical team is ready to collaborate with you to optimize this specific Pd-catalyzed route for your unique process requirements.
We invite you to contact our technical procurement team to request a Customized Cost-Saving Analysis tailored to your specific volume needs and project timelines. By engaging with us early in your development process, you can secure specific COA data and route feasibility assessments that will de-risk your supply chain and accelerate your path to clinical trials. Let us partner with you to leverage this advanced synthetic technology, driving down costs and enhancing the reliability of your pharmaceutical intermediate supply.
