Scalable Production of Fully Substituted Calix[8]arene Phosphate Derivatives for Rare Earth Separation

Introduction to Advanced Calix[8]arene Functionalization

The landscape of supramolecular chemistry and rare earth separation technologies has been significantly advanced by the innovations detailed in patent CN105384772B, which introduces a robust method for preparing fully substituted calix[8]arene phosphate derivatives. This technology addresses the critical need for high-efficiency ligands capable of selectively binding rare earth ions, a capability that is paramount in the refining and processing of these strategic materials. By leveraging the unique macrocyclic cavity of calix[8]arene and functionalizing its lower rim with eight phosphate groups, the resulting derivatives exhibit superior selectivity and affinity compared to partially substituted analogues. For R&D directors and procurement specialists alike, this represents a pivotal shift towards more reliable specialty chemical supplier solutions that offer both structural precision and economic viability. The ability to produce these complex macrocycles with high yields and minimal environmental impact positions this technology as a cornerstone for next-generation separation processes.

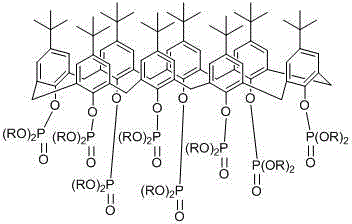

The core innovation lies in the complete functionalization of the eight phenolic hydroxyl groups located at the lower edge of the calix[8]arene skeleton, a feat that has historically been challenging to achieve with consistency. Unlike previous iterations where mixed substitution patterns led to heterogeneous product batches, this method ensures a uniform molecular architecture essential for predictable performance in ion exchange applications. The structural integrity of the final product, as depicted in the chemical diagram, confirms the successful attachment of phosphorus-oxygen moieties to every available reactive site on the macrocycle. This level of molecular control is not merely an academic achievement but a commercial necessity for industries requiring high-purity OLED material precursors or advanced polymer additives where batch-to-batch consistency is non-negotiable. Consequently, this patent provides a foundational pathway for the commercial scale-up of complex polymer additives and separation agents.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of calixarene phosphate derivatives has been plagued by significant technical hurdles that hindered their widespread industrial adoption. Conventional synthetic routes often involved multi-step procedures requiring rigorous protection and deprotection strategies to manage the reactivity of the multiple phenolic hydroxyl groups. These繁琐 processes not only increased the operational complexity but also resulted in substantial material loss at each stage, driving up the cost of goods sold and limiting availability. Furthermore, literature reviews indicate that many traditional methods failed to achieve complete substitution, leaving residual hydroxyl groups that compromised the selectivity and binding capacity of the final ligand. The use of highly toxic solvents and harsh reaction conditions in older protocols also posed severe environmental and safety risks, creating compliance burdens for modern manufacturing facilities. For supply chain heads, these inefficiencies translated into extended lead times and unpredictable supply continuity for high-purity intermediates.

The Novel Approach

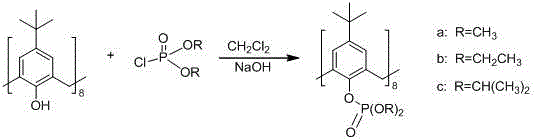

In stark contrast, the methodology outlined in CN105384772B employs a streamlined one-step synthesis that dramatically simplifies the production workflow while enhancing product quality. By utilizing a phase transfer catalysis system with tetrabutylammonium bromide (TBAB) in a dichloromethane medium, the reaction achieves complete phosphorylation of all eight hydroxyl groups under mild alkaline conditions. This approach eliminates the need for intermediate isolation steps and reduces the overall reaction time, thereby facilitating cost reduction in specialty chemical manufacturing. The reaction scheme illustrates how the chlorophosphate reagent efficiently attacks the phenoxide anions generated in situ, ensuring a homogeneous product distribution. This technological leap allows manufacturers to bypass the bottlenecks associated with traditional organic synthesis, offering a scalable solution that aligns with green chemistry principles. The result is a process that is not only chemically elegant but also commercially robust, suitable for meeting the demands of global markets.

Mechanistic Insights into Phase Transfer Catalyzed Phosphorylation

The success of this synthesis relies heavily on the efficient operation of the phase transfer catalyst, TBAB, which facilitates the interaction between the organic soluble calixarene and the aqueous sodium hydroxide base. In this mechanistic pathway, the quaternary ammonium cation transports the phenoxide anion from the aqueous phase into the organic phase, where it encounters the dialkyl chlorophosphate electrophile. This interfacial activation lowers the energy barrier for the nucleophilic substitution reaction, allowing it to proceed rapidly even at moderate temperatures. The use of 50% sodium hydroxide ensures a high concentration of the active nucleophile, driving the equilibrium towards the fully substituted product. For technical teams, understanding this mechanism is crucial for optimizing reaction parameters such as stirring speed and temperature to maximize throughput. The precise control over the reaction environment prevents side reactions and ensures that the steric bulk of the calix[8]arene ring does not inhibit the functionalization of the less accessible hydroxyl groups.

Impurity control is inherently built into this design through the thermodynamic favorability of the complete substitution product under the specified conditions. The high yield reported, exceeding 85% in general and reaching up to 92% in specific examples, suggests that competing hydrolysis of the chlorophosphate reagent is minimized. The workup procedure, involving washing with saturated brine and precipitation with methanol and water, effectively removes inorganic salts and unreacted starting materials without the need for column chromatography. This purification strategy is vital for maintaining the economic feasibility of the process, as chromatographic separation is often a major cost driver in fine chemical production. The resulting white solid exhibits a purity greater than 95%, meeting the stringent specifications required for downstream applications in rare earth extraction. Such high purity is essential for preventing contamination in sensitive electronic or pharmaceutical applications where trace impurities can be detrimental.

How to Synthesize Fully Substituted Calix[8]arene Phosphate Derivatives Efficiently

The practical implementation of this synthesis route is designed to be accessible for industrial laboratories equipped with standard glassware and mixing capabilities. The process begins with the dissolution of p-tert-butylcalix[8]arene and the chlorophosphate reagent in dichloromethane, followed by the addition of the phase transfer catalyst. Detailed standardized synthesis steps are provided below to guide process engineers in replicating these results with high fidelity. The simplicity of the protocol allows for easy adaptation to larger reactor volumes, making it an ideal candidate for technology transfer from bench scale to pilot plant operations. Operators should monitor the reaction progress via thin-layer chromatography to determine the optimal endpoint, ensuring complete consumption of the starting calixarene.

1. Combine p-tert-butylcalix[8]arene, dialkyl chlorophosphate, and TBAB catalyst in dichloromethane solvent under electromagnetic stirring.
2. Slowly add 50% sodium hydroxide aqueous solution to the mixture and heat the system to reflux until TLC indicates completion.
3. Separate the organic layer, wash with brine, dry over sodium sulfate, and precipitate the product using methanol and water followed by filtration.

Commercial Advantages for Procurement and Supply Chain Teams

From a commercial perspective, this patented method offers transformative benefits that directly address the pain points of procurement managers and supply chain directors. The elimination of complex multi-step sequences translates into a drastically simplified manufacturing process, which inherently reduces labor costs and equipment occupancy time. By avoiding the use of expensive protecting groups and the reagents required for their removal, the overall material cost is significantly lowered, enhancing the margin potential for suppliers. The reliance on commodity chemicals such as dichloromethane, sodium hydroxide, and commercially available chlorophosphates ensures a stable and resilient supply chain that is less susceptible to market volatility. Furthermore, the high yield and straightforward purification reduce waste generation, aligning with increasingly strict environmental regulations and reducing disposal costs. These factors combine to create a compelling value proposition for partners seeking a reliable agrochemical intermediate supplier or specialty chemical partner.

• Cost Reduction in Manufacturing: The one-step nature of the reaction eliminates the need for intermediate isolation and purification stages, which are typically resource-intensive and time-consuming. By consolidating the synthesis into a single vessel operation, manufacturers can achieve substantial cost savings through reduced energy consumption and lower solvent usage. The high atom economy of the reaction ensures that the majority of the starting materials are incorporated into the final product, minimizing waste and maximizing raw material efficiency. Additionally, the avoidance of chromatographic purification in favor of simple precipitation and filtration further drives down operational expenses. This economic efficiency makes the production of these high-value derivatives financially viable for large-scale industrial applications.
• Enhanced Supply Chain Reliability: The use of readily available and stable raw materials mitigates the risk of supply disruptions that often plague specialized chemical manufacturing. Since the reagents involved are common industrial chemicals, sourcing is straightforward and can be diversified across multiple vendors to ensure continuity. The robustness of the reaction conditions means that production can be maintained consistently without frequent adjustments or troubleshooting, leading to predictable output schedules. This reliability is critical for downstream customers who depend on a steady flow of high-purity intermediates for their own production lines. Consequently, adopting this method strengthens the overall resilience of the supply chain against external shocks.
• Scalability and Environmental Compliance: The mild reaction conditions and absence of hazardous reagents make this process highly scalable from kilogram to tonne quantities without significant engineering challenges. The simplified workup generates less hazardous waste compared to traditional methods, facilitating easier compliance with environmental discharge standards. The ability to recycle solvents like dichloromethane further enhances the sustainability profile of the manufacturing process. For companies aiming to expand their production capacity, this technology offers a clear path to commercial scale-up of complex specialty chemicals with minimal environmental footprint. It represents a sustainable manufacturing model that balances economic growth with ecological responsibility.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the production and application of these novel calixarene derivatives. These answers are derived directly from the experimental data and technical specifications provided in the patent documentation. They serve to clarify the operational advantages and performance characteristics of the material for potential partners and end-users. Understanding these details is essential for making informed decisions about integrating this technology into existing supply chains.

Q: How does this one-step method improve upon traditional calixarene phosphorylation?

A: Traditional methods often suffer from incomplete substitution of the phenolic hydroxyl groups and require cumbersome multi-step protection and deprotection sequences. This novel approach utilizes phase transfer catalysis to achieve complete substitution of all eight hydroxyl groups in a single reaction step, significantly simplifying the workflow and improving overall yield.

Q: What purity levels can be achieved with this synthesis route?

A: The process is designed for high efficiency, with experimental data demonstrating product purity greater than 95%. The simplified post-processing, involving precipitation and washing, effectively removes impurities without the need for complex chromatographic separation.

Q: Is this process suitable for large-scale industrial manufacturing?

A: Yes, the method employs mild reaction conditions and readily available raw materials such as p-tert-butylcalix[8]arene and dialkyl chlorophosphates. The straightforward workup procedure involving phase separation and precipitation makes it highly amenable to scale-up for commercial production of rare earth separation agents.
