Advanced Rhodium-Catalyzed Synthesis of Fused Macrocyclic Sulfoximines for Pharmaceutical Applications

The pharmaceutical and agrochemical industries are constantly seeking novel heterocyclic scaffolds that offer unique biological profiles and improved physicochemical properties. In this context, patent CN116239547A introduces a groundbreaking synthesis method for benzo[i][1,2]thiazine-3,7,8-trione-1-oxygen series compounds, a class of fused macrocyclic sulfoximine derivatives that have remained largely unexplored until now. Sulfoximines are increasingly recognized as privileged structures in medicinal chemistry due to their metabolic stability and ability to act as bioisosteres for sulfones and sulfoxides. This specific patent discloses a highly efficient, rhodium-catalyzed C-H/N-H activation strategy that constructs these complex ten-membered ring systems directly from readily available iminosulfones and 2-(phenyliodomethylene)cyclohexane-1,3-diones. The significance of this technological breakthrough lies not only in the creation of new chemical space but also in the operational simplicity of the process, which operates under ambient conditions with exceptional stereocontrol.

For research and development directors evaluating new synthetic routes, the distinction between conventional methodologies and this novel approach is stark. Traditional syntheses of fused sulfoximine heterocycles often rely on harsh oxidative conditions, multi-step sequences involving protecting group manipulations, or the use of stoichiometric amounts of expensive oxidants that generate significant waste. Furthermore, achieving high enantioselectivity in the formation of such strained macrocyclic systems has historically been a formidable challenge, often requiring chiral auxiliaries or resolution steps that drastically reduce overall material throughput. In contrast, the method described in CN116239547A utilizes a synergistic Rh/Ag co-catalytic system that enables direct functionalization without pre-activation of the substrate. This eliminates the need for tedious precursor synthesis and allows for the direct assembly of the core skeleton in a telescoped manner, significantly streamlining the workflow from concept to compound.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Conventional strategies for constructing benzothiazine frameworks frequently suffer from poor atom economy and limited functional group tolerance. Many existing protocols require elevated temperatures or strong acidic/basic conditions that can degrade sensitive pharmacophores often present in late-stage intermediates. Additionally, the reliance on stoichiometric oxidants like hypervalent iodine reagents or peracids in early stages of synthesis can lead to safety hazards and difficult purification profiles due to the formation of inorganic byproducts. From a process chemistry perspective, the inability to control stereocenters during the ring-closing step often necessitates costly chiral separation techniques, such as preparative HPLC or crystallization, which are not ideal for kilogram-scale production. These limitations collectively result in extended lead times, increased raw material costs, and a larger environmental footprint, making conventional routes less attractive for the rapid development of new drug candidates.

The Novel Approach

The novel approach detailed in the patent overcomes these barriers through a sophisticated dual-catalytic cycle that leverages the unique reactivity of rhodium carbenoids or nitrenoids generated in situ. By employing a chiral rhodium catalyst, such as the specific binaphthol-derived complex mentioned in the examples, the reaction achieves outstanding enantioselectivity, with reported ee values reaching up to 98%. The process is remarkably robust, proceeding efficiently at room temperature (25°C) in environmentally benign solvents like ethanol. This mildness ensures that sensitive functional groups, including halides and unsaturated bonds, remain intact, thereby preserving the potential for further diversification. The integration of a second oxidation step using mCPBA allows for the precise installation of the sulfoxide oxygen atom with complete regiocontrol, delivering the final trione product in high yields, often exceeding 90% in optimized examples.

Mechanistic Insights into Rh/Ag Co-Catalyzed C-H Activation

The mechanistic pathway for this transformation involves a complex interplay between the rhodium catalyst and the silver co-catalyst to facilitate sequential bond formations. Initially, the rhodium species activates the diazo or carbene precursor (generated from the iodonium ylide equivalent) to form a reactive metal-carbene intermediate. This electrophilic species then undergoes insertion into the proximal C-H bond of the iminosulfone substrate, a step that is critically dependent on the directing ability of the sulfoximine nitrogen. The silver salt plays a pivotal role in stabilizing the cationic rhodium species and facilitating the departure of the iodide leaving group, thereby accelerating the turnover frequency of the catalytic cycle. Following the C-H insertion and subsequent cyclization to form the dihydro-intermediate, the system undergoes a controlled oxidation. The addition of m-chloroperoxybenzoic acid (mCPBA) selectively oxidizes the sulfur center to the sulfoxide state without over-oxidizing to the sulfone or degrading the sensitive tricarbonyl motif, showcasing the exquisite chemoselectivity of the overall design.

Impurity control is inherently built into this mechanism due to the high specificity of the transition metal catalysis. Unlike radical-based oxidations which can lead to indiscriminate side reactions, the concerted nature of the rhodium-mediated C-H activation minimizes the formation of regioisomers. The patent data indicates that even with substrates containing multiple reactive sites, the reaction proceeds with high fidelity to the desired 10-membered ring product. Furthermore, the use of pivalic acid as an additive helps to buffer the reaction medium and may assist in proton transfer steps during the metallacycle formation, further suppressing the generation of polymeric byproducts or decomposition products. This clean reaction profile simplifies downstream processing, as the crude reaction mixtures typically require minimal purification, often needing only a simple flash column chromatography to achieve analytical purity suitable for biological testing.

How to Synthesize Benzo[i][1,2]thiazine Triones Efficiently

To implement this synthesis in a laboratory or pilot plant setting, operators should follow a strict two-stage protocol that maximizes yield and stereochemical integrity. The process begins with the preparation of the reaction mixture under an inert atmosphere to prevent catalyst deactivation by oxygen or moisture, although the patent notes some tolerance to air in the second step. Precise weighing of the chiral rhodium catalyst and silver salt is essential to maintain the optimal 1:5 molar ratio suggested in the preferred embodiments. The first stage involves stirring the substrates in ethanol at ambient temperature, where the annulation occurs. Upon completion, monitored by TLC, the solvent is removed to prevent interference with the subsequent oxidation. The residue is then taken up in dichloromethane, and the oxidant is added carefully to manage exotherms, although the reaction remains mild. Detailed standardized operating procedures for this synthesis are outlined below.

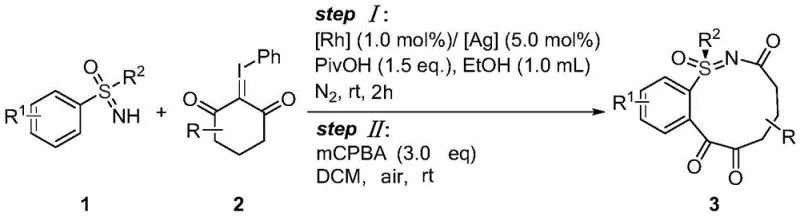

1. Combine iminosulfone, 2-(phenyliodomethylene)cyclohexane-1,3-dione, Rh catalyst, Ag salt, and pivalic acid in ethanol. Stir at room temperature under nitrogen for 2 hours.
2. Remove ethanol solvent, redissolve residue in dichloromethane, and add mCPBA. Continue stirring at room temperature for 1-2 hours.
3. Quench excess oxidant with saturated potassium carbonate, extract with dichloromethane, dry, and purify via flash column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

From a procurement and supply chain perspective, this synthetic route offers compelling economic and logistical benefits that align with modern green chemistry principles. The primary driver for cost reduction is the exceptionally low catalyst loading required; with rhodium usage at merely 1.0 mol%, the expense associated with this precious metal is minimized, and the burden on downstream heavy metal scavenging processes is significantly reduced. This directly translates to lower manufacturing costs per kilogram of active pharmaceutical ingredient (API) intermediate. Moreover, the reaction operates at room temperature, eliminating the need for energy-intensive heating or cryogenic cooling infrastructure. This reduction in utility consumption contributes to a lower carbon footprint and decreased operational expenditures, making the process highly attractive for sustainable manufacturing initiatives.

• Cost Reduction in Manufacturing: The elimination of expensive stoichiometric oxidants in the first step and the use of catalytic amounts of rhodium drastically lower the bill of materials. Since the reaction proceeds with high conversion rates, raw material waste is minimized, improving the overall mass balance. The simplified workup procedure, which avoids complex aqueous washes or distillation steps, further reduces labor and solvent recovery costs. These factors combine to create a highly cost-effective process that enhances the margin potential for high-value pharmaceutical intermediates.
• Enhanced Supply Chain Reliability: The starting materials, including various substituted iminosulfones and cyclohexanedione derivatives, are commercially available or easily synthesized from commodity chemicals. This ensures a stable supply of feedstock and reduces the risk of bottlenecks associated with custom-synthesized precursors. The robustness of the reaction conditions means that production schedules are less likely to be disrupted by equipment failures related to extreme temperature or pressure requirements. Consequently, lead times for delivering high-purity intermediates can be shortened, providing greater agility in responding to market demands.
• Scalability and Environmental Compliance: The use of ethanol and dichloromethane, while requiring proper handling, fits within standard solvent recovery frameworks established in most GMP facilities. The reaction generates minimal hazardous waste compared to traditional heavy metal-mediated couplings. The high atom economy and selectivity mean that waste treatment costs are lower, aiding in compliance with increasingly stringent environmental regulations. The demonstrated scalability in the patent examples, moving from milligram to gram scales without loss of efficiency, confirms the feasibility of scaling this technology to multi-kilogram or ton-level commercial production.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this rhodium-catalyzed technology. These answers are derived directly from the experimental data and specifications provided in the patent literature, ensuring accuracy and relevance for technical decision-makers. Understanding these nuances is critical for assessing the fit of this chemistry within your existing development pipeline.

Q: What are the key advantages of this Rh-catalyzed synthesis method?

A: This method offers high chemoselectivity and excellent enantioselectivity (up to 98% ee) under mild room temperature conditions. It utilizes low catalyst loading (1.0 mol%) and tolerates sensitive functional groups like halogens and esters, making it ideal for complex drug intermediate synthesis.

Q: Is this process suitable for large-scale manufacturing?

A: Yes, the patent demonstrates scalability with successful gram-scale experiments yielding over 90%. The use of common solvents like ethanol and dichloromethane, combined with room temperature operation, simplifies engineering controls and reduces energy costs for commercial production.

Q: What is the substrate scope for this reaction?

A: The reaction exhibits broad substrate compatibility, accommodating various electron-donating and electron-withdrawing groups on the aryl rings. Functional groups such as fluoro, chloro, bromo, cyano, and ester moieties are well-tolerated, allowing for diverse downstream derivatization.
