Advanced Synthesis of Substituted Phenoxy-2-Azabicyclo Octane Derivatives for Oncology Applications

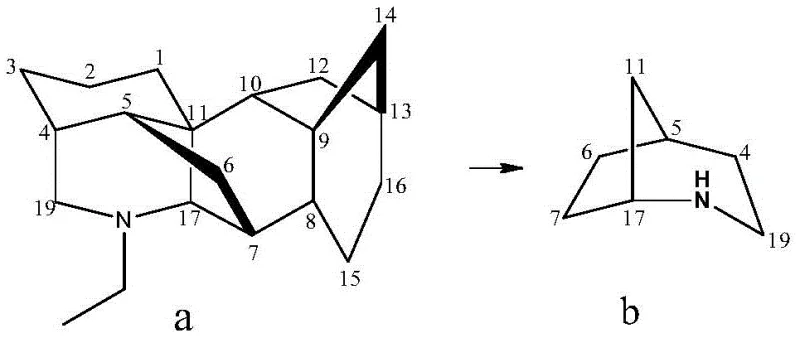

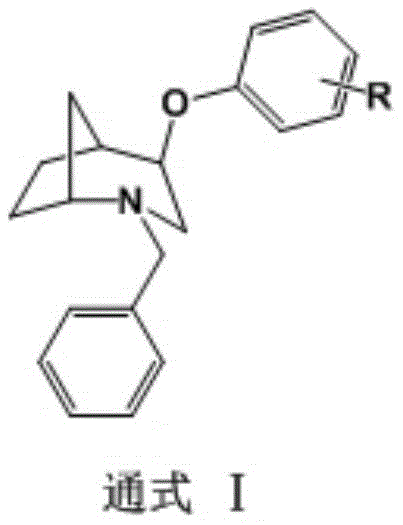

The pharmaceutical industry is constantly seeking novel scaffolds that balance potent biological activity with manageable toxicity profiles, a challenge vividly addressed in patent CN111138361B. This intellectual property introduces a series of substituted phenoxy-2-azabicyclo[3.2.1]octane compounds, representing a strategic evolution from traditional Aconitum alkaloids. While plants of the genus Aconitum have long been recognized for their pharmacological potential, particularly in cardiovascular treatments, their clinical application has been severely hindered by inherent neurotoxicity and cardiotoxicity. The inventors have successfully deconstructed the complex diterpene alkaloid structure to isolate the active, low-toxicity core, subsequently modifying it to create a new class of antitumor agents. This breakthrough not only opens new avenues for oncology drug development but also provides a robust framework for the commercial scale-up of complex pharmaceutical intermediates. By retaining the essential 2-azabicyclo[3.2.1]octane skeleton while introducing substituted phenoxy groups, the invention achieves a delicate balance between efficacy and safety.

To fully appreciate the significance of this innovation, one must understand the limitations of the conventional approach to utilizing Aconitum-derived therapeutics. Historically, the direct administration of aconitine, mesaconine, and hypaconitine was plagued by narrow therapeutic windows due to their severe side effects on the nervous and cardiac systems. Researchers previously attempted to mitigate these risks through formulation changes or combination therapies, but the fundamental molecular toxicity remained a bottleneck. Furthermore, extracting these alkaloids from natural sources introduces variability in purity and supply chain instability, which are critical concerns for a reliable pharmaceutical intermediate supplier. The traditional reliance on plant extraction also poses environmental challenges and limits the ability to perform precise structure-activity relationship (SAR) studies. In contrast, the novel approach detailed in this patent shifts the paradigm from extraction to total synthesis, allowing for precise control over stereochemistry and substituent placement. This synthetic flexibility enables the creation of derivatives like ZY01 through ZY21, each tailored to optimize antitumor potency while minimizing off-target toxicity.

The mechanistic insights into the synthesis of these compounds reveal a sophisticated yet practical application of organic chemistry principles, specifically leveraging the Diels-Alder reaction and ring expansion strategies. The process begins with the formation of a Schiff base from benzylamine hydrochloride and ethyl glyoxylate, which serves as a dienophile in a subsequent [4+2] cycloaddition with cyclopentadiene. This step is crucial as it establishes the bicyclic framework with high stereoselectivity, yielding the (1S, 3S, 4R)-2-benzyl-2-azabicyclo[2.2.1]hept-5-ene-3-carboxylic acid ethyl ester. Following this, catalytic hydrogenation reduces the olefinic bond, and N-alkylation secures the tertiary amine functionality, which is vital for the compound's metabolic stability. The most critical transformation involves the reduction of the ester to an alcohol, conversion to a mesylate, and a subsequent ring expansion to generate the seven-membered ring characteristic of the 2-azabicyclo[3.2.1]octane system. This ring expansion is a key differentiator, as it alters the spatial arrangement of the molecule to better fit the target protein pockets, such as PARP-1 or HSP90, identified in molecular docking studies. Finally, the nucleophilic substitution of the chloro-intermediate with various substituted phenols introduces the diversity needed for SAR optimization, resulting in the final general formula I structures.

Understanding the impurity profile is equally important for R&D teams aiming to replicate this process. The multi-step nature of the synthesis requires rigorous purification at each stage, typically achieved through column chromatography and recrystallization, to ensure high-purity pharmaceutical intermediates. The use of standard reagents like lithium aluminum hydride and methanesulfonyl chloride necessitates strict control over reaction temperatures and quenching procedures to prevent side reactions that could lead to difficult-to-remove byproducts. For instance, the ring expansion step must be carefully monitored to avoid over-reaction or rearrangement that could compromise the integrity of the bicyclic core. By adhering to the specific conditions outlined in the patent, such as maintaining reaction temperatures at 5°C during mesylation and using anhydrous conditions for reductions, manufacturers can achieve consistent quality and reproducibility. This level of process control is essential for meeting the stringent purity specifications required by global regulatory bodies for clinical trial materials.

How to Synthesize Substituted Phenoxy-2-Azabicyclo[3.2.1]Octane Efficiently

The synthesis of these high-value antitumor intermediates requires a systematic approach that balances yield optimization with operational simplicity. The patented route offers a clear pathway from commercially available starting materials to the final active pharmaceutical ingredients, making it an attractive option for contract development and manufacturing organizations. The process is designed to be scalable, utilizing common solvents like ethanol, tetrahydrofuran, and dichloromethane, which facilitates technology transfer from laboratory to pilot plant. Detailed standardized synthesis steps are provided below to guide process chemists in implementing this route effectively.

1. React benzylamine hydrochloride with ethyl glyoxylate to form a Schiff base, followed by Diels-Alder addition with cyclopentadiene to obtain the bicyclic ester precursor.
2. Perform catalytic hydrogenation to reduce the double bond, followed by N-alkylation with benzyl chloride to secure the tertiary amine structure.
3. Reduce the ester to an alcohol using lithium aluminum hydride, convert to a mesylate, and execute a ring expansion to form the 2-azabicyclo[3.2.1]octane core.
4. Complete the synthesis via nucleophilic substitution of the chloro-intermediate with various substituted phenols under reflux conditions to yield the final target compounds.

Commercial Advantages for Procurement and Supply Chain Teams

From a procurement and supply chain perspective, the adoption of this synthetic route offers significant strategic advantages over traditional extraction methods or more complex synthetic alternatives. The reliance on readily available bulk chemicals such as benzylamine hydrochloride, ethyl glyoxylate, and cyclopentadiene ensures a stable and cost-effective supply of raw materials. This accessibility reduces the risk of supply chain disruptions that often plague natural product-based drug development, where crop failures or geopolitical issues can impact availability. Furthermore, the synthetic route eliminates the need for expensive chiral pool starting materials or rare transition metal catalysts, which drastically simplifies the sourcing process and lowers the overall cost of goods sold. The ability to produce a diverse library of derivatives from a common intermediate also allows for rapid response to changing market demands or clinical trial results without the need for entirely new supply chains.

• Cost Reduction in Manufacturing: The synthetic pathway described avoids the use of precious metal catalysts beyond standard palladium on carbon for hydrogenation, which is easily recoverable and reusable. By eliminating the need for exotic reagents or complex enzymatic resolutions, the manufacturing process achieves substantial cost savings. The high yields reported in the examples, often exceeding 80% for key steps like the final etherification, further contribute to economic efficiency by maximizing material throughput. Additionally, the use of standard workup procedures such as aqueous washes and column chromatography means that existing infrastructure in most fine chemical plants can be utilized without major capital investment. This operational efficiency translates directly into a more competitive pricing structure for the final pharmaceutical intermediates.
• Enhanced Supply Chain Reliability: The independence from natural sources of Aconitum plants removes the volatility associated with agricultural supply chains. Synthetic production can be scheduled and scaled according to demand forecasts, ensuring consistent delivery timelines for downstream drug manufacturers. The robustness of the chemical steps, which tolerate standard industrial conditions, means that production can be maintained across multiple geographic locations if necessary, further mitigating supply risk. This reliability is crucial for maintaining the continuity of clinical trials and eventual commercial launch of antitumor drugs. Moreover, the stability of the intermediates allows for easier storage and transportation, reducing logistical complexities and costs associated with cold chain requirements.
• Scalability and Environmental Compliance: The process is inherently scalable, moving seamlessly from gram-scale laboratory synthesis to kilogram and ton-scale commercial production. The reaction conditions, such as room temperature stirring or moderate reflux, are energy-efficient and safe to operate on a large scale. From an environmental standpoint, the synthesis generates manageable waste streams that can be treated using standard effluent processing methods. The avoidance of heavy metal contaminants in the final product simplifies the purification process and ensures compliance with strict ICH guidelines for elemental impurities. This environmental compatibility not only reduces disposal costs but also aligns with the growing corporate sustainability goals of major pharmaceutical companies, making the supplier a more attractive partner.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the production and application of these novel antitumor intermediates. These answers are derived directly from the technical disclosures and experimental data within the patent, providing clarity for potential partners and licensees. Understanding these details is essential for evaluating the feasibility of integrating this technology into your existing drug development pipeline.

Q: What is the primary advantage of these new compounds over traditional Aconitine alkaloids?

A: Traditional Aconitine alkaloids possess strong neurotoxicity and cardiotoxicity which limits their clinical use. The novel substituted phenoxy-2-azabicyclo[3.2.1]octane compounds retain the active low-toxicity part of the aconitine mother nucleus while modifying the structure to significantly reduce toxicity and enhance metabolic stability.

Q: Which cancer cell lines have shown sensitivity to these intermediates?

A: In vitro testing demonstrated significant antitumor activity against human lung cancer A549 cells, human liver cancer HepG2 cells, and human breast cancer MCF-7 cells. Specific derivatives like ZY10, ZY11, and ZY12 exhibited potent inhibition with IC50 values in the low micromolar range.

Q: Is the synthesis route suitable for large-scale industrial production?

A: Yes, the patent describes a preparation method that is simple and convenient to operate. The route utilizes readily available starting materials like benzylamine hydrochloride and cyclopentadiene, and avoids overly complex purification steps, making it highly suitable for commercial scale-up.
