Advanced Catalytic Route for Dihydrotriazolopyrimidine Derivatives: Scalability and Commercial Viability

Introduction to Advanced Catalytic Methodology

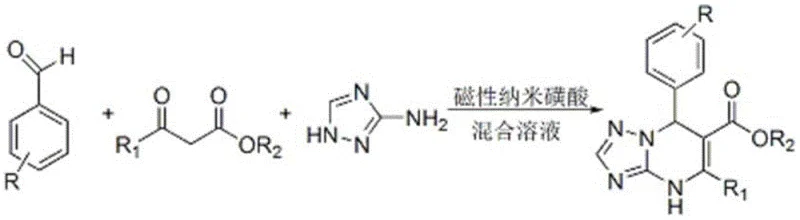

The pharmaceutical industry continuously seeks robust synthetic pathways that balance high efficiency with environmental sustainability, particularly for complex heterocyclic scaffolds. Patent CN110540540B introduces a transformative approach for the preparation of dihydro[1,2,4]triazolo[1,5-a]pyrimidine derivatives, a class of compounds renowned for their potent biological activities ranging from antifungal to anticancer properties. This innovation leverages a magnetic nano sulfonic acid catalyst to drive a one-pot three-component condensation reaction, effectively addressing the longstanding challenges of catalyst recovery and waste generation associated with traditional homogeneous acid catalysis. By integrating nanotechnology with classical organic synthesis, this method offers a compelling solution for the commercial scale-up of complex pharmaceutical intermediates, ensuring that production processes are not only chemically efficient but also economically viable for large-scale manufacturing operations.

For R&D directors and process chemists, the significance of this patent lies in its ability to streamline the synthesis of these valuable heterocycles without compromising on purity or yield. The utilization of a magnetic nanocatalyst allows for a simplified work-up procedure where the catalyst is physically separated from the reaction mixture using an external magnetic field, eliminating the need for energy-intensive filtration or chromatographic purification steps often required with soluble acids. This technological leap facilitates cost reduction in pharmaceutical intermediate manufacturing by minimizing downstream processing time and material loss. Furthermore, the reaction conditions are mild, operating at atmospheric pressure and moderate temperatures between 78°C and 86°C, which enhances operational safety and reduces the energy footprint of the production facility, aligning perfectly with modern green chemistry principles.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of dihydropyrimidine and triazolopyrimidine derivatives has relied heavily on traditional Brønsted acids such as p-toluenesulfonic acid, acetic acid, or sulfamic acid. While these catalysts are chemically effective in promoting the necessary condensation and cyclization steps, they suffer from critical drawbacks that hinder industrial application. The primary issue is the inability to recover and reuse these homogeneous catalysts, leading to significant accumulation of acidic waste streams that require costly neutralization and disposal procedures. Additionally, the separation of the product from the reaction mixture often involves complex extraction and purification protocols to remove residual acid, which can degrade sensitive functional groups and lower the overall isolated yield. Previous attempts to use solid acids like Amberlyst-15 improved recyclability slightly but were plagued by low catalytic efficiency, long reaction times, and complicated catalyst preparation processes that did not justify the marginal gains in sustainability.

The Novel Approach

In stark contrast, the methodology disclosed in CN110540540B utilizes a magnetic nano sulfonic acid catalyst that combines the high activity of liquid acids with the separability of solid heterogeneous catalysts. This innovative material features a magnetic core that allows for instantaneous separation from the reaction medium simply by applying an external magnet, a feature that drastically simplifies the post-reaction workflow. The catalyst can be reused multiple times—specifically noted as 5 to 7 cycles in the experimental data—without any significant treatment or regeneration, maintaining stable catalytic activity throughout. This approach not only resolves the waste disposal issues inherent to liquid acids but also ensures a consistent supply of active catalytic sites, thereby stabilizing the production timeline. The reaction proceeds in a mixed solvent system of ethanol, dimethylformamide, and water, which further enhances the green credentials of the process by reducing the reliance on volatile and toxic organic solvents.

Mechanistic Insights into Magnetic Nano Sulfonic Acid Catalysis

The catalytic mechanism driving this transformation involves the activation of carbonyl groups through proton donation from the surface sulfonic acid groups (-SO3H) anchored on the magnetic nanoparticles. In the initial step, the magnetic nano sulfonic acid activates the aromatic aldehyde, facilitating a Knoevenagel condensation with the beta-keto ester to form an alpha,beta-unsaturated intermediate. Subsequently, the 3-amino-1,2,4-triazole acts as a nucleophile, undergoing a Michael addition to the activated double bond. The high surface area of the nano-catalyst ensures that these activation events occur rapidly and efficiently, minimizing the formation of by-products that typically arise from prolonged exposure to harsh acidic conditions. The confinement of the reaction within the solvent cage surrounding the nanoparticles likely contributes to the observed high selectivity, directing the reaction pathway exclusively towards the desired dihydro[1,2,4]triazolo[1,5-a]pyrimidine scaffold rather than alternative polymerization or decomposition routes.

From an impurity control perspective, the use of this specific catalyst system is advantageous because it avoids the introduction of metal contaminants often associated with transition metal catalysis, which is a critical consideration for high-purity pharmaceutical intermediates. The magnetic nature of the catalyst ensures that no particulate matter remains in the final solution once separation is complete, unlike traditional filtration methods where fine catalyst dust might pass through filter papers. Furthermore, the mild reaction temperature range of 78-86°C prevents thermal degradation of the sensitive triazole ring and the ester functionalities, preserving the structural integrity of the molecule. The optimized solvent ratio of ethanol to DMF to water creates a polarity environment that supports the solubility of polar intermediates while allowing the final product to precipitate out upon cooling, acting as a self-purification mechanism that drives the equilibrium towards product formation and inherently limits impurity carryover.

How to Synthesize Dihydro[1,2,4]triazolo[1,5-a]pyrimidine Derivatives Efficiently

The synthesis protocol outlined in the patent provides a clear roadmap for replicating these high-yielding reactions in a laboratory or pilot plant setting. The process begins with the precise weighing of stoichiometric amounts of the aromatic aldehyde, beta-keto ester, and 3-amino-1,2,4-triazole, which are then introduced into a reaction vessel containing the pre-prepared ethanol-dimethylformamide-water solvent mixture. The magnetic nano sulfonic acid catalyst is added in a specific mass ratio relative to the aldehyde substrate, typically ranging from 12% to 20% of the aldehyde millimole amount, ensuring sufficient active sites are available without excessive material usage. The mixture is stirred at room temperature to ensure homogeneity before heating is applied, a step that is crucial for preventing localized hot spots that could lead to side reactions. Detailed standardized synthesis steps follow below to guide the technical team through the exact operational parameters.

1. Combine aromatic aldehyde, beta-keto ester, and 3-amino-1,2,4-triazole in an ethanol-DMF-water solvent system with magnetic nano sulfonic acid catalyst.
2. Heat the reaction mixture to 78-86°C under atmospheric pressure and stir for 85-146 minutes until completion monitored by TLC.
3. Separate the magnetic catalyst using an external magnet, cool the filtrate to induce crystallization, and isolate the high-purity product via filtration.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this catalytic technology translates directly into enhanced operational resilience and cost efficiency. The ability to recycle the magnetic nano sulfonic acid catalyst for multiple batches without regeneration represents a substantial reduction in raw material costs, as the expense of purchasing fresh catalyst for every run is eliminated. This reusability also mitigates supply chain risks associated with the sourcing of specialized catalytic materials, as a single initial purchase can support extended production campaigns. Moreover, the simplified work-up procedure, which relies on magnetic separation rather than complex filtration or distillation, significantly reduces the man-hours required for batch processing. This efficiency gain allows manufacturing facilities to increase their throughput capacity without requiring additional capital investment in new equipment, effectively lowering the cost per kilogram of the final intermediate.

• Cost Reduction in Manufacturing: The elimination of expensive transition metals and the reduction in solvent consumption due to the optimized ternary solvent system contribute to a leaner cost structure. By avoiding the need for extensive purification steps like column chromatography, which are solvent-intensive and time-consuming, the overall production cost is significantly lowered. The high yield reported in the patent examples, often exceeding 85%, means that less starting material is wasted, maximizing the return on investment for every kilogram of raw material purchased. This economic efficiency is further compounded by the potential to recover and reuse the reaction solvent, creating a closed-loop system that minimizes waste disposal fees.
• Enhanced Supply Chain Reliability: The robustness of the catalyst and the simplicity of the reaction conditions ensure consistent batch-to-batch quality, which is vital for maintaining uninterrupted supply to downstream API manufacturers. The use of readily available and inexpensive starting materials such as substituted benzaldehydes and beta-keto esters ensures that the supply chain is not vulnerable to shortages of exotic reagents. Additionally, the short reaction times of approximately 85 to 146 minutes allow for rapid turnover of production vessels, enabling the facility to respond quickly to fluctuations in market demand. This agility is a key competitive advantage in the fast-paced pharmaceutical sector where time-to-market is critical.
• Scalability and Environmental Compliance: The process is inherently scalable due to the absence of hazardous reagents and the use of atmospheric pressure, removing the need for specialized high-pressure reactors that are difficult to scale. The magnetic separation technique scales linearly from gram to tonne scale without loss of efficiency, making the transition from R&D to commercial production seamless. From an environmental compliance standpoint, the reduction in acidic waste and the use of a greener solvent mixture align with increasingly stringent global regulations on chemical manufacturing. This proactive approach to sustainability reduces the regulatory burden on the company and enhances its reputation as a responsible reliable pharmaceutical intermediate supplier.

Frequently Asked Questions (FAQ)

The following questions address common technical inquiries regarding the implementation and optimization of this catalytic system. These insights are derived directly from the experimental data and comparative analysis presented in the patent documentation, providing clarity on the practical aspects of the technology. Understanding these nuances is essential for process engineers looking to integrate this method into existing production lines or for quality assurance teams establishing specification limits. The answers reflect the proven capabilities of the magnetic nano sulfonic acid catalyst in real-world synthesis scenarios.

Q: How many times can the magnetic nano sulfonic acid catalyst be recycled without significant loss of activity?

A: According to the patent data, the magnetic nano sulfonic acid catalyst demonstrates excellent stability and can be recycled for at least 5 to 7 cycles. The catalytic activity remains robust throughout these cycles, ensuring consistent product yield and purity while significantly reducing catalyst consumption costs.

Q: What are the specific advantages of the ethanol-DMF-water solvent system compared to traditional organic solvents?

A: The ternary solvent system optimizes the solubility of diverse reactants while maintaining a greener profile compared to pure organic solvents. Crucially, this specific ratio allows for effective product crystallization upon cooling, simplifying the isolation process and enabling the potential recovery and recycling of the solvent mother liquor.

Q: Does this method support a wide range of aromatic aldehyde substrates?

A: Yes, the method exhibits broad substrate tolerance. The patent examples successfully demonstrate the synthesis of derivatives using various substituted aromatic aldehydes, including those with electron-withdrawing groups like nitro, chloro, bromo, and fluoro substituents at ortho, meta, and para positions, yielding products with high purity exceeding 99%.
