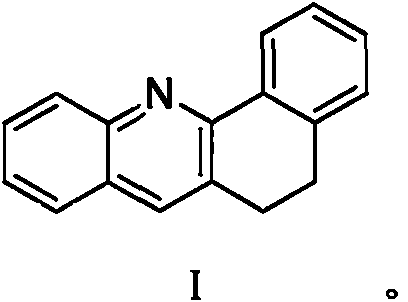

Advanced Copper-Catalyzed Synthesis of 5,6-Dihydrobenzo[c]acridine for Commercial Scale-Up

The pharmaceutical and fine chemical industries are constantly seeking robust methodologies for constructing nitrogen-containing heterocycles, which serve as critical scaffolds for bioactive molecules. Patent CN112500346B introduces a groundbreaking synthetic strategy for producing 5,6-dihydrobenzo[c]acridine, a valuable structural motif found in various therapeutic agents and functional materials. This innovation leverages a copper-catalyzed oxidative cyclization between 1-tetralone oxime esters and ortho-halobenzaldehydes, operating efficiently under an air atmosphere. By utilizing inexpensive copper salts and avoiding precious metals, this technology addresses the urgent industry demand for sustainable and cost-effective manufacturing processes. The method not only streamlines the synthetic pathway but also ensures high atom economy, making it an attractive option for reliable pharmaceutical intermediate supplier networks aiming to optimize their production portfolios.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditional synthetic routes for accessing acridine derivatives often suffer from significant drawbacks that hinder their commercial viability and scalability. Conventional methods frequently rely on multi-step sequences involving harsh reaction conditions, such as extremely high temperatures or the use of strong acids and bases, which can lead to poor selectivity and the formation of difficult-to-remove impurities. Furthermore, many established protocols utilize expensive noble metal catalysts like palladium or rhodium, which drastically inflate the raw material costs and necessitate rigorous downstream purification to meet stringent residual metal specifications required by regulatory bodies. The reliance on stoichiometric oxidants in older methodologies also generates substantial chemical waste, creating environmental compliance challenges and increasing the burden on waste treatment facilities, thereby complicating the supply chain logistics for high-purity intermediates.

The Novel Approach

In stark contrast, the novel approach detailed in the patent data utilizes a streamlined one-pot synthesis that dramatically simplifies the operational complexity while enhancing economic efficiency. By employing 1-tetralone oxime esters as versatile building blocks, the reaction achieves direct C-N bond formation and subsequent cyclization in a single vessel, effectively reducing the number of unit operations required. The use of molecular oxygen from the air as the oxidant represents a paradigm shift towards green chemistry, eliminating the need for hazardous external oxidizing agents and reducing the overall E-factor of the process. This methodology allows for the use of abundant and low-cost copper catalysts, which are far more economically feasible for tonnage production than precious metals, thus offering a compelling solution for cost reduction in API manufacturing without compromising on yield or product quality.

Mechanistic Insights into Copper-Catalyzed Oxidative Cyclization

The core of this transformative synthesis lies in the intricate interplay between the copper catalyst, the nitrogen ligand, and the oxidative environment. The reaction initiates with the coordination of the copper species to the oxime ester and the ortho-halobenzaldehyde, facilitating an oxidative addition or radical pathway that activates the C-H bonds adjacent to the nitrogen center. The presence of additives such as sodium bisulfite plays a crucial role in modulating the oxidation state of the copper center, ensuring the catalytic cycle remains active throughout the prolonged heating period at temperatures ranging from 120°C to 160°C. Ligands like 1,10-phenanthroline stabilize the copper complex, preventing aggregation and deactivation, which is essential for maintaining high turnover numbers over the course of the reaction. This precise control over the catalytic environment allows for the selective formation of the fused acridine ring system while minimizing side reactions such as polymerization or over-oxidation.

Impurity control is inherently built into the mechanism through the specificity of the copper-ligand system and the mild nature of the oxidative conditions. Unlike aggressive acid-mediated cyclizations that can cause skeletal rearrangements or decomposition of sensitive functional groups, this aerobic copper-catalyzed process proceeds under relatively neutral conditions. The use of ortho-fluoro or ortho-chloro benzaldehydes provides a leaving group that is expelled cleanly during the ring-closing step, preventing the accumulation of halogenated byproducts that are common in other cross-coupling reactions. Furthermore, the reaction's tolerance to air suggests a robust mechanism that is less susceptible to trace moisture or oxygen fluctuations, leading to a cleaner crude reaction profile. This inherent selectivity reduces the load on downstream purification steps, such as column chromatography or recrystallization, ensuring that the final product meets the rigorous purity standards demanded by the pharmaceutical sector.

How to Synthesize 5,6-Dihydrobenzo[c]acridine Efficiently

The practical implementation of this synthesis is designed for ease of operation, requiring standard laboratory or plant equipment without the need for specialized high-pressure reactors or inert gas manifolds. The process begins by charging a reaction vessel with the requisite molar ratios of 1-tetralone oxime ester, ortho-halobenzaldehyde, the copper catalyst, the nitrogenous ligand, and the sulfite additive in a suitable solvent like 1,2-dichloroethane. The mixture is then heated to the optimal temperature range, typically around 130°C, and stirred under an open air atmosphere for a duration of approximately 12 to 16 hours to ensure complete conversion. Following the reaction, the workup involves standard extraction and purification techniques, with column chromatography being the preferred method to isolate the target compound in high yields, often exceeding 50% even on initial screening scales. The detailed standardized synthesis steps see the guide below.

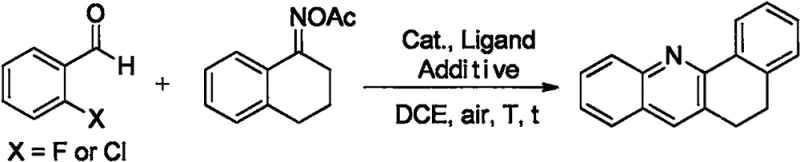

1. Combine 1-tetralone oxime ester, o-halobenzaldehyde, a copper catalyst (such as cuprous chloride), a ligand (like 1,10-phenanthroline), an additive (sodium bisulfite), and an organic solvent (1,2-dichloroethane) in a reaction vessel.
2. Heat the reaction mixture using an oil bath to a temperature between 120°C and 160°C, preferably 130°C, while stirring under an air atmosphere for approximately 12 hours.
3. Upon completion of the reaction, purify the crude mixture using column chromatography to isolate the final 5,6-dihydrobenzo[c]acridine product with high purity.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this copper-catalyzed methodology presents a strategic opportunity to optimize sourcing strategies and reduce total landed costs. The shift from precious metal catalysts to base metal copper systems fundamentally alters the cost structure of the intermediate, removing the volatility associated with rhodium or palladium pricing. Additionally, the simplicity of the reaction setup means that production can be outsourced to a wider range of contract manufacturing organizations (CMOs) that may not possess specialized high-tech infrastructure, thereby increasing supply chain resilience and reducing lead time for high-purity intermediates. The use of commercially available starting materials like ortho-halobenzaldehydes and tetralone derivatives ensures a stable supply base, mitigating the risk of raw material shortages that often plague complex synthetic routes dependent on custom-synthesized precursors.

• Cost Reduction in Manufacturing: The elimination of expensive noble metal catalysts results in significant raw material savings, as copper salts are orders of magnitude cheaper than their palladium counterparts. Furthermore, the use of air as the oxidant removes the cost of purchasing and handling stoichiometric chemical oxidants, while the simplified one-pot procedure reduces labor hours and energy consumption associated with multiple isolation and purification steps. These factors combine to create a substantially lower cost of goods sold (COGS), allowing for more competitive pricing in the final API market.
• Enhanced Supply Chain Reliability: The robustness of the reaction conditions, which tolerate air and utilize common solvents, ensures consistent batch-to-batch reproducibility, a critical factor for maintaining uninterrupted supply lines. The availability of diverse ligand and additive options, such as 2,2'-bipyridine or sodium thiosulfate, provides flexibility in sourcing; if one specific reagent faces supply constraints, alternatives listed in the patent can be substituted without re-validating the entire process. This flexibility safeguards against single-source supplier risks and ensures continuous availability of the critical acridine intermediate.
• Scalability and Environmental Compliance: The process is inherently scalable due to the absence of hazardous reagents and the use of mild thermal conditions, facilitating a smooth transition from kilogram-scale development to multi-ton commercial production. The reduced generation of heavy metal waste and the avoidance of toxic oxidants align with increasingly strict global environmental regulations, simplifying the permitting process for manufacturing sites. This environmental compatibility not only reduces waste disposal costs but also enhances the corporate sustainability profile of the supply chain partners involved in the production.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this synthesis technology, derived directly from the patent specifications and experimental data. Understanding these details is crucial for R&D teams evaluating the feasibility of integrating this route into their existing pipelines and for procurement teams assessing the long-term viability of the supply source. The answers provided reflect the specific advantages and operational parameters defined in the intellectual property, ensuring accurate expectations for yield, purity, and process safety.

Q: What are the key advantages of using 1-tetralone oxime ester in this synthesis?

A: Using 1-tetralone oxime ester as a starting material significantly simplifies the synthetic route compared to traditional methods. It acts as both a nitrogen source and a carbon framework builder, eliminating the need for complex pre-functionalization steps and improving overall atom economy.

Q: Why is an air atmosphere preferred over inert gas for this reaction?

A: The reaction utilizes molecular oxygen from the air as the terminal oxidant, which regenerates the active copper catalyst species. This eliminates the need for expensive stoichiometric oxidants or hazardous peroxide reagents, making the process safer and more environmentally friendly for large-scale production.

Q: Can this method be scaled for industrial pharmaceutical manufacturing?

A: Yes, the method is highly suitable for scale-up. It employs cheap and readily available copper catalysts, operates at moderate temperatures (120-160°C), and uses common solvents like 1,2-dichloroethane, ensuring that the process is robust, cost-effective, and easy to implement in standard chemical reactors.
