Scalable Synthesis of Heterocyclic Helicene Analogs Using Low-Valent Titanium Reductive Coupling

Scalable Synthesis of Heterocyclic Helicene Analogs Using Low-Valent Titanium Reductive Coupling

The rapid advancement of organic electronics and chiral optoelectronics has intensified the demand for high-performance helicene derivatives, specifically those capable of exhibiting strong circularly polarized luminescence and nonlinear optical properties. Patent CN102786533A introduces a groundbreaking methodology for the preparation of [5]helicene and [7]helicene analogs containing heterocyclic structures, addressing critical bottlenecks in current synthetic routes. This technology utilizes a low-valent titanium reagent system to facilitate the reductive coupling of readily available bis-imine compounds with solid phosgene. The resulting heterocyclic helicene analogs, represented by general formulas (I) and (II), offer a versatile platform for developing next-generation display materials and pharmaceutical intermediates. By leveraging this robust chemical transformation, manufacturers can access complex chiral architectures that were previously difficult to synthesize with high efficiency.

The significance of this invention lies in its ability to enrich the structural diversity of helicene analogs through a streamlined one-pot procedure. Unlike traditional methods that often require harsh conditions or expensive catalysts, this approach operates under relatively mild reflux conditions in tetrahydrofuran. The versatility of the method is demonstrated by the wide range of acceptable substituents, including halogens, alkoxy groups, and alkyl chains, allowing for fine-tuning of the electronic and steric properties of the final product. For procurement managers and R&D directors seeking a reliable helicene analog supplier, this patent represents a pivotal shift towards more cost-effective and scalable manufacturing processes for advanced organic materials.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of helicene compounds has relied heavily on photooxidative cyclization of substituted stilbenes, a method pioneered by researchers such as Liu and Katz. While effective for simple hydrocarbons, this classical approach suffers from significant drawbacks when applied to heteroatom-containing systems, often requiring high-energy UV irradiation which poses safety risks and limits scalability. Furthermore, alternative strategies involving transition metal catalysis, such as the cobalt-catalyzed [2+2+2] cyclotrimerization reported by the Stará group or the palladium-catalyzed intramolecular arylation by Nozaki, introduce additional complexities. These conventional routes frequently involve multi-step sequences, expensive noble metal catalysts, and rigorous purification requirements to remove trace metal impurities, which is detrimental for electronic grade applications.

In addition to the economic burden of precious metals, conventional methods often struggle with regioselectivity and total yield. For instance, the synthesis of diaza-helicenes via oxidation of diamines using m-chloroperoxybenzoic acid, as reported by Caronna, is plagued by the formation of numerous by-products, necessitating tedious chromatographic separations. The reliance on gaseous reagents or unstable intermediates in older protocols further complicates the supply chain, making consistent commercial production challenging. These limitations highlight the urgent need for a more robust, atom-economical, and operationally simple synthetic strategy that can deliver high-purity helicene analogs without the baggage of complex catalytic cycles or hazardous photochemical setups.

The Novel Approach

The methodology disclosed in CN102786533A offers a transformative solution by employing a low-valent titanium-mediated reductive coupling strategy. This novel approach bypasses the need for photochemical activation or expensive palladium/cobalt catalysts, instead utilizing an in-situ generated titanium species derived from samarium and titanium tetrachloride. The reaction proceeds efficiently between bis-imine precursors and solid phosgene, directly constructing the fused heterocyclic core of the helicene skeleton. This reductive cyclization not only shortens the synthetic route significantly but also improves the overall atom economy by minimizing waste generation. The use of solid phosgene as a carbonyl source provides a safer and more manageable alternative to gaseous phosgene, enhancing operational safety in industrial settings.

Moreover, this new route demonstrates exceptional tolerance for various functional groups, enabling the synthesis of a broad library of derivatives with tailored properties. By simply modifying the substituents on the bis-imine starting material, chemists can precisely control the electronic characteristics of the resulting helicene, such as band gap and emission wavelength. The method's simplicity, characterized by standard reflux conditions and straightforward workup procedures involving acid quenching and recrystallization, makes it highly attractive for commercial scale-up. This represents a substantial improvement over prior art, offering a direct path to high-value heterocyclic helicenes with reduced production costs and enhanced supply chain reliability.

Mechanistic Insights into Low-Valent Titanium Reductive Coupling

The core of this innovative synthesis lies in the generation and reactivity of the low-valent titanium reagent. When samarium powder is reacted with titanium tetrachloride (TiCl4) in anhydrous tetrahydrofuran under reflux, a highly active titanium species is formed, typically considered to be a mixture of Ti(0), Ti(I), or Ti(II). This low-valent titanium acts as a powerful single-electron transfer agent or a reductant that facilitates the coupling of the imine functionalities. The mechanism likely involves the coordination of the titanium species to the nitrogen atoms of the bis-imine substrate, followed by the insertion of the carbonyl group from the decomposed solid phosgene. This sequence triggers an intramolecular reductive cyclization, forging the new carbon-carbon and carbon-heteroatom bonds required to close the helicene rings.

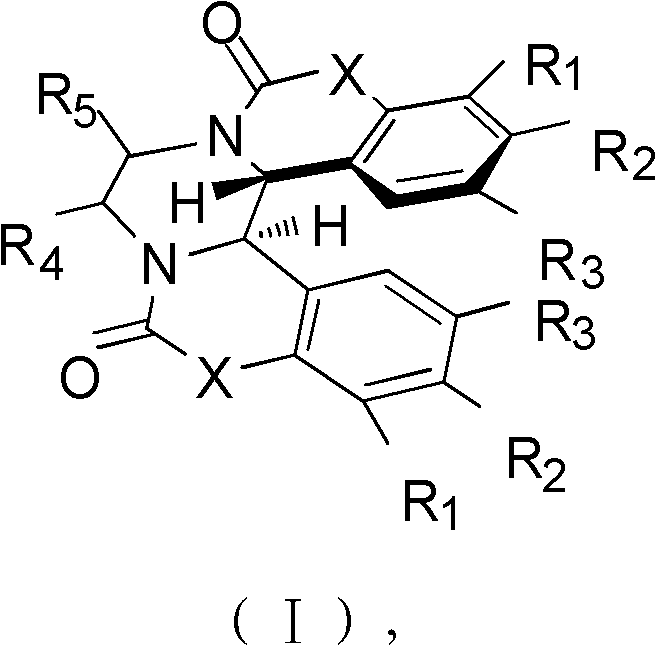

Crucially, the stereochemical outcome of the reaction is influenced by the steric environment of the starting bis-imine. The patent data indicates that by selecting specific substituents (R4, R5) on the aliphatic bridge of the precursor, it is possible to exert stereoselective control over the helicity of the final product. The reductive coupling effectively locks the conformation of the molecule into a twisted, helical shape due to the steric crowding of the ortho-fused rings. Understanding this mechanistic nuance is vital for R&D teams aiming to produce enantiomerically enriched materials for chiral applications. The robustness of the titanium system ensures that even with bulky substituents like cyclohexyl groups, the cyclization proceeds with high efficiency, as evidenced by the successful synthesis of various substituted analogs.

How to Synthesize Heterocyclic Helicene Analogs Efficiently

The practical implementation of this synthesis involves a carefully controlled sequence of reagent preparation and reaction management to ensure optimal yields and purity. The process begins with the rigorous exclusion of moisture and oxygen, as the low-valent titanium reagent is highly sensitive to air and water. Operators must prepare the titanium reagent fresh or under strict inert atmosphere conditions before introducing the organic substrates. The subsequent addition of the bis-imine and solid phosgene mixture must be performed slowly to manage the exotherm and prevent side reactions. Following the reflux period, the reaction is quenched with dilute hydrochloric acid, which serves to decompose any remaining titanium species and protonate the product for easier isolation.

1. Prepare the low-valent titanium reagent by refluxing samarium powder and TiCl4 in anhydrous THF under nitrogen protection for 2 hours.
2. Dissolve the bis-imine compound and solid phosgene in anhydrous THF, then slowly add this mixture to the prepared titanium reagent.
3. Reflux the reaction mixture for 2 to 3 hours, followed by acid quenching, extraction, and recrystallization to isolate the pure helicene analog.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this titanium-mediated synthesis offers distinct strategic advantages over traditional helicene manufacturing methods. The primary benefit stems from the elimination of expensive noble metal catalysts such as palladium or cobalt, which are subject to volatile market pricing and supply constraints. By replacing these with abundant and inexpensive metals like titanium and samarium, the raw material costs are significantly reduced. Furthermore, the removal of heavy metal catalysts simplifies the downstream purification process, eliminating the need for costly and time-consuming metal scavenging steps. This directly translates to a lower cost of goods sold (COGS) and a faster time-to-market for finished products.

• Cost Reduction in Manufacturing: The utilization of solid phosgene and low-valent titanium reagents drastically lowers the input costs compared to photochemical or noble-metal catalyzed routes. Solid phosgene is a stable, crystalline solid that is easier and cheaper to transport and store than hazardous gases, reducing logistical overheads. Additionally, the high yields reported in the patent examples, often exceeding 70% and reaching up to 89% for certain derivatives, mean less raw material waste and higher throughput per batch. This efficiency gain allows for substantial cost savings in electronic chemical manufacturing without compromising on the quality of the final helicene analogs.
• Enhanced Supply Chain Reliability: The starting materials for this process, including substituted benzaldehydes, amines, and solid phosgene, are commodity chemicals available from multiple global suppliers. This diversification of the supply base mitigates the risk of single-source dependency that often plagues specialized catalyst-driven syntheses. The robustness of the reaction conditions, which do not require specialized photochemical reactors or ultra-high vacuum systems, means that production can be easily transferred between different manufacturing sites. This flexibility ensures continuous supply continuity even in the face of regional disruptions, making it a reliable choice for long-term procurement contracts.
• Scalability and Environmental Compliance: The synthetic route is inherently scalable, moving seamlessly from gram-scale laboratory experiments to multi-kilogram commercial production. The use of standard reflux equipment and common solvents like THF and chloroform aligns well with existing infrastructure in fine chemical plants. From an environmental perspective, the avoidance of toxic gaseous phosgene and the reduction of heavy metal waste contribute to a greener manufacturing profile. The simplified workup procedure, involving basic extraction and recrystallization, generates less hazardous waste compared to complex chromatographic purifications, aiding in compliance with increasingly stringent environmental regulations.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the production and application of these helicene analogs. The answers are derived directly from the experimental data and specifications outlined in the patent documentation, providing clarity on yield expectations, safety protocols, and structural versatility. Understanding these details is essential for technical teams evaluating the feasibility of integrating these materials into their product pipelines.

Q: What are the typical yields for this helicene synthesis method?

A: According to the patent examples, yields range significantly based on substituents, typically between 60% and 89%. For instance, unsubstituted analogs achieved 88% yield, while methoxy-substituted variants reached up to 89%.

Q: Why is solid phosgene preferred over gaseous phosgene in this process?

A: Solid phosgene (bis(trichloromethyl) carbonate) is safer and easier to handle than toxic gaseous phosgene. It allows for precise stoichiometric control and simplifies the supply chain logistics for commercial scale-up.

Q: Can the ring size of the helicene be controlled?

A: Yes, the patent demonstrates that by controlling the number of aromatic rings in the starting bis-imine原料 (Formula III vs Formula IV), manufacturers can selectively synthesize either [5]helicene or [7]helicene analogs.
