Advanced Aqueous Synthesis of Strontium Ranelate Octahydrate for Commercial Scale-Up

The pharmaceutical industry is constantly seeking more efficient and environmentally benign pathways for the production of critical active pharmaceutical ingredients (APIs), particularly for treatments addressing chronic conditions like osteoporosis. Patent CN102241663B introduces a significant technological breakthrough in the synthesis of Strontium Ranelate Octahydrate, a potent agent known for its dual action in stimulating osteoblast formation and inhibiting osteoclast resorption. This patent details a novel preparation method that fundamentally shifts the paradigm from traditional solvent-intensive processes to a streamlined, water-only system. By utilizing a specific fine-powdered form of the key intermediate, 2-[N,N-di(carboxymethyl)amino]-3-cyano-4-carboxymethyl-thiophene-5-carboxylic acid tetraester, the inventors have achieved a reaction profile that is not only chemically superior but also industrially robust. The method operates under remarkably mild conditions, typically between 20°C and 50°C, avoiding the harsh thermal stress of refluxing alcohol mixtures found in prior art. This innovation directly addresses the critical needs of modern pharmaceutical manufacturing, offering a route that delivers exceptional purity with total impurities controlled below 0.3% and individual impurities under 0.05%. For global procurement teams and R&D directors, this represents a viable pathway to secure a reliable pharmaceutical intermediates supplier capable of delivering high-quality materials with reduced environmental footprint and operational complexity.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of Strontium Ranelate has been plagued by inefficiencies inherent to solvent selection and reaction heterogeneity. Conventional Method 1, often cited in earlier patents like CN03134813, relies on the direct reaction of the tetraester intermediate with strontium hydroxide in aqueous or alcoholic media under reflux conditions. This approach suffers from severe kinetic limitations because the reaction is heterogeneous; the solid intermediate does not dissolve effectively, leading to incomplete conversion even after prolonged reaction times exceeding 8 hours. Consequently, the final product often retains more than 1% of the unreacted intermediate, necessitating costly and difficult purification steps to meet pharmacopeial standards. Furthermore, Method 2, described in patents such as CN200610014798, attempts to mitigate this by first forming a soluble sodium salt in an ethanol-water mixture before adding strontium chloride. While this improves solubility, it introduces the significant logistical burden of handling large volumes of organic solvents. The requirement to distill off ethanol adds substantial energy costs and extends the production cycle time, while still failing to reduce single impurities below the desirable 0.1% threshold. These legacy processes create bottlenecks in cost reduction in API manufacturing, as they demand complex solvent recovery infrastructure and yield products with inconsistent quality profiles that pose risks to patient safety.

The Novel Approach

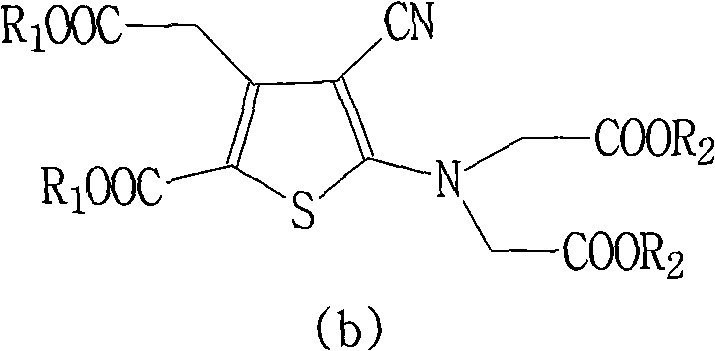

The methodology disclosed in CN102241663B offers a transformative solution by leveraging the unique physicochemical properties of finely micronized starting materials in a purely aqueous environment. The core innovation lies in the use of intermediate (b) processed into a fine powder passing through 30 to 120 mesh sieves. This physical modification drastically increases the specific surface area, allowing for rapid and complete hydrolysis when treated with sodium hydroxide in water at moderate temperatures. Unlike the heterogeneous mess of previous methods, this process transitions into a homogeneous phase upon dissolution, ensuring that every molecule of the starting material is accessible for reaction. The subsequent addition of strontium chloride triggers a clean metathesis reaction, precipitating the target Strontium Ranelate Octahydrate with high crystallinity. By eliminating organic co-solvents entirely, the process removes the need for energy-intensive distillation and solvent recycling, thereby simplifying the workflow significantly. This approach not only enhances the chemical yield to an impressive 90-95% range but also ensures that the impurity profile is tightly controlled, with total related substances remaining below 0.3%. For supply chain heads, this translates to a more predictable and scalable manufacturing process that minimizes waste generation and maximizes throughput efficiency.

Mechanistic Insights into Aqueous Hydrolysis and Metathesis

The chemical elegance of this synthesis lies in the sequential hydrolysis and salt formation steps, which are meticulously optimized to prevent side reactions. Initially, the tetraester groups on the thiophene ring of intermediate (b) undergo base-catalyzed hydrolysis in the presence of 4 to 5 molar equivalents of sodium hydroxide. The use of water as the sole solvent is critical here; it acts not just as a medium but as a reactant, facilitating the nucleophilic attack on the ester carbonyls. The mild temperature range of 20°C to 50°C is sufficient to drive this hydrolysis to completion without promoting the degradation of the sensitive cyano group or the thiophene backbone, which can occur at higher reflux temperatures typical of alcoholic solvents. Once the tetraester is fully converted into the soluble tetrasodium salt, the solution becomes clear, indicating a homogeneous state that is free from the particulate matter that hampers older methods. This clarity is a visual confirmation of reaction completeness, allowing for precise process control before the introduction of the strontium source.

Following the hydrolysis, the introduction of strontium chloride initiates a double displacement reaction where the highly soluble sodium ions are exchanged for strontium ions. The solubility product of Strontium Ranelate Octahydrate is significantly lower than that of its sodium counterpart in this aqueous matrix, driving the precipitation of the product. The patent specifies maintaining the temperature between 10°C and 60°C during this crystallization phase to control the nucleation and growth rates of the crystals. Slow stirring over a period of more than 5 hours allows for the formation of well-defined crystals that are easier to filter and wash. This controlled crystallization is key to the observed low impurity levels, as it prevents the occlusion of mother liquor containing residual salts or byproducts within the crystal lattice. The resulting filter cake, when washed to neutrality, yields an off-white solid that meets stringent purity specifications without the need for recrystallization from organic solvents. This mechanistic understanding underscores the feasibility of commercial scale-up of complex pharmaceutical intermediates, as the reaction relies on fundamental thermodynamic principles rather than exotic catalysts or conditions.

How to Synthesize Strontium Ranelate Octahydrate Efficiently

Implementing this synthesis protocol requires careful attention to the physical state of the starting materials and the stoichiometry of the reagents to ensure reproducibility on a large scale. The process begins with the preparation of the intermediate (b) as a fine powder, which is essential for overcoming the mass transfer limitations observed in bulkier particles. Operators must ensure that the sodium hydroxide is added in sufficient excess (4-5 moles per mole of intermediate) to drive the hydrolysis equilibrium fully towards the carboxylate salt. The reaction mixture should be monitored visually and via liquid chromatography to confirm the disappearance of the starting ester before proceeding to the salt formation step. Detailed standardized synthetic steps see the guide below.

1. Prepare fine powder of intermediate (b) (30-120 mesh) and suspend in water with 4-5 equivalents of sodium hydroxide.
2. Stir the mixture at 20°C to 50°C for 3-6 hours until the intermediate dissolves completely, then filter to remove insolubles.
3. Add aqueous strontium chloride solution to the filtrate at 10°C to 60°C, stir for over 5 hours to precipitate the product, then filter and dry.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain strategists, the adoption of this aqueous synthesis route offers profound economic and operational benefits that extend beyond simple yield improvements. The most immediate impact is seen in the drastic simplification of the manufacturing infrastructure. By removing ethanol and other organic solvents from the equation, facilities can eliminate the need for explosion-proof reactors, complex solvent recovery distillation columns, and extensive fire suppression systems. This reduction in capital expenditure and operational overhead directly contributes to significant cost savings in pharmaceutical intermediates manufacturing. Furthermore, the absence of solvent distillation steps shortens the overall batch cycle time, allowing for increased production throughput without expanding the physical footprint of the plant. The mild reaction conditions also imply lower energy consumption for heating and cooling, aligning with global sustainability goals and reducing utility costs. These factors combined create a more resilient supply chain that is less vulnerable to fluctuations in solvent prices or regulatory changes regarding volatile organic compound (VOC) emissions.

• Cost Reduction in Manufacturing: The elimination of organic solvents removes the entire unit operation of solvent recovery and distillation, which is traditionally one of the most energy-intensive and time-consuming parts of API production. Without the need to purchase, store, and recycle large volumes of ethanol, the variable cost per kilogram of the final product is substantially lowered. Additionally, the high yield of 90-95% means that less raw material is wasted, further optimizing the cost of goods sold (COGS). The simplified downstream processing, requiring only filtration and washing with water instead of complex solvent exchanges, reduces labor hours and equipment maintenance costs, delivering a leaner and more profitable manufacturing model.
• Enhanced Supply Chain Reliability: Relying on water as the primary solvent mitigates risks associated with the supply and quality variability of organic solvents. Water is universally available and inexpensive, ensuring that production is never halted due to solvent shortages. The robustness of the reaction conditions, which tolerate a broad temperature range (20-50°C), makes the process less sensitive to minor fluctuations in utility performance, thereby increasing batch-to-batch consistency. This reliability is crucial for maintaining continuous supply to downstream formulation partners, reducing the risk of stockouts and ensuring that delivery timelines are met consistently. The ability to produce high-purity material consistently also reduces the likelihood of batch rejections, stabilizing the inventory flow.
• Scalability and Environmental Compliance: The green chemistry nature of this process, characterized by the use of non-toxic reagents and the generation of minimal hazardous waste, simplifies regulatory compliance and environmental permitting. Wastewater treatment is significantly easier when the effluent is primarily aqueous salt solution rather than a mixture of organics and water, reducing the burden on effluent treatment plants (ETP). This environmental advantage facilitates easier scaling from pilot plants to multi-ton commercial production, as the process does not trigger the same level of environmental scrutiny as solvent-heavy routes. The high purity of the product (<0.3% total impurities) also minimizes the need for reprocessing, ensuring that the scale-up trajectory is smooth and predictable, supporting long-term supply agreements with major pharmaceutical companies.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this patented synthesis route. These answers are derived directly from the experimental data and beneficial effects reported in the patent documentation, providing clarity on how this method compares to established industry standards. Understanding these nuances is essential for technical teams evaluating the feasibility of adopting this technology for their own production lines or for procurement specialists assessing supplier capabilities.

Q: How does the new aqueous method improve impurity profiles compared to traditional ethanol-based processes?

A: Traditional methods using ethanol/water mixtures often result in total impurities greater than 0.5% or even 2% due to side reactions at reflux temperatures. The new aqueous method operates at mild temperatures (20-50°C), reducing thermal degradation and achieving total impurities below 0.3% with single impurities under 0.05%.

Q: Why is the particle size of intermediate (b) critical in this synthesis?

A: Using fine powder (30-120 mesh) significantly increases the surface area available for the hydrolysis reaction. This ensures complete dissolution and conversion of the intermediate within 3-6 hours, preventing the carryover of unreacted starting material which is a common issue in heterogeneous direct reaction methods.

Q: What are the supply chain advantages of eliminating organic solvents in this process?

A: Eliminating ethanol removes the need for complex solvent recovery systems and distillation steps. This simplifies the equipment requirements, reduces energy consumption, and mitigates safety risks associated with flammable solvents, leading to a more robust and continuous supply capability.
