Advanced Pd-Catalyzed Cyclization for Scalable Production of Benzofuran[2,3-b]pyrazine Derivatives

Advanced Pd-Catalyzed Cyclization for Scalable Production of Benzofuran[2,3-b]pyrazine Derivatives

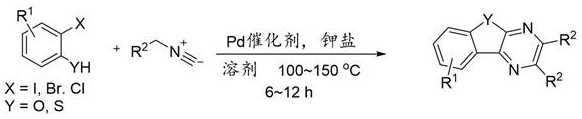

The pharmaceutical and fine chemical industries are constantly seeking robust methodologies to construct complex nitrogen-containing heterocycles, which serve as critical scaffolds in modern drug discovery. A significant breakthrough in this domain is detailed in patent CN109232592B, which discloses a highly efficient synthetic method for benzofuran[2,3-b]pyrazine derivatives. This patent introduces a novel palladium-catalyzed cyclization strategy that utilizes readily available o-halophenols and benzylisonitriles as starting materials. By leveraging a specialized Pd NPs/POL-xanthphos catalyst system, the process achieves remarkable conversion rates under relatively mild thermal conditions, typically ranging from 100°C to 150°C. This technological advancement addresses long-standing challenges in heterocyclic synthesis, offering a pathway that is not only chemically elegant but also industrially viable for the production of high-purity pharmaceutical intermediates.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of the benzofuran[2,3-b]pyrazine core has been fraught with significant synthetic hurdles that hinder large-scale manufacturing. Traditional routes often rely on multi-step sequences involving the deprotonation of salicylaldehyde methyloximes followed by treatment with triazines, a process that necessitates refluxing in nitrobenzene for extended periods, sometimes up to three days, yet yielding dismal results of merely 8%. Alternatively, other legacy methods involve the reaction of chloro-dicyanopyrazines with phenols, which requires strict temperature control and prolonged heating times of up to 24 hours. These conventional approaches are characterized by harsh reaction conditions, the use of toxic solvents like nitrobenzene, poor atom economy, and low overall yields, making them economically unfeasible and environmentally burdensome for commercial scale-up in the competitive landscape of API intermediate manufacturing.

The Novel Approach

In stark contrast to these archaic techniques, the methodology described in patent CN109232592B represents a paradigm shift towards green and efficient chemistry. This novel approach employs a direct annulation reaction between o-halophenols and isonitriles, facilitated by a highly active palladium nanoparticle catalyst supported on a xanthphos ligand framework. The reaction proceeds smoothly in common organic solvents such as N,N-dimethylformamide (DMF), toluene, or 1,4-dioxane, eliminating the need for hazardous nitrobenzene. Furthermore, the process is remarkably fast, typically completing within 6 to 12 hours, and delivers substantially improved yields, with specific examples demonstrating isolation efficiencies as high as 85%. This streamlining of the synthetic route reduces the number of unit operations, minimizes waste generation, and significantly lowers the cost of goods sold (COGS) for downstream users.

Mechanistic Insights into Pd-Catalyzed Cyclization

The success of this synthetic transformation lies in the sophisticated interplay between the palladium catalyst and the substrates, driving a cascade of bond-forming events. The mechanism likely initiates with the oxidative addition of the o-halophenol to the Pd(0) species, generating an aryl-palladium(II) intermediate. Subsequently, the coordination and insertion of the isonitrile group into the Pd-C bond occur, forming a key imino-acyl palladium species. This is followed by an intramolecular nucleophilic attack by the phenolic oxygen atom onto the electrophilic carbon of the inserted isonitrile, closing the furan ring. Finally, reductive elimination releases the desired benzofuran[2,3-b]pyrazine product and regenerates the active Pd(0) catalyst, completing the catalytic cycle. The use of the POL-xanthphos ligand is critical here, as it stabilizes the palladium nanoparticles, preventing aggregation and maintaining high catalytic turnover numbers throughout the reaction duration.

From an impurity control perspective, this mechanism offers distinct advantages over stepwise condensations. By conducting the reaction in a single pot, the formation of stable intermediate by-products is minimized, as the reactive species are consumed rapidly in the cyclization step. The mild basic conditions provided by potassium salts (such as potassium carbonate or phosphate) are sufficient to deprotonate the phenol without promoting side reactions like hydrolysis of the isonitrile or decomposition of the sensitive pyrazine ring. This selectivity ensures a cleaner crude reaction profile, which simplifies the downstream purification process. Consequently, the final product exhibits a superior purity profile, reducing the burden on quality control laboratories and ensuring that the material meets the stringent specifications required for clinical trial applications.

How to Synthesize 2,3-Diphenylbenzofuran[2,3-b]pyrazine Efficiently

To implement this robust synthetic route in a laboratory or pilot plant setting, operators must adhere to precise stoichiometric ratios and thermal parameters to maximize yield and safety. The process begins by charging a sealed reaction vessel with equimolar amounts of the o-halophenol substrate and a slight excess of the benzylisonitrile coupling partner to drive the equilibrium forward. The addition of the Pd NPs/POL-xanthphos catalyst at a loading of approximately 2 mol% is crucial for initiating the cycle, while the choice of solvent—often DMF for polar substrates or toluene for non-polar variants—dictates the solubility and reaction kinetics. Detailed standardized operating procedures regarding temperature ramping, agitation speeds, and work-up protocols are essential for reproducibility.

1. Charge a sealed reactor with o-halophenol and benzylisonitrile substrates, adding 2 mol% Pd NPs/POL-xanthphos catalyst and potassium salt base.
2. Heat the reaction mixture in a polar aprotic solvent such as DMF or toluene at temperatures between 100°C and 150°C for 6 to 12 hours.
3. Upon completion, filter the mixture, dry over anhydrous sodium sulfate, and purify the crude residue via flash silica gel column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this patented technology translates into tangible strategic benefits that extend beyond mere chemical yield. The shift from multi-step, low-yielding processes to a concise, one-pot catalytic cycle fundamentally alters the cost structure of producing these valuable heterocyclic building blocks. By eliminating the need for pre-functionalized starting materials and reducing reaction times from days to hours, manufacturers can achieve a drastic reduction in energy consumption and labor costs. Furthermore, the use of commodity chemicals like o-bromophenol and benzylisonitrile ensures a stable and diversified supply base, mitigating the risks associated with sourcing exotic or custom-synthesized reagents that often plague complex API supply chains.

• Cost Reduction in Manufacturing: The economic impact of this process is profound, primarily driven by the elimination of expensive and toxic solvents like nitrobenzene and the reduction of reaction time. The high catalytic efficiency means that less catalyst is required per kilogram of product, and the reported recyclability of the Pd NPs/POL-xanthphos system further amortizes the cost of the precious metal over multiple batches. Additionally, the simplified work-up procedure, which involves basic filtration and standard chromatography rather than complex distillations or crystallizations, reduces the operational expenditure (OPEX) associated with purification. These factors collectively contribute to a significantly lower cost of goods, allowing pharmaceutical companies to optimize their R&D budgets and improve margins on commercial products.
• Enhanced Supply Chain Reliability: Supply chain resilience is bolstered by the reliance on widely available raw materials that are produced on a global scale by numerous chemical vendors. Unlike proprietary intermediates that may be sourced from a single supplier, o-halophenols and isonitriles are standard catalog items, ensuring continuity of supply even during market fluctuations. The robustness of the reaction conditions also means that the process is less susceptible to minor variations in raw material quality or environmental factors, leading to consistent batch-to-batch performance. This reliability allows supply chain planners to forecast production schedules with greater accuracy and reduce the need for excessive safety stock, thereby freeing up working capital.
• Scalability and Environmental Compliance: From an environmental, health, and safety (EHS) standpoint, this method aligns perfectly with modern green chemistry principles. The avoidance of nitrobenzene, a known reproductive toxin, removes a significant regulatory hurdle and reduces the cost of waste disposal and emissions control. The reaction operates at moderate temperatures (100-150°C), which are easily manageable in standard stainless steel reactors without requiring specialized high-pressure or cryogenic equipment. This inherent scalability facilitates a seamless transition from gram-scale laboratory synthesis to multi-ton commercial production, ensuring that the supply of high-purity pharmaceutical intermediates can meet the demands of late-stage clinical trials and market launch without bottlenecks.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this synthesis technology. These insights are derived directly from the experimental data and claims presented in the patent documentation, providing a clear understanding of the process capabilities and limitations for potential partners and licensees.

Q: What are the primary advantages of this Pd-catalyzed method over traditional synthesis routes?

A: Unlike conventional methods requiring harsh reflux in nitrobenzene for days with low yields (e.g., 8%), this novel approach utilizes mild conditions (100-150°C) and achieves significantly higher yields (up to 85%) in a single pot.

Q: Is the palladium catalyst used in this process recyclable?

A: Yes, the patent explicitly highlights that the Pd NPs/POL-xanthphos catalyst exhibits high catalytic activity and recyclability, which is crucial for reducing heavy metal waste and lowering production costs.

Q: What types of substituents are tolerated in this synthetic route?

A: The method demonstrates broad substrate scope, successfully accommodating various R1 groups including hydrogen, aryl, and aliphatic chains, as well as electron-withdrawing groups like trifluoromethyl, ensuring versatility for diverse drug candidates.
