Advanced Benzimidazole Pillar[5]arene NHC Ligands for Efficient Suzuki-Miyaura Coupling in Pharma Manufacturing

The landscape of transition metal catalysis is undergoing a significant transformation with the introduction of supramolecular ligand architectures, as evidenced by the groundbreaking technology disclosed in patent CN115477614A. This specific intellectual property details the design and synthesis of a novel benzimidazole-type pillar[5]arene N-heterocyclic carbene (NHC) ligand, representing a substantial leap forward in ligand efficiency for cross-coupling reactions. Unlike conventional small-molecule ligands, this macrocyclic structure leverages the unique cavity and recognition properties of pillar[5]arenes to enhance catalytic performance in Suzuki-Miyaura coupling. For R&D directors and process chemists, this innovation offers a pathway to more robust catalytic systems that operate under milder conditions while maintaining exceptional turnover numbers. The integration of benzimidazole moieties into the pillararene framework creates a steric and electronic environment that stabilizes the palladium center, thereby reducing catalyst deactivation and extending the operational life of the catalytic system in complex synthetic sequences.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditional N-heterocyclic carbene ligands, while effective, often suffer from limitations regarding their structural diversity and the required loading amounts to achieve satisfactory conversion rates. In many industrial scenarios, standard imidazolium-based ligands necessitate higher concentrations to drive reactions to completion, which directly impacts the cost of goods sold due to the expense of ligand synthesis and the subsequent need for rigorous metal removal steps. Furthermore, conventional ligands may lack the supramolecular recognition capabilities that could potentially stabilize transition states or sequester impurities during the reaction process. This often leads to broader impurity profiles in the final API intermediates, requiring extensive downstream purification which increases solvent consumption and waste generation. The rigidity of some traditional ligand backbones can also limit their adaptability to various substrate steric demands, resulting in inconsistent yields across different batches or substrate scopes in large-scale manufacturing environments.

The Novel Approach

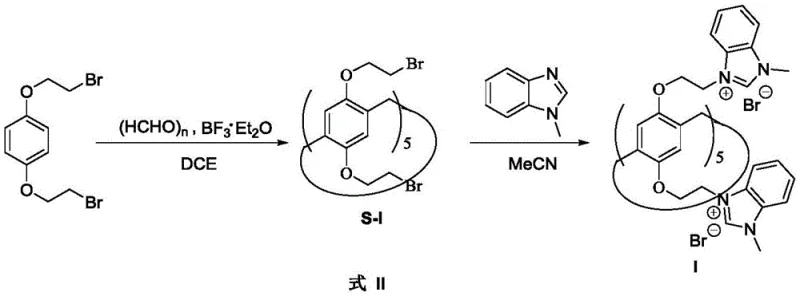

The novel approach presented in this patent overcomes these hurdles by utilizing a pillar[5]arene scaffold functionalized with benzimidazole groups, creating a ligand system that combines the stability of NHCs with the host-guest chemistry of macrocycles. As illustrated in the synthesis overview below, the route is designed for high operability and yield, starting from readily available precursors like 1,1-dibromo-p-phenylenediethyl ether. This structural innovation allows for a drastic reduction in ligand dosage, with the patent demonstrating effective catalysis at merely 1 mol% loading. The synthetic route is also notably streamlined, avoiding harsh conditions and utilizing common organic solvents, which simplifies the technology transfer from lab to plant. By embedding the catalytic active site within a larger supramolecular structure, the ligand potentially offers better control over the coordination sphere of the metal, leading to cleaner reaction profiles and reduced formation of homocoupling byproducts that are common pain points in Suzuki chemistry.

Mechanistic Insights into Benzimidazole Pillar[5]arene NHC-Pd Catalysis

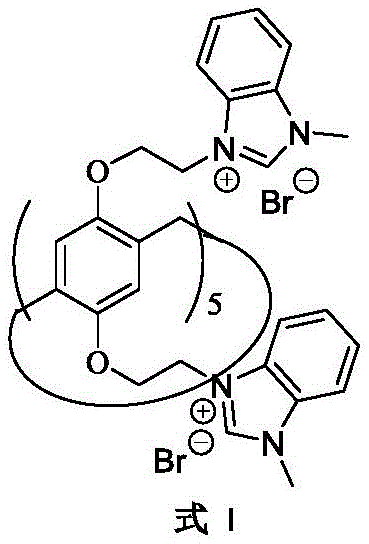

The core of this technology lies in the unique structure of Formula I, where the benzimidazole carbene precursors are covalently linked to the pillar[5]arene rim via ethyl ether bridges. This architecture ensures that upon deprotonation and coordination with palladium, the resulting active species benefits from the electron-donating properties of the carbene while being sterically protected by the bulky pillararene backbone. This steric bulk is crucial for preventing the formation of inactive palladium black, a common failure mode in coupling reactions that leads to catalyst precipitation and reaction stalling. The electron-rich nature of the benzimidazole ring enhances the electron density at the metal center, facilitating the oxidative addition step of the aryl halide, which is often the rate-determining step in Suzuki couplings involving less reactive substrates. For process chemists, understanding this electronic modulation is key to predicting the ligand's performance across a wide range of electronic environments in drug molecule synthesis.

Impurity control is another critical aspect where this mechanistic design excels, particularly regarding the removal of residual palladium which is a strict regulatory requirement for pharmaceutical ingredients. The supramolecular nature of the ligand may assist in keeping the palladium species in solution during the reaction but allows for easier sequestration or filtration during workup due to the larger molecular weight of the ligand-metal complex. The patent specifies a purification protocol involving flash column chromatography for the intermediate S-I and ultrasonic dissolution for the final ligand, which effectively removes unreacted starting materials and side products. This rigorous purification at the ligand stage ensures that the catalyst introduced into the API synthesis is of high purity, thereby minimizing the introduction of extraneous impurities that could complicate the final drug substance specification and regulatory filing.

How to Synthesize Benzimidazole Pillar[5]arene NHC Ligand Efficiently

The synthesis of this high-value ligand is achieved through a robust two-step sequence that balances yield with operational simplicity, making it suitable for both laboratory research and pilot plant production. The process begins with the macrocyclization to form the pillar[5]arene core, followed by the functionalization with the benzimidazole moiety. Detailed standard operating procedures for temperature control, stoichiometry, and workup are critical to reproducing the high yields reported in the patent data.

1. Synthesize pillar[5]arene S-I by reacting 1,1-dibromo-p-phenylenediethyl ether with paraformaldehyde using BF3·Et2O in DCE at room temperature.
2. React pillar[5]arene S-I with 1-methylbenzimidazole in acetonitrile at 50°C for 72 hours to form the target NHC ligand I.
3. Apply the ligand in Suzuki-Miyaura coupling with PdCl2 and Cs2CO3 in i-PrOH at 50°C to achieve high conversion yields.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this ligand technology translates into tangible operational efficiencies and risk mitigation strategies in the manufacturing of pharmaceutical intermediates. The primary advantage lies in the significant reduction of catalyst loading, which directly lowers the material cost per kilogram of the final product without compromising on reaction efficiency. Since the ligand is effective at 1 mol%, the dependency on expensive palladium sources is optimized, and the overall cost of the catalytic system is drastically simplified compared to protocols requiring 5 mol% or higher. This efficiency also reduces the burden on waste management systems, as less metal-contaminated waste is generated per batch, aligning with increasingly stringent environmental regulations and sustainability goals within the chemical industry.

• Cost Reduction in Manufacturing: The implementation of this ligand system eliminates the need for excessive catalyst loading, which is a major cost driver in precious metal catalysis. By achieving high yields with minimal ligand input, the overall cost reduction in pharmaceutical intermediate manufacturing is substantial, as fewer resources are allocated to catalyst procurement and recovery. Furthermore, the mild reaction conditions (50°C) reduce energy consumption compared to high-temperature reflux protocols, contributing to lower utility costs over the lifecycle of the product. The simplified workup procedure also minimizes solvent usage and labor hours required for purification, creating a leaner and more cost-effective production model.
• Enhanced Supply Chain Reliability: The synthetic route relies on commercially available starting materials such as paraformaldehyde and 1-methylbenzimidazole, ensuring a stable and reliable supply chain for the ligand itself. This reduces the risk of production delays caused by the scarcity of exotic reagents, which is a common vulnerability in complex synthetic routes. The robustness of the reaction conditions, which tolerate standard laboratory and plant equipment without requiring specialized high-pressure or cryogenic setups, further enhances supply chain continuity. This reliability allows for consistent production scheduling and faster turnaround times for high-purity pharmaceutical intermediates, meeting the tight deadlines often imposed by drug development timelines.
• Scalability and Environmental Compliance: The process is designed with scalability in mind, utilizing solvents like acetonitrile and 1,2-dichloroethane that are well-understood in industrial settings and have established recovery protocols. The high yield of the ligand synthesis (83% for the final step) ensures that material throughput is maximized, reducing the environmental footprint per unit of product. Additionally, the efficient catalytic performance minimizes the generation of heavy metal waste, simplifying the compliance process for environmental discharge permits. This alignment with green chemistry principles makes the technology attractive for companies aiming to improve their sustainability metrics while maintaining high production volumes of complex organic molecules.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this ligand technology in industrial settings. These answers are derived directly from the experimental data and beneficial effects described in the patent documentation, providing a clear understanding of the technology's capabilities.

Q: What are the advantages of this pillar[5]arene ligand over traditional NHC ligands?

A: This novel ligand offers significantly lower dosage requirements (1 mol%) compared to traditional ligands that often need higher loading, while maintaining high yields (85%) in Suzuki coupling reactions under mild conditions.

Q: How is the purity of the ligand ensured during synthesis?

A: The synthesis utilizes flash column chromatography with specific eluents (DCM:Petroleum Ether) for the intermediate and ultrasonic dissolution with methyl tert-butyl ether for the final product, ensuring high purity suitable for catalytic applications.

Q: Is this ligand scalable for industrial pharmaceutical production?

A: Yes, the process uses common solvents like acetonitrile and DCE, operates at moderate temperatures (50°C), and involves straightforward workup procedures, making it highly amenable to commercial scale-up for API intermediate manufacturing.
