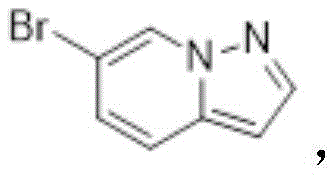

Scalable Manufacturing of 6-Bromopyrazolo[1,5-a]pyridine via Advanced Catalytic Cyclization

Scalable Manufacturing of 6-Bromopyrazolo[1,5-a]pyridine via Advanced Catalytic Cyclization

The pharmaceutical industry continuously seeks robust and scalable pathways for constructing complex fused heterocyclic scaffolds, particularly those exhibiting significant biological activity such as pyrazolopyridines. Patent CN112724133B introduces a highly efficient preparation method for 6-bromopyrazolo[1,5-a]pyridine, a critical building block in the development of kinase inhibitors and other therapeutic agents. This technical insight report analyzes the novel three-step synthetic strategy disclosed in the patent, which leverages a Sonogashira coupling followed by nitrogen amination and a silver-mediated cyclization. By utilizing accessible starting materials like 5-bromo-2-iodopyridine and triethylsilylacetylene, the process addresses common bottlenecks in heterocycle synthesis, offering a reliable pharmaceutical intermediate supplier with a distinct competitive edge in terms of process stability and impurity control.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditional synthetic routes to pyrazolo[1,5-a]pyridine derivatives often suffer from harsh reaction conditions, limited substrate scope, and the generation of difficult-to-remove impurities that compromise the purity required for API manufacturing. Many legacy methods rely on multi-step sequences involving unstable intermediates or expensive reagents that are not feasible for kilogram-to-ton scale production. Furthermore, conventional cyclization strategies may require high temperatures or strong acids that can lead to decomposition of sensitive functional groups, thereby reducing overall yield and increasing waste disposal costs. These inefficiencies create significant supply chain vulnerabilities, as inconsistent batch quality and prolonged reaction times can delay drug development timelines and inflate the cost of goods sold for downstream pharmaceutical applications.

The Novel Approach

In contrast, the methodology outlined in patent CN112724133B presents a streamlined approach that circumvents these historical challenges through a carefully orchestrated sequence of transition metal catalysis and oxidative cyclization. The process initiates with a mild Sonogashira coupling to install the alkyne handle, followed by a selective nitrogen amination using sulfonylhydroxylamine reagents, which are known for their efficiency in introducing amino groups without over-oxidation. The final ring closure is achieved under relatively gentle conditions using silver carbonate, which acts as both a base and an oxidant to facilitate the formation of the N-N bond and the fused ring system. This strategic design ensures high reaction selectivity and minimizes side reactions, resulting in a cleaner crude product profile that simplifies downstream purification and enhances the economic viability of the manufacturing process.

Mechanistic Insights into Pd/Cu-Catalyzed Coupling and Ag-Mediated Cyclization

The core of this synthetic innovation lies in the precise execution of the Sonogashira coupling reaction, where 5-bromo-2-iodopyridine reacts with triethylsilylacetylene in the presence of a palladium and copper co-catalyst system. The mechanism involves the oxidative addition of the aryl iodide to the Pd(0) species, followed by transmetallation with the copper-acetylide complex generated in situ from the terminal alkyne and cuprous salt. This step is critical for establishing the carbon-carbon bond that serves as the precursor for the subsequent ring closure. The use of bases such as diisopropylethylamine or triethylamine facilitates the deprotonation of the alkyne and neutralizes the acid byproducts, ensuring the catalytic cycle proceeds smoothly. The choice of solvent, typically polar aprotic solvents like DMF or THF, is essential for solubilizing the inorganic bases and stabilizing the charged intermediates throughout the reaction coordinate.

Following the installation of the alkyne moiety, the synthesis proceeds through a nitrogen amination step using reagents like 2,4,6-trimethylbenzenesulfonylhydroxylamine (MSH), which transfers an amino group to the pyridine nitrogen or adjacent position depending on the specific electronic activation. The final and most distinctive step involves the treatment of the amino-alkyne intermediate with silver carbonate in DMF. In this mechanistic pathway, the silver ion likely coordinates with the alkyne and the amino group, promoting an intramolecular nucleophilic attack that closes the five-membered pyrazole ring. The silver carbonate simultaneously acts as an oxidant to restore aromaticity or remove hydrogen equivalents, driving the equilibrium towards the desired fused heterocycle. This silver-mediated cyclization is particularly advantageous because it operates at room temperature or mild heating, preserving the integrity of the bromine substituent which is vital for further functionalization in medicinal chemistry campaigns.

How to Synthesize 6-Bromopyrazolo[1,5-a]pyridine Efficiently

The synthesis of this valuable heterocyclic intermediate is achieved through a logical three-step sequence that balances reactivity with operational simplicity, making it ideal for process chemists aiming to establish a robust supply chain. The protocol begins with the coupling of the halogenated pyridine scaffold, moves to the introduction of the nitrogen functionality, and concludes with the thermal or chemical promotion of the ring closure. Each step has been optimized in the patent examples to maximize yield while minimizing the formation of polymeric byproducts or homocoupling artifacts. For detailed operational parameters including specific molar ratios, temperature profiles, and workup procedures, please refer to the standardized synthesis guide provided below which encapsulates the critical process parameters derived from the experimental data.

1. Perform a Sonogashira coupling reaction between 5-bromo-2-iodopyridine and triethylsilylacetylene using a Pd/Cu catalyst system to form the ethynyl intermediate.
2. Conduct a nitrogen amination reaction on the ethynyl intermediate using 2,4,6-trimethylbenzenesulfonylhydroxylamine to introduce the amino group.
3. Execute a ring-closing cyclization reaction using silver carbonate in DMF to form the final 6-bromopyrazolo[1,5-a]pyridine structure.

Commercial Advantages for Procurement and Supply Chain Teams

From a procurement and supply chain perspective, the adoption of this synthetic route offers substantial strategic benefits by mitigating risks associated with raw material availability and process complexity. The reliance on commercially available starting materials such as 5-bromo-2-iodopyridine and triethylsilylacetylene ensures a stable supply base, reducing the likelihood of shortages that can plague more exotic reagent-dependent processes. Furthermore, the reaction conditions are designed to be easily controllable, avoiding the need for specialized high-pressure equipment or cryogenic temperatures, which lowers the barrier to entry for contract manufacturing organizations and allows for flexible production scheduling. This operational flexibility translates directly into improved lead times and the ability to respond rapidly to fluctuating market demands for high-purity pharmaceutical intermediates.

• Cost Reduction in Manufacturing: The economic efficiency of this process is driven by the elimination of expensive transition metals in the final steps and the use of cost-effective reagents like silver carbonate which, while precious, is used in stoichiometric amounts that are manageable at scale. By achieving high selectivity and fewer by-products, the process significantly reduces the burden on purification resources, such as chromatography media and solvent consumption, leading to lower overall operating expenses. Additionally, the simplified post-treatment procedures minimize labor hours and waste disposal costs, contributing to a more lean and cost-competitive manufacturing model for API intermediates.
• Enhanced Supply Chain Reliability: The robustness of the reaction sequence ensures consistent batch-to-batch quality, which is a critical metric for supply chain heads managing Just-In-Time inventory systems. The use of standard solvents like DMF, DCM, and ethyl acetate means that solvent recovery and recycling can be easily integrated into the plant infrastructure, further insulating the production process from volatile solvent market prices. This reliability allows pharmaceutical partners to forecast their material requirements with greater confidence, knowing that the synthesis of complex pyrazolopyridines can be scaled up without encountering unforeseen technical hurdles or yield collapses.
• Scalability and Environmental Compliance: The process is explicitly designed for industrial amplification, with reaction exotherms and mixing requirements that are well-suited for large-scale reactors. The reduction in hazardous by-products aligns with increasingly stringent environmental regulations, facilitating easier permitting and compliance auditing for manufacturing sites. The ability to produce the target compound with high purity reduces the need for extensive recrystallization or multiple chromatographic passes, thereby lowering the environmental footprint associated with solvent waste and energy consumption per kilogram of product produced.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the production and application of 6-bromopyrazolo[1,5-a]pyridine, based on the specific technological disclosures found in the relevant patent literature. Understanding these nuances helps R&D and procurement teams evaluate the feasibility of integrating this intermediate into their own development pipelines. The answers provided reflect the optimized conditions and mechanistic understanding necessary for successful technology transfer and scale-up operations.

Q: What are the key advantages of this synthesis route for 6-bromopyrazolo[1,5-a]pyridine?

A: The patented method utilizes low-cost raw materials and offers easily controlled reaction conditions with high selectivity. It significantly reduces by-product formation and simplifies post-processing, making it highly suitable for large-scale industrial production compared to traditional methods.

Q: Which catalysts are employed in the initial coupling step?

A: The process employs a dual catalyst system typically comprising cuprous iodide (CuI) and bis(triphenylphosphine)palladium dichloride. This combination facilitates efficient Sonogashira coupling under mild conditions.

Q: How is the pyrazole ring formed in the final step?

A: The pyrazole ring is constructed through a cyclization reaction mediated by silver carbonate (Ag2CO3). This reagent promotes the intramolecular reaction of the amino-ethynyl intermediate to close the fused heterocyclic system efficiently.
