Advanced Catalyst-Free Synthesis of 3-Thiocyanoimidazo[1,5-a]quinoline Intermediates for Commercial Scale

The landscape of heterocyclic chemistry is constantly evolving, driven by the demand for more efficient and sustainable pathways to bioactive scaffolds. A significant breakthrough in this domain is detailed in Chinese Patent CN110857299B, which discloses a novel synthesis method for 3-thiocyanoimidazo[1,5-a]quinoline compounds. These nitrogen-containing heterocycles are pivotal structural units found in a vast array of pharmaceutical agents, agrochemicals, and optical materials, often exhibiting remarkable biological activities such as antibacterial and antiviral properties. The core innovation of this patent lies in its departure from traditional, complex catalytic systems, opting instead for a direct, catalyst-free approach that utilizes elemental sulfur and trimethylsilyl cyanide (TMS-CN) as a novel thiocyano source. This method achieves highly selective thiocyanation at the 3-position of the imidazo[1,5-a]quinoline ring under mild thermal conditions, representing a substantial leap forward in process simplicity and atom economy for the production of these valuable intermediates.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Prior to this development, the construction of thiocyano-substituted heterocycles was fraught with operational complexities and economic inefficiencies. For instance, earlier methodologies reported by research groups such as Mitra et al. relied heavily on visible light-driven photo-redox catalysis. These protocols typically necessitated the use of specialized and relatively expensive photocatalysts like eosin Y at loading levels of 5 mol%, alongside precise irradiation sources emitting at 425nm blue light. Such requirements introduce significant overhead regarding equipment setup, energy consumption, and safety protocols associated with high-intensity light sources. Furthermore, other conventional routes employed strong oxidants like potassium persulfate or potassium thiocyanate in stoichiometric excess, which not only increased the cost of goods but also generated substantial inorganic salt waste, complicating the downstream purification processes and environmental compliance measures for manufacturing facilities.

The Novel Approach

In stark contrast, the methodology outlined in CN110857299B offers a streamlined, one-pot solution that eliminates the need for any transition metal catalysts, photocatalysts, or external oxidants. By leveraging the intrinsic reactivity of elemental sulfur (either precipitated or sublimed) in combination with TMS-CN in a dimethyl sulfoxide (DMSO) solvent system, the reaction proceeds efficiently at temperatures between 80-90°C. This approach drastically simplifies the reaction setup, requiring only standard heating equipment rather than specialized photo-reactors. The absence of metal residues is particularly advantageous for pharmaceutical applications, where strict limits on heavy metal impurities are enforced, thereby reducing the burden on purification teams and lowering the overall cost of quality control. This robust protocol ensures high yields and broad substrate tolerance, making it an ideal candidate for the reliable supply of high-purity pharmaceutical intermediates.

Mechanistic Insights into Catalyst-Free Thiocyanation

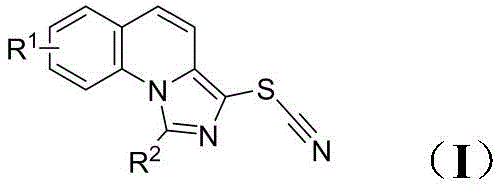

The success of this synthesis hinges on the unique interaction between the imidazo[1,5-a]quinoline substrate and the sulfur/TMS-CN couple. Unlike traditional electrophilic substitution reactions that might require activation by Lewis acids, this transformation appears to proceed through a thermal activation pathway where elemental sulfur acts as both the sulfur source and a mild activator. The TMS-CN serves as a stable and manageable source of the cyanide moiety, which combines with the sulfur species in situ to generate the reactive thiocyanating agent. This mechanism ensures exceptional regioselectivity, directing the formation of the carbon-sulfur bond exclusively to the C-3 position of the fused ring system. The electronic nature of the imidazo[1,5-a]quinoline core facilitates this attack, allowing for the accommodation of various substituents at the R1 and R2 positions without compromising the integrity of the final product structure.

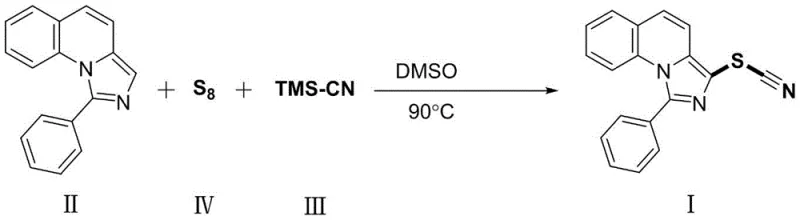

From an impurity control perspective, the simplicity of the reagent system translates to a cleaner reaction profile. Since no transition metals are introduced, there is no risk of metal-catalyzed side reactions such as homocoupling or over-oxidation, which are common pitfalls in metal-mediated C-H functionalization. The use of DMSO as a polar aprotic solvent further stabilizes the transition states and aids in the dissolution of the elemental sulfur, ensuring homogeneous reaction conditions. This mechanistic clarity allows process chemists to predict and manage potential byproducts effectively, ensuring that the final API intermediate meets stringent purity specifications required for clinical development. The reaction equation below illustrates the clean conversion of the starting material to the desired thiocyano derivative.

How to Synthesize 3-Thiocyanoimidazo[1,5-a]quinoline Efficiently

The practical execution of this synthesis is designed for ease of operation, making it accessible for both laboratory-scale optimization and pilot-plant production. The protocol involves a straightforward mixing of the imidazo[1,5-a]quinoline precursor with elemental sulfur and TMS-CN in DMSO, followed by heating. The detailed standardized synthetic steps, including precise molar ratios, workup procedures, and purification parameters, are critical for reproducibility and are outlined in the technical guide below. Adhering to these optimized conditions ensures maximum yield and minimizes the formation of desulfurized or over-cyanated byproducts.

1. Mix imidazo[1,5-a]quinoline compound, elemental sulfur (precipitated or sublimed), and TMS-CN in DMSO solvent.
2. Heat the reaction mixture to 90°C and stir for 4 hours under air atmosphere without additional catalysts.
3. Cool to room temperature, extract with ethyl acetate, dry, and purify via silica gel column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the shift to this catalyst-free methodology represents a strategic opportunity to optimize the cost structure and reliability of the supply chain for complex heterocyclic intermediates. By removing the dependency on scarce or expensive catalytic materials, the manufacturing process becomes inherently more resilient to market fluctuations in raw material pricing. The use of commodity chemicals like elemental sulfur and widely available silanes reduces the risk of supply bottlenecks, ensuring a continuous flow of materials necessary for uninterrupted production schedules. Furthermore, the simplified workflow reduces the man-hours required for reactor setup and monitoring, contributing to overall operational efficiency.

• Cost Reduction in Manufacturing: The elimination of expensive photocatalysts and stoichiometric oxidants directly lowers the raw material costs per kilogram of product. Additionally, the removal of heavy metal catalysts negates the need for costly scavenging resins or complex extraction steps designed to meet residual metal specifications, resulting in substantial cost savings in the purification stage. The high atom economy of using elemental sulfur also means less waste generation, which indirectly lowers waste disposal costs and environmental levies associated with chemical manufacturing.
• Enhanced Supply Chain Reliability: The reliance on globally sourced, bulk commodity chemicals like sulfur and DMSO ensures that the supply chain is not vulnerable to the geopolitical or logistical issues that often affect specialized fine chemical reagents. This stability allows for better long-term planning and inventory management. The robustness of the reaction conditions (standard heating vs. specialized lighting) also means that the process can be easily transferred between different manufacturing sites or CDMO partners without the need for specialized infrastructure investment.
• Scalability and Environmental Compliance: The one-pot nature of the reaction and the absence of hazardous oxidants make this process highly scalable from gram to multi-ton quantities. The reduced generation of inorganic salt waste aligns with green chemistry principles, facilitating easier regulatory approval and environmental compliance. This scalability is crucial for meeting the growing demand for these intermediates in the pharmaceutical and agrochemical sectors without compromising on sustainability goals.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the production of 3-thiocyanoimidazo[1,5-a]quinoline derivatives. These insights are derived directly from the patent data and practical experience in scaling similar heterocyclic transformations. Understanding these aspects is vital for R&D teams evaluating this route for their specific pipeline projects and for procurement teams assessing vendor capabilities.

Q: Does this synthesis require expensive photocatalysts or oxidants?

A: No, the patented method (CN110857299B) operates without any metal catalysts, photocatalysts, or external oxidants, utilizing elemental sulfur and TMS-CN directly.

Q: What is the regioselectivity of this thiocyanation reaction?

A: The reaction demonstrates excellent regioselectivity, specifically targeting the C-3 position of the imidazo[1,5-a]quinoline skeleton to form the C-SCN bond.

Q: Is this process suitable for large-scale manufacturing?

A: Yes, the use of common solvents like DMSO, simple heating conditions (90°C), and cheap reagents like elemental sulfur makes it highly amenable to commercial scale-up.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable 3-Thiocyanoimidazo[1,5-a]quinoline Supplier

At NINGBO INNO PHARMCHEM, we recognize the critical role that high-quality intermediates play in the drug discovery and development pipeline. Our technical team has extensively analyzed the pathway described in CN110857299B and possesses the expertise to implement this catalyst-free technology effectively. We boast extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that your project needs are met with precision and speed. Our state-of-the-art facilities are equipped with rigorous QC labs capable of verifying stringent purity specifications, guaranteeing that every batch of 3-thiocyanoimidazo[1,5-a]quinoline delivered meets the highest international standards for pharmaceutical use.

We invite you to collaborate with us to leverage this advanced synthetic route for your upcoming projects. By partnering with our technical procurement team, you can request a Customized Cost-Saving Analysis tailored to your specific volume requirements. We encourage you to reach out today to obtain specific COA data and comprehensive route feasibility assessments, ensuring that your supply chain is built on a foundation of technical excellence and commercial reliability.
