Advanced Enzymatic Domino Reaction for Scalable Production of Coumarin Intermediates
Advanced Enzymatic Domino Reaction for Scalable Production of Coumarin Intermediates

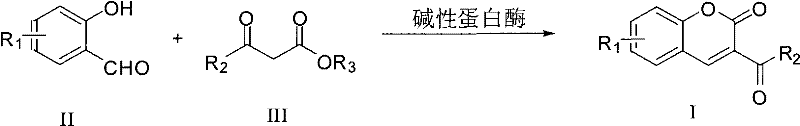

The pharmaceutical and fine chemical industries are constantly seeking greener, more efficient pathways to synthesize complex heterocyclic scaffolds essential for drug development. A pivotal advancement in this domain is detailed in patent CN101906445A, which discloses a novel synthetic method for 2H-1-chromen-2-one derivatives utilizing an enzymatic domino reaction. This technology leverages the catalytic power of alkaline protease to facilitate a tandem Knoevenagel condensation and intramolecular transesterification between salicylaldehyde derivatives and beta-keto esters. By shifting away from traditional harsh chemical catalysts towards biocatalysis, this approach addresses critical pain points regarding reaction severity and environmental compliance. For R&D directors and procurement managers alike, understanding this shift is vital for securing a reliable pharmaceutical intermediate supplier capable of delivering high-purity materials through sustainable means.
The significance of this patent lies in its ability to streamline the production of coumarin derivatives, which are ubiquitous in medicinal chemistry due to their diverse biological activities including anticoagulant, anti-inflammatory, and anticancer properties. The core innovation involves a one-pot transformation where the enzyme not only accelerates the initial condensation but also promotes the subsequent cyclization without the need for intermediate isolation. This reduces the overall process mass intensity and simplifies the operational workflow significantly. As we analyze the technical specifics, it becomes clear that this methodology offers a robust alternative for cost reduction in API manufacturing, particularly for companies aiming to minimize their reliance on toxic heavy metals and corrosive mineral acids while maintaining high throughput and selectivity.
The Limitations of Conventional Methods vs. The Novel Approach
The Limitations of Conventional Methods
Historically, the synthesis of 2H-1-chromen-2-one and its derivatives has relied heavily on Lewis acids or mineral acids as catalysts. These traditional protocols are fraught with significant drawbacks that hinder efficient commercial scale-up of complex pharmaceutical intermediates. Firstly, the reaction conditions are often violent, requiring high temperatures and strong acidic environments that can degrade sensitive functional groups on the substrate molecules. Secondly, these methods typically involve multi-step reactions with complex operational procedures, necessitating rigorous purification steps to remove residual metal catalysts which are strictly regulated in final drug products. Furthermore, the use of stoichiometric amounts of hazardous reagents generates substantial quantities of toxic waste, posing severe challenges for environmental compliance and waste treatment facilities. The low atom economy and poor chemo-selectivity associated with these harsh chemical methods often lead to the formation of unwanted by-products, thereby reducing the overall yield and increasing the cost of goods sold.
The Novel Approach
In stark contrast, the novel approach described in the patent utilizes alkaline protease to catalyze the reaction under remarkably mild conditions, typically ranging from 25°C to 80°C. This biocatalytic strategy enables a domino reaction sequence where the Knoevenagel condensation and intramolecular transesterification occur seamlessly in a single vessel. The use of enzymes provides exceptional chemo-selectivity, ensuring that the reaction proceeds specifically at the desired sites without affecting other sensitive moieties on the molecule. Moreover, the operational simplicity is a major advantage; the process involves mixing the substrates in a solvent system of DMSO and water, adding the enzyme, and stirring until completion. This eliminates the need for complex equipment required for high-pressure or high-temperature reactions. The enzyme itself is cheap and easily obtainable, further contributing to the economic viability of the process. This paradigm shift represents a significant leap forward in green chemistry, aligning perfectly with modern sustainability goals while enhancing process efficiency.
Mechanistic Insights into Alkaline Protease-Catalyzed Domino Reaction
To fully appreciate the technical depth of this synthesis, one must understand the mechanistic role of the alkaline protease, specifically Sumizyme MP derived from Bacillus licheniformis. The enzyme acts as a highly efficient biocatalyst that lowers the activation energy for both the initial carbon-carbon bond formation and the subsequent ring closure. In the first stage, the enzyme facilitates the Knoevenagel condensation between the active methylene group of the beta-keto ester and the aldehyde group of the salicylaldehyde derivative. This step forms an intermediate olefinic species. Subsequently, the enzyme promotes an intramolecular transesterification where the phenolic hydroxyl group attacks the ester carbonyl, leading to cyclization and the expulsion of an alcohol molecule to form the lactone ring characteristic of the coumarin structure. This dual functionality within a single catalytic entity is what defines the 'domino' nature of the reaction, allowing for a streamlined pathway that avoids the accumulation of reactive intermediates.
Impurity control is another critical aspect where this enzymatic mechanism excels. Traditional acid-catalyzed routes often suffer from polymerization of the aldehyde or hydrolysis of the ester side chains due to the harsh acidic medium. However, the neutral to slightly basic environment maintained by the alkaline protease minimizes these side reactions. The high chemo-selectivity ensures that the reaction is directed almost exclusively towards the formation of the desired 2H-1-chromen-2-one scaffold. Experimental data from the patent indicates that electronic effects play a role, with electron-donating groups on the salicylaldehyde ring generally affording higher yields compared to electron-withdrawing groups. Understanding these subtleties allows process chemists to fine-tune substrate selection and reaction parameters to maximize purity. This level of control is essential for producing high-purity pharmaceutical intermediates that meet stringent regulatory standards without the need for extensive downstream purification.

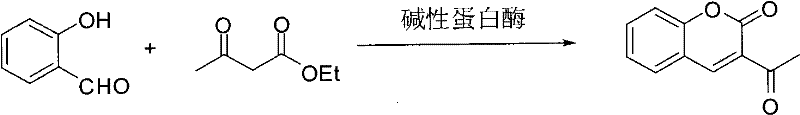

How to Synthesize 3-Acetyl-2H-1-Chromen-2-One Efficiently
Implementing this enzymatic protocol requires careful attention to solvent composition and reaction parameters to achieve optimal results. The patent outlines a generalized procedure that serves as a robust starting point for various derivatives. The process begins by dissolving the salicylaldehyde derivative and the beta-keto ester in a mixture of dimethyl sulfoxide (DMSO) and water. The ratio of water is critical, with the patent suggesting that water should account for approximately 10% of the total solvent volume to maintain enzyme activity while ensuring substrate solubility. The reaction is then initiated by the addition of the alkaline protease, and the mixture is stirred at a controlled temperature, ideally around 55°C. Monitoring the reaction progress via TLC ensures that the conversion is complete before proceeding to workup. The detailed standardized synthesis steps for this specific transformation are provided in the guide below.
- Prepare the reaction mixture by combining salicylaldehyde derivatives and beta-keto esters in a solvent system comprising DMSO and water, ensuring a water content of approximately 10%.
- Add alkaline protease (such as Sumizyme MP) to the mixture and maintain the temperature between 50°C and 60°C, preferably at 55°C, with constant stirring.
- Upon completion, filter the enzyme, extract the product with dichloromethane, dry the organic layer, and purify the crude product via flash column chromatography.
Commercial Advantages for Procurement and Supply Chain Teams
For procurement managers and supply chain heads, the transition to this enzymatic synthesis route offers compelling strategic benefits that extend beyond mere technical feasibility. The primary advantage lies in the drastic simplification of the supply chain for raw materials and the reduction of dependency on volatile chemical markets. By replacing expensive and hazardous Lewis acid catalysts with readily available biological enzymes, manufacturers can stabilize their input costs and mitigate risks associated with the handling and disposal of toxic substances. Furthermore, the mild reaction conditions translate directly into lower energy consumption, as there is no need for energy-intensive heating or cooling systems to manage exothermic acid reactions. This operational efficiency contributes to a leaner manufacturing process that is both cost-effective and environmentally sustainable, aligning with corporate social responsibility mandates.
- Cost Reduction in Manufacturing: The elimination of expensive transition metal catalysts and the reduction in solvent usage due to the one-pot nature of the reaction lead to substantial cost savings. Additionally, the simplified workup procedure, which involves simple filtration and extraction rather than complex neutralization and metal scavenging steps, reduces labor and processing time. The use of cheap and easily obtainable enzymes further drives down the variable costs per kilogram of product. These factors combined result in a significantly lower cost of goods sold, providing a competitive edge in the market for fine chemical intermediates.
- Enhanced Supply Chain Reliability: Sourcing high-purity enzymes is generally more stable and predictable than sourcing specialized chemical catalysts which may be subject to geopolitical supply disruptions. The robustness of the enzymatic process also means that production schedules are less likely to be interrupted by equipment maintenance issues related to corrosion from strong acids. This reliability ensures consistent delivery timelines for downstream customers, fostering stronger long-term partnerships. The ability to produce a wide range of derivatives using the same core platform technology adds flexibility to the supply chain, allowing for rapid response to changing market demands.
- Scalability and Environmental Compliance: The process is inherently scalable, moving seamlessly from laboratory benchtop to pilot plant and finally to commercial production without significant re-engineering. The use of aqueous-organic solvent systems reduces the volatility and flammability risks associated with purely organic solvent processes. Moreover, the biodegradable nature of the enzyme catalyst and the reduction in hazardous waste generation simplify compliance with increasingly stringent environmental regulations. This ease of regulatory approval accelerates the time-to-market for new products and reduces the administrative burden on the supply chain team.
Frequently Asked Questions (FAQ)
The following questions address common inquiries regarding the technical implementation and commercial viability of this enzymatic synthesis method. These insights are derived directly from the experimental data and technical specifications outlined in the patent documentation. Understanding these details is crucial for stakeholders evaluating the potential integration of this technology into their existing manufacturing portfolios. The answers provided reflect the consensus of current chemical engineering best practices applied to biocatalytic processes.
Q: What are the advantages of using alkaline protease over traditional Lewis acids for coumarin synthesis?
A: Unlike traditional Lewis or mineral acids which require harsh conditions and complex multi-step operations, alkaline protease catalysis offers a one-pot domino reaction under mild temperatures (25-80°C) with high chemo-selectivity and simpler workup procedures.
Q: How does the electronic nature of substituents affect the yield in this enzymatic process?
A: Experimental data indicates that electron-donating groups on the salicylaldehyde phenyl ring, such as methoxy groups, generally result in higher product yields compared to electron-withdrawing groups like nitro or chloro substituents.
Q: Is this enzymatic method suitable for large-scale industrial production?
A: Yes, the method utilizes cheap and easily obtainable enzymes and simple solvent systems (DMSO/Water), making it highly feasible for industrial scale-up with reduced environmental impact compared to heavy metal catalyzed routes.
