Industrial Scale Production of High-Purity FLT3 Inhibitor Intermediates via Optimized Sonogashira Coupling

The pharmaceutical industry's relentless pursuit of effective oncology treatments has placed Fms-like tyrosine kinase 3 (FLT3) inhibitors at the forefront of leukemia research, particularly for Acute Myeloid Leukemia (AML) and Acute Lymphoblastic Leukemia (ALL). Patent CN107848987B discloses a groundbreaking industrial production method for nitrogen-containing heterocyclic compounds that serve as potent FLT3 inhibitors. This technology addresses critical bottlenecks in the supply chain of these life-saving medications by offering a robust, scalable, and high-yielding synthetic route. For R&D directors and procurement specialists, understanding the nuances of this patent is essential for securing a reliable pharmaceutical intermediate supplier capable of delivering consistent quality. The invention specifically targets the synthesis of compounds represented by Formula [5] and their salts, utilizing novel intermediates like Formula [14] to streamline the manufacturing process.

By leveraging advanced catalytic coupling and optimized nucleophilic substitution strategies, this method overcomes the limitations of earlier generations of synthesis. The patent details a comprehensive approach that not only enhances chemical efficiency but also aligns with modern green chemistry principles by reducing waste and improving atom economy. As we delve deeper into the technical specifics, it becomes clear that this methodology represents a significant leap forward in the commercial scale-up of complex pharmaceutical intermediates, ensuring a steady supply of high-purity materials for downstream drug formulation.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Prior art methods, such as those described in International Publication No. 2015/056683 (Patent Document 2), often relied on cumbersome synthetic pathways that hindered efficient large-scale production. A primary drawback was the use of expensive and difficult-to-handle starting materials, such as phthalimide derivatives (Formula [J] in the patent context), which necessitated additional deprotection steps and generated significant chemical waste. Furthermore, the conventional amination processes frequently suffered from poor reaction kinetics and low conversion rates. For instance, the production of key intermediates often required rigorous recrystallization procedures to achieve acceptable purity levels, yet even then, yields were suboptimal, reportedly hovering around 40%. This inefficiency translates directly into higher manufacturing costs and longer lead times, creating vulnerabilities in the supply chain for critical oncology drugs.

The Novel Approach

In stark contrast, the method disclosed in CN107848987B introduces a streamlined pathway that utilizes 5-chloro-1-pentyne (Formula [D]) as a superior building block. This reagent is not only more cost-effective and readily available than its predecessors but also facilitates a cleaner reaction profile. The patent highlights a remarkable improvement in the amination step, where the use of bis(tert-butoxycarbonyl)amine (Formula [2b]) allows for the direct formation of the protected amine intermediate with exceptional efficiency. Experimental data within the patent demonstrates that this novel approach can achieve yields of up to 75% with a purity of 99%, crucially without the need for recrystallization. This elimination of purification bottlenecks significantly accelerates the production timeline and reduces solvent consumption, marking a substantial advancement in cost reduction in API manufacturing.

Mechanistic Insights into Pd/Cu-Catalyzed Sonogashira Coupling

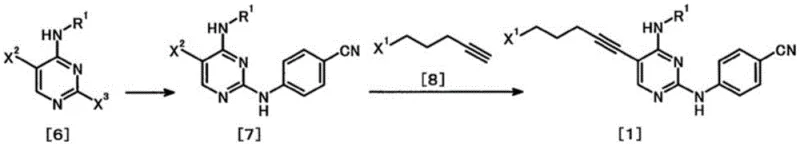

The core of this synthetic strategy relies on a highly optimized Sonogashira cross-coupling reaction to construct the carbon-carbon triple bond linkage essential for the inhibitor's activity. This transformation involves the reaction of an iodo-pyrimidine scaffold (Formula [7]) with a terminal alkyne (Formula [8]) in the presence of a palladium catalyst and a copper co-catalyst. The choice of ligands and bases is critical; the patent specifies the use of organopalladium complexes such as bis(triphenylphosphine)palladium(II) chloride alongside copper(I) iodide. The mechanism proceeds through the oxidative addition of the aryl iodide to the Pd(0) species, followed by transmetallation with the copper acetylide formed in situ. This dual-catalyst system ensures high turnover frequencies and minimizes the formation of homocoupling byproducts, which are common impurities in alkyne chemistry.

Furthermore, the process incorporates rigorous impurity control mechanisms, particularly regarding residual heavy metals. The patent details specific workup procedures involving chelating agents like N-acetyl-L-cysteine and thorough washing steps with aqueous ammonium chloride solutions. These measures are designed to scavenge trace palladium and copper from the organic phase. Analytical results confirm that residual metal levels can be consistently maintained below 50 ppm for both Pd and Cu. This level of control is vital for meeting the stringent purity specifications required for pharmaceutical intermediates, ensuring that the final active ingredient is free from toxic metal contaminants that could compromise patient safety or regulatory approval.

How to Synthesize FLT3 Inhibitor Intermediate Efficiently

The synthesis of the target amino-alkyne intermediate involves a sequence of precise chemical transformations that must be carefully controlled to maximize yield and purity. The process begins with the construction of the pyrimidine core, followed by the introduction of the alkyne side chain and finally the amination of the terminal position. Each step requires specific attention to temperature, stoichiometry, and reaction time to prevent degradation or side reactions. The following guide outlines the standardized operational parameters derived from the patent examples, providing a roadmap for replicating this high-efficiency route in a GMP environment.

1. Perform Sonogashira coupling between the iodo-pyrimidine scaffold and 5-chloro-1-pentyne using Pd/Cu catalysis.

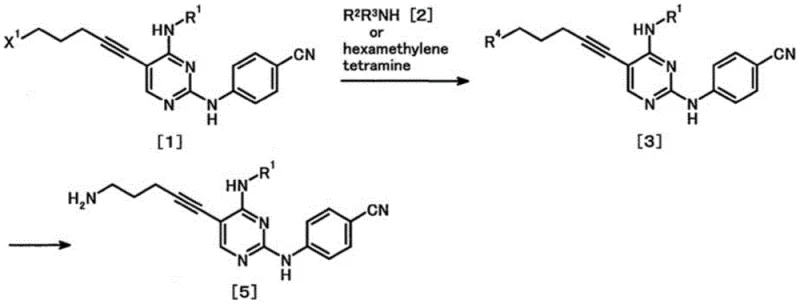

2. Execute nucleophilic substitution on the chloro-alkyne chain using bis(tert-butoxycarbonyl)amine or ammonia sources.
3. Purify the resulting intermediate via crystallization or extraction to achieve high purity without extensive chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this patented methodology offers tangible benefits that extend beyond mere chemical elegance. The shift towards more accessible raw materials and the reduction of processing steps directly impact the bottom line and operational reliability. By understanding these commercial advantages, stakeholders can make informed decisions about sourcing strategies and long-term supply agreements for these critical oncology intermediates.

• Cost Reduction in Manufacturing: The substitution of expensive phthalimide-based reagents with 5-chloro-1-pentyne represents a significant raw material cost saving. Additionally, the high yield of the amination step (up to 75% versus 40% in prior art) means less starting material is wasted per kilogram of product. The elimination of recrystallization steps further reduces utility costs associated with heating, cooling, and solvent recovery. These factors combine to lower the overall cost of goods sold (COGS), allowing for more competitive pricing in the global market.
• Enhanced Supply Chain Reliability: The robustness of the new synthetic route enhances supply chain stability. The reagents used, such as bis(tert-butoxycarbonyl)amine and simple inorganic bases, are commodity chemicals with stable global availability, reducing the risk of shortages. Moreover, the simplified purification process reduces the dependency on specialized chromatography resins or extensive solvent swaps, which can often be bottlenecks in multi-purpose manufacturing facilities. This reliability ensures reducing lead time for high-purity pharmaceutical intermediates, enabling faster response to market demand.
• Scalability and Environmental Compliance: The process is inherently designed for scalability, utilizing standard unit operations like filtration and liquid-liquid extraction that are easily transferred from pilot plant to commercial scale. The reduction in solvent usage and the avoidance of hazardous deprotection reagents align with increasingly strict environmental regulations. This compliance minimizes the burden on waste treatment facilities and reduces the environmental footprint of the manufacturing site, supporting corporate sustainability goals while maintaining operational efficiency.

Frequently Asked Questions (FAQ)

To assist technical teams in evaluating this technology, we have compiled answers to common questions regarding the synthesis and quality attributes of these intermediates. These insights are derived directly from the experimental data and claims presented in the patent documentation, ensuring accuracy and relevance for your process development needs.

Q: How does this method improve upon previous synthesis routes for FLT3 inhibitors?

A: This method utilizes 5-chloro-1-pentyne instead of more complex phthalimide derivatives, significantly reducing raw material costs. Furthermore, the amination step achieves yields up to 75% with 99% purity without the need for recrystallization, unlike prior art which yielded only 40%.

Q: What are the residual metal levels in the final intermediate?

A: The optimized process ensures rigorous control over heavy metal impurities. Analytical data confirms that residual palladium and copper levels are maintained below 50 ppm, meeting stringent pharmaceutical safety standards.

Q: Is this process suitable for large-scale commercial manufacturing?

A: Yes, the process is designed for industrial applicability. It employs stable intermediates, avoids hazardous reagents where possible, and utilizes robust purification techniques that simplify scale-up from kilogram to tonnage production.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable FLT3 Inhibitor Intermediate Supplier

At NINGBO INNO PHARMCHEM, we recognize the critical importance of high-quality intermediates in the development of next-generation cancer therapies. Our team possesses extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that the transition from laboratory discovery to market availability is seamless. We are committed to maintaining stringent purity specifications and operating rigorous QC labs to verify that every batch meets the highest international standards. Our capability to implement the optimized synthetic routes described in CN107848987B positions us as a strategic partner for your oncology pipeline.

We invite you to engage with our technical procurement team to discuss how we can support your specific project requirements. Whether you need a Customized Cost-Saving Analysis for your current supply chain or require specific COA data and route feasibility assessments for new candidates, we are ready to provide the expertise and capacity you need. Contact us today to secure a reliable supply of these vital pharmaceutical intermediates and accelerate your drug development timeline.
