Advanced Synthesis of 5-(1,3-Oxazol-2-yl)benzoic Acid Derivatives for Alzheimer's Therapeutics

The pharmaceutical industry continuously seeks robust synthetic pathways for complex intermediates, particularly those targeting neurological disorders like Alzheimer's disease. Patent CN1324017C introduces a groundbreaking methodology for the preparation of 5-(1,3-oxazol-2-yl)benzoic acid derivatives, which serve as critical building blocks in the synthesis of potent therapeutic agents. This technology leverages a refined Negishi coupling protocol, utilizing zinc chloride/selectively substituted oxazole addition compounds to functionalize aryl halides with high precision. By optimizing catalyst loading and reaction temperatures, this process addresses longstanding challenges in heterocycle installation, offering a reliable route for producing high-purity pharmaceutical intermediates. The strategic implementation of palladium catalysis in this context not only enhances reaction efficiency but also ensures the structural integrity of sensitive functional groups required for downstream biological activity.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditional methods for synthesizing aryl oxazoles often rely on harsh reaction conditions that can compromise the yield and purity of the final product. Prior art, such as the methods disclosed in Synthesis 583 (1996), typically involves coupling aryl halides or aryl triflates with oxazol-2-ylzinc chlorides but frequently suffers from incomplete conversions and extended reaction times. These inefficiencies necessitate rigorous purification steps to remove unreacted starting materials and byproducts, thereby increasing the overall cost of goods sold (COGS). Furthermore, conventional protocols may require excessive amounts of catalyst or elevated temperatures that degrade thermally sensitive substituents, limiting the scope of applicable substrates. For procurement managers, these limitations translate into supply chain vulnerabilities, where batch-to-batch variability can delay clinical trial material production and complicate regulatory filings due to inconsistent impurity profiles.

The Novel Approach

The innovative process detailed in CN1324017C overcomes these hurdles by employing a highly efficient palladium-catalyzed cross-coupling reaction under mild conditions. By utilizing specific zinc chloride/oxazole addition compounds, the method achieves superior yields, exemplified by an 84% isolated yield in representative examples, while significantly reducing reaction duration. The use of polar aprotic solvents like tetrahydrofuran (THF) at moderate temperatures ranging from 45°C to 55°C facilitates rapid kinetics without compromising selectivity. This approach allows for the seamless integration of diverse substituents on the benzene ring, providing flexibility for medicinal chemists to explore structure-activity relationships. For supply chain heads, this novel approach represents a paradigm shift towards more predictable manufacturing timelines, as the robustness of the reaction minimizes the risk of batch failures and ensures a steady supply of critical intermediates for Alzheimer's therapeutics.

Mechanistic Insights into Pd-Catalyzed Negishi Coupling

The core of this synthetic breakthrough lies in the mechanistic efficiency of the palladium-catalyzed Negishi coupling. The reaction initiates with the formation of an organozinc species through the lithiation of oxazole followed by transmetallation with zinc chloride. This organozinc intermediate then engages with the aryl halide substrate in the presence of a Pd(0) catalyst, such as tetrakis(triphenylphosphine)palladium. The catalytic cycle proceeds through oxidative addition of the aryl bromide to the palladium center, followed by transmetallation with the oxazolyl-zinc species and subsequent reductive elimination to forge the carbon-carbon bond. This mechanism is particularly advantageous because it tolerates a wide range of functional groups, including esters and amides, which are prevalent in the target molecular scaffolds. The precise control over catalyst loading, typically between 1 to 7 mol%, ensures that residual metal levels remain within acceptable limits for pharmaceutical applications, reducing the burden on downstream purification processes.

Impurity control is another critical aspect where this mechanism excels. The use of solid zinc chloride in the preparation of the organozinc reagent minimizes the formation of homocoupling byproducts that often plague cross-coupling reactions. Additionally, the specific workup procedure involving saturated ammonium chloride solution effectively sequesters zinc salts into the aqueous phase, preventing their co-precipitation with the organic product. This selective partitioning simplifies the isolation process and enhances the overall purity of the crude material. For R&D directors, understanding these mechanistic nuances is vital for scaling the process, as it allows for the anticipation of potential side reactions and the implementation of proactive mitigation strategies. The ability to consistently produce high-purity intermediates is essential for maintaining the safety and efficacy profiles of the final active pharmaceutical ingredients (APIs).

How to Synthesize 5-(1,3-Oxazol-2-yl)benzoic Acid Derivatives Efficiently

The synthesis of these valuable intermediates follows a streamlined sequence that begins with the generation of the reactive oxazolyl-zinc species. This step requires careful temperature control, typically maintaining the reaction mixture below -55°C during lithiation to prevent decomposition. Once the organozinc reagent is formed, it is added to a solution containing the aryl halide and the palladium catalyst, where the coupling occurs rapidly upon heating to reflux or moderate temperatures. The reaction progress is monitored via HPLC to ensure complete consumption of the starting material, usually within one to two hours. Following the coupling, the mixture is subjected to a specialized workup to remove metal residues, followed by purification via chromatography or crystallization to afford the desired ester or acid derivative.

1. Preparation of Zinc Chloride/Oxazole Addition Compound: React oxazole with n-butyllithium at -78°C, followed by the addition of solid zinc chloride to form the organozinc species.

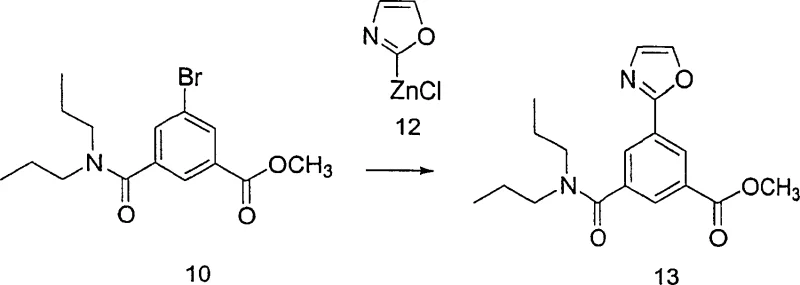

2. Palladium-Catalyzed Coupling: Combine the organozinc species with an aryl halide (e.g., 3-bromo-5-[(dipropylamino)carbonyl]benzoate) and a Pd(0) catalyst in THF at 45-55°C.
3. Workup and Purification: Quench the reaction, extract with organic solvents like ethyl acetate, and purify the resulting ester or hydrolyze to the corresponding carboxylic acid.

Commercial Advantages for Procurement and Supply Chain Teams

Adopting this advanced synthetic route offers substantial commercial benefits for organizations involved in the manufacturing of complex pharmaceutical intermediates. The primary advantage lies in the significant cost reduction in pharmaceutical intermediate manufacturing driven by the high efficiency of the coupling reaction. With yields reaching up to 84% and reduced reaction times, the throughput of manufacturing facilities can be drastically increased without the need for additional capital investment in reactor capacity. The elimination of harsh reaction conditions also lowers energy consumption and reduces the wear and tear on equipment, contributing to long-term operational savings. For procurement managers, this translates into a more favorable cost structure, allowing for competitive pricing strategies while maintaining healthy profit margins in a highly regulated market.

• Cost Reduction in Manufacturing: The process eliminates the need for expensive and difficult-to-remove transition metal catalysts often associated with alternative coupling methods, thereby simplifying the purification workflow. By using standard palladium catalysts at low loadings, the cost of raw materials is minimized, and the expense associated with metal scavenging resins is avoided. This streamlined approach reduces the overall number of processing steps, directly lowering labor and utility costs per kilogram of product. Furthermore, the high atom economy of the Negishi coupling ensures that raw material utilization is maximized, minimizing waste generation and disposal fees.
• Enhanced Supply Chain Reliability: The robustness of this synthetic method ensures consistent batch quality, which is crucial for maintaining uninterrupted supply chains. The reagents used, such as THF and zinc chloride, are commodity chemicals with stable global availability, reducing the risk of supply disruptions caused by niche raw material shortages. The scalability of the process from laboratory to commercial production has been demonstrated, providing confidence that demand surges can be met without compromising quality. This reliability is essential for securing long-term contracts with major pharmaceutical companies who prioritize supply continuity for their critical drug pipelines.
• Scalability and Environmental Compliance: The use of common organic solvents and the absence of highly toxic reagents make this process environmentally friendly and easier to permit in various jurisdictions. The simplified workup procedure reduces the volume of hazardous waste generated, aligning with modern green chemistry principles and corporate sustainability goals. Scaling this reaction to multi-kilogram or tonne scales is straightforward due to the exothermic nature being manageable under the specified conditions. This ease of scale-up facilitates rapid technology transfer from R&D to manufacturing sites, accelerating the time to market for new therapeutic candidates.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the production of 5-(1,3-oxazol-2-yl)benzoic acid derivatives. These insights are derived directly from the experimental data and process descriptions found in the patent literature, ensuring accuracy and relevance for industry professionals. Understanding these details helps stakeholders make informed decisions about integrating this technology into their existing manufacturing portfolios.

Q: What are the key advantages of the Negishi coupling method described in CN1324017C?

A: The method offers significantly improved yields (up to 84% in examples) and shortened reaction times compared to conventional aryl halide coupling methods. It utilizes mild temperatures (45-55°C) and avoids harsh conditions often required for heterocycle introduction.

Q: Is this process suitable for large-scale manufacturing of Alzheimer's drug intermediates?

A: Yes, the process uses common solvents like THF and commercially available catalysts such as Pd(PPh3)4. The reaction conditions are robust and scalable, making it ideal for commercial production of complex pharmaceutical intermediates.

Q: How is the purity of the final oxazolyl benzoic acid derivative ensured?

A: Purity is maintained through controlled reaction temperatures and specific workup procedures, such as extraction with saturated ammonium chloride to remove zinc salts. Final purification can be achieved via silica gel chromatography or crystallization.
