Industrial Scale-Up of Benzo[c]phenanthrene-5-triflate for Advanced OLED Materials

The rapid evolution of the organic electronics sector demands intermediates that combine high electronic performance with manufacturing feasibility. Patent CN113024365A introduces a transformative industrial production method for Benzo[c]phenanthrene-5-trifluoromethanesulfonate, a critical building block for advanced conjugated materials used in organic light-emitting diodes (OLEDs) and field-effect transistors. This technical disclosure addresses the longstanding bottlenecks associated with synthesizing polycyclic aromatic hydrocarbons functionalized with triflate groups, which serve as superior leaving groups for subsequent cross-coupling reactions. By shifting away from hazardous organolithium chemistry towards a palladium-catalyzed Suzuki coupling followed by acid-mediated cyclization, this route offers a robust pathway for producing high-purity electronic chemicals. For R&D Directors and Supply Chain Heads, understanding this shift is vital, as it represents a move from laboratory-scale curiosity to a commercially viable, safe, and scalable process that ensures supply continuity for next-generation display technologies.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of benzo[c]phenanthrene derivatives relied heavily on methodologies that are inherently difficult to scale and pose significant safety hazards in a commercial plant environment. The prior art, as detailed in the background of the patent, typically necessitates the use of n-butyllithium, a pyrophoric reagent that requires stringent handling protocols and specialized equipment to prevent ignition. Furthermore, these conventional routes often demand ultra-low temperature systems, frequently operating below minus seventy degrees Celsius, which drastically increases energy consumption and capital expenditure for cooling infrastructure. The reliance on such extreme conditions not only elevates the operational risk but also complicates the purification process, often leading to lower overall yields due to side reactions that are difficult to suppress at such cryogenic temperatures. Additionally, the starting materials in older methods, such as specific brominated naphthalenes, can be prohibitively expensive and subject to supply chain volatility, making the final cost of the API intermediate or electronic material unsustainable for mass production.

The Novel Approach

In stark contrast, the method disclosed in CN113024365A leverages a sequence of reactions that are fundamentally more aligned with green chemistry principles and industrial safety standards. The process initiates with a Suzuki cross-coupling reaction, a well-established and robust method for forming carbon-carbon bonds that operates under mild thermal conditions, typically requiring only reflux temperatures in common solvent systems. This is followed by a Wittig olefination and a crucial acid-catalyzed cyclization step using methanesulfonic acid, which effectively constructs the rigid benzo[c]phenanthrene core without the need for cryogenic cooling. . This strategic redesign of the synthetic pathway eliminates the most dangerous reagents and energy-intensive steps, thereby simplifying the post-treatment procedures and significantly enhancing the overall process safety profile. For procurement managers, this translates to a more reliable supply chain with reduced risk of production shutdowns due to safety incidents or reagent shortages.

Mechanistic Insights into Pd-Catalyzed Coupling and Acid Cyclization

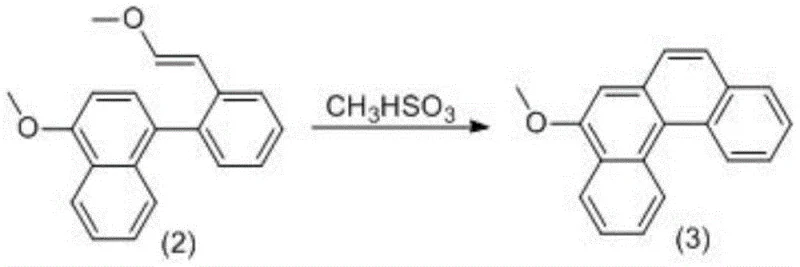

The core of this technological advancement lies in the precise orchestration of the Suzuki coupling and the subsequent intramolecular cyclization. In the first step, the palladium catalyst facilitates the oxidative addition of the aryl bromide, followed by transmetallation with the boronic acid species, and finally reductive elimination to form the biaryl aldehyde intermediate. This mechanism is highly tolerant of functional groups and proceeds with high fidelity, ensuring that the methoxy protecting group remains intact for later manipulation. The subsequent cyclization step is particularly noteworthy from a mechanistic standpoint; the use of methanesulfonic acid promotes the electrophilic aromatic substitution or cationic cyclization of the vinyl intermediate. This acid-mediated ring closure is efficient and selective, driving the formation of the fused ring system with minimal formation of regioisomers or polymeric byproducts. . By avoiding strong bases and organometallic reagents in this critical ring-forming step, the process minimizes the generation of inorganic salts and metal waste, simplifying the downstream purification and reducing the environmental footprint of the manufacturing process.

Furthermore, the control of impurities is inherently built into the design of this synthetic route. The stepwise nature of the synthesis allows for intermediate isolation and purification, such as recrystallization from ethanol or toluene, which effectively removes unreacted starting materials and catalyst residues before they can propagate into the final product. The demethylation step using boron tribromide is conducted in a controlled manner, ensuring complete conversion to the phenol without degrading the sensitive polycyclic backbone. Finally, the triflation with trifluoromethanesulfonic anhydride is performed under basic aqueous workup conditions that neutralize acidic byproducts, ensuring the final triflate product is stable and free from acidic impurities that could catalyze decomposition during storage. This rigorous attention to impurity profiling is essential for R&D Directors who require materials with consistent batch-to-batch reproducibility for device fabrication.

How to Synthesize Benzo[c]phenanthrene-5-trifluoromethanesulfonate Efficiently

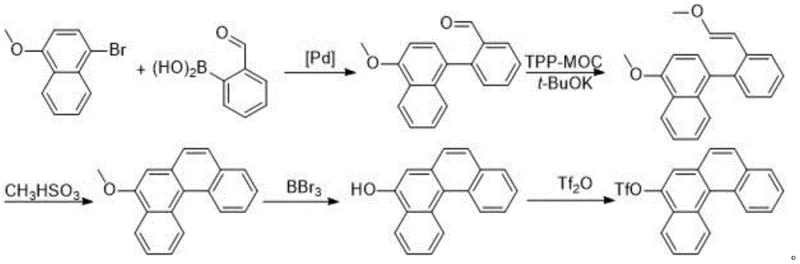

The practical implementation of this synthesis involves a carefully sequenced series of unit operations that balance reaction kinetics with safety. The process begins with the preparation of the biaryl aldehyde, followed by olefination and cyclization to build the core structure. . This structured approach ensures that each chemical transformation is optimized for yield and purity before proceeding to the next, minimizing the risk of carrying over impurities that could complicate the final triflation step.

1. Perform Suzuki coupling between 1-bromo-4-methoxynaphthalene and 2-formylphenylboronic acid using a Pd catalyst.
2. Execute Wittig reaction with chloromethyl ether triphenylphosphine salt to form the vinyl intermediate.
3. Conduct acid-catalyzed ring closure using methanesulfonic acid to form the benzo[c]phenanthrene core.

Commercial Advantages for Procurement and Supply Chain Teams

From a commercial perspective, the adoption of this patent-protected route offers substantial strategic advantages for organizations looking to secure a stable supply of high-performance electronic intermediates. The elimination of ultra-low temperature requirements and pyrophoric reagents directly correlates to a reduction in operational complexity and safety overhead, which are critical factors in determining the long-term viability of a chemical supply contract. By utilizing readily available starting materials like 1-bromo-4-methoxynaphthalene and 2-formylphenylboronic acid, the process mitigates the risk of raw material scarcity that often plagues specialty chemical supply chains. This accessibility ensures that production schedules can be maintained without significant delays, providing Supply Chain Heads with the predictability needed for long-term planning.

• Cost Reduction in Manufacturing: The economic benefits of this new route are derived primarily from the simplification of the process infrastructure and the reduction in waste treatment costs. By avoiding the need for specialized cryogenic reactors and the handling of hazardous organolithium reagents, the capital and operational expenditures associated with the manufacturing facility are significantly lowered. Furthermore, the higher yields reported in the patent examples indicate a more efficient utilization of raw materials, which directly improves the cost of goods sold. The simplified workup procedures, which rely on standard phase separations and recrystallizations rather than complex chromatographic purifications, further contribute to substantial cost savings in the overall production budget.
• Enhanced Supply Chain Reliability: The robustness of the Suzuki coupling and acid-catalyzed cyclization steps ensures that the manufacturing process is less susceptible to minor fluctuations in reaction conditions, leading to more consistent output. This reliability is crucial for maintaining the continuity of supply for downstream customers in the OLED and semiconductor industries, where production stoppages can be extremely costly. The use of common solvents such as toluene, tetrahydrofuran, and methylcyclohexane means that solvent supply chains are stable and less prone to disruption compared to specialized or regulated solvents. This stability allows for better inventory management and reduces the need for excessive safety stock.
• Scalability and Environmental Compliance: The process is designed with scalability in mind, utilizing reaction conditions that can be easily transferred from laboratory glassware to large-scale industrial reactors. The avoidance of heavy metal contaminants and the reduction in hazardous waste generation align with increasingly stringent environmental regulations, reducing the compliance burden on the manufacturer. The ability to scale from kilogram to ton quantities without significant re-optimization of the process parameters demonstrates the maturity of the technology. This scalability ensures that the supply can grow in tandem with market demand for advanced electronic materials, supporting the expansion of the customer's own production capabilities.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the production and application of this specific triflate intermediate. . These insights are derived directly from the technical specifications and experimental data provided in the patent documentation.

Q: Why is this new route safer than the conventional method?

A: The conventional method relies on n-butyllithium and ultra-low temperatures, posing significant safety risks. This new patent utilizes mild Suzuki coupling and acid-catalyzed cyclization, eliminating pyrophoric reagents.

Q: What are the key purity advantages for OLED applications?

A: The stepwise purification via recrystallization and phase separation ensures high chemical purity, which is critical for the charge mobility and longevity of organic light-emitting diodes.

Q: Is this process suitable for large-scale production?

A: Yes, the avoidance of ultra-low temperature systems and the use of common solvents like toluene and methylcyclohexane make the process highly scalable for commercial manufacturing.
