Advanced Synthesis of Air-Stable Cage Germanium Intermediates for Commercial Scale-Up

Advanced Synthesis of Air-Stable Cage Germanium Intermediates for Commercial Scale-Up

The landscape of organometallic chemistry is continually evolving, driven by the demand for highly reactive yet stable intermediates capable of facilitating complex molecular constructions. A significant breakthrough in this domain is documented in Chinese Patent CN112194674B, which discloses a novel class of 1-aza-5-germanocarbobicyclo[3.3.3]undecane cage compounds. These structures represent a pivotal advancement over previous generations of organogermanium reagents, specifically addressing the historical challenges associated with the stability and reactivity of germanoborane and germanosilane species. By integrating a nitrogen atom directly into the all-carbon cage framework, the inventors have created a system where the nitrogen coordination stabilizes the germanium center, allowing these compounds to exist stably in air—a rarity for such reactive organometallic species. This patent not only fills a critical gap in the preparation of aza-all-carbon caged germanium boranes and silanes but also opens new avenues for introducing germanium groups into unsaturated organic systems, offering substantial value for the synthesis of advanced functional materials and pharmaceutical intermediates.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis and application of Group 14-Group 13 bonded compounds, such as silaboranes, have been well-established since the early reports by the Ryschkewitsch group in 1960. However, the extension of this chemistry to germanium analogues has faced significant hurdles. Open-chain germanoborane compounds, while synthetically accessible, typically suffer from lower reactivity compared to their silicon counterparts, limiting their utility in selective introduction reactions onto unsaturated systems. Furthermore, earlier attempts to stabilize germanium reagents involved oxygen-containing caged structures. While these oxygen-heterocaged reagents demonstrated improved stability, they often lacked the enhanced reactivity required for efficient cross-coupling transformations. The inherent instability of many organogermanium species necessitates rigorous inert atmosphere handling, which drastically increases operational costs and complicates the supply chain for large-scale manufacturing. Consequently, there has been a persistent need in the art for intermediate compounds that combine the high reactivity of aza-caged structures with the practical stability required for commercial handling and storage.

The Novel Approach

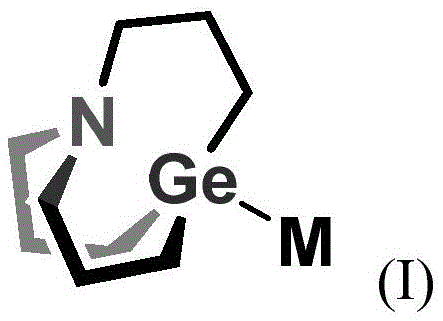

The methodology outlined in patent CN112194674B presents a transformative solution by leveraging the unique electronic properties of the 1-aza-5-germanocarbobicyclo[3.3.3]undecane scaffold. This novel approach utilizes an aza-all-carbon cage structure where the nitrogen atom plays a dual role: it provides structural rigidity and electronically stabilizes the germanium center through coordination. This stabilization allows the resulting germanium boron and silicon compounds to remain stable in air, a property that fundamentally alters the logistics of their use. The preparation method effectively bridges the gap between high reactivity and practical stability. By employing specific metal reagents such as methyllithium or metallic lithium in conjunction with cuprous chloride catalysis, the process enables the efficient coupling of diboronic acid esters or chlorosilanes with the germanium cage precursor. This results in high-purity products with yields reaching up to 89% in optimized examples, demonstrating a robust and scalable pathway that overcomes the limitations of previous oxygen-caged or open-chain methodologies.

Mechanistic Insights into Copper-Catalyzed and Lithium-Mediated Coupling

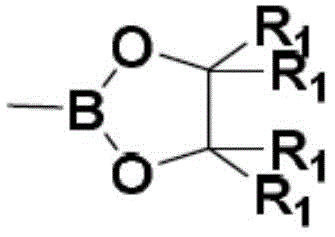

The synthesis of these cage compounds relies on sophisticated organometallic mechanisms that ensure high selectivity and yield. For the boron-containing variants, the process involves a transmetallation strategy facilitated by cuprous chloride. Initially, a diboronic acid ester, such as pinacol diboron, is activated by a metal reagent like methyllithium at low temperatures (-10 to 5°C). This step generates a nucleophilic boron species which is then coupled with the 1-aza-5-germyl-5-halobicyclo[3.3.3]undecane substrate. The presence of cuprous chloride is critical here, acting as a catalyst to mediate the transfer of the boron group to the germanium center without degrading the sensitive cage structure. The nitrogen atom within the cage coordinates to the germanium, preventing the formation of unstable carbenium ions until the reagent is intentionally activated in a subsequent reaction, thus preserving the integrity of the molecule during synthesis and storage.

In parallel, the synthesis of the silicon-containing analogues employs a direct lithiation strategy. Phenyl dimethylchlorosilane is reacted with metallic lithium to generate a silyllithium species in situ. This highly reactive intermediate is then introduced to the germanium halide cage precursor. The reaction conditions are carefully controlled, starting at room temperature and progressing to elevated temperatures (50 to 80°C) to ensure complete conversion. The mechanistic advantage of this route lies in the direct formation of the germanium-silicon bond within the protective environment of the aza-cage. The resulting compounds, whether bearing boron or silicon substituents, retain the air-stable characteristics imparted by the nitrogen-germanium interaction. This mechanistic understanding is crucial for R&D directors aiming to replicate these syntheses, as it highlights the importance of precise stoichiometry—such as the 1:1 molar ratio of metal reagent to diboronate—and the necessity of purified catalysts to minimize side reactions and maximize yield.

How to Synthesize 1-Aza-5-Germanocarbobicyclo[3.3.3]Undecane Efficiently

The preparation of these high-value intermediates requires strict adherence to inert atmosphere techniques and precise reagent grading to achieve the reported purities close to 100%. The patent details a generalized procedure that can be adapted for both boron and silicon variants, emphasizing the use of anhydrous solvents like tetrahydrofuran and the purification of catalysts such as cuprous chloride using hydrochloric acid to remove oxides. The process is designed to be scalable, moving from gram-scale Schlenk flask operations to potential industrial reactor setups, provided that the inert atmosphere is maintained throughout the metalation and coupling stages. Detailed standard operating procedures for the specific stoichiometry, temperature ramps, and workup protocols are essential for ensuring batch-to-batch consistency.

1. Prepare the nucleophilic species by reacting pinacol diboron or phenyldimethylchlorosilane with a metal reagent (such as methyllithium or metallic lithium) in anhydrous tetrahydrofuran at low temperatures (0°C) or room temperature.
2. Introduce the 1-aza-5-germyl-5-halobicyclo[3.3.3]undecane substrate to the reaction mixture, utilizing cuprous chloride as a catalyst for boron variants or direct lithium mediation for silicon variants.
3. Maintain the reaction at room temperature or elevated temperatures (60-80°C) for 10-15 hours, followed by aqueous quenching, extraction, and purification to isolate the air-stable cage compound.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the introduction of air-stable cage germanium compounds represents a significant opportunity for cost reduction in specialty chemical manufacturing. Traditional organogermanium reagents often require expensive packaging solutions, such as sealed ampoules or continuous nitrogen blanketing, to prevent degradation upon exposure to moisture or oxygen. The ability of these novel compounds to exist stably in air drastically simplifies logistics, allowing for standard drum or bag packaging which significantly lowers shipping and storage costs. Furthermore, the high yields reported in the patent examples, ranging from 70% to 89%, indicate a material-efficient process that minimizes waste generation. This efficiency translates directly into better pricing structures for bulk purchasers, as the raw material consumption per kilogram of final product is optimized through the precise control of molar ratios described in the intellectual property.

• Cost Reduction in Manufacturing: The synthetic route eliminates the need for exotic or hard-to-source precursors, relying instead on commercially available reagents like pinacol diboron and phenyldimethylchlorosilane. The use of cuprous chloride as a catalyst, rather than expensive palladium or platinum group metals, further drives down the cost of goods sold. Additionally, the simplified purification process, which often involves basic extraction and drying rather than complex chromatography for bulk grades, reduces solvent consumption and energy usage. These factors combine to create a manufacturing profile that is highly favorable for cost-sensitive applications in the fine chemical sector.
• Enhanced Supply Chain Reliability: The air stability of the final product is a game-changer for supply chain continuity. Unlike moisture-sensitive reagents that can spoil during transit if packaging is compromised, these cage compounds offer a robust shelf life. This reliability reduces the risk of production delays caused by degraded raw materials. Moreover, the synthesis uses common solvents like tetrahydrofuran and n-hexane, which are readily available in the global chemical market, ensuring that the production of these intermediates is not bottlenecked by the supply of niche solvents. This accessibility supports a resilient supply chain capable of meeting fluctuating demand from downstream pharmaceutical and materials sectors.
• Scalability and Environmental Compliance: The process is inherently scalable, having been demonstrated in Schlenk flasks which mimic the inert conditions of large-scale stirred tank reactors. The reaction conditions, primarily operating at room temperature or moderate heating (up to 80°C), are energy-efficient and do not require cryogenic cooling beyond standard chillers, making them suitable for large-scale commercial production. From an environmental perspective, the high atom economy and the ability to recycle solvents contribute to a greener manufacturing footprint. The elimination of heavy metal catalysts also simplifies waste treatment, ensuring compliance with stringent environmental regulations regarding heavy metal discharge in industrial effluent.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this technology. These answers are derived directly from the experimental data and technical disclosures within patent CN112194674B, providing a reliable foundation for decision-making. Understanding the specific stability profiles and reactivity patterns of these compounds is essential for integrating them into existing synthetic workflows. We encourage technical teams to review the detailed spectral data provided in the patent to confirm identity and purity standards.

Q: What distinguishes these aza-all-carbon cage germanium compounds from traditional silaboranes?

A: Unlike traditional open-chain germanoboranes which often exhibit lower activity, these aza-all-carbon caged structures benefit from nitrogen coordination to the germanium center. This coordination stabilizes the germanium as a carbenium ion upon leaving the cage, significantly enhancing reactivity in cross-coupling applications compared to oxygen-containing hetero-caged analogues.

Q: Are these organogermanium intermediates stable for long-term storage and transport?

A: Yes, a critical advantage of the compounds described in patent CN112194674B is their exceptional stability. They can exist stably in air, which eliminates the need for rigorous inert atmosphere packaging during logistics, thereby reducing handling costs and supply chain complexity for downstream users.

Q: What represents the primary application for these cage germanium boron compounds?

A: These compounds serve as versatile intermediates for the addition or doping of germanosilane or germanoborane moieties into unsaturated organic molecular systems. This capability allows for the synthesis of novel organometallic compounds with high application value in materials science and pharmaceutical development.
