Advanced Visible Light Catalysis for High-Purity Quinoxaline Intermediates Manufacturing

The landscape of heterocyclic compound synthesis is undergoing a significant transformation driven by the urgent demand for greener, more sustainable, and cost-effective manufacturing processes. A groundbreaking development in this field is detailed in Chinese Patent CN113087674B, which discloses a novel method for synthesizing quinoxaline compounds under visible light-induced photosensitizer catalysis. This technology represents a pivotal shift from traditional thermal methods to photochemical protocols, enabling the direct coupling of non-activated aliphatic amines with o-phenylenediamines. For R&D directors and procurement strategists in the fine chemical sector, this innovation offers a compelling alternative to legacy routes that often rely on scarce resources and harsh conditions. By leveraging visible light and earth-abundant catalysts, this process not only expands the synthetic toolbox for constructing nitrogen-containing heterocycles but also aligns perfectly with modern principles of green chemistry and sustainable manufacturing.

Quinoxaline scaffolds are ubiquitous in medicinal chemistry and agrochemical formulations, serving as critical building blocks for a vast array of bioactive molecules. The ability to access these structures efficiently from simple, non-activated precursors is a long-standing challenge in organic synthesis. The patented method addresses this by utilizing a photocatalytic system that activates C-H bonds under mild conditions, thereby bypassing the need for pre-functionalized starting materials. This capability is particularly valuable for the rapid generation of diverse chemical libraries during drug discovery phases, as well as for the streamlined production of key intermediates in commercial supply chains. As we delve deeper into the technical specifics, it becomes clear that this approach offers substantial advantages in terms of operational simplicity, safety, and economic viability for large-scale operations.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of quinoxaline derivatives has been heavily dependent on the condensation of o-phenylenediamines with 1,2-dicarbonyl compounds or their synthetic equivalents. While effective, this classical approach suffers from significant limitations regarding atom economy and substrate availability. The requirement for pre-oxidized or pre-functionalized carbonyl partners often necessitates multi-step preparation sequences, increasing both the overall cost and the environmental footprint of the synthesis. Furthermore, many existing catalytic methods for C-H functionalization rely on expensive transition metals such as palladium, ruthenium, or rhodium. These noble metals are not only costly but also pose challenges related to residual metal contamination in pharmaceutical products, necessitating rigorous and expensive purification steps to meet stringent regulatory standards for heavy metal limits.

In addition to the economic burden of noble metal catalysts, traditional thermal methods frequently require elevated temperatures and strong oxidants to drive the reaction to completion. These harsh conditions can lead to poor selectivity, decomposition of sensitive functional groups, and safety hazards associated with exothermic reactions and hazardous reagents. The reliance on stoichiometric oxidants generates substantial amounts of chemical waste, complicating waste management and disposal procedures. For supply chain managers, these factors translate into higher raw material costs, longer lead times due to complex purification requirements, and increased regulatory compliance risks. The industry has long sought a method that could overcome these barriers by utilizing cheaper catalysts, milder conditions, and more abundant starting materials without compromising on yield or purity.

The Novel Approach

The methodology described in patent CN113087674B introduces a transformative solution by employing visible light photocatalysis to activate non-activated aliphatic amines directly. This approach eliminates the need for pre-functionalized carbonyl substrates, allowing for the direct use of simple amines which are widely available and inexpensive. The core of this innovation lies in the use of photosensitizers, which can be either inexpensive iron salts like Fe3O4, Fe2O3, Fe(NO3)3, or organic dyes such as Eosin Y and Rose Bengal. These catalysts absorb visible light energy to generate reactive radical species that facilitate the coupling reaction with o-phenylenediamines. This shift from thermal activation to photochemical activation allows the reaction to proceed at room temperature, significantly reducing energy consumption and improving safety profiles.

Moreover, the use of molecular oxygen as the terminal oxidant is a standout feature of this green chemistry protocol. Oxygen is abundant, cheap, and produces water as the only byproduct, thereby drastically reducing the generation of hazardous waste compared to traditional stoichiometric oxidants. The compatibility of this system with a wide range of solvents, including DMSO, toluene, and DMF, provides flexibility for process optimization. The reaction demonstrates excellent regioselectivity, primarily achieving alpha- and beta-C-H bifunctionalization of the aliphatic amines to form the quinoxaline ring system. This high level of control ensures that the desired product is formed with minimal byproduct formation, simplifying downstream processing and enhancing overall process efficiency for commercial manufacturing.

Mechanistic Insights into FeCl3-Catalyzed Cyclization

The mechanistic pathway of this visible light-induced transformation involves a sophisticated interplay between the photosensitizer, the substrate, and molecular oxygen. Upon irradiation with visible light, the photosensitizer absorbs photons and transitions to an excited state. In the case of iron salt catalysts like Fe3O4, the semiconductor properties allow for the generation of electron-hole pairs that can participate in redox processes. The excited catalyst facilitates the single-electron transfer (SET) oxidation of the non-activated aliphatic amine, generating an amine radical cation. Subsequent deprotonation leads to the formation of an alpha-amino alkyl radical, which is a key intermediate in the C-H functionalization process. This radical species then undergoes further oxidation or coupling events to form an imine intermediate, which subsequently condenses with the o-phenylenediamine to construct the quinoxaline scaffold.

The role of oxygen in this catalytic cycle is twofold: it acts as an electron acceptor to regenerate the ground state of the photosensitizer, ensuring the continuity of the catalytic cycle, and it serves as the oxidant to drive the overall transformation. The presence of oxygen helps to suppress side reactions and promotes the formation of the aromatic quinoxaline system through oxidative aromatization. The use of iron salts is particularly advantageous because iron is not only abundant and non-toxic but also exhibits unique redox properties that complement the photochemical excitation. This dual functionality of the iron species as both a photocatalyst and a Lewis acid catalyst enhances the reaction rate and selectivity. Understanding these mechanistic details is crucial for R&D teams aiming to optimize reaction conditions for specific substrates, as it allows for the rational tuning of light intensity, catalyst loading, and oxygen pressure to maximize yield and purity.

Furthermore, the tolerance of this system towards various functional groups is attributed to the mild nature of the radical intermediates generated under visible light irradiation. Unlike harsh thermal conditions that might degrade sensitive moieties, the photochemical activation is selective for the C-H bonds adjacent to the nitrogen atom. This selectivity ensures that substituents such as halogens, nitro groups, and trifluoromethyl groups on the aromatic ring of the o-phenylenediamine remain intact throughout the reaction. This broad functional group tolerance is a significant advantage for the synthesis of complex pharmaceutical intermediates where multiple functional handles are often present. The ability to maintain high regioselectivity while accommodating diverse structural motifs makes this methodology a robust platform for the late-stage functionalization of drug candidates and the efficient production of specialized chemical building blocks.

How to Synthesize Quinoxalines Efficiently

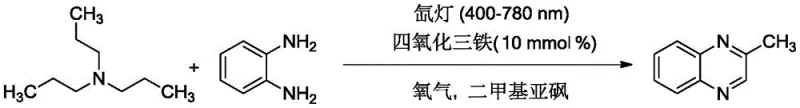

Implementing this visible light photocatalytic protocol in a laboratory or pilot plant setting requires careful attention to reaction parameters to ensure reproducibility and high yields. The general procedure involves charging a reaction vessel, preferably made of quartz or transparent glass to allow light penetration, with the o-phenylenediamine substrate and the non-activated aliphatic amine in a molar ratio of approximately 1:2. A suitable solvent such as dimethyl sulfoxide (DMSO) is added to dissolve the reactants, followed by the addition of the photosensitizer catalyst at a loading of typically 10 mol%. The reaction mixture is then subjected to freeze-pump-thaw cycles to remove dissolved gases before being filled with an oxygen atmosphere, often using an oxygen balloon for small-scale reactions. The vessel is placed under a visible light source, such as a xenon lamp or a blue LED array, and stirred at room temperature for a period ranging from 24 to 48 hours depending on the specific substrate reactivity.

1. Combine non-activated aliphatic amine and o-phenylenediamine substrates in a suitable solvent such as DMSO or toluene within a quartz reaction vessel.
2. Add a photosensitizer catalyst, selecting from earth-abundant iron salts like Fe3O4 or organic dyes such as Eosin Y, typically at a loading of 10 mol%.
3. Purge the reaction system with oxygen and irradiate with visible light sources such as xenon lamps or blue LEDs at room temperature for approximately 48 hours.
4. Monitor reaction progress via TLC and isolate the final quinoxaline product through standard column chromatography purification techniques.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this visible light photocatalytic technology offers profound strategic benefits that extend beyond mere technical novelty. The primary advantage lies in the drastic reduction of raw material costs associated with catalysts and starting materials. By replacing expensive noble metals like palladium and ruthenium with ubiquitous iron salts or low-cost organic dyes, manufacturers can achieve significant cost savings on a per-kilogram basis. Additionally, the use of non-activated aliphatic amines as starting materials eliminates the need for purchasing or synthesizing specialized pre-functionalized reagents, further streamlining the supply chain and reducing inventory complexity. The mild reaction conditions also contribute to lower energy costs, as there is no need for extensive heating or cooling systems, making the process more energy-efficient and environmentally friendly.

Supply chain reliability is another critical area where this technology excels. The reliance on earth-abundant iron catalysts mitigates the risk of supply disruptions often associated with precious metals, which are subject to geopolitical volatility and mining constraints. The robustness of the reaction across a wide range of substrates ensures consistent production quality, reducing the likelihood of batch failures and delivery delays. Moreover, the green nature of the process, characterized by the use of oxygen as an oxidant and the generation of minimal waste, aligns with increasingly stringent environmental regulations. This compliance reduces the regulatory burden and potential fines associated with waste disposal, while also enhancing the corporate sustainability profile of the manufacturing entity. The scalability of the process from milligram to kilogram scales suggests that it can be readily adapted for commercial production without significant re-engineering.

• Cost Reduction in Manufacturing: The substitution of high-cost noble metal catalysts with inexpensive iron salts or organic dyes results in a substantial decrease in catalyst expenditure. Furthermore, the elimination of pre-functionalized substrates reduces the number of synthetic steps required, leading to lower overall material costs and reduced labor expenses. The energy efficiency of running reactions at room temperature under visible light also contributes to lower utility bills, making the overall manufacturing process more economically competitive in the global market.
• Enhanced Supply Chain Reliability: Utilizing widely available and commodity-grade starting materials such as simple aliphatic amines and o-phenylenediamines ensures a stable and secure supply chain. The independence from scarce precious metals reduces exposure to market fluctuations and supply shortages. The robustness of the photocatalytic system allows for consistent production schedules, minimizing downtime and ensuring timely delivery of critical intermediates to downstream customers, thereby strengthening business relationships and market position.
• Scalability and Environmental Compliance: The mild operating conditions and use of green oxidants like oxygen make this process highly scalable with minimal safety risks. The reduction in hazardous waste generation simplifies waste management protocols and lowers disposal costs. Compliance with green chemistry principles enhances the environmental sustainability of the manufacturing operation, meeting the growing demand from stakeholders for eco-friendly production methods and facilitating easier regulatory approval for new drug applications containing these intermediates.

Frequently Asked Questions (FAQ)

The following questions address common inquiries regarding the technical feasibility and commercial viability of this visible light-induced synthesis method. These answers are derived directly from the experimental data and technical specifications outlined in the patent documentation, providing clarity on reaction scope, catalyst selection, and operational parameters. Understanding these details is essential for technical teams evaluating the integration of this technology into existing production workflows or for sourcing teams assessing the quality and consistency of suppliers utilizing this method.

Q: What distinguishes this visible light method from traditional quinoxaline synthesis?

A: Unlike conventional methods that require pre-functionalized substrates like alpha-diketones or expensive noble metal catalysts such as palladium and ruthenium, this patented approach utilizes readily available non-activated aliphatic amines and inexpensive iron-based photocatalysts under mild visible light conditions.

Q: Can this protocol tolerate diverse functional groups on the aromatic ring?

A: Yes, the methodology demonstrates excellent substrate universality and functional group tolerance, successfully accommodating electron-donating groups like methyl and methoxy, as well as electron-withdrawing substituents including halogens such as fluorine, chlorine, and bromine, along with nitro and trifluoromethyl groups.

Q: Is the use of oxygen safe and scalable for industrial production?

A: The reaction operates under an oxygen atmosphere which serves as a green oxidant, eliminating the need for hazardous stoichiometric oxidants. The mild room temperature conditions and use of stable iron catalysts suggest favorable scalability and safety profiles for commercial manufacturing environments.
