Advanced 4,7-Diarylthieno[2,3-d]pyridazine Iridium Complexes for High-Efficiency OLED Manufacturing

The landscape of organic electroluminescence (OLED) is undergoing a significant transformation driven by the demand for materials that offer superior stability and efficiency. Patent CN111377977A introduces a groundbreaking class of 4,7-diarylthieno[2,3-d]pyridazine cyclometalated iridium complexes that address critical limitations in current phosphorescent emitters. Traditional iridium complexes often suffer from high sensitivity to oxygen quenching and moderate quantum efficiencies, which restricts their operational lifetime in display applications. This innovation leverages a unique fused heterocyclic scaffold where a thiophene ring is integrated with a pyridazine core, fundamentally altering the electronic properties of the ligand field surrounding the iridium center. By modifying the coordination environment to a C^N=N configuration, the invention successfully mitigates steric hindrance issues common in conventional C^N ligands, leading to enhanced binding energy and thermal robustness.

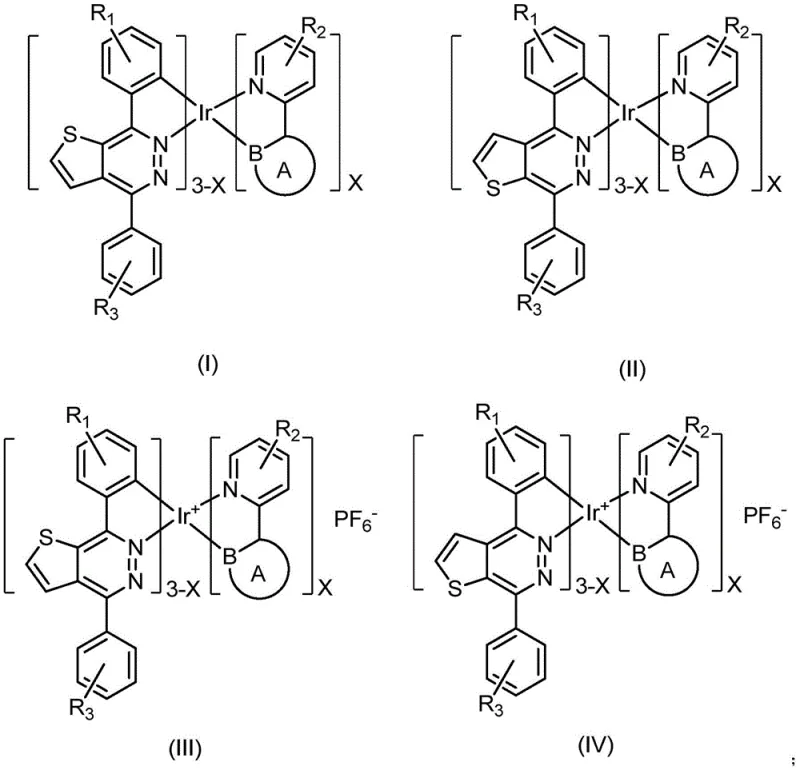

For R&D directors evaluating new emissive materials, the structural versatility offered by this patent is particularly compelling. The general formulas (I) through (IV) encompass both non-ionic and ionic variants, allowing for fine-tuning of emission colors and charge transport properties through substituent variation at the R1, R2, and R3 positions. The inclusion of fluorine atoms or alkyl groups provides a mechanism to adjust the HOMO-LUMO gap without compromising the core stability. Furthermore, the ability to synthesize these complexes directly from iridium trichloride without intermediate auxiliary ligand exchanges represents a paradigm shift in synthetic efficiency. This direct metallation approach not only streamlines the production workflow but also ensures a higher degree of purity in the final product, which is paramount for achieving consistent color coordinates in high-resolution displays.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of high-efficiency red and orange phosphorescent emitters has relied heavily on ligands such as thieno[2,3-d]pyrimidine or quinoline derivatives paired with weakly coordinating auxiliary ligands like acetylacetone. While these materials have demonstrated respectable external quantum efficiencies, they are plagued by inherent instability under device operating conditions. The acetylacetone ligand, being loosely bound, is prone to dissociation upon thermal stress or electrical excitation, leading to degradation of the emissive layer and a consequent drop in device luminance over time. Additionally, the steric bulk often required to protect the metal center in traditional C^N coordinated complexes can inadvertently hinder charge injection balance, limiting the overall power efficiency of the OLED stack. These structural vulnerabilities necessitate complex encapsulation strategies and drive up the cost of manufacturing reliable display panels.

The Novel Approach

The methodology disclosed in CN111377977A circumvents these issues by employing a 4,7-diarylthieno[2,3-d]pyridazine ligand system that facilitates the formation of stable tricyclic iridium complexes in a single metallation step. Unlike previous iterations where the pyridazine ring was isolated, the fusion with a thiophene moiety significantly enriches the electron density of the ligand system. This electron-rich characteristic enhances the hole transport capability of the material, promoting better charge balance within the emissive layer. Crucially, the C^N=N coordination mode eliminates the steric repulsion typically found adjacent to the coordinating nitrogen atom in standard cyclometalated ligands. This structural refinement allows for the direct reaction with iridium trichloride to form a robust tricyclic core, effectively removing the need for labile auxiliary ligands and resulting in a complex that maintains high quantum efficiency even in air-saturated environments.

Mechanistic Insights into Suzuki Coupling and Direct Cyclometalation

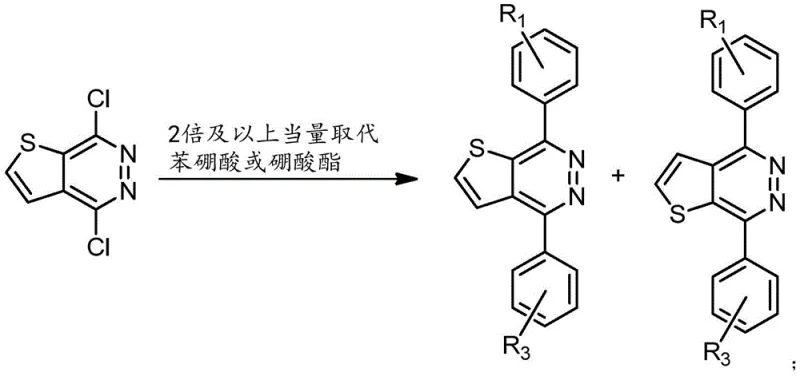

The synthetic pathway begins with the construction of the organic ligand via a palladium-catalyzed Suzuki-Miyaura cross-coupling reaction. In this critical step, 4,7-dichlorothieno[2,3-d]pyridazine serves as the electrophilic partner, reacting with substituted phenylboronic acids or esters in the presence of a base and a palladium catalyst such as Pd(dppf)Cl2. The reaction is typically conducted in a biphasic solvent system comprising tetrahydrofuran and water at temperatures ranging from 50°C to 150°C. The molar ratio of the boronic acid to the dichloro precursor is maintained at greater than 1:1, often between 1:2 and 1:4, to ensure complete conversion of both chloro substituents. This excess of boron reagent drives the equilibrium towards the desired 4,7-diaryl product, minimizing the formation of mono-substituted intermediates that could act as impurities in subsequent steps.

Following ligand isolation, the metallation process exploits the enhanced nucleophilicity of the pyridazine nitrogen atoms. When mixed with iridium trichloride in solvents like ethoxyethanol or glycerol, the ligand coordinates to the metal center under nitrogen protection at elevated temperatures (100°C to 150°C). The electron-donating nature of the fused thiophene ring stabilizes the transition state during cyclometalation, allowing for the direct formation of the tricyclic iridium species without the need for silver salts or other harsh activators. For ionic variants, a subsequent ion exchange step using hexafluorophosphate salts replaces chloride counterions, further enhancing the solubility and film-forming properties of the complex. This mechanistic pathway ensures that the final material possesses a tightly bound coordination sphere, which is resistant to ligand displacement and oxidative degradation, thereby securing the long-term operational stability required for commercial OLED applications.

How to Synthesize 4,7-Diarylthieno[2,3-d]pyridazine Iridium Complexes Efficiently

The preparation of these advanced emissive materials follows a streamlined two-stage protocol designed for reproducibility and scalability. The initial phase focuses on the high-yield construction of the diaryl ligand backbone, while the second phase involves the direct cyclometalation with iridium sources. Operators must strictly control the stoichiometry of the boronic acid reagents to prevent incomplete substitution, which can complicate purification. The reaction environment must be kept inert to prevent oxidation of the phosphine ligands used in the catalytic cycle. Detailed standardized synthesis steps see the guide below.

1. Perform Suzuki coupling between 4,7-dichlorothieno[2,3-d]pyridazine and substituted phenylboronic acids using a palladium catalyst and base at 50-150°C to form the ligand.
2. React the resulting ligand with iridium trichloride in a solvent mixture (e.g., ethoxyethanol/water) under nitrogen protection at 50-150°C to achieve direct cyclometalation.
3. Optional anion exchange with hexafluorophosphate salts can be performed to generate ionic complexes with improved stability.

Commercial Advantages for Procurement and Supply Chain Teams

From a procurement perspective, the adoption of this technology offers substantial opportunities for cost reduction in electronic chemical manufacturing. The elimination of expensive and unstable auxiliary ligands, such as acetylacetone derivatives, removes a significant cost center from the bill of materials. Furthermore, the ability to perform direct cyclometalation reduces the number of synthetic steps required to reach the final active pharmaceutical ingredient equivalent, thereby lowering labor costs and solvent consumption. The use of commodity chemicals like substituted phenylboronic acids and iridium trichloride ensures a stable supply chain, as these reagents are widely produced and available from multiple global vendors. This diversification of supply sources mitigates the risk of raw material shortages that often plague specialized fine chemical sectors.

• Cost Reduction in Manufacturing: The simplified synthetic route drastically reduces processing time and energy consumption. By avoiding multi-step ligand exchange procedures, manufacturers can achieve higher throughput in existing reactor setups. The robust nature of the tricyclic complex also implies less material loss due to decomposition during purification, leading to improved overall mass balance and yield. These factors collectively contribute to a lower cost per gram of the final emissive material, making high-performance OLEDs more economically viable for mass-market devices.
• Enhanced Supply Chain Reliability: The reliance on standard Suzuki coupling chemistry means that the production process can be easily transferred between different contract development and manufacturing organizations (CDMOs) without requiring specialized equipment. The reagents involved are stable and have long shelf lives, facilitating inventory management and reducing waste associated with expired materials. This flexibility allows supply chain managers to build resilient networks capable of adapting to fluctuating demand cycles in the consumer electronics industry.
• Scalability and Environmental Compliance: The reaction conditions described, utilizing temperatures between 50°C and 150°C and common organic solvents, are well-suited for scale-up from laboratory to pilot and commercial scales. The process avoids the use of highly toxic heavy metal activators often required in difficult cyclometalations, aligning with increasingly stringent environmental regulations. Waste streams are primarily composed of standard organic residues and palladium catalysts, which can be efficiently recovered and recycled, supporting sustainable manufacturing practices and reducing the environmental footprint of the production facility.

Frequently Asked Questions (FAQ)

The following questions address common technical inquiries regarding the stability, synthesis, and application of these novel iridium complexes. Understanding these aspects is crucial for integrating this material into existing OLED fabrication lines. The answers are derived directly from the experimental data and theoretical framework provided in the patent documentation.

Q: How does the thieno[2,3-d]pyridazine ligand improve oxygen stability?

A: The electron-rich thiophene unit increases interaction with electron-deficient groups, creating a steric and electronic environment that hinders oxygen molecule contact, thereby reducing quenching.

Q: What is the advantage of using IrCl3 directly in this synthesis?

A: Direct reaction with IrCl3 eliminates the need for unstable auxiliary ligands like acetylacetone, simplifying the process and enhancing the thermal stability of the final tricyclic complex.

Q: Can this material be scaled for commercial OLED production?

A: Yes, the synthesis utilizes standard Suzuki coupling and reflux conditions with commercially available reagents, making it highly suitable for scale-up from kilogram to tonnage levels.
