Advanced Nickel-Catalyzed Synthesis of 3,3',4,4'-Biphenyltetracarboxylic Acid for High-Performance Polyimides

The landscape of high-performance polymer synthesis is undergoing a significant transformation, driven by the need for more cost-effective and robust manufacturing processes for key monomers like 3,3',4,4'-biphenyltetracarboxylic acid (BPDA). As detailed in patent CN1021439C, a novel synthetic route has been established that leverages nickel-catalyzed reductive coupling to produce this critical polyimide precursor with exceptional efficiency. This technology represents a pivotal shift away from traditional palladium-based methods or unstable nickel zero-valent systems, offering a pathway that balances high chemical yield with operational simplicity. For industry leaders seeking a reliable polyimide intermediate supplier, understanding the nuances of this catalytic system is essential for securing long-term supply chain resilience. The patent outlines a method where 4-halogenated phthalic acid dibasic esters are coupled using a specific class of nickel complexes, zinc powder, and alkali metal halide promoters in aprotic polar solvents. This approach not only achieves high conversion rates but also streamlines the purification process, directly addressing the purity demands of the electronic materials sector. By integrating these technical advancements, manufacturers can achieve substantial cost reduction in electronic chemical manufacturing while maintaining the rigorous quality standards required for next-generation flexible circuits and high-temperature resins.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of biphenyl tetracarboxylic acids has relied heavily on palladium-catalyzed coupling reactions or the use of highly sensitive nickel zero-valent complexes generated in situ. These conventional methodologies present significant logistical and economic challenges for large-scale production. Palladium catalysts, while effective, are prohibitively expensive and subject to volatile market pricing, which introduces uncertainty into procurement budgets. Furthermore, traditional nickel methods often require the generation of unstable Ni(0) species, such as tetrakis(triphenylphosphine)nickel, which are extremely sensitive to air and moisture. This sensitivity necessitates rigorous anaerobic conditions, specialized equipment, and inert atmosphere handling, all of which drive up capital expenditure and operational complexity. Additionally, prior art often dictated the use of expensive excess ligands to stabilize the catalytic species, leading to increased waste generation and difficult downstream purification steps to remove phosphine oxides and metal residues. The reliance on aryl bromides or iodides in older protocols further exacerbated costs, as these halides are significantly more expensive than their chloride counterparts, creating a bottleneck for cost reduction in polyimide manufacturing.

The Novel Approach

The methodology described in CN1021439C fundamentally alters the economic and technical equation by utilizing pre-prepared bis(triarylphosphine)nickel dihalide or bis(trialkylphosphine)nickel dihalide complexes. Unlike their Ni(0) predecessors, these Ni(II) precursors are remarkably stable in air, drastically simplifying storage, handling, and dosing procedures in a commercial plant setting. This stability eliminates the need for complex inert gas manifolds solely for catalyst charging, thereby reducing the risk of batch failure due to catalyst decomposition. A critical innovation of this approach is the elimination of the requirement for expensive excess triarylphosphine ligands; the pre-formed complex provides the necessary stoichiometry directly, reducing raw material consumption and waste. Moreover, this catalytic system is sufficiently active to facilitate the coupling of 4-chlorophthalic acid esters, which are far more economical than bromides or iodides. The reaction proceeds efficiently in common polar aprotic solvents like DMF or NMP with zinc powder as a benign reducing agent, achieving yields that rival or exceed those of precious metal catalysis. This combination of air-stable catalysts, cheaper halide substrates, and simplified ligand requirements creates a robust platform for the commercial scale-up of complex polymer additives.

Mechanistic Insights into Nickel-Catalyzed Reductive Coupling

The core of this technological advancement lies in the specific behavior of the nickel catalyst within the reductive environment provided by zinc powder. Although the catalyst is introduced as a Ni(II) species, such as bis(triphenylphosphine)nickel dichloride, it is rapidly reduced in situ by the zinc metal to generate the active Ni(0) catalytic species. This active species then undergoes oxidative addition with the carbon-halogen bond of the 4-halogenated phthalic ester. The presence of alkali metal halides, such as sodium bromide or potassium iodide, acts as a crucial promoter in this cycle, likely facilitating the halogen exchange or stabilizing the transition state to accelerate the oxidative addition step, particularly when using the less reactive chloride substrates. Following oxidative addition, two aryl-nickel intermediates interact or undergo transmetallation-like processes facilitated by the zinc surface, eventually leading to reductive elimination. This final step forms the new carbon-carbon bond between the two phthalic rings, yielding the biphenyl tetracarboxylate structure and regenerating the nickel species to continue the cycle. The precise control over the ligand environment provided by the pre-formed complex ensures that the active nickel center remains available for the coupling reaction rather than being sequestered by side products or decomposing into inactive nickel black.

From an impurity control perspective, this mechanism offers distinct advantages over unoptimized coupling reactions. The use of specific promoters and the controlled temperature range of 60-100°C minimizes competing side reactions such as simple dehalogenation (hydrodehalogenation), which would result in the loss of the starting material and the formation of phthalate impurities. The high selectivity of the nickel-phosphine complex ensures that the coupling occurs predominantly at the 4-position of the phthalate ring, preserving the integrity of the ester groups for subsequent hydrolysis. This high regioselectivity and chemoselectivity are vital for producing high-purity OLED material or polyimide precursors, where trace isomers or mono-coupled byproducts can severely degrade the thermal and mechanical properties of the final polymer. The ability to achieve crude purities exceeding 93% directly from the reaction mixture, as evidenced in the patent examples, underscores the efficiency of this mechanistic pathway in suppressing unwanted side reactions, thereby reducing the burden on crystallization and washing steps.

How to Synthesize 3,3',4,4'-Biphenyltetracarboxylic Acid Efficiently

The synthesis of this critical monomer involves a sequence of well-defined steps that leverage the stability of the nickel catalyst to ensure reproducibility. The process begins with the preparation or procurement of the stable bis(triarylphosphine)nickel dihalide catalyst, followed by the coupling reaction in a polar aprotic solvent under mild heating. Detailed standard operating procedures regarding stoichiometry, addition rates, and workup protocols are essential for maximizing yield and safety.

1. Preparation of the Catalyst: Synthesize bis(triarylphosphine)nickel dihalide or bis(trialkylphosphine)nickel dihalide complexes which serve as stable, air-tolerant precursors for the coupling reaction.

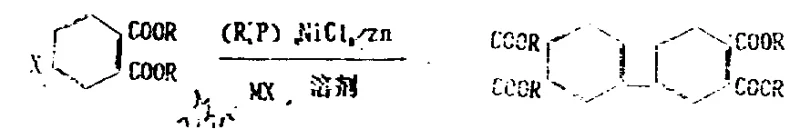

2. Reductive Coupling Reaction: React 4-halogenated phthalic acid dibasic esters with the nickel catalyst, zinc powder as a reducing agent, and alkali metal halides as promoters in an aprotic polar solvent like DMF or NMP at 60-100°C.
3. Hydrolysis and Cyclization: Hydrolyze the resulting biphenyl tetrabasic ester in an alkaline aqueous solution to obtain the tetraacid, followed by heating or treatment with acetic anhydride to form the final dianhydride.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of the technology described in CN1021439C translates into tangible strategic benefits that extend beyond simple chemical yield. The shift from palladium or unstable nickel systems to air-stable nickel complexes fundamentally de-risks the manufacturing process. By removing the dependency on precious metals, companies can insulate themselves from the extreme price volatility often seen in the platinum group metals market. Furthermore, the ability to utilize chloride starting materials instead of bromides or iodides opens up a broader and more cost-effective supplier base for raw materials, enhancing supply chain reliability. The simplified handling requirements mean that production facilities do not need to invest in specialized anaerobic infrastructure, allowing for faster technology transfer and scale-up in existing multipurpose plants. This operational flexibility ensures reducing lead time for high-purity polyimide intermediates, enabling manufacturers to respond more agilely to market demand fluctuations without compromising on quality or safety standards.

• Cost Reduction in Manufacturing: The economic impact of this process is driven by multiple factors that collectively lower the cost of goods sold. First, the elimination of expensive excess ligands reduces the direct material cost per kilogram of product, while also decreasing the volume of phosphine-containing waste that requires treatment. Second, the substitution of aryl bromides or iodides with aryl chlorides represents a massive saving in raw material costs, as chlorides are commodity chemicals with stable pricing. Third, the use of zinc powder as a reductant is significantly cheaper than using organometallic reagents like Grignards or organozincs often required in alternative coupling strategies. Finally, the high conversion rates and selectivity reduce the loss of valuable intermediates, ensuring that the maximum amount of input material is converted into saleable product, thereby optimizing the overall process economics without relying on speculative percentage claims.
• Enhanced Supply Chain Reliability: Supply chain continuity is bolstered by the robustness of the catalyst system. Because the bis(triarylphosphine)nickel dihalide catalysts are stable in air, they can be sourced from a wider range of chemical suppliers and stored for extended periods without degradation, unlike sensitive Ni(0) catalysts that require cold chain logistics or immediate use. This stability reduces the risk of production stoppages caused by catalyst spoilage during transit or storage. Additionally, the reliance on common industrial solvents like DMF, NMP, and DMAc ensures that solvent supply is never a bottleneck, as these are produced at massive scales for various industries. The process tolerance also allows for the use of technical grade reagents in certain steps, further diversifying the supplier base and preventing single-source dependencies that could jeopardize production schedules.
• Scalability and Environmental Compliance: Scaling this reaction from laboratory to commercial production is straightforward due to the absence of pyrophoric reagents or extreme pressure requirements. The reaction operates at atmospheric pressure and moderate temperatures, fitting comfortably within standard glass-lined or stainless steel reactors found in most fine chemical facilities. From an environmental perspective, the process generates less hazardous waste compared to palladium-catalyzed routes, as nickel residues are generally easier to manage and recover. The high atom economy of the coupling reaction, combined with the ability to recycle solvents effectively, aligns with modern green chemistry principles. This facilitates easier regulatory compliance and reduces the environmental footprint of the manufacturing site, which is increasingly important for maintaining social license to operate in the specialty chemical sector.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this nickel-catalyzed synthesis route. These answers are derived directly from the experimental data and claims presented in the patent literature, providing a factual basis for decision-making.

Q: What are the primary advantages of using bis(triarylphosphine)nickel dihalide over traditional palladium catalysts?

A: The use of pre-prepared bis(triarylphosphine)nickel dihalide complexes offers superior air stability and ease of preparation compared to sensitive palladium catalysts or unstable Ni(0) species. This eliminates the need for expensive excess ligands and allows for the use of cheaper chloride substrates rather than bromides or iodides, significantly lowering raw material costs while maintaining high coupling efficiency.

Q: How does this process impact the purity profile of the final polyimide precursor?

A: The optimized reaction conditions, specifically the use of alkali metal halides as promoters and controlled temperatures between 60-100°C, minimize side reactions such as dehalogenation. This results in a crude product with high purity (over 93% for the ester intermediate), simplifying downstream purification and ensuring the electronic grade quality required for advanced polyimide applications.

Q: Is this synthesis method scalable for industrial production of BPDA?

A: Yes, the process is highly scalable due to the use of robust, air-stable catalysts and common industrial solvents like DMF and NMP. The elimination of stringent anaerobic conditions required for traditional Ni(0) catalysts simplifies reactor operations, making it suitable for large-scale commercial manufacturing of 3,3',4,4'-biphenyltetracarboxylic acid derivatives.
