Advanced Solvent Engineering for High-Purity Deramciclane Intermediates and Commercial Scalability

The pharmaceutical industry continuously seeks robust synthetic routes for anxiolytic agents, and the preparation of Deramciclane and its salts represents a significant area of interest for medicinal chemists and process engineers alike. Patent CN1173928C discloses a groundbreaking methodology for the preparation of (1R,2S,4R)-(-)-2-[(2'-{N,N-Dimethylamino}ethoxy)]-2-[phenyl]-1,7,7-trimethyl-bicyclo[2.2.1]heptane, specifically addressing the longstanding challenges of impurity control and solvent removal that have plagued earlier synthetic attempts. This technical disclosure highlights a critical shift from traditional aromatic hydrocarbon solvents to saturated heterocyclic ethers, fundamentally altering the reaction landscape to favor the desired therapeutic agent over structurally similar by-products. For global procurement teams and R&D directors, understanding this solvent-mediated selectivity is paramount, as it directly translates to higher purity profiles and more streamlined downstream processing capabilities. The innovation lies not merely in a new reagent, but in the strategic manipulation of the reaction medium to kinetically suppress the formation of persistent impurities that were previously considered unavoidable consequences of the chemistry.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historical approaches, such as those detailed in Hungarian patent 212,574, relied heavily on toluene as the reaction medium for the critical etherification step, a choice that inadvertently facilitated the formation of significant quantities of unwanted by-products. In these conventional processes, the presence of unreacted (+)-camphor, which is difficult to separate from the desired alcohol intermediate due to similar physical properties, leads to the generation of Formula V impurities during the alkylation phase. This specific ketone impurity, (1R,3S,4R)-3-[(2'-{N,N-dimethylamino}ethyl)]-1,7,7-trimethyl-bicyclo[2.2.1]heptan-2-one, possesses solubility characteristics nearly identical to the target fumarate salt, making its removal via standard crystallization techniques exceptionally difficult and inefficient. Furthermore, the reliance on dimethylformamide (DMF) for recrystallization introduced severe regulatory and safety hurdles, as the high boiling point of DMF prevents its complete removal to pharmacopoeia-compliant levels without risking thermal decomposition of the heat-sensitive active ingredient. Consequently, yields in these legacy processes were dismally low, often hovering between 16% and 25% even with multiple recycling loops, rendering the commercial viability of the route questionable for large-scale API manufacturing.

The Novel Approach

The novel methodology introduced in CN1173928C revolutionizes this synthesis by substituting the traditional aromatic solvents with saturated heterocyclic compounds containing two oxygen ring atoms, specifically 1,4-dioxane. This strategic solvent switch creates a chemical environment that is inherently unfavorable for the alkylation of the unreacted camphor at the 3-position, effectively shutting down the primary pathway for the formation of the problematic Formula V ketone impurity. By conducting the reaction in dioxane, the process ensures that the alkylating agent reacts selectively with the desired alcohol intermediate rather than the residual starting material, leading to a much cleaner reaction profile. This selectivity allows for the direct isolation of the product as a fumarate salt with high purity, completely bypassing the need for the hazardous and inefficient DMF recrystallization step. The result is a dramatic improvement in overall process efficiency, with yields jumping to approximately 46%, representing a substantial increase in material throughput and a significant reduction in raw material waste for commercial production facilities.

Mechanistic Insights into Solvent-Controlled Selective Alkylation

The core mechanistic advantage of this process lies in the specific solvation effects of dioxane on the reactive species involved in the etherification step. In the presence of strong bases like sodium amide or sodium hydride, unreacted (+)-camphor can form enolates or salts at the 3-position, which are highly nucleophilic and prone to attack by the alkyl halide, leading to the C-alkylated ketone impurity. However, when dioxane is employed as the solvent, the coordination environment around the metal cations and the specific polarity of the medium appear to destabilize the transition state required for this C-alkylation, or alternatively, stabilize the O-alkylation pathway of the desired alcohol intermediate. This phenomenon ensures that even in the presence of excess unreacted camphor, which is typical for Grignard reactions that do not go to 100% conversion, the side reaction is kinetically suppressed to negligible levels, often below 0.05%. This level of control is critical for maintaining the integrity of the chiral centers at positions 1, 2, and 4, ensuring that the stereochemical purity required for the anxiolytic activity of the final drug substance is preserved throughout the synthesis.

Furthermore, the mechanism of impurity control extends to the workup and isolation phases, where the choice of solvent facilitates a cleaner separation of inorganic salts and organic by-products. The use of dioxane allows for the direct precipitation of the fumarate salt from the reaction mixture after simple filtration of inorganic bases, avoiding the complex extraction protocols required in toluene-based systems. In the older methods, the similarity in solubility between the target molecule and the Formula V impurity necessitated multiple extraction and recrystallization cycles, each cycle incurring a penalty in yield and increasing the risk of epimerization or decomposition. By contrast, the new process leverages the differential solubility of the fumarate salt in the dioxane medium to achieve high purity in a single crystallization event. This mechanistic simplification not only enhances the chemical purity but also significantly reduces the operational complexity, making the process more robust and easier to validate under Good Manufacturing Practice (GMP) conditions for pharmaceutical production.

How to Synthesize Deramciclane Intermediate Efficiently

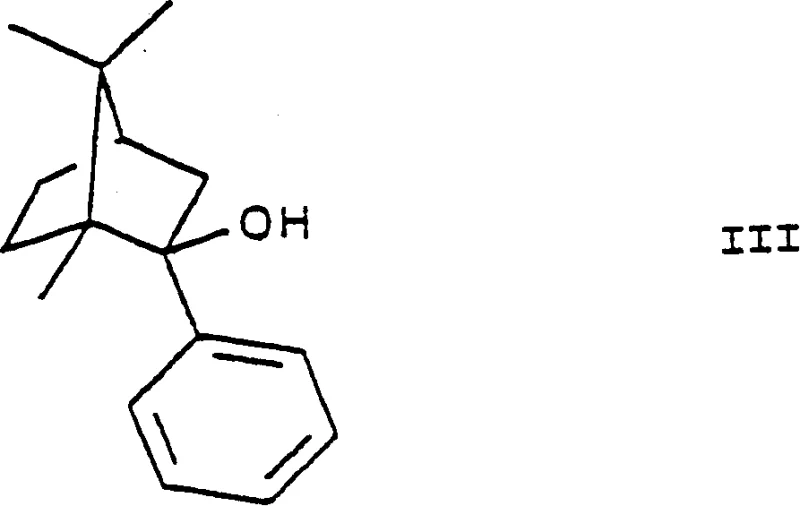

The synthesis of this high-value pharmaceutical intermediate begins with the preparation of the key alcohol precursor via a Grignard reaction, followed by a carefully controlled etherification step that defines the success of the entire route. The process starts by reacting (+)-camphor with phenylmagnesium bromide in tetrahydrofuran (THF) at reflux temperatures, typically using a molar ratio of roughly 1:1.5 to ensure sufficient driving force for the addition reaction while managing exotherms. Following the Grignard addition, the reaction mixture is hydrolyzed under acidic conditions, usually with hydrochloric acid, to release the crude (1R,2S,4R)-(-)-2-[phenyl]-1,7,7-trimethyl-bicyclo[2.2.1]heptan-2-ol. This crude oil, which still contains unreacted camphor, is then subjected to the critical alkylation step where it is treated with a base such as sodium amide and (2-chloroethyl)dimethylamine specifically in anhydrous dioxane. The detailed standardized operating procedures for temperature control, addition rates, and safety precautions for handling reactive organometallics and strong bases are outlined in the structured guide below.

1. Perform Grignard reaction between (+)-camphor and phenylmagnesium bromide in THF, followed by acidic hydrolysis to obtain the crude alcohol intermediate.
2. Conduct the critical alkylation step using sodium amide and (2-chloroethyl)dimethylamine specifically in a dioxane solvent medium to suppress C3-alkylation.
3. Isolate the final product by converting the base to its fumarate salt through filtration and crystallization, avoiding high-boiling solvents like DMF.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this dioxane-based synthetic route offers profound advantages in terms of cost structure and supply reliability, primarily driven by the elimination of costly purification bottlenecks. The removal of the dimethylformamide (DMF) recrystallization step is a major economic driver, as DMF is not only an expensive solvent to purchase but also incurs significant costs for recovery, disposal, and residual testing to meet strict regulatory limits. By avoiding DMF entirely, the manufacturing process eliminates the need for high-vacuum distillation or extended drying cycles at elevated temperatures, which reduces energy consumption and minimizes the risk of product degradation that could lead to batch rejection. This streamlining of the downstream processing directly contributes to a lower cost of goods sold (COGS), allowing for more competitive pricing strategies in the global market for anxiolytic intermediates without compromising on quality standards.

• Cost Reduction in Manufacturing: The significant increase in yield from approximately 25% in prior art to roughly 46% in this novel process represents a near-doubling of material efficiency, which drastically reduces the consumption of expensive starting materials like (+)-camphor and phenylmagnesium bromide. This improvement in atom economy means that less raw material is wasted in side reactions or lost during extensive purification cycles, leading to substantial savings in direct material costs. Additionally, the simplified workup procedure reduces the labor hours and equipment time required for each batch, further enhancing the overall economic viability of the production line. The avoidance of complex recycling loops for unreacted camphor, which were necessary in the old process to achieve marginal yield improvements, simplifies the material flow and reduces the inventory holding costs associated with intermediate storage.
• Enhanced Supply Chain Reliability: The robustness of the dioxane-based process ensures a more consistent and reliable supply of high-purity intermediates, as the reaction is less sensitive to minor variations in feedstock quality compared to the finicky toluene/DMF system. Since the process tolerates the presence of unreacted camphor without generating significant impurities, there is less pressure on the upstream Grignard step to achieve perfect conversion, providing a larger operational window for manufacturing teams. This flexibility reduces the likelihood of batch failures and production delays, ensuring that delivery schedules to downstream API manufacturers can be met with greater confidence. Furthermore, the use of common industrial solvents like dioxane and THF, rather than specialized or highly regulated solvents, mitigates the risk of supply disruptions caused by solvent shortages or regulatory changes.
• Scalability and Environmental Compliance: From an environmental and safety perspective, eliminating DMF is a significant win, as DMF is a reproductive toxin subject to increasingly stringent exposure limits and waste disposal regulations globally. The new process generates a cleaner waste stream that is easier to treat and dispose of, reducing the environmental footprint of the manufacturing facility and lowering compliance costs. The scalability of the process is enhanced by the simpler thermal profile; avoiding the high temperatures required to strip DMF reduces the thermal load on reactors and condensers, making it easier to scale from pilot plant to multi-ton commercial production. This alignment with green chemistry principles not only improves the corporate sustainability profile but also future-proofs the supply chain against tightening environmental legislation.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this advanced synthetic route for Deramciclane intermediates. These answers are derived directly from the experimental data and comparative examples provided in the patent literature, offering a transparent view of the process capabilities and limitations. Understanding these nuances is essential for technical teams evaluating the feasibility of technology transfer or for procurement specialists assessing the quality assurances of potential suppliers. The focus here is on practical implications for manufacturing quality, yield consistency, and regulatory compliance.

Q: Why is dioxane preferred over toluene for this alkylation?

A: Dioxane creates a solvent environment that is thermodynamically unfavorable for the alkylation of the unreacted camphor at the 3-position, thereby drastically reducing the formation of the difficult-to-remove ketone impurity (Formula V).

Q: How does this process improve yield compared to prior art?

A: By suppressing side reactions and eliminating the need for yield-lossy recrystallization from dimethylformamide, the new process achieves yields around 46%, significantly higher than the 16-25% typical of previous methods.

Q: What are the residual solvent advantages?

A: The process avoids dimethylformamide (DMF), a high-boiling solvent that is difficult to remove to pharmacopoeia limits without decomposing the heat-sensitive active pharmaceutical ingredient.
