Scalable Synthesis of High-Purity Z-Isomer Pyrethroid Intermediates for Global Agrochemical Supply Chains

Scalable Synthesis of High-Purity Z-Isomer Pyrethroid Intermediates for Global Agrochemical Supply Chains

The global demand for high-efficacy agrochemicals continues to drive innovation in the synthesis of key intermediates, particularly those used in the production of pyrethroid insecticides. Patent CN1056828C introduces a robust and highly selective preparation process for 2,2-dimethyl-3-[(Z)-1-propenyl]cyclopropane-1-carboxylic acid esters and their intermediates. This technology addresses a critical challenge in fine chemical manufacturing: the precise control of stereochemistry to ensure maximum biological activity. The invention details a method where the ester group R can represent a cleavable ester remainder or a known pyrethroid alcohol moiety, allowing for versatile application in synthesizing various active ingredients. By focusing on the formation of the biologically active (Z)-configuration, this process offers a significant advantage over non-selective routes that produce complex isomeric mixtures requiring difficult separation.

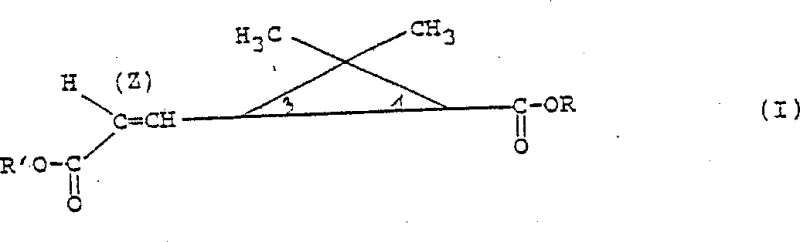

The structural versatility of the compounds described in CN1056828C is extensive, covering a wide range of ester functionalities denoted by R. These include benzyl groups substituted with alkyl, alkenyl, or halogen atoms, as well as complex heterocyclic and aromatic systems such as 3-phenoxybenzyl and alpha-cyano-3-phenoxybenzyl groups. This breadth of scope indicates that the underlying synthetic methodology is not limited to a single product but serves as a platform technology for generating a library of potent agrochemical intermediates. For R&D directors, this implies a flexible chemical toolbox capable of adapting to evolving pest resistance profiles by modifying the alcohol moiety while maintaining the critical acid core structure with high fidelity.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditional methods for constructing the propenyl side chain on the cyclopropane ring often suffer from poor stereoselectivity and harsh reaction conditions. Classical Wittig reactions or other olefination strategies may require expensive phosphorus ylides or transition metal catalysts that leave behind difficult-to-remove impurities. Furthermore, achieving high Z-selectivity typically demands rigorous temperature control and specialized reagents, which can escalate production costs and complicate waste management. In many conventional processes, the formation of the thermodynamically more stable E-isomer is favored, leading to lower yields of the desired bioactive Z-form and necessitating energy-intensive purification steps like preparative HPLC or repeated crystallization to meet purity specifications.

The Novel Approach

The methodology disclosed in CN1056828C circumvents these issues through a clever two-step sequence involving selective halogenation followed by base-catalyzed elimination. Instead of building the double bond from scratch using coupling reagents, the process starts with a saturated 2-oxopropyl precursor. By introducing a halogen atom at the alpha-position relative to the ketone, the molecule is primed for a specific elimination reaction that favors the formation of the Z-double bond. This approach utilizes common halogenating agents like bromine or N-bromosuccinimide and mild bases such as sodium methylate or potassium tert-butoxide. The result is a streamlined pathway that minimizes side reactions, reduces the reliance on exotic catalysts, and inherently drives the reaction towards the desired stereochemical outcome, thereby simplifying the downstream processing burden.

Mechanistic Insights into Stereoselective Halogenation-Elimination

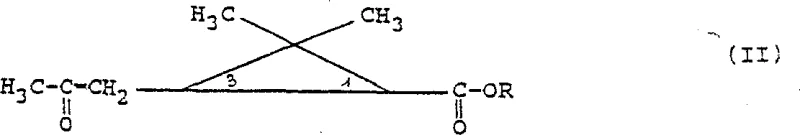

The core of this innovative synthesis lies in the transformation of the 2-oxopropyl side chain into the (Z)-1-propenyl group via an alpha-halo ketone intermediate. As illustrated in the reaction scheme, the process begins with the reaction of the starting ester (Formula II) with a halogenating agent to yield the alpha-halo derivative (Formula III). This step is critical; the use of approximately 2 equivalents of halogenating agent ensures complete conversion while minimizing over-halogenation. The subsequent treatment with an alkaline reagent in the presence of an alcohol (R'-OH) triggers a dehydrohalogenation. The base abstracts a proton, facilitating the elimination of the halogen atom and the formation of the carbon-carbon double bond. The specific geometry of the transition state during this elimination, influenced by the steric bulk of the 2,2-dimethylcyclopropane ring, kinetically favors the formation of the Z-isomer over the E-isomer.

Impurity control is another significant aspect of this mechanistic pathway. The patent specifies that the reaction can be conducted at temperatures ranging from -78°C to +40°C, allowing for fine-tuning of the reaction kinetics to suppress unwanted byproducts. For instance, carrying out the halogenation at lower temperatures (e.g., +5°C to +10°C) helps prevent poly-halogenation or degradation of the sensitive cyclopropane ring. Furthermore, the choice of solvent plays a pivotal role; halogenated solvents like methylene dichloride or chloroform, as well as ethers like tetrahydrofuran, provide the necessary solubility and stability for the intermediates. The ability to perform transesterification simultaneously during the elimination step (if R' differs from the original ester group) adds another layer of efficiency, allowing for the direct installation of the final alcohol moiety without a separate esterification step.

How to Synthesize 2,2-dimethyl-3-[(Z)-1-propenyl]cyclopropane Esters Efficiently

The synthesis protocol outlined in the patent provides a clear roadmap for laboratory and pilot-scale production. The process begins with the preparation of the 2-oxopropyl precursor, which can be obtained via esterification of the corresponding acid with suitable alcohols. The subsequent halogenation step requires careful addition of the halogenating agent under inert atmosphere to manage exotherms and ensure safety. Following the isolation of the alpha-halo intermediate, the elimination step is performed using alkali metal alkoxides or hydrides. The reaction mixture is then quenched, extracted, and purified. While the general procedure is robust, specific optimization of stoichiometry and temperature is recommended for different R groups to maximize yield and Z-selectivity. The detailed standardized synthesis steps see the guide below.

1. React the 2,2-dimethyl-3-(2-oxopropyl)cyclopropane ester precursor with a controlled amount of halogenating agent (e.g., bromine or N-bromosuccinimide) in a halogenated solvent at low temperatures to form the alpha-halo ketone intermediate.
2. Treat the resulting alpha-halo ketone intermediate with an alkaline reagent (such as sodium methylate or potassium tert-butoxide) in the presence of an alcohol to effect dehydrohalogenation and simultaneous transesterification if required.
3. Purify the final Z-isomer ester product through standard workup procedures including aqueous washing, drying, and silica gel column chromatography to ensure high stereochemical purity.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this synthesis route offers tangible benefits in terms of cost structure and supply reliability. The primary advantage stems from the use of commodity chemicals. Halogenating agents like bromine and chlorine, along with common bases like sodium methylate, are widely available in the global chemical market, reducing the risk of supply bottlenecks associated with specialized catalysts. This reliance on bulk chemicals translates directly into cost reduction in agrochemical intermediate manufacturing, as the raw material spend is optimized and less susceptible to volatility compared to rare earth metals or complex organometallic reagents. Additionally, the simplified workflow reduces the number of unit operations, lowering utility consumption and labor costs per kilogram of product.

• Cost Reduction in Manufacturing: The elimination of expensive transition metal catalysts removes the need for costly metal scavenging steps and heavy metal testing, which are significant cost drivers in pharmaceutical and agrochemical grade production. By avoiding these metals, the process not only lowers direct material costs but also simplifies the regulatory compliance burden. The high stereoselectivity means less material is wasted on inactive isomers, effectively increasing the yield of the valuable Z-product from the same amount of starting material. This efficiency gain leads to substantial cost savings without compromising on the quality of the final intermediate.
• Enhanced Supply Chain Reliability: The robustness of the reaction conditions contributes to a more reliable supply chain. The process tolerates a reasonable range of temperatures and uses stable solvents, making it less prone to batch failures due to minor fluctuations in operating parameters. This consistency is crucial for maintaining continuous production schedules and meeting delivery commitments to downstream formulators. Furthermore, the versatility of the R group definition allows manufacturers to switch between different ester variants using the same core infrastructure, providing flexibility to respond to market demand shifts for specific pyrethroid actives without retooling.
• Scalability and Environmental Compliance: From an environmental perspective, the process generates fewer hazardous byproducts compared to alternative olefination methods. The solvents used, such as methylene dichloride and ethers, are well-understood and can be efficiently recovered and recycled in modern facilities. The absence of heavy metals simplifies wastewater treatment and solid waste disposal, aligning with increasingly stringent environmental regulations. This ease of waste management facilitates smoother scale-up from pilot plant to commercial tonnage production, ensuring that the supply of high-purity intermediates can grow in tandem with the expansion of the agrochemical market.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this patented technology. They are derived from the specific embodiments and claims found in the patent documentation, providing clarity on the scope and practical application of the synthesis method. Understanding these details is essential for technical teams evaluating the feasibility of integrating this route into their existing manufacturing portfolios.

Q: Why is the Z-configuration critical for pyrethroid intermediates?

A: The biological activity of pyrethroid insecticides is highly dependent on stereochemistry. The Z-isomer of the propenyl side chain typically exhibits significantly higher insecticidal potency compared to the E-isomer, making stereoselective synthesis essential for effective agrochemical formulations.

Q: What are the advantages of the halogenation-elimination route over traditional methods?

A: This novel route offers superior control over the double bond geometry, minimizing the formation of unwanted E-isomers. It also utilizes readily available halogenating agents and mild reaction conditions, reducing the need for expensive transition metal catalysts often required in alternative olefination strategies.

Q: Can this process be scaled for industrial production?

A: Yes, the process operates within a manageable temperature range (-78°C to +40°C) and uses common organic solvents like methylene chloride and ethers. The reagents are commercially scalable, and the purification steps are compatible with standard industrial separation techniques.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable 2,2-dimethyl-3-[(Z)-1-propenyl]cyclopropane Ester Supplier

The synthesis of complex pyrethroid intermediates requires a partner with deep technical expertise and a commitment to quality. NINGBO INNO PHARMCHEM possesses extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that your supply needs are met with consistency and precision. Our facility is equipped with rigorous QC labs and advanced analytical instrumentation to verify stringent purity specifications, particularly regarding the critical Z/E isomeric ratio which defines the biological efficacy of the final product. We understand the nuances of handling halogenated intermediates and managing stereoselective reactions, making us an ideal partner for bringing this technology to life.

We invite you to collaborate with us to optimize your supply chain for high-performance agrochemicals. Our technical procurement team is ready to provide a Customized Cost-Saving Analysis tailored to your specific volume requirements and quality standards. Please contact us to request specific COA data for our current inventory or to discuss route feasibility assessments for custom derivatives. Let us help you secure a stable, cost-effective source of these vital intermediates for your global operations.
