Advanced Manufacturing of 3-(Alpha-Methoxy) Methylenebenzofuran-2(3H)-one for Global Agrochemical Supply Chains

The global demand for high-efficiency strobilurin fungicides, particularly azoxystrobin, has placed immense pressure on the supply chains of key intermediates like 3-(alpha-methoxy)-methylenebenzofuran-2(3H)-one. Traditional manufacturing routes have long struggled with economic inefficiencies and environmental burdens, prompting a critical search for superior synthetic methodologies. Patent CN102190640B introduces a transformative approach that leverages hydrocyanic acid (HCN), often available as a byproduct from acrylonitrile waste gas, to drive the formylation of benzofuran-2(3H)-one. This innovation represents a paradigm shift from ester-based condensation to a direct nitrile-mediated pathway, offering a compelling solution for manufacturers seeking to optimize both cost structures and environmental footprints in the agrochemical sector.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

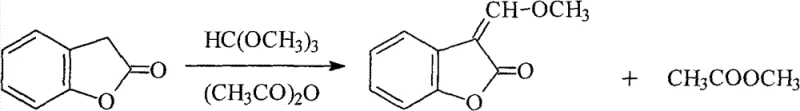

Historically, the synthesis of this critical intermediate relied heavily on the reaction of benzofuran-2(3H)-one with trimethyl orthoformate in the presence of acetic anhydride. As illustrated in the conventional reaction scheme below, this legacy process suffers from inherent thermodynamic and economic drawbacks that hinder large-scale efficiency. The reaction requires acetic anhydride to act not only as a catalyst but also as a dehydrating agent to scavenge the methanol byproduct, forming methyl acetate. This stoichiometric consumption of acetic anhydride drastically inflates raw material costs, while the generation of substantial volumes of methyl acetate creates a significant waste disposal burden. Furthermore, the equilibrium nature of this condensation often results in prolonged reaction times and suboptimal yields, forcing producers to contend with complex purification steps to remove residual esters and acidic impurities.

The Novel Approach

In stark contrast, the methodology disclosed in the patent utilizes a direct formylation strategy driven by hydrocyanic acid, fundamentally altering the reaction landscape. By bypassing the orthoformate condensation entirely, this novel route eliminates the formation of methyl acetate, thereby simplifying the downstream separation process and reducing the load on wastewater treatment facilities. The process initiates with the addition of HCN to the benzofuran ring, facilitated by a hydrogen halide catalyst, to generate a stable 3-formyl intermediate. This intermediate is subsequently methylated using dimethyl sulfate under mild alkaline conditions. The strategic decoupling of formylation and methylation allows for precise control over reaction parameters, ensuring higher selectivity and minimizing the formation of polymeric tars often seen in acid-catalyzed condensations.

Mechanistic Insights into HCN-Catalyzed Formylation and Methylation

The core of this technological advancement lies in the electrophilic activation of the benzofuran ring by the hydrogen halide catalyst (HCl or HBr). In the first stage, the catalyst protonates the carbonyl oxygen or activates the C3 position, facilitating the nucleophilic attack by the cyanide ion from the hydrocyanic acid. This step proceeds efficiently at temperatures ranging from -10°C to 25°C, a relatively mild window that preserves the integrity of the sensitive lactone ring. The resulting imine or nitrile species is then hydrolyzed during the aqueous workup to reveal the aldehyde functionality at the 3-position, yielding 3-formylbenzofuran-2(3H)-one. This mechanistic pathway is highly atom-economical compared to orthoformate cleavage, as it incorporates the carbon atom directly from the inexpensive HCN feedstock without generating bulky alcohol leaving groups.

Following the isolation of the formyl intermediate, the second stage involves an O-methylation reaction using dimethyl sulfate in the presence of a base such as potassium carbonate. The mechanism here is a classic SN2 substitution where the enolate or phenoxide equivalent attacks the methyl group of the sulfate ester. Conducting this reaction at temperatures between 0°C and 60°C ensures complete conversion while preventing thermal degradation of the product. The use of dimethyl sulfate, a potent methylating agent, drives the reaction to completion more effectively than methyl iodide or dimethyl carbonate in this specific steric environment. This two-stage sequence ensures that the final product, 3-(alpha-methoxy)-methylenebenzofuran-2(3H)-one, is obtained with high structural fidelity, crucial for its subsequent coupling in azoxystrobin synthesis.

How to Synthesize 3-(Alpha-Methoxy) Methylenebenzofuran-2(3H)-one Efficiently

The operational protocol for this synthesis is designed for robustness and scalability, utilizing common industrial solvents like toluene and DMF. The process begins with the careful introduction of dry hydrogen chloride gas into a mixture of benzofuran-2(3H)-one and HCN in toluene at sub-zero temperatures to control exothermicity. After the formylation is complete, the mixture is quenched with ice water to hydrolyze the intermediate, followed by phase separation and drying. The resulting oil is then dissolved in DMF for the methylation step, where dimethyl sulfate is added dropwise to maintain thermal control. For the complete standardized operating procedure, including specific molar ratios and safety protocols for handling HCN and dimethyl sulfate, please refer to the detailed guide below.

1. React benzofuran-2(3H)-one with hydrocyanic acid (HCN) in the presence of an HCl or HBr catalyst at temperatures between -10°C and 25°C to form the 3-formyl intermediate.
2. Perform hydrolysis on the reaction mixture using crushed ice and water to isolate the 3-formylbenzofuran-2(3H)-one intermediate layer.
3. Dissolve the intermediate in DMF, add potassium carbonate, and react with dimethyl sulfate at 0-60°C to achieve the final methoxylated product.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the transition to this HCN-based route offers profound strategic benefits that extend beyond simple unit price reductions. The ability to utilize hydrocyanic acid, which is frequently available as a low-cost byproduct from acrylonitrile production plants, creates a unique opportunity for vertical integration and raw material cost arbitrage. By shifting away from the volatile pricing of trimethyl orthoformate and acetic anhydride, manufacturers can stabilize their cost of goods sold (COGS) and protect margins against petrochemical fluctuations. Additionally, the simplified workup procedure, which avoids the distillation of large volumes of methyl acetate, translates directly into reduced energy consumption and shorter batch cycle times, enhancing overall plant throughput.

• Cost Reduction in Manufacturing: The elimination of expensive acetic anhydride and the utilization of waste-stream HCN significantly lower the direct material costs per kilogram of product. The process avoids the generation of stoichiometric amounts of methyl acetate waste, which reduces the financial burden associated with solvent recovery or hazardous waste disposal. Furthermore, the high yield reported in the patent examples indicates efficient raw material utilization, minimizing the loss of valuable benzofuran starting material and maximizing the output from existing reactor capacity.
• Enhanced Supply Chain Reliability: Diversifying the raw material base to include industrial byproduct gases reduces dependency on single-source specialty chemical suppliers. The reaction conditions are mild and do not require exotic catalysts or high-pressure equipment, making the technology transferable to a wider range of contract manufacturing organizations (CMOs). This flexibility ensures continuity of supply even during market disruptions affecting specific reagent classes, providing a more resilient supply chain for downstream fungicide producers.
• Scalability and Environmental Compliance: The reduction in organic waste volume aligns perfectly with increasingly stringent environmental regulations regarding volatile organic compounds (VOCs) and liquid effluent. The process generates fewer byproducts that require incineration or specialized treatment, simplifying the permitting process for capacity expansion. The use of standard solvents like toluene and DMF, which are easily recovered and recycled in most modern facilities, further supports sustainable manufacturing practices and long-term operational viability.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this synthesis route. These answers are derived directly from the experimental data and claims presented in the patent documentation, providing a factual basis for evaluating the technology's fit within your production portfolio. Understanding these nuances is essential for R&D teams planning pilot runs and procurement teams negotiating raw material contracts.

Q: What are the primary advantages of the HCN route over the traditional orthoformate method?

A: The HCN route eliminates the need for expensive trimethyl orthoformate and acetic anhydride, significantly reducing raw material costs. Furthermore, it avoids the generation of large quantities of methyl acetate byproducts, simplifying waste treatment and environmental compliance.

Q: How does this process impact the purity profile of the agrochemical intermediate?

A: By utilizing a direct formylation pathway followed by controlled methylation, the process minimizes side reactions associated with ester exchange. The resulting product demonstrates consistent melting points (100-103°C) and high crystallinity, essential for downstream fungicide synthesis.

Q: Is this synthesis method suitable for large-scale industrial production?

A: Yes, the process operates under mild temperature conditions (-10°C to 60°C) and utilizes standard solvents like toluene and DMF. The simplicity of the workup procedure, involving standard extraction and crystallization, supports robust commercial scale-up capabilities.
