Scalable Production of High-Purity Phthalazinone Intermediates via Novel Phosphonium Salt Route

The pharmaceutical industry continuously seeks robust synthetic pathways that balance high purity with operational safety, particularly for complex heterocyclic scaffolds used in oncology and cardiovascular therapeutics. Patent CN1413203A introduces a transformative methodology for the preparation of 4-(heteroaryl-methyl)-halogen-1(2H)-2,3-phthalazinones, a critical class of intermediates known for their potent biological activities including angiogenesis inhibition and cGMP phosphodiesterase suppression. This technical disclosure represents a significant leap forward from legacy manufacturing processes, addressing long-standing issues related to thermal instability and hazardous reagent handling. By leveraging a specialized phosphonium salt intermediate, the invention enables the production of high-purity phthalazinone derivatives under remarkably mild conditions, effectively eliminating the need for extreme temperatures that previously plagued industrial synthesis. For R&D directors and procurement specialists evaluating reliable pharmaceutical intermediate suppliers, this patent offers a blueprint for achieving superior quality control while simultaneously mitigating the environmental and safety liabilities associated with traditional hydrazine chemistry.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of valuable 4-(4-pyridylmethyl)-1(2H)-2,3-phthalazinone has been fraught with significant technical and safety hurdles that hinder efficient commercial scale-up. Conventional protocols typically involve the condensation of phthalic anhydride with 4-picoline followed by reaction with excess hydrazine at temperatures reaching 130°C or even 200°C. These harsh thermal conditions not only result in poor product quality and dark-colored crude materials but also lead to dismal yields often falling below 50% of the theoretical maximum. Furthermore, alternative routes utilizing 2-benzo[c]furanone require a massive excess of hydrazine—up to 16 equivalents or more—which creates a severe safety hazard given that hydrazine is a known carcinogen with a very low permissible exposure limit (MAK 0.008ppm). Managing the decomposition of hydrazine at such elevated temperatures makes it nearly impossible to maintain safe threshold values in air and wastewater, presenting a formidable barrier for any facility aiming for modern environmental compliance and operator safety standards.

The Novel Approach

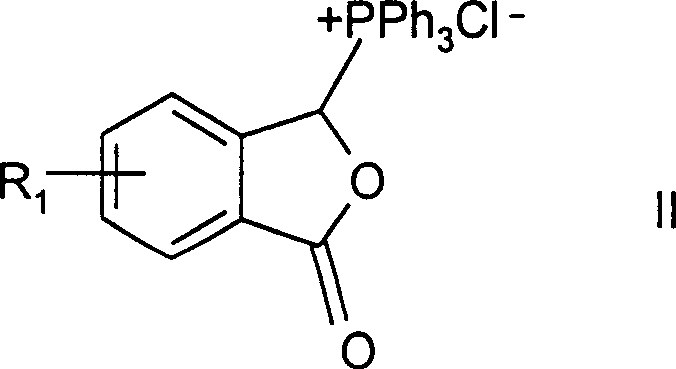

In stark contrast to these archaic methods, the novel approach detailed in the patent utilizes a sophisticated sequence beginning with a substituted 2-benzo[c]furanonyl-3-triphenylphosphonium salt. This strategy fundamentally alters the reaction landscape by allowing the initial coupling with heteroaryl aldehydes to proceed at a moderate 40°C, followed by cyclization with hydrazine hydrate at a controlled 50-70°C. Crucially, this method permits the use of stoichiometric amounts of hydrazine (approximately 1 to 1.1 equivalents) rather than the vast excesses required by prior art. The reaction proceeds to completion within a closed system, ensuring that no free hydrazine is detectable in the reaction mixture prior to work-up, thereby virtually eliminating the carcinogenic risk during processing. This shift from brute-force thermal condensation to a controlled, step-wise phosphonium-mediated pathway results in exceptional yields ranging from 95% to 98% of theory, providing a clear economic and operational advantage for manufacturers seeking cost reduction in API manufacturing.

Mechanistic Insights into Phosphonium-Mediated Cyclization

The core innovation of this synthesis lies in the unique reactivity of the phosphonium salt intermediate, which acts as a stabilized ylide precursor for the construction of the exocyclic double bond necessary for subsequent ring closure. The reaction initiates with the deprotonation of the phosphonium salt by a base such as triethylamine or potassium carbonate, generating a reactive species that undergoes a Wittig-type olefination with the heteroaryl aldehyde (e.g., 4-pyridinecarboxaldehyde). This step is highly selective and occurs efficiently in polar aprotic solvents like tetrahydrofuran (THF) or dimethylformamide (DMF) at low temperatures, minimizing side reactions such as polymerization or over-alkylation that are common in high-heat scenarios. The resulting olefinic intermediate is perfectly poised for nucleophilic attack by hydrazine, which targets the lactone carbonyl to form the phthalazinone ring system. This mechanistic pathway ensures that the molecular architecture is built with precision, leading to a product profile with significantly reduced impurity levels compared to the chaotic mixtures generated by direct high-temperature condensation.

Furthermore, the impurity control mechanism is intrinsically linked to the stoichiometry of the hydrazine reagent. In traditional processes, the large excess of hydrazine often leads to the formation of bis-hydrazides or other nitrogen-rich byproducts that are difficult to separate and can persist through downstream purification. By strictly limiting hydrazine to near-stoichiometric ratios (1.0 to 1.1 equivalents) and conducting the reaction in a closed vessel, the new method ensures that the hydrazine is fully consumed in the formation of the desired phthalazinone ring. The subsequent acid treatment with acetic anhydride serves to quench any remaining reactive species and facilitates the precipitation of triphenylphosphine oxide or salts, which can be easily removed by filtration. This elegant separation strategy means that the final product precipitates upon basification with extremely high purity, reducing the burden on recrystallization steps and enhancing the overall throughput of the manufacturing line for high-purity pharmaceutical intermediates.

How to Synthesize 4-(4-pyridylmethyl)-2,3-phthalazinone Efficiently

Implementing this synthesis on a commercial scale requires precise adherence to the reaction parameters defined in the patent to maximize yield and safety. The process begins with the suspension of the phosphonium salt in a suitable solvent, followed by the controlled addition of the aldehyde and base to initiate the coupling. Once the initial intermediate is formed, the careful introduction of hydrazine hydrate triggers the cyclization, which must be maintained at optimal temperatures to ensure complete conversion without degradation. The work-up procedure involving acidification, solvent distillation, and filtration is critical for removing the triphenylphosphine byproduct, which is a key step in achieving the high purity required for pharmaceutical applications. For a comprehensive understanding of the specific operational parameters, the detailed standardized synthesis steps are outlined in the guide below.

1. Suspend 2-benzo[c]furanonyl-3-triphenylphosphonium chloride in THF and react with pyridine-4-aldehyde in the presence of triethylamine at 40°C.
2. Add hydrazine hydrate (1.1 equivalents) to the mixture and stir at 70°C for 8 hours to complete the cyclization.
3. Treat with acetic anhydride, distill off solvent, filter precipitated triphenylphosphine, basify filtrate to pH 8.0, and dry the solid product.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this novel synthetic route offers profound strategic benefits that extend far beyond simple yield improvements. The transition from high-temperature, excess-reagent processes to this mild, stoichiometric method fundamentally reshapes the cost structure and risk profile of producing these valuable intermediates. By eliminating the need for massive quantities of hazardous hydrazine and the energy-intensive heating cycles associated with legacy methods, manufacturers can achieve substantial cost savings in both raw material procurement and utility consumption. Additionally, the simplified work-up procedure, which relies on straightforward filtration and precipitation rather than complex chromatographic separations, significantly reduces processing time and solvent usage, further driving down the cost of goods sold (COGS) for the final active pharmaceutical ingredient.

• Cost Reduction in Manufacturing: The most immediate financial impact comes from the drastic increase in reaction yield, which jumps from less than 50% in conventional methods to over 95% with this new protocol. This doubling of efficiency means that for every ton of raw material purchased, the output of saleable product is nearly doubled, effectively halving the raw material cost per unit of output. Moreover, the ability to use stoichiometric amounts of hydrazine eliminates the cost of purchasing, storing, and disposing of large volumes of excess hazardous reagent. The removal of expensive heavy metal catalysts or complex purification steps further streamlines the budget, allowing for a more competitive pricing structure in the global market for specialty chemicals.
• Enhanced Supply Chain Reliability: From a logistics perspective, this method enhances supply continuity by reducing the dependency on specialized high-temperature reactors and complex safety infrastructure required for handling bulk hydrazine at 130°C. The milder reaction conditions (40°C to 70°C) allow the process to be run in standard glass-lined or stainless steel reactors that are widely available in multi-purpose chemical plants, increasing the number of potential manufacturing sites. This flexibility reduces the risk of supply bottlenecks caused by equipment availability or maintenance downtime. Furthermore, the starting materials, such as the phosphonium salts and pyridine aldehydes, are commercially available and stable, ensuring a steady flow of inputs without the volatility associated with sourcing specialized high-energy reagents.
• Scalability and Environmental Compliance: Scaling this process from pilot plant to commercial production is inherently safer and more environmentally sustainable. The closed-system operation ensures that no carcinogenic hydrazine vapors are released into the workplace atmosphere, simplifying compliance with strict occupational health and safety regulations (such as OSHA or REACH). The waste stream is significantly cleaner, containing primarily triphenylphosphine oxide which can often be recycled or disposed of more easily than hydrazine-contaminated wastewater. This reduction in hazardous waste volume lowers disposal costs and minimizes the environmental footprint of the manufacturing site, aligning with the growing corporate demand for green chemistry and sustainable supply chain practices in the pharmaceutical sector.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this phthalazinone synthesis technology. These answers are derived directly from the experimental data and beneficial effects described in the patent documentation, providing clarity on how this method resolves specific pain points in pharmaceutical manufacturing. Understanding these details is crucial for technical teams evaluating the feasibility of adopting this route for their own production lines or for procurement officers negotiating supply contracts based on these improved specifications.

Q: How does this new method improve safety compared to traditional phthalazinone synthesis?

A: Traditional methods require heating excess carcinogenic hydrazine to 130°C, posing severe safety risks. This novel process uses stoichiometric hydrazine in a closed system at lower temperatures (50-70°C), ensuring no free hydrazine is detected prior to work-up.

Q: What is the expected yield improvement for commercial scale-up?

A: While conventional routes often struggle with yields below 50%, this phosphonium salt-mediated pathway consistently achieves theoretical yields of 95-98%, drastically reducing raw material waste and cost per kilogram.

Q: Is this process suitable for GMP manufacturing of API intermediates?

A: Yes, the process utilizes standard organic solvents like THF and avoids harsh high-temperature condensation steps, making it highly compatible with GMP standards for producing high-purity pharmaceutical intermediates.
