Scalable Synthesis of Dibenzo[g,p]chrysene Derivatives for Next-Gen OLED Displays

Scalable Synthesis of Dibenzo[g,p]chrysene Derivatives for Next-Gen OLED Displays

The rapid evolution of the organic light-emitting diode (OLED) industry demands increasingly sophisticated host materials capable of delivering superior efficiency and longevity. Patent CN110878011A introduces a groundbreaking preparation method for dibenzo[g,p]thick dinaphthalene compounds, specifically targeting the synthesis of high-performance OLED emitters. This technology addresses critical bottlenecks in existing manufacturing protocols by replacing hazardous cryogenic reagents with a robust Lewis acid-catalyzed oxidative cyclization strategy. For R&D directors and procurement specialists alike, this patent represents a pivotal shift towards more economically viable and operationally safe production of complex polycyclic aromatic hydrocarbons. The disclosed route not only enhances the overall yield but also significantly simplifies the purification landscape, thereby reducing the total cost of ownership for electronic chemical manufacturers seeking reliable supply chains.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of fused polycyclic aromatic compounds like dibenzo[g,p]chrysene has been plagued by inefficient and hazardous methodologies. Prior art routes, such as those cited in the background of the patent, often rely heavily on the use of n-butyllithium reagents which necessitate extremely low-temperature reaction kettles, typically operating below -60°C. This requirement imposes severe constraints on industrial capacity, demanding specialized cryogenic equipment that drastically increases capital expenditure and operational complexity. Furthermore, traditional aromatization steps frequently utilize excessive amounts of anhydrous ferric chloride without complementary oxidants, leading to incomplete conversions and a proliferation of difficult-to-remove side products. The reliance on noble metal catalysts with high loading in C-H activation steps further exacerbates cost issues, while the resulting crude products often require laborious separation processes that erode profit margins and delay time-to-market for new display technologies.

The Novel Approach

In stark contrast, the novel approach detailed in CN110878011A leverages a synergistic combination of inorganic Lewis acids and specific oxidants to drive the ring-closing reaction with exceptional efficiency. By employing reagents such as 2,3-dichloro-5,6-dicyano-1,4-benzoquinone (DDQ) alongside ferric chloride, the process achieves high conversion rates at moderate temperatures ranging from 20°C to 120°C. This elimination of cryogenic conditions allows for the use of standard stainless steel reactors, vastly improving the feasibility of commercial scale-up. The method utilizes economical and readily available raw materials, avoiding the logistical nightmares associated with storing and handling unstable organolithium species. Additionally, the strategic selection of catalysts and phase transfer agents in the preceding Suzuki coupling steps ensures high regioselectivity, minimizing the formation of isomeric impurities and streamlining the downstream purification workflow for high-purity OLED material production.

Mechanistic Insights into FeCl3-Catalyzed Oxidative Cyclization

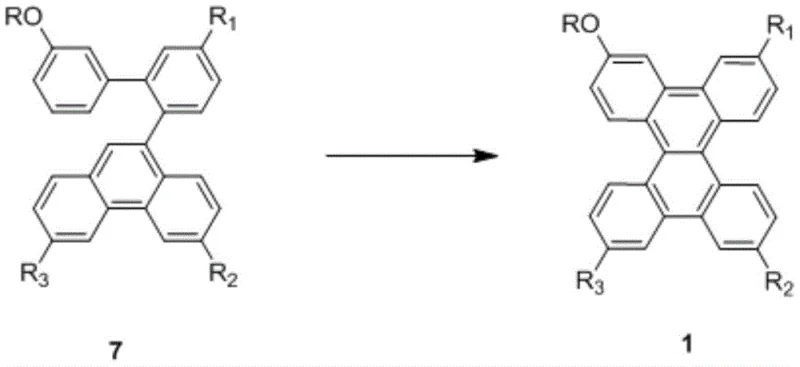

The core innovation of this technology lies in the mechanistic pathway of the final ring-closing step, where an inorganic Lewis acid acts in concert with an oxidant to facilitate intramolecular arylation. The inorganic Lewis acid, such as FeCl3 or AlCl3, functions to activate the aromatic C-H bonds by coordinating with the pi-system, thereby lowering the energy barrier for electrophilic attack. Simultaneously, the oxidant, selected from quinones like DDQ or tetrachloro-1,4-benzoquinone, serves to regenerate the active catalytic species and drive the thermodynamic equilibrium towards the fully aromatized product. This dual-activation mechanism prevents the accumulation of partially oxidized intermediates that often plague single-reagent systems. The reaction proceeds through a radical cation intermediate, which undergoes rapid cyclization to form the new carbon-carbon bond, followed by deprotonation to restore aromaticity. This precise control over the oxidation state ensures that the reaction stops at the desired dibenzo[g,p]chrysene stage without over-oxidizing the sensitive organic framework, a common failure mode in less sophisticated oxidative coupling protocols.

Impurity control is rigorously managed through the stoichiometric balance of the oxidant and Lewis acid relative to the substrate. The patent specifies a molar ratio of compound 7 to oxidant between 1:1 and 1:3, preferably 1:1.1 to 1.5, which is critical for suppressing side reactions such as polymerization or chlorination of the aromatic rings. By maintaining this tight window, the process minimizes the generation of chlorinated byproducts that are notoriously difficult to separate from the final product due to similar polarity profiles. Furthermore, the choice of solvent plays a pivotal role in managing the solubility of the radical intermediates; halogenated solvents like dichloroethane or aromatic solvents like toluene provide the optimal dielectric environment to stabilize the transition states. Post-reaction work-up involving sequential acid and alkali washing effectively removes residual metal salts and quinone reduction products, ensuring that the final API intermediate meets the stringent purity specifications required for emissive layers in high-resolution displays.

How to Synthesize Dibenzo[g,p]chrysene Efficiently

The synthesis of these complex OLED intermediates follows a modular three-stage protocol designed for maximum flexibility and yield. The process begins with the preparation of functionalized phenanthrene boronic acids, followed by iterative Suzuki-Miyaura couplings to build the requisite steric bulk, and concludes with the definitive oxidative cyclization. This stepwise assembly allows for the easy introduction of diverse substituents (R groups) at various positions on the molecular scaffold, enabling fine-tuning of the electronic properties for specific color gamuts or efficiency targets. The detailed standardized synthesis steps provided in the patent documentation offer a clear roadmap for process chemists to replicate these results in a pilot plant setting, ensuring consistency across batches. By adhering to the specified temperature profiles and addition rates, manufacturers can avoid exothermic runaways and ensure the safety of the operation while maximizing the throughput of high-value electronic chemicals.

1. Prepare phenanthrene boronic acid derivatives via Grignard or Aryl Lithium reaction with trimethyl borate.
2. Perform Suzuki coupling between the boronic acid and halogenated biphenyl precursors using Pd catalysts.
3. Execute the final ring-closing reaction using an inorganic Lewis acid and oxidant to form the fused aromatic system.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this synthesis route translates into tangible strategic advantages regarding cost stability and supply continuity. The elimination of cryogenic reagents like n-butyllithium removes a significant vulnerability from the supply chain, as these materials often suffer from volatile pricing and strict transportation regulations. By shifting to ambient or moderately heated conditions using stable inorganic salts, the manufacturing process becomes far more resilient to external market shocks and logistical disruptions. This robustness ensures a consistent flow of materials to downstream OLED panel manufacturers, reducing the risk of production stoppages due to raw material shortages. Furthermore, the simplified purification protocol reduces the consumption of silica gel and organic solvents during the work-up phase, contributing to a leaner and more cost-effective manufacturing operation that aligns with modern sustainability goals.

• Cost Reduction in Manufacturing: The economic benefits of this process are driven primarily by the substitution of expensive and hazardous reagents with commodity chemicals. The use of iron chloride and quinone oxidants represents a drastic reduction in raw material costs compared to the noble metal catalysts and specialized organometallics required by legacy methods. Additionally, the higher conversion rates mean that less starting material is wasted, directly improving the atom economy of the process. The ability to perform the reaction in common solvents like toluene or dichloroethane further lowers operational expenses, as these solvents are easily recovered and recycled within a standard distillation setup. This comprehensive approach to cost optimization ensures that the final dibenzo[g,p]chrysene derivatives can be offered at a highly competitive price point without compromising on quality.
• Enhanced Supply Chain Reliability: Supply chain reliability is significantly bolstered by the use of commercially available and stable precursors. Unlike methods requiring custom-synthesized boronic acid tripolymers or sensitive lithiated species, the inputs for this process are widely sourced from the global chemical market. This diversity of supply sources mitigates the risk of single-supplier dependency, a critical factor for long-term procurement planning. The robustness of the reaction conditions also means that production can be easily transferred between different manufacturing sites without the need for specialized infrastructure investments. This flexibility allows for a distributed manufacturing model, ensuring that regional demands for OLED materials can be met swiftly and efficiently, thereby reducing lead times for high-purity electronic chemical deliveries.
• Scalability and Environmental Compliance: From an environmental and scalability perspective, this method offers a cleaner profile that facilitates easier regulatory approval. The avoidance of heavy metal waste streams associated with high-loading palladium catalysts simplifies wastewater treatment and reduces the burden on effluent processing facilities. The reaction generates fewer hazardous byproducts, aligning with increasingly strict global environmental standards for chemical manufacturing. Scalability is inherently supported by the exothermic nature of the reaction being manageable under standard cooling conditions, allowing for safe operation in large-volume reactors. This ease of scale-up ensures that the technology can grow in tandem with the expanding OLED market, providing a future-proof solution for the mass production of next-generation display materials.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this patented synthesis route. These insights are derived directly from the experimental data and beneficial effects described in the patent documentation, providing a factual basis for decision-making. Understanding these nuances is essential for technical teams evaluating the feasibility of integrating this chemistry into their existing production lines. The answers highlight the practical advantages of the method while acknowledging the specific operational parameters required for success.

Q: What are the key advantages of this synthesis route over conventional methods?

A: This method avoids cryogenic conditions and expensive oxidants used in prior art, utilizing economical Lewis acids and mild temperatures to achieve higher conversion rates and simpler purification.

Q: How is high purity ensured in the final OLED material?

A: The process minimizes side reactions through controlled oxidative cyclization and employs standard work-up procedures like acid/alkali washing and column chromatography to remove metal residues and byproducts.

Q: Is this process suitable for large-scale industrial production?

A: Yes, the use of common solvents like toluene and DCE, along with stable inorganic reagents, eliminates the safety hazards of n-BuLi, making it highly adaptable for commercial scale-up.
