Advanced Biocatalytic Route for High-Purity Duloxetine Intermediates and Commercial Scalability

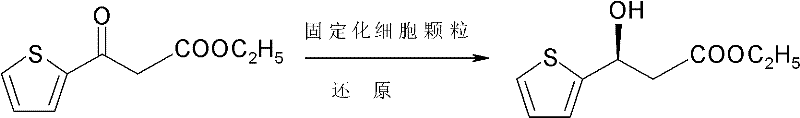

The pharmaceutical industry's relentless pursuit of efficient, environmentally benign, and cost-effective synthetic routes for chiral intermediates has led to significant advancements in biocatalytic technologies. A pivotal development in this domain is documented in Chinese Patent CN102191293A, which discloses a robust method for the microbial transformation of ethyl 3-oxo-3-(2-thienyl)propanoate into ethyl (S)-3-hydroxy-3-(2-thienyl)-propanoate. This specific chiral alcohol serves as a critical building block for the synthesis of Duloxetine, a potent serotonin-norepinephrine reuptake inhibitor (SNRI) widely prescribed for major depressive disorder and diabetic peripheral neuropathic pain. The patent outlines a sophisticated process utilizing immobilized cells of the yeast strain Saccharomyces cerevisiae CGMCC No.2266, offering a compelling alternative to traditional chemical reduction methods. By leveraging the inherent stereoselectivity of biological systems combined with the engineering benefits of cell immobilization, this technology addresses key pain points in modern API manufacturing, including waste generation, energy consumption, and the stringent requirement for high optical purity. For procurement leaders and R&D directors seeking a reliable pharmaceutical intermediate supplier, understanding the nuances of this patented biocatalytic route is essential for optimizing supply chains and reducing overall manufacturing costs.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of chiral beta-hydroxy esters like ethyl (S)-3-hydroxy-3-(2-thienyl)-propanoate has relied heavily on classical chemical reduction strategies, often employing stoichiometric amounts of metal hydrides such as sodium borohydride or lithium aluminum hydride. While these reagents are effective at reducing the ketone functionality, they inherently lack stereoselectivity, resulting in the formation of racemic mixtures that require subsequent, costly, and yield-diminishing resolution steps to isolate the desired (S)-enantiomer. Furthermore, chemical reductions frequently necessitate harsh reaction conditions, including cryogenic temperatures and anhydrous environments, which escalate energy demands and impose rigorous safety protocols for handling hazardous reagents. The downstream processing associated with these methods is equally burdensome; the quenching of reactive metal species generates substantial volumes of inorganic salt waste, complicating wastewater treatment and increasing the environmental footprint of the manufacturing process. Additionally, the presence of trace metal residues in the final product poses a significant regulatory hurdle, requiring extensive purification protocols to meet the stringent impurity limits mandated by global health authorities for pharmaceutical ingredients.

The Novel Approach

In stark contrast to these conventional limitations, the biocatalytic approach detailed in patent CN102191293A introduces a paradigm shift towards sustainable and highly selective synthesis. By utilizing whole-cell biocatalysts, specifically immobilized Saccharomyces cerevisiae, the process harnesses the power of native enzymatic machinery to perform asymmetric reduction with exceptional precision. This biological route operates under mild physiological conditions, typically between 20°C and 40°C, eliminating the need for extreme temperatures or pressures and significantly reducing energy consumption. The immobilization of the yeast cells within a sodium alginate matrix not only protects the biocatalyst from shear forces and organic solvent toxicity but also facilitates easy separation from the reaction mixture, thereby streamlining the isolation of the product. This innovation effectively bypasses the need for racemic resolution, as the enzymatic reduction is inherently enantioselective, directly yielding the target (S)-isomer with high optical purity. Consequently, this method represents a superior strategy for cost reduction in API manufacturing, offering a cleaner, safer, and more atom-economical pathway to high-value chiral intermediates.

Mechanistic Insights into Immobilized Cell Biocatalysis

The core of this technological breakthrough lies in the intricate interplay between the biological catalyst and the engineered reaction environment. The process employs Saccharomyces cerevisiae strain CGMCC No.2266, which possesses potent carbonyl reductase activity capable of selectively transferring a hydride equivalent to the prochiral ketone substrate. To enhance the practical utility of these cells, they are entrapped within a calcium alginate gel matrix through a gentle gelation process involving sodium alginate and calcium chloride. This immobilization technique creates a semi-permeable barrier that allows the diffusion of the substrate and cofactors while retaining the cellular enzymes and cofactor regeneration systems within the bead. The choice of dibutyl phthalate as the reaction solvent is particularly ingenious; unlike aqueous buffers which may limit substrate solubility, this organic solvent can dissolve high concentrations of the hydrophobic thienyl ketone, driving the reaction equilibrium towards product formation. Moreover, the organic phase acts as a reservoir for the product, minimizing product inhibition effects that often plague aqueous biocatalytic systems. The result is a highly efficient transformation where the substrate is converted to the chiral alcohol with remarkable fidelity.

Beyond mere conversion, the mechanism ensures exceptional control over the stereochemical outcome. The enzymatic active site within the yeast cells imposes strict steric constraints on the approaching substrate, ensuring that hydride transfer occurs exclusively from one face of the carbonyl group. This biological precision results in an enantiomeric excess (ee%) consistently exceeding 99.0%, a level of purity that is difficult and expensive to achieve via chemical catalysis without specialized chiral ligands. Furthermore, the immobilization matrix stabilizes the cellular structure, allowing the cofactors (such as NADPH) required for the reduction to be regenerated internally by the cell's metabolic pathways. This self-sustaining cofactor cycle eliminates the need for external addition of expensive coenzymes, further enhancing the economic viability of the process. The robustness of this system is evidenced by its ability to maintain high catalytic activity over extended reaction times and multiple reuse cycles, making it an ideal candidate for the commercial scale-up of complex pharmaceutical intermediates.

How to Synthesize Ethyl (S)-3-hydroxy-3-(2-thienyl)-propanoate Efficiently

Implementing this biocatalytic route requires a systematic approach to fermentation, immobilization, and transformation to ensure reproducibility and high yield. The process begins with the cultivation of the yeast strain under controlled conditions to maximize biomass and enzymatic activity, followed by the critical step of entrapment in the alginate matrix. Once prepared, the immobilized beads are introduced into the organic reaction medium containing the substrate. The reaction proceeds under mild agitation to ensure adequate mass transfer without damaging the gel beads. Following the transformation period, the solid catalyst is simply filtered off, leaving a solution of the product in the organic solvent which can be easily concentrated.

1. Prepare the biocatalyst by fermenting Saccharomyces cerevisiae CGMCC No.2266, mixing the broth with sodium alginate, and solidifying in calcium chloride to form immobilized cell particles.
2. Conduct the biotransformation by suspending the immobilized particles in dibutyl phthalate containing the ketone substrate at 30°C for 72 hours.
3. Separate the catalyst by filtration, remove the solvent via rotary evaporation, and purify the crude product using silica gel column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For supply chain managers and procurement executives, the adoption of this immobilized cell technology offers transformative benefits that extend far beyond the laboratory bench. The primary advantage lies in the dramatic simplification of the downstream processing workflow. Because the catalyst is heterogeneous (solid beads in liquid solvent), it can be removed via simple filtration, obviating the need for complex extraction procedures that often suffer from emulsification issues common in aqueous-organic biphasic systems. This ease of separation translates directly into reduced processing time and lower labor costs. Furthermore, the stability of the immobilized cells allows for repeated usage; the patent data indicates that the catalyst retains significant activity over at least ten consecutive batches. This reusability drastically reduces the cost of goods sold (COGS) by amortizing the cost of biocatalyst preparation over multiple production runs, providing a substantial cost saving compared to single-use enzyme preparations or stoichiometric chemical reagents.

• Cost Reduction in Manufacturing: The elimination of expensive chiral chemical catalysts and the avoidance of resolution steps significantly lower raw material expenses. Additionally, the mild reaction conditions reduce energy consumption for heating or cooling, contributing to a leaner manufacturing budget. The high conversion rates minimize waste of starting materials, ensuring that every kilogram of substrate purchased contributes maximally to the final product yield.
• Enhanced Supply Chain Reliability: The use of a robust, immobilized biocatalyst mitigates the risk of batch-to-batch variability often associated with free-cell fermentations. The ability to store and reuse the catalyst provides a buffer against supply disruptions, ensuring consistent production schedules. Moreover, the scalability of the fermentation and immobilization processes means that supply can be rapidly ramped up to meet market demand without the long lead times associated with sourcing specialized chemical reagents.
• Scalability and Environmental Compliance: This green chemistry approach aligns perfectly with increasingly stringent environmental regulations. By avoiding heavy metal catalysts and reducing organic solvent waste through efficient recycling of the dibutyl phthalate phase, manufacturers can significantly lower their environmental compliance costs. The process generates minimal hazardous waste, simplifying disposal procedures and enhancing the company's sustainability profile, which is a critical factor for modern pharmaceutical supply chains.

Frequently Asked Questions (FAQ)

The following questions address common technical and operational inquiries regarding the implementation of this biocatalytic technology. Understanding these details is crucial for R&D teams evaluating the feasibility of integrating this route into their existing manufacturing platforms. The answers are derived directly from the experimental data and technical specifications provided in the underlying patent documentation, ensuring accuracy and relevance for industrial application.

Q: What is the optical purity of the product obtained via this immobilized cell method?

A: The method described in patent CN102191293A achieves an enantiomeric excess (ee%) greater than 99.0%, ensuring high stereochemical integrity required for downstream API synthesis.

Q: Can the biocatalyst be reused to lower production costs?

A: Yes, the immobilized cell particles demonstrate excellent operational stability and can be recovered and reused for at least 10 consecutive batches without significant loss of catalytic activity.

Q: Why is dibutyl phthalate used as the solvent in this biotransformation?

A: Dibutyl phthalate serves as a compatible organic phase that dissolves high concentrations of the hydrophobic substrate while maintaining the viability and catalytic efficiency of the immobilized yeast cells.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable Ethyl (S)-3-hydroxy-3-(2-thienyl)-propanoate Supplier

At NINGBO INNO PHARMCHEM, we recognize the strategic importance of high-quality chiral intermediates in the development of next-generation antidepressants. Our team of expert chemists and engineers possesses extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that the transition from laboratory innovation to industrial reality is seamless. We are committed to delivering products that meet stringent purity specifications, supported by our rigorous QC labs equipped with state-of-the-art analytical instrumentation. By leveraging advanced biocatalytic technologies similar to those described in patent CN102191293A, we can offer our partners a competitive edge through superior product quality and consistent supply reliability.

We invite you to collaborate with us to optimize your supply chain for Duloxetine intermediates. Our technical procurement team is ready to provide a Customized Cost-Saving Analysis tailored to your specific volume requirements. Contact us today to request specific COA data and route feasibility assessments, and let us demonstrate how our expertise can drive efficiency and value in your pharmaceutical manufacturing operations.
