Advanced Lewis Acid-Catalyzed Michael Addition for Scalable Imidazothiazole Intermediate Production

The landscape of heterocyclic chemistry is constantly evolving, driven by the demand for more efficient and versatile synthetic routes for pharmaceutical intermediates. A significant advancement in this domain is detailed in patent CN113831357A, which introduces a facile and robust Michael addition reaction specifically tailored for 6-phenyl-imidazo[2,1-b]thiazole derivatives. This innovation addresses a critical gap in the functionalization of sulfur-containing heterocycles, offering a pathway that combines operational simplicity with high chemical efficiency. By leveraging Lewis acid catalysis, the disclosed method enables the direct alkylation of the imidazothiazole core under remarkably mild conditions, typically ranging from 40°C to 150°C. This technical breakthrough is not merely an academic exercise; it represents a tangible shift towards more sustainable and cost-effective manufacturing processes for complex drug precursors. For R&D teams and supply chain strategists alike, understanding the nuances of this patent is essential for optimizing the production of high-value fine chemicals.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the functionalization of imidazo[2,1-b]thiazole scaffolds has been fraught with challenges that hinder large-scale adoption. Traditional methods often rely on harsh reaction conditions, requiring extreme temperatures or highly reactive reagents that compromise the integrity of sensitive functional groups. Furthermore, many existing protocols suffer from poor atom economy and generate significant amounts of hazardous waste, complicating downstream purification and environmental compliance. The lack of specific reports on Michael addition reactions using imidazo[2,1-b]thiazole compounds as direct substrates highlights a longstanding bottleneck in the field. Without a dedicated, optimized pathway, chemists are forced to resort to multi-step sequences that increase both the lead time and the overall cost of goods. These inefficiencies create substantial friction in the supply chain, making it difficult to secure reliable sources of high-purity intermediates for clinical and commercial applications.

The Novel Approach

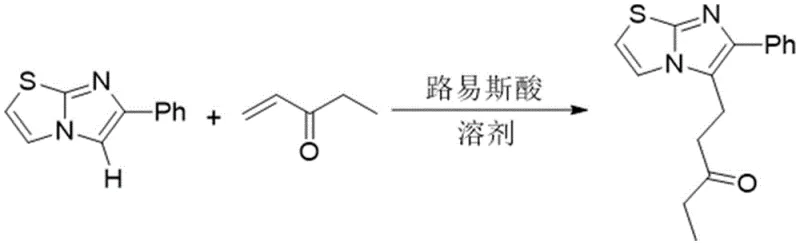

In stark contrast to these legacy issues, the novel approach outlined in the patent utilizes a streamlined Lewis acid-catalyzed strategy that fundamentally simplifies the synthetic workflow. By employing readily available starting materials such as 6-phenyl-imidazo[2,1-b]thiazole and 1-penten-3-one, the method achieves direct C-C bond formation with exceptional precision. The use of inexpensive Lewis acids, including various copper salts, eliminates the need for precious metal catalysts, thereby drastically reducing raw material costs. The reaction demonstrates remarkable functional group tolerance, allowing for the preservation of delicate moieties that would otherwise be degraded under conventional conditions. This robustness translates directly into higher yields and simpler purification protocols, as evidenced by the successful isolation of products via standard column chromatography. Ultimately, this approach provides a scalable and economically viable solution for constructing alkyl-substituted imidazo[2,1-b]thiazole derivatives.

Mechanistic Insights into Lewis Acid-Catalyzed Michael Addition

The core of this technological advancement lies in the activation mechanism facilitated by the Lewis acid catalyst. In this system, the Lewis acid, typically a copper salt, coordinates with the carbonyl oxygen of the 1-penten-3-one (an alpha,beta-unsaturated ketone). This coordination significantly enhances the electrophilicity of the beta-carbon atom, making it much more susceptible to nucleophilic attack. The 6-phenyl-imidazo[2,1-b]thiazole acts as the nucleophile, attacking the activated beta-position to form a new carbon-carbon bond. This step is critical as it overcomes the inherent stability of the aromatic heterocycle, allowing for substitution without disrupting the core ring system. The subsequent proton transfer and rearomatization steps restore the stability of the imidazothiazole ring, yielding the final alkylated product. This mechanistic pathway is highly efficient because it avoids the formation of unstable intermediates that often plague similar transformations.

From an impurity control perspective, the mild nature of this catalytic cycle offers distinct advantages. Because the reaction proceeds at moderate temperatures (40-150°C), thermal degradation of the substrate or product is minimized. The high selectivity of the Lewis acid for the enone system reduces the likelihood of side reactions, such as polymerization of the unsaturated ketone or over-alkylation of the heterocycle. Furthermore, the compatibility with a wide range of solvents—from non-polar hydrocarbons like n-hexane to polar aprotic solvents like DMSO—allows process chemists to fine-tune the reaction environment to suppress specific impurities. This level of control is paramount for pharmaceutical applications, where strict limits on related substances must be maintained. The ability to achieve high purity through simple workup procedures, such as filtration and solvent evaporation, underscores the practical utility of this mechanism in an industrial setting.

How to Synthesize 6-Phenyl-imidazo[2,1-b]thiazole Derivatives Efficiently

Implementing this synthesis in a laboratory or pilot plant setting requires adherence to specific procedural parameters to maximize yield and reproducibility. The process begins with the precise charging of reactants into a suitable reaction vessel, such as a glass test tube or a standard reactor, ensuring the correct molar ratios are maintained. The patent suggests a molar ratio of substrate to enone ranging from 1:0.05 to 1:5, providing flexibility to drive the reaction to completion. Following the addition of the Lewis acid catalyst and the chosen solvent, the mixture is subjected to controlled heating with continuous stirring. Monitoring the reaction progress via thin-layer chromatography (TLC) is recommended to determine the optimal endpoint, which typically occurs within 1 to 10 hours depending on the specific conditions employed. Detailed standardized synthesis steps are provided in the guide below.

1. Charge a reaction vessel with 6-phenyl-imidazo[2,1-b]thiazole, 1-penten-3-one, a Lewis acid catalyst (such as copper salts), and a suitable organic solvent.
2. Stir the reaction mixture at a temperature range of 40-150°C for a duration of 1 to 10 hours to ensure complete conversion.
3. Upon completion, cool the mixture to room temperature, filter the reaction liquid, remove the solvent under reduced pressure, and purify the crude product via column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this patented methodology offers compelling strategic benefits that extend beyond mere technical feasibility. The primary advantage lies in the significant reduction of manufacturing complexity, which directly correlates to lower operational expenditures. By utilizing cheap and easily obtainable Lewis acid catalysts instead of expensive transition metals, the raw material cost profile is substantially improved. Additionally, the mild reaction conditions reduce energy consumption associated with heating and cooling cycles, contributing to a smaller carbon footprint and lower utility costs. The robustness of the process also minimizes the risk of batch failures, ensuring a more consistent and reliable supply of critical intermediates. These factors collectively enhance the overall economic viability of producing imidazo[2,1-b]thiazole derivatives on a commercial scale.

• Cost Reduction in Manufacturing: The elimination of precious metal catalysts and the use of commodity chemicals like 1-penten-3-one result in a leaner cost structure. The simplified workup procedure, which involves basic filtration and solvent removal rather than complex extraction or distillation sequences, further reduces labor and equipment time. This streamlining of the process flow allows for faster turnover of reactor vessels, increasing overall plant capacity without the need for capital expansion. Consequently, the total cost of ownership for this synthetic route is markedly lower than traditional alternatives.
• Enhanced Supply Chain Reliability: The reliance on widely available starting materials mitigates the risk of supply disruptions that often accompany specialized reagents. Since the reaction tolerates a broad spectrum of solvents, manufacturers have the flexibility to switch suppliers or solvent types based on market availability and pricing without compromising product quality. This adaptability is crucial for maintaining continuity of supply in a volatile global market. Furthermore, the high functional group tolerance ensures that variations in raw material quality have minimal impact on the final outcome, adding another layer of resilience to the supply chain.
• Scalability and Environmental Compliance: The straightforward nature of this reaction makes it highly amenable to scale-up from gram to ton quantities. The absence of hazardous byproducts and the ability to operate at atmospheric pressure simplify the engineering requirements for large-scale reactors. From an environmental standpoint, the reduced waste generation and lower energy demand align with increasingly stringent regulatory standards for green chemistry. This compliance not only avoids potential fines but also enhances the corporate sustainability profile, which is becoming a key differentiator in B2B negotiations.

Frequently Asked Questions (FAQ)

The following questions address common technical inquiries regarding the implementation and optimization of this Michael addition protocol. These insights are derived directly from the experimental data and claims presented in the patent documentation, providing a reliable foundation for process development decisions. Understanding these details is crucial for R&D teams aiming to integrate this technology into their existing workflows. The answers cover catalyst selection, reaction parameters, and purification strategies to ensure successful execution.

Q: What catalysts are suitable for this Michael addition reaction?

A: The patent specifies the use of Lewis acids, particularly copper salts such as copper oxide, copper chloride, copper trifluoroacetate, and copper trifluoromethanesulfonate. Acidic alumina is also demonstrated as an effective promoter in specific examples.

Q: What is the optimal temperature range for this synthesis?

A: The reaction proceeds effectively within a broad temperature window of 40°C to 150°C. This flexibility allows for optimization based on the specific solvent boiling point and desired reaction rate, balancing energy consumption with throughput.

Q: Which solvents are compatible with this Lewis acid-catalyzed process?

A: The method exhibits excellent solvent tolerance, supporting a wide array of organic solvents including n-hexane, toluene, dichloromethane, acetonitrile, alcohols (n-butanol, ethanol), tetrahydrofuran, acetone, and dimethyl sulfoxide.
