Optimizing Citalopram Production: Advanced Synthesis of 5-Cyano-2-benzo[c]furanone for Commercial Scale-up

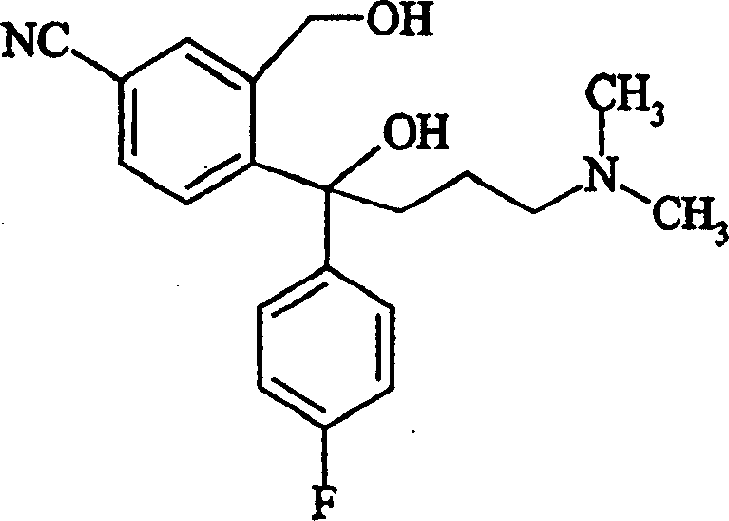

The pharmaceutical industry continuously seeks robust and scalable synthetic routes for high-volume antidepressants, and the production of Citalopram remains a critical focus area for generic manufacturers worldwide. Patent CN1149208C introduces a transformative methodology for synthesizing 5-cyano-2-benzo[c]furanone, a pivotal building block in the manufacture of this widely prescribed serotonin reuptake inhibitor. This technical disclosure moves away from legacy processes that rely on hazardous heavy metal chemistry, proposing instead a streamlined pathway that converts 5-carboxy-2-benzo[c]furanone into the target nitrile via a stable amide intermediate. For R&D directors and process chemists, this represents a significant opportunity to enhance the safety profile and operational efficiency of their manufacturing lines while maintaining rigorous quality standards required for global regulatory submission.

The strategic value of this innovation extends beyond mere chemical curiosity; it addresses fundamental supply chain vulnerabilities associated with older synthetic methodologies. By utilizing readily available reagents such as thionyl chloride and ammonia derivatives, the process mitigates the risks associated with sourcing specialized or controlled reagents like copper cyanide. Furthermore, the reported high yields and the surprising stability of the lactone ring under the reaction conditions suggest a process that is not only chemically elegant but also commercially resilient. As we analyze the technical specifics, it becomes clear that this approach offers a compelling alternative for companies aiming to optimize their cost of goods sold (COGS) while securing a reliable supply of high-purity pharmaceutical intermediates.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of 5-cyano-2-benzo[c]furanone has been achieved through pathways that pose significant environmental and operational challenges for modern chemical plants. Traditional literature, such as the methods disclosed by Bretagne and Levy, relies on the diazotization of 5-amino-2-benzo[c]furanone followed by a Sandmeyer-type reaction using copper cyanide. This approach is inherently problematic because it introduces toxic heavy metals into the process stream, necessitating complex and costly wastewater treatment protocols to meet environmental discharge limits. Additionally, the handling of copper cyanide requires stringent safety measures due to its acute toxicity, increasing the operational overhead and liability for manufacturing facilities.

Beyond the environmental concerns, the chemical efficiency of these legacy routes is often compromised by side reactions that can degrade the sensitive lactone ring structure. The harsh acidic conditions required for diazotization can lead to ring opening or polymerization, resulting in lower overall yields and a more complex impurity profile that is difficult to purge in subsequent steps. For procurement managers, this translates to higher raw material consumption and increased waste disposal costs. The reliance on stoichiometric amounts of copper salts also creates a bottleneck in purification, as removing trace metal residues to meet ppm-level specifications for pharmaceutical ingredients often requires additional chelation or crystallization steps, further extending the production cycle time.

The Novel Approach

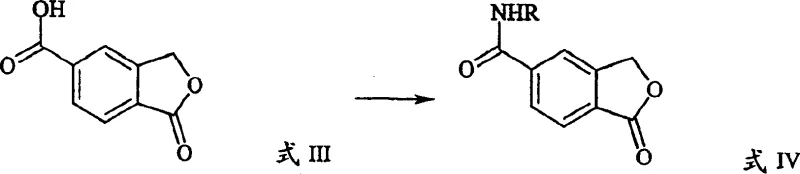

In stark contrast, the novel process detailed in the patent data utilizes a two-step sequence that begins with the activation of 5-carboxy-2-benzo[c]furanone, followed by amidation and subsequent dehydration. This route elegantly bypasses the need for diazotization entirely, replacing it with standard acylation chemistry that is well-understood and easily controlled in a GMP environment. The conversion of the carboxylic acid to an activated species, such as an acid chloride or ester, allows for a clean reaction with ammonia or alkylamines to form the amide intermediate. This intermediate is then subjected to dehydration using agents like thionyl chloride, which effectively converts the amide carbonyl into a nitrile group without attacking the neighboring lactone functionality.

The brilliance of this approach lies in its chemoselectivity and operational simplicity. The patent explicitly notes the surprising finding that the lactone ring remains substantially intact throughout the dehydration step, a critical advantage that ensures the structural integrity of the molecule. This stability allows for the use of robust dehydrating agents at elevated temperatures, such as refluxing toluene, which drives the reaction to completion with high conversion rates. For supply chain heads, this reliability means fewer batch failures and a more predictable production schedule. The elimination of heavy metals not only simplifies the workup procedure—often requiring little more than filtration and washing—but also drastically reduces the environmental footprint of the manufacturing process, aligning with modern green chemistry initiatives.

Mechanistic Insights into Amide Dehydration and Lactone Stability

To fully appreciate the technical merit of this synthesis, one must examine the mechanistic details of the dehydration step, which is the cornerstone of this invention. The transformation of the primary amide (Formula IV) into the nitrile (Formula V) typically proceeds through the formation of an imidoyl chloride intermediate when thionyl chloride is used as the dehydrating agent. In this mechanism, the oxygen of the amide carbonyl attacks the sulfur of the thionyl chloride, displacing a chloride ion and forming a reactive O-sulfinyl species. Subsequent elimination of sulfur dioxide and hydrogen chloride generates the carbon-nitrogen triple bond of the nitrile. What makes this specific application remarkable is the tolerance of the adjacent cyclic ester (lactone) to these aggressive chlorinating conditions.

Usually, acid chlorides and thionyl chloride can induce ring-opening in lactones or react with other nucleophilic sites within a molecule. However, the electronic environment of the 5-carboxy-2-benzo[c]furanone scaffold appears to protect the lactone moiety, or perhaps the kinetics of the amide dehydration are sufficiently fast to outcompete any potential side reactions at the lactone carbonyl. The patent data suggests that the use of catalytic amounts of N,N-dimethylformamide (DMF) further enhances the reactivity of the thionyl chloride, allowing the reaction to proceed efficiently at reflux temperatures in solvents like toluene. This mechanistic understanding is crucial for R&D teams scaling up the process, as it confirms that strict control of water content and temperature is sufficient to maintain high selectivity, negating the need for exotic protecting group strategies.

Furthermore, the versatility of the activation step provides additional levers for process optimization. The carboxylic acid starting material can be converted to the acid chloride using phosphorus oxychloride or thionyl chloride, or alternatively transformed into an ethyl or methyl ester. Each pathway offers distinct advantages depending on the available infrastructure; for instance, the acid chloride route allows for a direct telescoping into the amidation step, while the ester route might offer better purification opportunities for the intermediate. The ability to choose between ammonia or C1-6 alkylamines (such as tert-butylamine) for the amidation step also allows chemists to tune the solubility and crystallization properties of the intermediate, facilitating easier isolation and washing. This flexibility ensures that the process can be adapted to various reactor configurations and solvent recovery systems without compromising the final yield or purity.

How to Synthesize 5-Cyano-2-benzo[c]furanone Efficiently

Implementing this synthesis in a commercial setting requires a clear understanding of the operational parameters that drive success. The general protocol involves suspending the 5-carboxy starting material in a suitable solvent such as toluene or using the dehydrating agent itself as the medium. Activation is achieved by adding reagents like thionyl chloride, often with a catalytic drop of DMF to accelerate the formation of the acid chloride. Once the activated species is formed, it is reacted with an amine source to generate the amide. Finally, the dehydration is effected by heating the amide with excess thionyl chloride, followed by a straightforward workup involving water quenching and filtration.

1. Convert 5-carboxy-2-benzo[c]furanone into an activated species such as an acid chloride or ester using reagents like thionyl chloride or phosphorus oxychloride.
2. React the activated intermediate with ammonia or a C1-6 alkylamine to form the corresponding primary or substituted amide.
3. Dehydrate the resulting amide using a dehydrating agent such as thionyl chloride in a suitable solvent like toluene to yield 5-cyano-2-benzo[c]furanone.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain executives, the shift to this novel synthetic route offers tangible economic and logistical benefits that directly impact the bottom line. The primary advantage lies in the drastic simplification of the raw material portfolio. By eliminating the need for copper cyanide and the precursors required for diazotization (such as sodium nitrite and strong mineral acids in large quantities), the process relies on commodity chemicals that are abundant and price-stable. Thionyl chloride, ammonia, and toluene are produced on a massive industrial scale, ensuring that supply disruptions are minimal and pricing remains competitive even during periods of market volatility. This stability allows for more accurate long-term budgeting and reduces the risk of production stoppages due to raw material shortages.

Moreover, the reduction in process complexity translates directly into lower manufacturing costs. The absence of heavy metals removes the necessity for expensive scavenging resins or complex extraction protocols designed to lower metal content to single-digit ppm levels. This streamlining of the downstream processing phase reduces the consumption of solvents and auxiliary materials, leading to substantial cost savings in waste management and utility usage. The high yields reported in the patent examples, often exceeding ninety percent for individual steps, mean that less starting material is required to produce a kilogram of the final intermediate. This improved atom economy not only lowers the variable cost per unit but also increases the effective capacity of existing manufacturing assets, allowing facilities to produce more product without capital expansion.

From a supply chain reliability perspective, the robustness of this chemistry ensures consistent quality and交期 (delivery time). The process is less sensitive to minor fluctuations in reaction conditions compared to the delicate diazotization balance, resulting in fewer off-spec batches and less rework. The ability to isolate stable solid intermediates, such as the acid chloride or the amide, provides flexibility in production scheduling; these intermediates can be stockpiled if necessary, decoupling the upstream and downstream stages of production. This modularity enhances the overall resilience of the supply chain, enabling manufacturers to respond more agilely to changes in demand for the final antidepressant API. Additionally, the environmental compliance aspect cannot be overstated; generating less hazardous waste simplifies permitting and reduces the regulatory burden, ensuring uninterrupted operations in increasingly strict environmental jurisdictions.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this synthesis route. These answers are derived directly from the experimental data and claims found in the patent documentation, providing a factual basis for decision-making. Understanding these nuances is essential for technical teams evaluating the feasibility of adopting this process for large-scale manufacturing.

Q: Why is the amide dehydration route superior to traditional diazotization for this intermediate?

A: Traditional methods involving diazotization followed by reaction with copper cyanide utilize toxic heavy metals and harsh conditions that can compromise the sensitive lactone ring. The amide dehydration route described in patent CN1149208C operates under milder conditions, eliminates heavy metal contamination risks, and surprisingly preserves the lactone functionality with high chemoselectivity.

Q: What dehydrating agents are most effective for this specific transformation?

A: The patent data indicates that thionyl chloride (SOCl2) is the preferred dehydrating agent due to its efficiency and ease of handling. Other agents such as phosphorus oxychloride (POCl3) and phosphorus pentachloride (PCl5) are also viable alternatives, offering flexibility depending on specific plant capabilities and waste treatment protocols.

Q: How does this process impact the purity profile of the final API intermediate?

A: By avoiding transition metal catalysts like copper, the process significantly reduces the burden of heavy metal clearance during downstream processing. The method yields products with high purity (reported up to 99.5% in examples), simplifying the purification workflow and ensuring compliance with stringent pharmaceutical impurity specifications.
