Scalable Synthesis of 1-Azabicyclo[2,2,1]heptane Derivatives via Mild Three-Step Protocol

Scalable Synthesis of 1-Azabicyclo[2,2,1]heptane Derivatives via Mild Three-Step Protocol

The strategic importance of bridged bicyclic amine scaffolds in modern medicinal chemistry and advanced material science cannot be overstated, particularly for structures resembling quinuclidine but with distinct electronic properties. Patent CN111732558A introduces a groundbreaking methodology for the synthesis of 1-azabicyclo[2,2,1]heptane and its derivatives, addressing a critical gap in the availability of these high-value building blocks. While related compounds like quinuclidine and DBACO are commercially ubiquitous, the specific 1-azabicyclo[2,2,1]heptane core has historically been inaccessible for large-scale procurement, limiting its application in designing phase-change molecular ferroelectric materials and novel pharmaceutical agents. This patent discloses a robust, three-step synthetic route that transforms readily available N-Boc-4-(hydroxymethyl)piperidine derivatives into the target bicyclic system with remarkable efficiency. By leveraging standard organic transformations such as tosylation, acid-mediated deprotection, and base-promoted cyclization, this technology offers a viable pathway for the reliable pharmaceutical intermediate supplier seeking to diversify their portfolio with complex nitrogen heterocycles.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of the 1-azabicyclo[2,2,1]heptane skeleton has been plagued by significant technical hurdles that hindered its adoption in industrial settings. Prior art, such as the methods cited in the background of the patent, often necessitates extreme reaction conditions, including high-temperature environments that pose severe safety risks and energy consumption challenges for plant operations. Furthermore, earlier synthetic strategies frequently suffered from poor atom economy and low overall yields, making the cost of goods sold (COGS) prohibitively high for all but the most niche research applications. Some existing routes rely on obscure starting materials that are not available in bulk quantities, creating a fragile supply chain vulnerable to disruptions. The inability to produce these compounds on a hectogram or kilogram scale has effectively barred their entry into mainstream drug discovery pipelines, forcing R&D teams to design around this scaffold rather than utilizing its unique steric and electronic profile. These legacy limitations underscore the urgent need for a process innovation that balances chemical elegance with practical manufacturability.

The Novel Approach

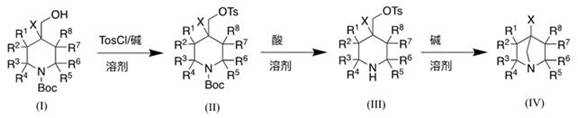

The methodology outlined in CN111732558A represents a paradigm shift by utilizing simple, commodity-grade chemicals to construct the complex bicyclic framework under mild conditions. The process initiates with the conversion of a hydroxyl group into a superior leaving group, the tosylate (-OTs), using p-toluenesulfonyl chloride (TsCl) in the presence of a base like pyridine. This activation step is crucial for enabling the subsequent ring-closing reaction. Following tosylation, the nitrogen protecting group (Boc) is cleanly removed under acidic conditions, unmasking the nucleophilic amine required for cyclization. The final step involves an intramolecular nucleophilic substitution driven by a base such as potassium carbonate, often assisted by catalytic sodium iodide to enhance reaction kinetics. This sequence avoids the need for exotic catalysts or hazardous high-pressure equipment, significantly lowering the barrier to entry for commercial production. The visual representation of this streamlined pathway highlights the logical progression from linear piperidine precursors to the rigid bicyclic product.

Mechanistic Insights into Base-Mediated Intramolecular Cyclization

The core chemical transformation in this synthesis is the formation of the bridged bond through an intramolecular SN2 mechanism, which requires precise control over reaction parameters to maximize yield and minimize byproducts. In the final cyclization step, the free secondary amine, generated after acid deprotection, acts as a potent nucleophile attacking the carbon bearing the tosylate leaving group. The addition of sodium iodide (NaI) plays a subtle yet critical role; it likely facilitates a Finkelstein-type exchange in situ, converting the tosylate into an iodide, which is an even better leaving group, thereby accelerating the ring closure at moderate temperatures (e.g., 80°C). This mechanistic nuance allows the reaction to proceed efficiently in polar aprotic solvents like acetonitrile without requiring the harsh thermal conditions seen in older literature. The choice of base, typically potassium carbonate, ensures that the amine remains deprotonated and nucleophilic while buffering the reaction mixture against excessive acidity that could lead to decomposition. Understanding this catalytic cycle is essential for process chemists aiming to optimize the reaction for multi-kilogram batches, as slight deviations in base stoichiometry or temperature can impact the impurity profile.

Impurity control is inherently built into this three-step design, particularly through the isolation of stable intermediates. The tosylation step produces a crystalline or easily purifiable solid (Compound II in the general scheme), allowing for the removal of unreacted starting material before proceeding. Similarly, the deprotection step generates a salt form of the amine (Compound III), which can be filtered or precipitated, effectively scrubbing out organic soluble impurities before the critical ring-closing step. This "purge-and-trap" strategy at each stage ensures that the final crude product is of high purity, often exceeding 95% before final recrystallization or distillation. For R&D directors focused on regulatory filings, this level of process control is invaluable, as it simplifies the validation of the purification process and reduces the burden on analytical quality control labs. The ability to consistently produce high-purity 1-azabicyclo[2,2,1]heptane derivatives minimizes the risk of genotoxic impurities or difficult-to-remove side products that often plague complex heterocycle synthesis.

How to Synthesize 4-Fluoro-1-azabicyclo[2.2.1]heptane Efficiently

The patent provides a detailed embodiment for the synthesis of the fluorinated derivative, which serves as an excellent case study for the robustness of this platform technology. The process begins with the tosylation of N-Boc-4-(fluoromethyl)piperidine, where strict temperature control between 0°C and 25°C is maintained to prevent side reactions while ensuring complete conversion of the alcohol. Following workup and purification, the intermediate is subjected to acidic deprotection using HCl in ethyl acetate, a reagent system chosen for its compatibility with downstream processing and ease of removal. The final cyclization leverages the synergy between potassium carbonate and sodium iodide in acetonitrile, heated to 80°C to drive the equilibrium toward the bicyclic product. Detailed standardized synthesis steps for this specific fluorinated analog are provided below to guide process implementation.

1. React N-Boc-4-(hydroxymethyl)piperidine derivative with Tosyl Chloride (TsCl) and pyridine in DCM at 0-25°C to form the tosylate intermediate.
2. Remove the Boc protecting group using acidic conditions, such as HCl in ethyl acetate, at room temperature to generate the free amine salt.
3. Perform intramolecular nucleophilic substitution using potassium carbonate and sodium iodide in acetonitrile at elevated temperatures to close the ring.

Commercial Advantages for Procurement and Supply Chain Teams

From a procurement perspective, this synthetic route offers substantial advantages by relying entirely on off-the-shelf reagents that are accessible from multiple global suppliers, thereby mitigating single-source risk. The starting material, N-Boc-4-(hydroxymethyl)piperidine, is a commodity chemical produced in large volumes for various pharmaceutical applications, ensuring a stable and cost-effective supply baseline. By eliminating the need for custom-synthesized precursors or precious metal catalysts, the bill of materials (BOM) cost is significantly reduced, making the final API intermediate more competitive in the marketplace. Furthermore, the use of common solvents like dichloromethane, ethyl acetate, and acetonitrile simplifies solvent recovery and recycling protocols, contributing to both economic and environmental sustainability goals. This alignment with green chemistry principles enhances the long-term viability of the supply chain, as it reduces dependence on regulated or environmentally hazardous reagents that might face future restrictions.

• Cost Reduction in Manufacturing: The elimination of high-temperature and high-pressure requirements translates directly into lower energy consumption and reduced capital expenditure on specialized reactor equipment. Since the reaction proceeds efficiently at temperatures ranging from ambient to 80°C, standard glass-lined or stainless-steel reactors found in most multipurpose plants are sufficient for production. Additionally, the high selectivity of the tosylation and cyclization steps minimizes the formation of complex byproduct mixtures, reducing the load on purification units and increasing the overall throughput of the manufacturing suite. The avoidance of expensive transition metal catalysts further removes the cost associated with metal scavenging and residual metal testing, streamlining the quality assurance workflow and lowering the total cost of ownership for the manufacturing process.
• Enhanced Supply Chain Reliability: Utilizing widely available reagents such as TsCl, pyridine, and inorganic bases ensures that production schedules are not held hostage by the lead times of exotic chemicals. The robustness of the chemistry allows for flexible sourcing strategies, where procurement teams can qualify multiple vendors for key inputs without compromising process performance. This redundancy is critical for maintaining continuity of supply for key pharmaceutical customers who require just-in-time delivery models. Moreover, the stability of the intermediates allows for potential campaign manufacturing, where the tosylate intermediate can be stockpiled and deployed as needed, providing a buffer against demand fluctuations and enhancing the agility of the supply chain response to market needs.
• Scalability and Environmental Compliance: The demonstrated success of this method on a 100-gram scale in the patent examples provides a strong foundation for linear scale-up to multi-kilogram and tonnage production. The reaction conditions are inherently safe, avoiding exothermic runaways associated with more aggressive cyclization methods, which simplifies the hazard and operability study (HAZOP) process during technology transfer. From an environmental standpoint, the aqueous workups and use of recyclable organic solvents align with modern waste management standards, facilitating easier permitting and compliance with increasingly stringent environmental regulations. The ability to produce high-purity material with minimal waste generation positions this technology as a preferred choice for companies aiming to reduce their carbon footprint while expanding their catalog of complex heterocyclic intermediates.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this synthesis technology, derived directly from the experimental data and claims within the patent documentation. These insights are intended to clarify the operational parameters and potential applications for stakeholders evaluating this route for their own development pipelines. Understanding the nuances of reagent selection and purification strategies is key to successfully adopting this method for commercial production.

Q: What are the key advantages of this synthesis method over prior art?

A: Unlike previous methods requiring high temperatures or yielding low quantities, this protocol utilizes mild conditions (0-80°C) and commercially available starting materials to achieve scalable 100-gram level production with high purity.

Q: Can this method be applied to fluorinated derivatives?

A: Yes, the patent explicitly demonstrates the successful synthesis of 4-fluoro-1-azabicyclo[2.2.1]heptane using 4-fluoropiperidine precursors, maintaining the same three-step logic with excellent impurity control.

Q: Is the process suitable for large-scale commercial manufacturing?

A: The use of common solvents like DCM and acetonitrile, along with inexpensive reagents like TsCl and potassium carbonate, indicates strong potential for cost-effective commercial scale-up without specialized equipment.
