Industrial Scale-Up of Spiro[benzo[e][1,3]oxazine-2,4'-piperidine]-4(3H)-one via Base Catalysis

Industrial Scale-Up of Spiro[benzo[e][1,3]oxazine-2,4'-piperidine]-4(3H)-one via Base Catalysis

The pharmaceutical industry continuously demands more efficient, scalable, and cost-effective routes for complex heterocyclic intermediates, particularly those featuring spirocyclic architectures which are prevalent in bioactive natural products and modern drug candidates. A pivotal advancement in this domain is detailed in patent CN101550143B, which discloses a robust industrial compounding method for synthesizing spiro[benzo[e][1,3]oxazine-2,4'-piperidine]-4(3H)-one derivatives. This technology represents a significant departure from legacy laboratory methods, transitioning from harsh acid-catalyzed conditions to a milder, base-catalyzed protocol that utilizes economically viable raw materials such as salicylic acid and N-protected piperidones. By optimizing the reaction sequence through methyl esterification, aminolysis, and subsequent cyclization, this process addresses critical bottlenecks regarding purity and yield that have historically hindered the commercial viability of these valuable scaffolds.

For R&D directors and process chemists, the implications of this patent extend beyond mere synthetic feasibility; it offers a blueprint for reducing the environmental footprint and operational complexity associated with spirocompound manufacturing. The elimination of column chromatography, a standard requirement in previous acid-catalyzed iterations, is a game-changer for industrial hygiene and cost management. Furthermore, the versatility of the method allows for the incorporation of various para-substituted salicylic acids and different N-protecting groups (including Boc, Cbz, acyl, and alkyl groups), providing a flexible platform for generating diverse libraries of analogs. As a reliable pharmaceutical intermediates supplier, understanding these mechanistic nuances is essential for ensuring supply chain continuity and meeting the stringent quality specifications demanded by global regulatory bodies.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of spiro[benzo[e][1,3]oxazine-2,4'-piperidine]-4(3H)-one has relied heavily on acid catalysis, typically employing strong mineral acids like hydrochloric acid or organic sulfonic acids such as p-toluenesulfonic acid to drive the cyclization of salicylamide and piperidone. While effective on a milligram scale in academic settings, these conventional methods suffer from severe drawbacks when translated to an industrial context. The primary issue lies in the generation of complex impurity profiles; the harsh acidic conditions often promote side reactions and degradation pathways that result in a crude product laden with byproducts. Consequently, isolating the target molecule requires labor-intensive and solvent-heavy purification techniques, specifically column chromatography, which is notoriously difficult to scale and economically prohibitive for large-volume production. Additionally, the low overall yields associated with these older protocols exacerbate waste generation and increase the cost of goods sold, making them unsuitable for the rigorous demands of modern commercial manufacturing.

The Novel Approach

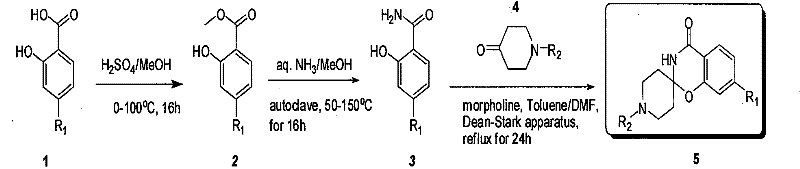

In stark contrast, the novel approach outlined in the patent data introduces a streamlined three-step sequence that leverages base catalysis to overcome the inherent limitations of acid-mediated cyclization. The process initiates with the esterification of salicylic acid derivatives using methanol and a catalytic amount of sulfuric acid or thionyl chloride at temperatures ranging from 0°C to 100°C, achieving high conversion rates of 80-100%. This is followed by an aminolysis step where the methyl ester is reacted with aqueous ammonia or ammonium hydroxide in a sealed autoclave at 50-150°C, yielding the corresponding salicylamide with efficiencies between 60-95%. The culmination of this synthesis is the cyclocondensation reaction, where the salicylamide precursor reacts with N-protected piperidone in the presence of morpholine or piperidine as a catalyst. This final step utilizes a toluene/DMF solvent system and employs a Dean-Stark apparatus to continuously remove water, driving the equilibrium towards the desired spirocyclic product with yields reaching 50-90%.

This innovative pathway not only simplifies the operational workflow but also fundamentally alters the purification strategy. Instead of relying on chromatography, the crude products obtained through this base-catalyzed method can be effectively purified via recrystallization, a technique that is infinitely more scalable and cost-efficient. The use of readily available starting materials like salicylic acid and N-Boc-piperidone further enhances the economic attractiveness of this route, positioning it as a superior alternative for cost reduction in pharmaceutical intermediates manufacturing. By mitigating the formation of stubborn impurities and enabling straightforward isolation, this method ensures a consistent supply of high-purity material suitable for downstream drug development.

Mechanistic Insights into Base-Catalyzed Cyclocondensation

The success of this industrial method hinges on the precise mechanistic role of the amine catalysts, specifically morpholine or piperidine, during the final cyclization step. Unlike acid catalysis which activates the carbonyl electrophile through protonation, base catalysis in this context likely operates by deprotonating the phenolic hydroxyl group of the salicylamide intermediate, thereby increasing its nucleophilicity. This activated phenoxide species then attacks the ketone carbonyl of the N-protected piperidone, initiating the ring-closing sequence that forms the oxazine moiety. The choice of solvent system is equally critical; the combination of toluene as a primary solvent and DMF as a co-solvent creates an optimal environment for solubility while facilitating azeotropic distillation. The continuous removal of water via the Dean-Stark trap is thermodynamically essential, as it shifts the reversible condensation equilibrium towards the product side, preventing hydrolysis of the newly formed spiro-center and ensuring high conversion rates even with sterically hindered substrates.

From an impurity control perspective, the base-catalyzed mechanism offers a cleaner reaction profile compared to its acidic counterpart. Acidic conditions can often lead to the dehydration of the piperidone ring or polymerization of the salicylamide, generating tarry byproducts that are difficult to separate. In contrast, the milder basic conditions preserve the integrity of the sensitive functional groups, including the N-protecting groups like Boc or Cbz, which might otherwise be cleaved under strong acidic reflux. This selectivity allows for the direct crystallization of the product from the reaction mixture or after a simple solvent swap, significantly reducing the burden on quality control laboratories. The ability to achieve high-purity pharmaceutical intermediates without chromatographic intervention is a testament to the elegance of this mechanistic design, ensuring that the final material meets the rigorous standards required for clinical trial applications.

How to Synthesize Spiro[benzo[e][1,3]oxazine-2,4'-piperidine]-4(3H)-one Efficiently

Implementing this synthesis on a commercial scale requires strict adherence to the optimized parameters defined in the patent to maximize yield and safety. The process is divided into three distinct operational units: esterification, amidation, and cyclization, each requiring specific temperature controls and stoichiometric ratios. For the initial esterification, maintaining the reaction temperature between 0°C and 100°C while using methanol as both solvent and reagent ensures complete conversion of the carboxylic acid. The subsequent amidation step necessitates the use of a pressure-rated autoclave to safely handle aqueous ammonia at elevated temperatures up to 150°C, which is crucial for driving the aminolysis to completion. Finally, the cyclization step demands careful management of the water removal process to drive the equilibrium forward.

1. Perform esterification of salicylic acid derivatives using methanol and sulfuric acid at 0-100°C to form the methyl ester intermediate.
2. Conduct aminolysis of the methyl ester with aqueous ammonia in an autoclave at 50-150°C to generate the salicylamide precursor.
3. Execute cyclocondensation with N-protected piperidone using morpholine or piperidine catalyst in toluene/DMF under reflux with a Dean-Stark apparatus.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the transition to this base-catalyzed synthesis model offers substantial strategic advantages that directly impact the bottom line and operational resilience. The most significant benefit is the drastic simplification of the downstream processing; by eliminating the need for column chromatography, manufacturers can avoid the exorbitant costs associated with silica gel, large volumes of elution solvents, and the specialized equipment required for flash purification. This reduction in processing complexity translates directly into lower manufacturing costs and shorter batch cycle times, allowing for faster turnover and improved responsiveness to market demand. Furthermore, the reliance on commodity chemicals like salicylic acid and morpholine ensures a stable and predictable raw material supply chain, insulating production schedules from the volatility often seen with exotic or proprietary reagents.

• Cost Reduction in Manufacturing: The economic benefits of this process are driven primarily by the substitution of expensive purification methods with simple recrystallization techniques. In traditional acid-catalyzed routes, the loss of product during chromatographic separation can be significant, whereas the high selectivity of the base-catalyzed method preserves yield. Additionally, the solvents used, such as toluene and methanol, are inexpensive and easily recovered through distillation, further enhancing the cost-efficiency of the overall operation. The avoidance of transition metal catalysts or rare earth Lewis acids also removes the need for costly metal scavenging steps, resulting in a leaner and more profitable manufacturing process.
• Enhanced Supply Chain Reliability: Supply chain continuity is bolstered by the use of universally available starting materials. Salicylic acid is a bulk chemical produced globally in massive quantities, ensuring that raw material shortages are unlikely to disrupt production. The robustness of the reaction conditions, which tolerate a range of temperatures and solvent ratios without significant loss of performance, adds another layer of reliability. This flexibility allows manufacturing partners to adapt quickly to logistical constraints or equipment availability without compromising the quality of the final pharmaceutical intermediates, thereby securing a steady flow of material for downstream API synthesis.
• Scalability and Environmental Compliance: From an environmental and scalability standpoint, this method aligns perfectly with green chemistry principles. The reduction in solvent waste due to the absence of chromatography significantly lowers the E-factor (environmental factor) of the process. The ability to recycle toluene and methanol minimizes hazardous waste disposal costs and reduces the carbon footprint of the manufacturing site. Moreover, the process is inherently scalable; the exothermic nature of the reactions is manageable, and the unit operations (esterification, autoclave reaction, reflux with Dean-Stark) are standard in any GMP facility, facilitating seamless commercial scale-up of complex pharmaceutical intermediates from pilot plant to multi-ton production.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the industrial production of spiro[benzo[e][1,3]oxazine-2,4'-piperidine]-4(3H)-one. These insights are derived directly from the technical specifications and experimental data provided in the patent literature, offering clarity on process capabilities and quality assurance measures. Understanding these details is crucial for stakeholders evaluating the feasibility of integrating this intermediate into their supply chains.

Q: Why is base catalysis preferred over acid catalysis for this spirocyclization?

A: Base catalysis using morpholine or piperidine eliminates the need for complex column chromatography purification required in traditional acid-catalyzed methods, allowing for simpler recrystallization and higher industrial throughput.

Q: What are the typical yields for the three-step synthesis?

A: The process achieves an esterification yield of 80-100%, an amidation yield of 60-95%, and a final cyclization yield of 50-90%, resulting in a robust overall yield suitable for commercial manufacturing.

Q: Can this process be scaled for metric ton production?

A: Yes, the method utilizes economical raw materials like salicylic acid and avoids sensitive reagents, making it highly adaptable for large-scale production ranging from 100 kgs to 100 MT annually.
