Advanced One-Pot Synthesis of Fluorinated Pyrazolo Quinolines for Oncology Applications

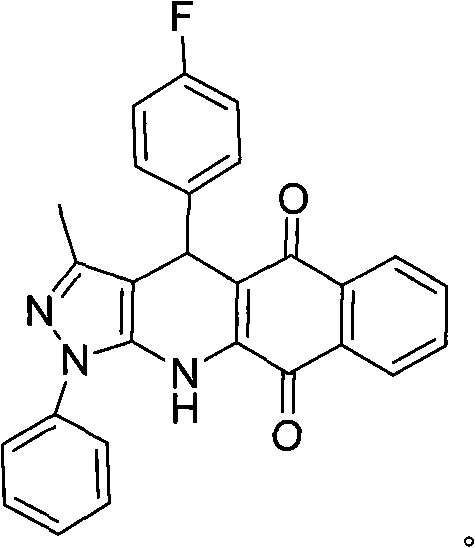

The pharmaceutical industry is constantly seeking more efficient and environmentally benign pathways to access complex heterocyclic scaffolds, particularly those with proven oncological potential. Patent CN101955480B introduces a groundbreaking methodology for the synthesis of a specific fluorinated pyrazolo[3,4-b]quinoline derivative, formally known as 4,11-dihydro-4-(4-fluorophenyl)-3-methyl-1-phenyl-1H-benzo[h]pyrazolo[3,4-b]quinoline-5,10-dione. This compound represents a significant advancement in the field of antitumor agents, leveraging the unique electronic properties of fluorine to enhance metabolic stability and bioavailability. The core innovation lies in the utilization of 1-butyl-3-methylimidazolium tetrafluoroborate ([bmim]BF4) as a recyclable ionic liquid medium, which facilitates a multicomponent condensation reaction under remarkably mild conditions. Unlike traditional synthetic routes that often require high temperatures, toxic solvents, and prolonged reaction times, this patented approach achieves high conversion rates at room temperature within just 2 to 3 hours. For R&D directors and process chemists, this represents a paradigm shift towards greener chemistry without compromising on yield or purity.

The structural complexity of the target molecule, featuring a fused pyrazolo-quinoline core appended with a fluorophenyl group and a naphthoquinone moiety, typically poses significant synthetic challenges. However, the strategy outlined in CN101955480B elegantly bypasses these hurdles through a convergent one-pot assembly. By reacting 5-amino-3-methyl-1-phenylpyrazole with p-fluorobenzaldehyde and 2-hydroxy-1,4-naphthoquinone (lawsone) in the presence of the ionic liquid, the process achieves excellent atom economy. The resulting compound has demonstrated potent inhibitory activity against MGC803 stomach cancer and Glc82 lung cancer cell lines in vitro, validating its potential as a lead compound for further drug development. This synthesis not only provides access to a valuable pharmacophore but also establishes a robust platform for generating diverse analogues through simple substitution of the aldehyde or amine components.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of fused pyrazolo-quinoline systems has relied on multi-step sequences involving harsh reaction conditions that are increasingly untenable in modern sustainable manufacturing. Traditional protocols often necessitate the use of strong mineral acids or Lewis acids as catalysts, which generate substantial amounts of corrosive waste and require neutralization steps that complicate downstream processing. Furthermore, conventional syntheses frequently employ volatile organic compounds (VOCs) such as dichloromethane, toluene, or DMF as solvents, posing significant environmental and occupational health risks. These methods often suffer from poor regioselectivity, leading to difficult-to-separate impurity profiles that necessitate extensive chromatographic purification, thereby driving up costs and reducing overall throughput. Additionally, the requirement for elevated temperatures and extended reaction times in classical approaches results in higher energy consumption and increased thermal degradation of sensitive intermediates, ultimately limiting the scalability of the process for commercial API production.

The Novel Approach

In stark contrast, the methodology disclosed in CN101955480B utilizes a room-temperature, one-pot multicomponent reaction that dramatically simplifies the operational workflow. The use of [bmim]BF4 ionic liquid serves as a green alternative to traditional solvents, providing a unique microenvironment that stabilizes transition states and accelerates reaction kinetics without the need for external heating. This approach eliminates the generation of acidic wastewater and reduces the reliance on hazardous VOCs, aligning perfectly with global regulatory trends towards greener pharmaceutical manufacturing. The reaction proceeds with high efficiency, achieving yields ranging from 80% to 85% in experimental embodiments, which is superior to many reported literature methods for similar scaffolds. Moreover, the work-up procedure is exceptionally straightforward; simply diluting the reaction mixture with water causes the product to precipitate, allowing for easy filtration and subsequent recrystallization from ethanol. This streamlined process significantly reduces labor intensity and solvent usage, making it an ideal candidate for cost-effective large-scale production.

Mechanistic Insights into Ionic Liquid-Promoted Multicomponent Condensation

The success of this synthesis can be attributed to the dual role of the [bmim]BF4 ionic liquid, which acts as both a solvent and a catalyst to promote a cascade of condensation reactions. The mechanism likely initiates with a Knoevenagel condensation between the p-fluorobenzaldehyde and the active methylene group of the naphthoquinone, facilitated by the weakly basic nature of the ionic liquid or trace impurities within it. This generates an intermediate olefinic species that is highly electrophilic and primed for nucleophilic attack. Subsequently, the amino group of the 5-amino-3-methyl-1-phenylpyrazole attacks this intermediate in a Michael-type addition, forming a new carbon-nitrogen bond. The ionic liquid stabilizes the charged intermediates formed during this sequence through electrostatic interactions, lowering the activation energy barrier for each step. Finally, an intramolecular cyclization occurs, accompanied by dehydration, to close the quinoline ring and establish the rigid, planar fused heterocyclic system observed in the final product.

From an impurity control perspective, the mild reaction conditions play a crucial role in maintaining a clean reaction profile. Because the reaction occurs at room temperature, there is minimal risk of thermal decomposition or polymerization of the reactive naphthoquinone starting material, which is prone to degradation under harsh acidic or basic conditions. The high selectivity of the ionic liquid medium ensures that the multicomponent coupling proceeds in a specific order, minimizing the formation of regioisomers or side products derived from self-condensation of the aldehyde. This inherent selectivity simplifies the purification process, as the crude product obtained after filtration is already of high purity, requiring only a single recrystallization step to meet stringent pharmaceutical specifications. Understanding this mechanism allows process chemists to fine-tune stoichiometry and reaction times to further optimize yield and minimize waste, ensuring a robust and reproducible manufacturing process.

How to Synthesize 4,11-dihydro-4-(4-fluorophenyl)-3-methyl-1-phenyl-1H-benzo[h]pyrazolo[3,4-b]quinoline-5,10-dione Efficiently

The synthesis of this complex heterocycle is achieved through a highly efficient one-pot protocol that integrates three distinct building blocks into a single molecular framework. The process begins by charging a reaction vessel with equimolar amounts of 5-amino-3-methyl-1-phenylpyrazole, p-fluorobenzaldehyde, and 2-hydroxy-1,4-naphthoquinone, along with a catalytic quantity of [bmim]BF4 ionic liquid. The mixture is stirred vigorously at ambient temperature, allowing the multicomponent condensation to proceed spontaneously without the need for external energy input. Detailed standardized operating procedures, including specific stoichiometric ratios and safety precautions for handling ionic liquids, are essential for ensuring consistent quality across different batch sizes. The following guide outlines the critical steps for executing this transformation effectively in a laboratory or pilot plant setting.

1. Combine 5-amino-3-methyl-1-phenylpyrazole, p-fluorobenzaldehyde, and 2-hydroxy-1,4-naphthoquinone in a reaction vessel containing [bmim]BF4 ionic liquid.
2. Stir the reaction mixture at room temperature for 2 to 3 hours to allow the multicomponent condensation to proceed to completion.
3. Dilute the mixture with water, filter the resulting precipitate, and recrystallize from 95% ethanol to obtain the pure target compound.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain leaders, the adoption of the synthesis route described in CN101955480B offers compelling economic and logistical benefits that directly impact the bottom line. The elimination of expensive and hazardous organic solvents significantly reduces raw material costs and the associated expenses for solvent recovery and waste disposal. Furthermore, the ability to conduct the reaction at room temperature translates to substantial energy savings, as there is no requirement for heating mantles, chillers, or complex temperature control systems. This reduction in energy intensity not only lowers utility bills but also decreases the carbon footprint of the manufacturing process, supporting corporate sustainability goals. The simplified work-up procedure, which relies on water precipitation and filtration rather than complex extraction and chromatography, drastically reduces cycle times and labor costs, enabling faster turnaround from raw materials to finished goods.

• Cost Reduction in Manufacturing: The primary driver for cost reduction in this process is the replacement of traditional volatile solvents and harsh catalysts with a reusable ionic liquid medium. By eliminating the need for expensive reagents and reducing the volume of waste generated, the overall cost of goods sold (COGS) is significantly optimized. The high yield of the reaction, consistently exceeding 80% in reported examples, ensures maximum utilization of starting materials, minimizing the financial loss associated with unreacted feedstock. Additionally, the simplicity of the purification process reduces the consumption of recrystallization solvents and filtration media, further contributing to a leaner and more cost-effective production model.
• Enhanced Supply Chain Reliability: The starting materials for this synthesis, including 5-amino-3-methyl-1-phenylpyrazole, p-fluorobenzaldehyde, and lawsone, are commercially available commodity chemicals with stable supply chains. This availability mitigates the risk of production delays caused by the scarcity of exotic reagents or specialized catalysts. The robustness of the reaction conditions, which tolerate minor variations in temperature and mixing, ensures consistent output quality even in large-scale manufacturing environments. This reliability allows supply chain planners to forecast production schedules with greater accuracy and maintain optimal inventory levels, reducing the need for safety stock and improving cash flow management.
• Scalability and Environmental Compliance: The one-pot nature of this reaction makes it inherently scalable, as it avoids the complexities of transferring intermediates between multiple reaction vessels. This simplification reduces the equipment footprint required for production and minimizes the potential for human error during scale-up. From an environmental compliance standpoint, the use of an ionic liquid and water for work-up aligns with strict regulatory standards regarding VOC emissions and hazardous waste generation. This alignment facilitates easier permitting and reduces the regulatory burden on manufacturing sites, ensuring long-term operational continuity without the risk of environmental shutdowns or fines.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the synthesis and application of this fluorinated pyrazolo quinoline derivative. These answers are derived directly from the experimental data and beneficial effects reported in the patent literature, providing a clear understanding of the technology's capabilities and limitations. Whether you are evaluating the feasibility of this route for your own R&D pipeline or assessing its commercial viability for procurement, these insights offer a solid foundation for decision-making.

Q: What are the primary advantages of using [bmim]BF4 ionic liquid in this synthesis?

A: The use of [bmim]BF4 eliminates the need for volatile organic solvents and harsh acidic or basic catalysts. It acts as a dual-purpose medium, facilitating the reaction at room temperature while simplifying product isolation through simple water dilution and filtration.

Q: What is the biological activity profile of this pyrazolo quinoline derivative?

A: According to patent data, the compound exhibits significant antitumor activity against human stomach cancer (MGC803) and lung cancer (Glc82) cell lines, with IC50 values indicating potent inhibition of cell proliferation.

Q: Is this process scalable for industrial production?

A: Yes, the one-pot nature of the reaction, combined with room temperature conditions and high yields (up to 85%), makes it highly suitable for scale-up. The simplicity of work-up reduces operational complexity and waste generation.
