Advanced Synthesis of Quinocetone Metabolites for High-Purity Veterinary Research Standards

The pharmaceutical and veterinary industries constantly demand higher purity standards for metabolic reference materials to ensure accurate toxicological profiling and regulatory compliance. Patent CN101007785B introduces a significant advancement in the chemical synthesis of 2[(3-phenyl)propenone]-3-methylquinoxaline, a critical metabolite of the veterinary growth promoter quinocetone. This innovation addresses the longstanding challenges associated with producing high-purity quinoxaline derivatives by replacing hazardous solvent systems with a greener, ethanol-based protocol. For R&D directors and procurement specialists, this patent represents a pivotal shift towards more sustainable and economically viable manufacturing processes for complex veterinary intermediates. The method utilizes sodium hyposulfite as a selective reducing agent in an ethanol medium, effectively eliminating the N,N-dioxide groups from the parent quinocetone structure without compromising the integrity of the sensitive enone side chain. This technical breakthrough not only simplifies the operational workflow but also significantly enhances the safety profile of the production environment, making it an ideal candidate for commercial scale-up of complex veterinary intermediates. By adopting this methodology, manufacturers can achieve stringent purity specifications required for metabolic standard references while simultaneously reducing the environmental footprint associated with traditional halogenated solvent usage.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of quinoxaline-N,N-dioxide metabolites has relied heavily on mixed solvent systems comprising chloroform, water, and tetrahydrofuran (THF), which present substantial operational and safety liabilities. These conventional routes necessitate the repeated addition of reducing agents like sodium hydrosulfite to drive the reaction to completion, leading to cumbersome operational procedures that are difficult to automate or scale efficiently. The reliance on chloroform and THF introduces severe toxicity concerns, requiring specialized ventilation systems and waste treatment protocols that drastically inflate the overhead costs of manufacturing. Furthermore, the volatility and environmental persistence of these halogenated solvents pose significant regulatory risks, particularly in regions with stringent environmental protection laws governing volatile organic compound (VOC) emissions. The need for continuous monitoring and multiple reagent additions increases the likelihood of human error, potentially resulting in batch-to-batch variability that is unacceptable for the production of analytical reference standards. Consequently, these legacy methods create a bottleneck in the supply chain, limiting the ability of producers to respond rapidly to the growing demand for high-purity quinoxaline metabolites in the global veterinary market.

The Novel Approach

The novel approach detailed in the patent data revolutionizes this synthesis by utilizing ethanol as a singular, non-toxic reaction medium, thereby eliminating the need for hazardous chlorinated solvents entirely. This method streamlines the process by allowing for the batch addition of sodium hyposulfite, which simplifies the reaction control and reduces the labor intensity associated with manual reagent dosing. Ethanol, being a renewable and biodegradable solvent, not only lowers the raw material costs but also simplifies the waste disposal process, aligning with modern green chemistry principles that are increasingly mandated by global regulatory bodies. The reaction conditions are mild, typically operating between 60°C and 75°C, which reduces energy consumption compared to high-temperature reflux methods often required in older protocols. This simplification of the reaction matrix facilitates easier downstream processing, as the removal of ethanol is energetically less demanding than the azeotropic distillation required for THF-water mixtures. Ultimately, this approach provides a robust framework for cost reduction in pharmaceutical intermediate manufacturing, offering a scalable solution that maintains high yield and purity without the baggage of toxic solvent management.

Mechanistic Insights into Reductive Deoxygenation of Quinoxaline-N,N-Dioxides

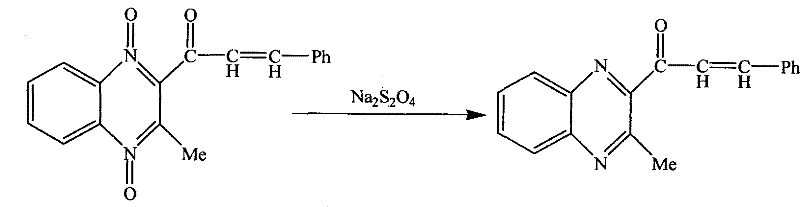

The core chemical transformation involves the selective reductive deoxygenation of the quinoxaline-N,N-dioxide moiety to regenerate the aromatic quinoxaline ring system while preserving the conjugated enone side chain. Sodium hyposulfite acts as a potent oxygen scavenger in the ethanolic medium, transferring electrons to the N-oxide bonds and cleaving them to release nitrogen gas or water-soluble byproducts. This mechanism is highly specific, ensuring that the carbonyl group and the carbon-carbon double bond in the side chain remain intact, which is critical for maintaining the biological activity and structural identity of the metabolite. The ethanol solvent plays a dual role, acting not only as a dissolution medium but also as a proton source that stabilizes the intermediate radicals formed during the reduction process. Understanding this mechanistic pathway is essential for R&D teams aiming to optimize reaction kinetics, as the concentration of ethanol and the rate of reductant addition directly influence the formation of potential side products. By controlling these parameters, manufacturers can minimize the formation of over-reduced byproducts or hydrolyzed impurities, ensuring the final product meets the rigorous specifications required for metabolic tracing studies.

Impurity control in this synthesis is achieved through the precise management of reaction temperature and the stoichiometry of the reducing agent. Excessive temperatures or an overabundance of sodium hyposulfite can lead to the reduction of the enone double bond, resulting in structurally similar impurities that are difficult to separate via standard crystallization. The patent specifies a narrow temperature window of 50°C to 80°C, with a preference for 60°C to 75°C, to balance reaction rate with selectivity. Following the reaction, the workup procedure involves extraction with chloroform or ethyl acetate, which selectively partitions the organic product from inorganic salts and water-soluble reduction byproducts. The final recrystallization step from absolute ethanol or methanol is crucial for removing trace organic impurities, yielding a crystalline solid with a sharp melting range indicative of high chemical purity. This rigorous purification protocol ensures that the resulting 2[(3-phenyl)propenone]-3-methylquinoxaline is suitable for use as a primary reference standard in high-performance liquid chromatography (HPLC) and mass spectrometry applications.

How to Synthesize 2[(3-Phenyl)Propenone]-3-Methylquinoxaline Efficiently

Implementing this synthesis route requires careful attention to the sequential addition of reagents and the maintenance of specific thermal conditions to ensure optimal conversion rates. The process begins with the dissolution of quinocetone in ethanol, followed by the controlled addition of sodium hyposulfite while maintaining agitation to prevent local hotspots that could degrade the product. Detailed standardized synthesis steps are provided in the guide below to assist technical teams in replicating this high-efficiency protocol within their own facilities. Adhering to these parameters is essential for achieving the reported purity levels and ensuring the safety of the operational team during the scale-up phase.

1. Dissolve quinocetone in 60-95% ethanol and add sodium hyposulfite in batches at 60-75°C.
2. Maintain reaction for 4-8 hours to ensure complete reductive deoxygenation.
3. Extract with chloroform or ethyl acetate, dry, and recrystallize from ethanol to obtain pure product.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the transition to this ethanol-based synthesis method offers profound strategic advantages that extend beyond simple chemical efficiency. By eliminating the dependency on volatile and regulated solvents like chloroform and THF, companies can significantly reduce their regulatory compliance burden and lower the costs associated with hazardous waste disposal. This shift not only streamlines the logistics of raw material sourcing but also enhances the overall resilience of the supply chain against fluctuations in the availability of specialized chemical solvents. Furthermore, the simplified operational workflow reduces the labor hours required per batch, allowing for higher throughput without proportional increases in operational expenditure. These factors combine to create a more agile and cost-effective production model that is well-suited to the dynamic demands of the global veterinary pharmaceutical market.

• Cost Reduction in Manufacturing: The substitution of expensive and toxic solvents with commodity-grade ethanol results in a drastic reduction in raw material procurement costs and waste treatment fees. By removing the need for complex solvent recovery systems designed for halogenated compounds, capital expenditure on plant infrastructure is also significantly lowered. The simplified addition protocol reduces labor costs and minimizes the risk of batch failures due to operational errors, further enhancing the economic viability of the process. These cumulative savings allow for more competitive pricing strategies while maintaining healthy profit margins in the supply of high-purity veterinary intermediates.
• Enhanced Supply Chain Reliability: Ethanol is a widely available commodity chemical with a stable global supply chain, unlike specialized solvents that may be subject to regional restrictions or supply disruptions. This availability ensures consistent production schedules and reduces the risk of delays caused by raw material shortages. The robustness of the reaction conditions also means that the process is less sensitive to minor variations in utility supply, such as cooling water temperature, ensuring reliable output even in varying manufacturing environments. This reliability is critical for maintaining long-term contracts with pharmaceutical clients who require guaranteed delivery timelines for their research and development projects.
• Scalability and Environmental Compliance: The green chemistry profile of this method facilitates easier regulatory approval for new manufacturing sites, as it aligns with increasingly strict environmental protection standards regarding VOC emissions. The reduced toxicity of the process improves workplace safety, lowering insurance premiums and reducing the administrative burden of safety compliance reporting. Scalability is enhanced by the homogeneous nature of the reaction mixture, which allows for efficient heat transfer in large-scale reactors without the risk of solvent stratification. This makes the technology ideal for commercial scale-up of complex veterinary intermediates, enabling producers to meet growing market demand with minimal environmental impact.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this synthesis method. These answers are derived directly from the patent specifications and are intended to provide clarity on the operational benefits and chemical feasibility of the process. Understanding these details is crucial for stakeholders evaluating the potential integration of this technology into their existing production portfolios.

Q: Why is ethanol preferred over THF/Chloroform mixtures in this synthesis?

A: Ethanol is significantly less toxic and more cost-effective than tetrahydrofuran or chloroform, reducing environmental hazards and operational costs while maintaining high reaction efficiency.

Q: What is the primary advantage of the batch addition of sodium hyposulfite?

A: Batch addition controls the reaction exotherm and ensures complete reduction without the need for complex monitoring, simplifying the operational workflow for scale-up.

Q: How does this method impact the purity of the final metabolite standard?

A: The use of simple solvents and controlled recrystallization yields a product with minimal impurities, crucial for accurate toxicological and metabolic studies.
