Advanced Synthesis of Oxazepino[3,2-b]indole Compounds for Commercial Scale-up

Introduction to Novel Oxazepino[3,2-b]indole Synthesis Technology

The rapid construction of complex indole polycyclic skeletons remains one of the most critical frontiers in modern organic synthesis and drug discovery, particularly for accessing bioactive natural products. Patent CN111825686A discloses a groundbreaking synthetic method for oxazepino[3,2-b]indole compounds, addressing a significant gap in the current literature regarding the direct utilization of 3-oxindole substrates. This technology leverages a highly efficient intermolecular [4+3] cycloaddition reaction between crotonate-derived sulfonylide reagents and 3-oxindolinone substrates under mild alkaline conditions. The significance of this development cannot be overstated for the pharmaceutical industry, as the oxazepino[3,2-b]indole core is central to numerous biologically active molecules such as Arboflorine and Paullone, which exhibit potent antitumor and anti-inflammatory properties. By establishing a foundation for industrial production through simple and convenient protocols, this patent offers a robust pathway for generating high-purity pharmaceutical intermediates.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Prior to this innovation, the synthesis of heterocyclic frameworks containing seven-membered rings fused to indoles was often fraught with challenges regarding complexity and efficiency. Existing literature primarily focused on azepino[3,2-b]indole skeletons or required multi-step sequences involving expensive catalysts and harsh conditions. For instance, earlier methods reported by researchers like Daniel Seidel utilized o-aminobenzaldehyde and indoles in cascade reactions that, while effective for nitrogen-containing rings, did not address the oxygen-fused analogues efficiently. Other approaches involved phosphorus catalysis or rhodium-catalyzed formal aza[4+3] cycloadditions which necessitated the use of precious metals and specialized diazo compounds. These conventional routes often suffered from limited substrate scope, requiring specific protecting groups or sensitive starting materials that are difficult to source commercially. Furthermore, the reliance on transition metals introduces significant downstream purification burdens to meet stringent residual metal specifications required for API manufacturing, thereby increasing both cost and lead time.

The Novel Approach

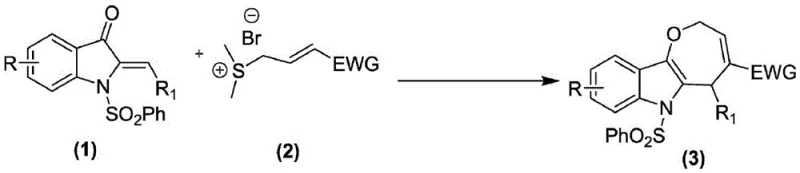

In stark contrast, the method described in patent CN111825686A introduces a direct and atom-economical route to oxazepino[3,2-b]indole compounds using readily available 3-oxindole derivatives. The core innovation lies in the use of crotonate-derived sulfur ylide reagents acting as C3 synthons in a base-promoted [4+3] cycloaddition. This approach eliminates the need for expensive transition metal catalysts entirely, relying instead on inexpensive inorganic or organic bases such as cesium carbonate, potassium carbonate, or DABCO. The reaction proceeds under remarkably mild conditions, typically completing within just 8 minutes at temperatures ranging from 0°C to 100°C, depending on the specific substrate reactivity. This drastic reduction in reaction time and thermal energy input represents a paradigm shift in process efficiency. Moreover, the method tolerates a wide array of functional groups, allowing for the direct synthesis of diverse derivatives without extensive protection-deprotection strategies, thus streamlining the overall synthetic workflow for complex heterocyclic systems.

Mechanistic Insights into Base-Promoted [4+3] Cycloaddition

The mechanistic pathway of this transformation involves a sophisticated interplay between the nucleophilic sulfur ylide and the electrophilic 3-oxindole substrate. Under alkaline conditions, the base deprotonates the sulfonium salt precursor to generate the reactive sulfur ylide species in situ. This ylide then engages the electron-deficient double bond of the 3-oxindole derivative in a conjugate addition step, initiating the ring-closing sequence. The subsequent intramolecular nucleophilic attack by the indole nitrogen or oxygen atom onto the activated intermediate facilitates the formation of the seven-membered oxazepine ring fused to the indole core. Density Functional Theory (DFT) calculations in related sulfur ylide chemistry suggest that the reaction proceeds through a concerted or stepwise cyclization mechanism that minimizes high-energy intermediates, thereby ensuring high yields and selectivity. The presence of the electron-withdrawing group on the ylide stabilizes the negative charge during the transition state, further driving the reaction forward. Understanding this mechanism is crucial for R&D teams aiming to optimize the process for specific analogues, as it highlights the importance of base strength and solvent polarity in modulating the reactivity of the ylide species.

From an impurity control perspective, this mechanism offers distinct advantages over metal-catalyzed alternatives. The absence of transition metals eliminates the risk of metal-mediated side reactions such as homocoupling or oxidative degradation, which are common pitfalls in palladium or rhodium-catalyzed processes. The primary byproducts are typically dimethyl sulfide and the conjugate acid of the base, both of which are volatile or water-soluble and can be easily removed during standard aqueous workup procedures. This inherent cleanliness of the reaction profile significantly simplifies the purification process, reducing the need for extensive chromatography or recrystallization steps. For quality control laboratories, this translates to a much cleaner impurity profile in the final API intermediate, facilitating easier compliance with ICH guidelines for residual solvents and impurities. The robustness of the mechanism across different substituents ensures consistent product quality, which is paramount for maintaining supply chain reliability in pharmaceutical manufacturing.

How to Synthesize Oxazepino[3,2-b]indole Efficiently

To implement this synthesis effectively, operators should follow a standardized protocol that maximizes yield while minimizing waste. The process begins with the preparation of the reaction mixture by dissolving the sulfur ylide reagent and the chosen base in a suitable organic solvent such as dichloromethane or DMF. It is critical to ensure complete dissolution before adding the 3-oxindole substrate to prevent localized concentration gradients that could lead to side reactions. Once the substrate is added, the reaction mixture should be stirred vigorously at the specified temperature, which can range from room temperature to slightly elevated conditions depending on the steric hindrance of the substrates. Monitoring the reaction progress via Thin Layer Chromatography (TLC) is recommended, although the patent indicates that completion is often achieved within a very short timeframe of approximately 8 minutes. Upon confirmation of full conversion, the solvent is removed under reduced pressure, and the crude product is purified using standard column chromatography techniques with petroleum ether and ethyl acetate mixtures. Detailed standardized synthesis steps are provided below.

1. Dissolve the crotonate-derived sulfur ylide reagent and a suitable base such as Cs2CO3 or K2CO3 in an organic solvent like dichloromethane or DMF.
2. Add the 3-oxindole substrate to the mixture and maintain the reaction temperature between 0°C and 100°C depending on the specific substrate reactivity.
3. Stir the reaction for approximately 8 minutes, monitor by TLC, and upon completion, remove the solvent and purify via column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this synthetic methodology offers substantial strategic benefits that extend beyond mere technical feasibility. The elimination of precious metal catalysts such as rhodium or palladium directly addresses one of the most volatile cost drivers in fine chemical manufacturing. By replacing these expensive reagents with commodity chemicals like inorganic bases and sulfonium salts, the raw material cost structure is significantly optimized, leading to improved margin potential for the final active pharmaceutical ingredient. Furthermore, the mild reaction conditions reduce the energy consumption associated with heating and cooling large-scale reactors, contributing to a lower carbon footprint and aligning with increasingly strict environmental regulations. The short reaction time of roughly 8 minutes dramatically increases reactor throughput, allowing existing manufacturing infrastructure to produce higher volumes without the need for capital-intensive equipment upgrades. This efficiency gain is critical for meeting tight delivery schedules and managing inventory levels effectively in a just-in-time supply chain environment.

• Cost Reduction in Manufacturing: The removal of transition metal catalysts eliminates the need for costly scavenging resins and extensive purification steps required to meet residual metal limits, resulting in substantial operational savings. Additionally, the use of common solvents and bases reduces the procurement complexity and cost associated with specialized reagents. The high atom economy of the [4+3] cycloaddition ensures that a greater proportion of raw materials are incorporated into the final product, minimizing waste disposal costs. Overall, the simplified process flow reduces labor hours and utility consumption, driving down the total cost of goods sold for these complex heterocyclic intermediates.
• Enhanced Supply Chain Reliability: The reliance on commercially available starting materials such as 3-oxindoles and sulfonium salts mitigates the risk of supply disruptions often associated with custom-synthesized catalysts. The robustness of the reaction across a wide range of substrates means that supply chains are less vulnerable to variability in raw material quality. Shorter cycle times allow for more flexible production scheduling, enabling manufacturers to respond rapidly to changes in demand without maintaining excessive safety stock. This agility is essential for maintaining continuity of supply in the fast-paced pharmaceutical sector where delays can have significant downstream impacts on clinical trials and market launch timelines.
• Scalability and Environmental Compliance: The process is inherently scalable due to its exothermic nature being manageable within standard reactor configurations and the absence of hazardous reagents like diazo compounds in some variations. The generation of benign byproducts simplifies waste treatment protocols, reducing the environmental burden and regulatory compliance costs. The ability to run the reaction at or near room temperature for many substrates further enhances safety profiles by minimizing the risk of thermal runaway events. These factors collectively make the technology an ideal candidate for green chemistry initiatives and sustainable manufacturing practices, appealing to partners who prioritize environmental stewardship in their vendor selection criteria.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this oxazepino[3,2-b]indole synthesis technology. These answers are derived directly from the experimental data and claims presented in patent CN111825686A, ensuring accuracy and relevance for technical decision-makers. Understanding these details is crucial for evaluating the feasibility of integrating this route into existing production pipelines. We encourage stakeholders to review these points carefully to assess the alignment with their specific project requirements and quality standards.

Q: What are the key advantages of this [4+3] cycloaddition method over traditional synthesis?

A: This method utilizes readily available 3-oxindole substrates and sulfur ylides under mild alkaline conditions, avoiding expensive transition metal catalysts and harsh reaction environments typically required for seven-membered ring construction.

Q: Is this synthetic route suitable for large-scale industrial production?

A: Yes, the process features short reaction times of around 8 minutes, uses common organic solvents, and does not require specialized large-scale instruments, making it highly amenable to commercial scale-up.

Q: What is the substrate scope for this oxazepino[3,2-b]indole synthesis?

A: The method demonstrates a wide derivatization range, accommodating various substituents on the indole ring including halogens, methyl, and methoxy groups, as well as diverse aryl and heteroaryl groups on the ylide component.
