Advanced Ionic Liquid Catalysis for High-Purity Exo-THDCPD and Adamantane Precursors

Introduction to Next-Generation Isomerization Technology

The chemical industry is currently witnessing a paradigm shift towards greener, more efficient catalytic systems, particularly in the synthesis of high-value strained hydrocarbon intermediates. Patent CN101081802B introduces a groundbreaking methodology for synthesizing exo-tricyclo[5.2.1.0^2,6]decane, commonly known as exo-THDCPD, which serves as a critical precursor for adamantane derivatives and high-density jet fuels. This technology addresses the longstanding inefficiencies of traditional acid-catalyzed isomerization by employing chloroaluminate ionic liquids that function dually as both the reaction medium and the catalyst. By leveraging the unique physicochemical properties of these tunable solvents, the process achieves near-quantitative conversion rates while eliminating the generation of hazardous waste acids that have plagued conventional manufacturing routes for decades.

For R&D directors and process engineers, the implications of this patent extend far beyond simple yield improvements; it represents a fundamental restructuring of the synthetic workflow to align with modern sustainability mandates. The ability to conduct the reaction under homogeneous conditions followed by a spontaneous heterogeneous separation offers a streamlined pathway that significantly reduces unit operations. This report analyzes the technical merits of this ionic liquid-mediated isomerization, providing a comprehensive evaluation of its feasibility for commercial scale-up and its potential to serve as a reliable fine chemical intermediate supplier solution for the global pharmaceutical and aerospace sectors.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the isomerization of bridge-type tricyclo[5.2.1.0^2,6]decane to its exo-isomer has been fraught with significant technical and environmental challenges. Traditional protocols often rely on strong mineral acids like sulfuric acid or corrosive Lewis acids such as anhydrous aluminum chloride dissolved in volatile organic solvents. These legacy methods suffer from inherently low atom economy and generate substantial quantities of spent acid waste, necessitating expensive neutralization and disposal procedures that inflate the overall cost of goods. Furthermore, literature indicates that many of these conventional routes struggle with selectivity issues, often producing unwanted by-products like diamantane or perhydronaphthalene, which are structurally similar and notoriously difficult to separate from the desired product.

The operational complexity of these older methods also poses risks to supply chain continuity. The requirement for rigorous anhydrous conditions when using Lewis acids, combined with the corrosive nature of the reagents, demands specialized reactor materials and extensive safety protocols. Additionally, the separation of the product from the catalyst matrix often involves energy-intensive distillation or extraction steps that can degrade the thermally sensitive hydrocarbon skeleton. Consequently, manufacturers relying on these outdated technologies face inconsistent batch quality, lower overall yields sometimes reported as low as 11% in specific acidic media, and a heavy regulatory burden associated with hazardous waste management.

The Novel Approach

In stark contrast, the novel approach detailed in the patent utilizes chloroaluminate ionic liquids, specifically those derived from alkyl imidazole halides or alkyl pyridine halides complexed with aluminum trichloride. This innovation transforms the reaction environment from a corrosive, waste-generating system into a closed-loop, recyclable process. The ionic liquid provides a highly polar yet non-coordinating environment that stabilizes the carbocation intermediates necessary for the skeletal rearrangement without promoting excessive fragmentation or polymerization. Because the ionic liquid is immiscible with the neutral hydrocarbon product, the workup procedure is reduced to a simple decantation or phase separation, bypassing the need for aqueous quenching entirely.

This methodological shift delivers immediate benefits in terms of process intensification and cost reduction in pharmaceutical intermediate manufacturing. The elimination of volatile organic solvents reduces the facility's fire load and VOC emissions, while the reusability of the ionic liquid catalyst ensures that raw material consumption is minimized over the lifecycle of the plant. The patent data demonstrates that this system operates effectively across a broad temperature range from 5°C to 100°C, offering process engineers the flexibility to optimize reaction kinetics without compromising safety. This robustness makes the technology uniquely suited for the commercial scale-up of complex hydrocarbon intermediates where consistency and purity are paramount.

Mechanistic Insights into Chloroaluminate Ionic Liquid Catalysis

The efficacy of this synthesis relies on the tunable Lewis acidity of the chloroaluminate ionic liquid, which is dictated by the molar ratio of aluminum trichloride to the organic halide salt. When the mole fraction of AlCl₃ exceeds 0.5, the melt becomes Lewis acidic due to the presence of Al₂Cl₇^- anions, which are potent enough to abstract a hydride or coordinate with the strained sigma-bonds of the tricyclic framework. This interaction initiates a cationic rearrangement mechanism where the bridgehead carbon atoms undergo migration to relieve ring strain, ultimately settling into the thermodynamically more stable exo-configuration. Unlike protic acids which can lead to uncontrolled oligomerization, the mild yet precise acidity of the ionic liquid suppresses side reactions, ensuring that the reaction pathway remains highly selective for the desired isomer.

Impurity control is another critical aspect where this mechanism excels, particularly for applications requiring high-purity exo-THDCPD for adamantane synthesis. The homogeneous nature of the catalytic phase ensures that every molecule of substrate is exposed to active sites uniformly, preventing localized hot spots that could lead to thermal degradation. Furthermore, the ionic liquid matrix appears to stabilize the transition state in a way that disfavors the formation of diamantane, a common stubborn impurity in this chemistry. By maintaining the AlCl₃ to halide salt ratio between 1.5 and 1.8, the catalyst activity is optimized to drive the equilibrium towards the exo-product while minimizing the residence time required, thereby reducing the window for secondary decomposition reactions to occur.

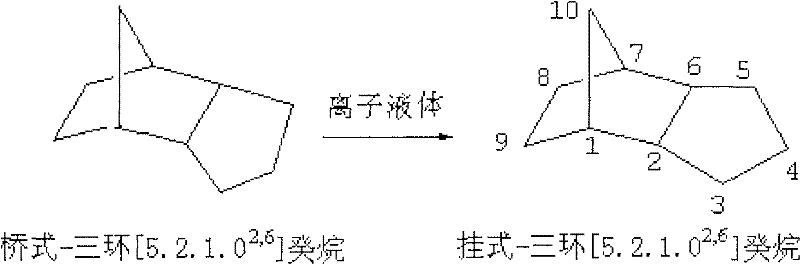

How to Synthesize Exo-Tricyclo[5.2.1.0^2,6]decane Efficiently

Implementing this synthesis route requires careful attention to the preparation of the ionic liquid catalyst to ensure the correct acidity profile is established before the substrate is introduced. The process begins with the in situ generation or separate preparation of the chloroaluminate melt under an inert atmosphere to prevent hydrolysis of the aluminum species. Once the catalyst is ready, the bridge-type substrate is added slowly to manage the exotherm, although the patent indicates that the reaction can be safely conducted at room temperature or slightly elevated temperatures depending on the desired throughput. The simplicity of the workup, involving merely allowing the phases to settle and separating the upper organic layer, makes this an attractive candidate for continuous flow processing or large-batch manufacturing.

1. Prepare the chloroaluminate ionic liquid catalyst by mixing alkyl imidazole halide or alkyl pyridine halide with aluminum trichloride in a molar ratio of 1.5 to 1.8 under inert conditions.
2. Add the bridge-type tricyclo[5.2.1.0^2,6]decane substrate to the ionic liquid reactor, maintaining a molar ratio between the ionic liquid and substrate of 0.5 to 5.
3. Stir the reaction mixture at temperatures between 5°C and 100°C for 20 minutes to 2 hours, then allow phase separation to isolate the pure exo-product.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this ionic liquid technology translates into tangible strategic advantages regarding cost stability and operational reliability. The primary driver for cost reduction is the elimination of stoichiometric amounts of corrosive acids and the associated costs of neutralization agents, wastewater treatment, and hazardous waste disposal. By replacing these consumables with a reusable ionic liquid catalyst, the variable cost per kilogram of product is significantly lowered, insulating the manufacturing process from fluctuations in the price of bulk acids. Additionally, the simplified downstream processing reduces the energy demand for distillation and drying, further contributing to substantial cost savings in utility consumption.

• Cost Reduction in Manufacturing: The dual function of the ionic liquid as both solvent and catalyst removes the need for purchasing and recovering large volumes of organic solvents, which represents a major expense in traditional fine chemical synthesis. The ability to recycle the catalyst for multiple batches without significant loss of activity means that the effective catalyst cost per ton of product approaches zero over time. This structural change in the cost base allows for more competitive pricing models and higher margins, even in a volatile raw material market.
• Enhanced Supply Chain Reliability: The robustness of the ionic liquid system against moisture and air, compared to sensitive Lewis acids like anhydrous AlCl₃, simplifies storage and handling requirements, reducing the risk of production stoppages due to reagent degradation. The high conversion rates reported in the patent minimize the need for recycling unreacted starting material, thereby increasing the effective capacity of existing reactor trains. This efficiency gain ensures a more consistent output volume, enabling suppliers to meet tight delivery schedules and maintain safety stock levels with greater confidence.
• Scalability and Environmental Compliance: As regulatory pressures regarding VOC emissions and hazardous waste tighten globally, this green chemistry approach future-proofs the manufacturing asset against compliance risks. The absence of spent acid waste streams simplifies the environmental permitting process for new facilities or capacity expansions. Furthermore, the mild reaction conditions reduce the engineering constraints on reactor design, allowing for easier scale-up from pilot plants to multi-ton commercial production units without the need for exotic corrosion-resistant alloys.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this ionic liquid isomerization technology. These answers are derived directly from the experimental data and claims presented in the patent documentation, providing a factual basis for evaluating the technology's fit within your existing supply chain. Understanding these nuances is essential for making informed decisions about process adoption and vendor qualification.

Q: What are the advantages of using chloroaluminate ionic liquids over traditional acid catalysts?

A: Unlike traditional sulfuric acid or Lewis acids which generate significant waste acid and require complex neutralization, chloroaluminate ionic liquids act as both catalyst and solvent. They are non-volatile, reusable, and allow for simple phase separation, drastically reducing environmental impact and downstream processing costs.

Q: What is the typical purity and yield achievable with this isomerization method?

A: According to patent CN101081802B, this method achieves exceptional conversion rates up to 99.7% and yields up to 99.3%. The resulting exo-tricyclo[5.2.1.0^2,6]decane can reach a purity of 99.3% without requiring further distillation or complex purification steps.

Q: Can the ionic liquid catalyst be recycled for subsequent batches?

A: Yes, the ionic liquid forms a separate lower phase after the reaction completes. It can be directly recovered and reused for multiple cycles with constant catalytic activity, eliminating the need for fresh catalyst addition in every batch and ensuring consistent process economics.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable Exo-THDCPD Supplier

At NINGBO INNO PHARMCHEM, we recognize the critical role that high-purity intermediates like exo-tricyclo[5.2.1.0^2,6]decane play in the synthesis of advanced pharmaceuticals and high-performance materials. Our technical team has extensively evaluated the ionic liquid catalysis route described in CN101081802B and possesses the expertise to implement this green chemistry protocol at an industrial scale. We boast extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that the transition from laboratory bench to manufacturing plant is seamless and efficient. Our facilities are equipped with rigorous QC labs capable of verifying stringent purity specifications, guaranteeing that every batch meets the exacting standards required for downstream adamantane synthesis or fuel blending applications.

We invite you to collaborate with us to optimize your supply chain for this valuable intermediate. By leveraging our proprietary process adaptations and bulk sourcing capabilities, we can offer a Customized Cost-Saving Analysis tailored to your specific volume requirements. We encourage potential partners to contact our technical procurement team to request specific COA data and route feasibility assessments, allowing you to validate the quality and economic viability of our exo-THDCPD supply before committing to long-term contracts.
