Advanced Metal-Free Synthesis of 1-Cyanoimidazo[1,5-a]pyridine for Commercial Scale-up

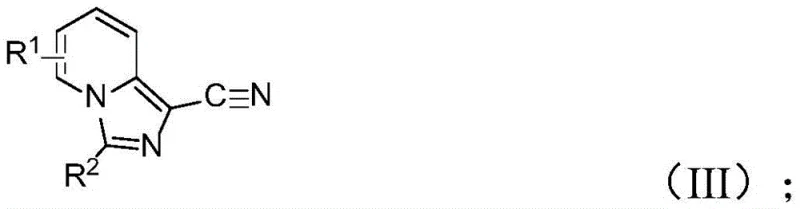

The pharmaceutical industry continuously seeks robust synthetic routes for heterocyclic compounds that serve as critical building blocks for novel drug candidates. Patent CN113735849A introduces a significant advancement in the synthesis of 1-cyanoimidazo[1,5-a]pyridine compounds, a class of molecules renowned for their potent biological activities including SSTR4 agonism and FGFR inhibition. This innovative methodology bypasses the traditional reliance on hazardous cyanating reagents and precious metal catalysts, offering a streamlined one-pot oxidative cyclization process. The core structural framework of these valuable intermediates is defined by the general formula shown below, where diverse substituents can be introduced to modulate biological efficacy. By leveraging safe thiocyanates as the cyano source and inexpensive oxidants like I2O5, this technology addresses critical pain points in process chemistry regarding safety, cost, and environmental compliance. For R&D teams and procurement strategists, understanding this pathway is essential for securing a reliable pharmaceutical intermediates supplier capable of delivering high-purity materials without the baggage of heavy metal contamination.

The development of efficient synthetic routes for complex heterocycles often faces significant hurdles when transitioning from laboratory discovery to commercial manufacturing. Conventional methods for preparing 1-cyano-substituted imidazo[1,5-a]pyridines typically involve multi-step sequences that begin with the halogenation of the imidazo[1,5-a]pyridine core. These legacy pathways frequently depend on palladium or copper-catalyzed coupling reactions with toxic cyanide sources such as sodium cyanide or zinc cyanide. The reliance on these hazardous reagents necessitates rigorous safety protocols, specialized waste treatment facilities, and extensive downstream purification to ensure residual metal levels comply with ICH Q3D guidelines. Furthermore, the multi-step nature of these traditional approaches inherently lowers overall yield and increases production lead time, creating bottlenecks in the supply chain for high-purity pharmaceutical intermediates. The accumulation of impurities at each step also complicates the isolation of the final active pharmaceutical ingredient, driving up the cost of goods sold and limiting scalability.

In stark contrast, the novel approach disclosed in the patent data utilizes a direct three-component coupling strategy that dramatically simplifies the manufacturing landscape. By reacting pyridine-2-formaldehyde, various amines, and thiocyanates in the presence of an oxidant, the target 1-cyanoimidazo[1,5-a]pyridine skeleton is constructed in a single operational step. This transition metal-free protocol eliminates the need for expensive catalysts and the associated removal processes, thereby facilitating cost reduction in pharmaceutical intermediates manufacturing. The use of ammonium thiocyanate or potassium thiocyanate as the cyanating agent represents a paradigm shift towards safer chemistry, as these salts are far less toxic than traditional cyanides. Moreover, the reaction conditions are remarkably mild, typically requiring temperatures between 90°C and 110°C in common polar aprotic solvents like DMSO. This simplicity not only enhances operational safety but also improves the overall atom economy, making it an attractive option for the commercial scale-up of complex heterocyclic compounds.

Mechanistic Insights into I2O5-Mediated Oxidative Cyclization

The mechanistic pathway of this synthesis involves a sophisticated oxidative cyclization that merges the pyridine and amine fragments into the fused imidazo ring system. The process initiates with the condensation of pyridine-2-formaldehyde and the amine to form an intermediate imine species. Subsequently, the thiocyanate ion acts as a nucleophile, attacking the electrophilic center while the oxidant, such as diiodine pentoxide (I2O5), facilitates the necessary electron transfer to close the ring. This oxidative step is crucial for aromatizing the imidazole ring and establishing the stable cyano group at the 1-position. The absence of transition metals means the mechanism relies purely on organic redox chemistry, which minimizes the formation of metal-complexed side products. For the R&D Director, this implies a cleaner reaction profile where the impurity spectrum is dominated by organic byproducts that are easier to separate via standard chromatography or crystallization techniques. The robustness of this mechanism across various substituents, including electron-withdrawing groups like fluorine and chlorine, demonstrates its versatility for generating diverse chemical libraries.

Controlling the impurity profile is paramount when producing intermediates for sensitive biological applications, and this metal-free route offers distinct advantages in purity management. Traditional transition metal-catalyzed reactions often generate trace amounts of palladium or copper that can persist through multiple purification stages, potentially catalyzing degradation in the final drug product. By eliminating these metals from the outset, the new synthesis method inherently reduces the risk of heavy metal contamination, aligning with stringent regulatory requirements for drug substances. Furthermore, the use of safe thiocyanates reduces the formation of volatile toxic cyanide gases, enhancing workplace safety and reducing the load on scrubber systems. The reaction's tolerance to various functional groups on the amine and aldehyde components allows for the synthesis of analogs without significant changes to the purification protocol. This consistency in impurity generation simplifies the validation process for quality control labs, ensuring that every batch meets the rigorous specifications required for clinical trial materials and commercial supply.

How to Synthesize 1-Cyanoimidazo[1,5-a]pyridine Efficiently

Implementing this synthesis route requires precise control over reaction parameters to maximize yield and minimize byproduct formation. The patent outlines a standardized procedure where the molar ratios of pyridine-2-formaldehyde, amine, and thiocyanate are carefully balanced, typically favoring a slight excess of the amine and thiocyanate to drive the equilibrium forward. The choice of solvent plays a critical role, with dimethyl sulfoxide (DMSO) demonstrating superior performance in solubilizing the reactants and stabilizing the transition states. Detailed standard operating procedures for this synthesis, including specific workup and purification steps, are essential for ensuring reproducibility at scale. The following guide provides a structured overview of the critical process parameters derived from the patent examples, serving as a foundational reference for process engineers aiming to replicate this high-efficiency pathway.

1. Mix pyridine-2-formaldehyde, amine, thiocyanate, and oxidant in a polar aprotic solvent like DMSO.
2. Heat the reaction mixture to 90-110°C in an oil bath and stir for 4-8 hours to facilitate oxidative cyclization.
3. Quench with sodium thiosulfate, extract with ethyl acetate, and purify via column chromatography to isolate the high-purity product.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this metal-free synthesis technology translates into tangible strategic benefits that extend beyond simple chemical transformation. The elimination of precious metal catalysts removes a significant variable cost component, as palladium and copper prices can be volatile and subject to geopolitical supply constraints. Additionally, the removal of metal scavenging steps simplifies the downstream processing workflow, reducing the consumption of auxiliary materials and shortening the overall production cycle time. This streamlining effect enhances supply chain reliability by reducing the number of unit operations where delays or failures could occur. The use of readily available and inexpensive starting materials like pyridine-2-formaldehyde and ammonium thiocyanate further secures the raw material supply base, mitigating the risk of shortages that often plague specialized reagent markets. Consequently, this process supports a more resilient and cost-effective supply chain for high-value pharmaceutical intermediates.

• Cost Reduction in Manufacturing: The primary driver for cost optimization in this process is the complete avoidance of transition metal catalysts. In traditional methods, the cost of the catalyst itself, combined with the expensive scavengers required to remove metal residues to ppm levels, constitutes a significant portion of the manufacturing budget. By utilizing an organic oxidant system, these costs are eradicated, leading to substantial cost savings. Furthermore, the one-pot nature of the reaction reduces solvent consumption and energy usage associated with isolating intermediates between steps. The simplified workup procedure, which involves standard extraction and chromatography, lowers labor costs and equipment occupancy time. These factors collectively contribute to a lower cost of goods sold, allowing for more competitive pricing in the global market for pharmaceutical intermediates without compromising on quality or purity standards.
• Enhanced Supply Chain Reliability: Supply chain continuity is often threatened by the dependency on specialized or hazardous reagents. This synthesis method relies on commodity chemicals like thiocyanates and common aldehydes, which are produced by multiple manufacturers globally, ensuring a robust supply base. The reduced hazard profile of the reagents also simplifies logistics and storage requirements, as there is no need for specialized containment for highly toxic cyanides. This ease of handling reduces the risk of regulatory delays or shipping restrictions that can disrupt production schedules. Moreover, the robustness of the reaction conditions means that the process is less sensitive to minor variations in raw material quality, further stabilizing the supply chain. For supply chain heads, this translates to reducing lead time for high-purity pharmaceutical intermediates and ensuring consistent delivery to downstream API manufacturers.
• Scalability and Environmental Compliance: Scaling chemical processes often reveals hidden environmental and safety challenges, but this metal-free route is inherently designed for scalability. The absence of heavy metals simplifies waste treatment, as the effluent does not require complex metal precipitation or recovery systems. This reduces the environmental footprint of the manufacturing facility and lowers compliance costs associated with hazardous waste disposal. The mild reaction temperatures (90-110°C) are easily achievable in standard glass-lined or stainless steel reactors, facilitating a smooth transition from laboratory to pilot and commercial scale. The high yields reported in the patent examples indicate that the process is efficient, minimizing raw material waste. These attributes make the technology highly attractive for companies aiming to expand their production capacity while adhering to increasingly strict environmental regulations and sustainability goals.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the synthesis and application of 1-cyanoimidazo[1,5-a]pyridine compounds. These answers are derived directly from the technical specifications and beneficial effects outlined in the patent literature, providing clarity for stakeholders evaluating this technology for their supply chains. Understanding these details is crucial for making informed decisions about process adoption and vendor selection.

Q: Why is the thiocyanate method safer than traditional cyanation?

A: Traditional methods often utilize highly toxic cyanide salts like sodium cyanide or zinc cyanide, posing severe safety and environmental risks. This patent utilizes ammonium thiocyanate, which is significantly safer to handle and reduces the regulatory burden associated with toxic reagent storage and waste disposal.

Q: Does this synthesis require expensive transition metal catalysts?

A: No, the disclosed method operates without palladium or copper catalysts. This eliminates the need for expensive metal scavengers and complex purification steps to remove heavy metal residues, ensuring the final pharmaceutical intermediate meets stringent purity specifications.

Q: What are the typical reaction conditions for this oxidative cyclization?

A: The reaction proceeds under mild thermal conditions, typically between 90°C and 110°C, using solvents like DMSO or DMF. The process utilizes I2O5 or NaIO3 as oxidants, offering a robust and scalable protocol suitable for industrial production.
