Advanced Catalytic Oxidation for High-Purity Dibenzoazepine Intermediates

The pharmaceutical industry continuously seeks robust synthetic routes for complex heterocyclic intermediates, particularly those serving as core scaffolds for tricyclic antidepressants and anticonvulsants. Patent CN101781249B introduces a groundbreaking methodology for the synthesis of 10-oxa-10,11-dihydro-5H-dibenzo[b,f]azepine, a critical structural motif in medicinal chemistry. This innovation shifts the paradigm from traditional halogenation-based pathways to a sophisticated nitroxide radical-catalyzed oxidation system. By leveraging calcium hypochlorite as a terminal oxidant in conjunction with acetate co-catalysts and inorganic salt carriers, this technology achieves exceptional conversion rates while operating under remarkably mild thermal conditions. For R&D directors and process chemists, this represents a significant leap forward in green chemistry, offering a pathway that minimizes hazardous waste generation without compromising on yield or purity standards.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of the dibenzoazepine oxide scaffold has been plagued by inefficient and environmentally burdensome methodologies. Traditional protocols often rely heavily on N-bromosuccinimide (NBS) to effect bromination followed by hydrolysis, a two-step sequence that is not only costly due to the high price of NBS but also generates substantial amounts of succinimide waste and bromine-containing byproducts. Alternatively, aerobic oxidation methods utilizing N-hydroxyphthalimide (NHPI) have been explored; however, these processes frequently suffer from sluggish reaction kinetics and disappointingly low yields, rendering them economically unviable for large-scale manufacturing. The reliance on liquid bromine or other aggressive halogenating agents further complicates the supply chain, necessitating specialized corrosion-resistant equipment and rigorous safety protocols that drive up capital expenditure and operational overheads significantly.

The Novel Approach

The methodology disclosed in the patent data presents a transformative solution by employing a catalytic cycle driven by stable nitroxide free radicals, such as TEMPO derivatives. This approach utilizes calcium hypochlorite, a cheap and stable solid oxidant, to regenerate the active oxoammonium species in situ. The inclusion of acetate salts, specifically transition metal acetates like cobaltous or nickel acetate, acts as a crucial co-catalytic system that accelerates the oxidation rate. Furthermore, the use of inorganic salts as carriers helps to moderate the reaction exotherm and improve mixing efficiency. This synergistic combination allows the reaction to proceed smoothly at temperatures ranging from 50°C to 100°C, achieving yields that consistently exceed 80% and can reach as high as 92% under optimized conditions, effectively solving the yield and cost bottlenecks of previous generations.

Mechanistic Insights into Nitroxide Radical-Catalyzed Oxidation

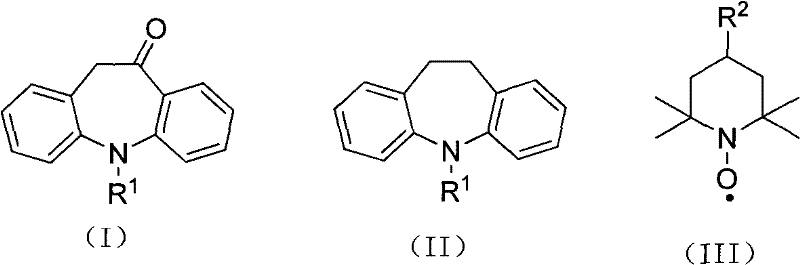

The core of this technological advancement lies in the efficient redox cycling of the nitroxide radical catalyst. In this mechanism, the stable nitroxyl radical (R2N-O•) is oxidized by the hypochlorite species to form the reactive oxoammonium cation (R2N=O+). This electrophilic oxygen species is the actual oxidant that abstracts a hydride or hydrogen atom from the benzylic position of the iminodibenzyl substrate. The resulting reduced hydroxylamine intermediate is then rapidly re-oxidized back to the nitroxide radical by the hypochlorite, closing the catalytic loop. The presence of the acetate co-catalyst is believed to facilitate the formation of the active oxidizing species or stabilize the transition state, thereby lowering the activation energy required for the C-H bond functionalization. This precise control over the oxidation state prevents over-oxidation to sulfones or other degradation products, ensuring a clean impurity profile that is essential for downstream pharmaceutical applications.

Impurity control is further enhanced by the choice of inorganic salt carriers, such as sodium bicarbonate or sodium pyrosulfate, which buffer the reaction medium and prevent the accumulation of acidic byproducts that could lead to ring-opening or polymerization side reactions. The patent data highlights that varying the substituents on the TEMPO ring (e.g., 4-hydroxy, 4-acetoxy, or 4-methoxy groups) allows for fine-tuning of the redox potential to match the specific electronic nature of the substrate. This mechanistic understanding provides process chemists with a robust framework for troubleshooting and optimization, ensuring that the synthesis remains reproducible and scalable from gram to multi-ton quantities while maintaining stringent quality specifications required by global regulatory bodies.

How to Synthesize 10-Oxa-10,11-dihydro-5H-dibenzo[b,f]azepine Efficiently

To implement this synthesis effectively, operators must adhere to precise stoichiometric ratios and thermal profiles as outlined in the patent embodiments. The process begins with the careful charging of calcium hypochlorite and the substrate into the reactor, followed by the addition of the catalytic system. Maintaining the reaction temperature within the optimal window of 50°C to 100°C is critical; temperatures below this range result in incomplete conversion, while excessive heat may degrade the catalyst or oxidant. Following the reaction period of 2 to 10 hours, the workup involves a straightforward extraction with common organic solvents like dichloromethane or ethyl acetate. The detailed standardized synthesis steps for this specific transformation are provided in the guide below.

1. Charge a reactor with calcium hypochlorite, iminodibenzyl substrate, nitroxide radical catalyst (e.g., 4-hydroxy-TEMPO), acetate co-catalyst, and an inorganic salt carrier.
2. Heat the reaction mixture to a temperature between 50°C and 100°C and maintain stirring for 2 to 10 hours to ensure complete oxidation.
3. Upon completion, extract the reaction mixture with an organic solvent such as dichloromethane, wash with water, evaporate the solvent, and recrystallize the crude product to obtain the pure target compound.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain leaders, the adoption of this catalytic oxidation route offers profound strategic benefits that extend beyond simple yield improvements. By replacing expensive and hazardous reagents like NBS and liquid bromine with commodity chemicals such as calcium hypochlorite and basic copper acetate, the raw material cost structure is drastically simplified. This shift not only reduces the direct cost of goods sold but also mitigates the volatility associated with sourcing specialized halogenating agents, thereby enhancing the overall resilience of the supply chain against market fluctuations and geopolitical disruptions.

• Cost Reduction in Manufacturing: The elimination of N-bromosuccinimide removes a significant cost driver from the bill of materials, as NBS is typically a high-value reagent with complex synthesis requirements. Furthermore, the simplified post-treatment process, which avoids the need for extensive washing to remove bromine salts or succinimide, leads to substantial savings in solvent consumption and waste disposal fees. The high atom economy of the catalytic system means that less raw material is wasted, directly translating to improved margin potential for the final API manufacturer without compromising on quality standards.
• Enhanced Supply Chain Reliability: The reagents utilized in this novel process, including calcium hypochlorite and various inorganic salts, are produced on a massive global scale for water treatment and industrial applications, ensuring a stable and abundant supply. Unlike niche catalysts or custom-synthesized oxidants that may face long lead times or single-source dependencies, these commodities can be sourced from multiple qualified vendors worldwide. This diversification of the supply base significantly reduces the risk of production stoppages due to raw material shortages, allowing for more reliable delivery schedules to downstream pharmaceutical clients.
• Scalability and Environmental Compliance: From an EHS (Environment, Health, and Safety) perspective, this process is inherently safer and more sustainable, as it avoids the generation of toxic organobromine waste streams that require costly incineration or specialized treatment. The mild reaction conditions reduce the energy load on the manufacturing facility, and the use of solid oxidants simplifies handling and dosing compared to corrosive liquids. These factors collectively lower the barrier for regulatory approval and facilitate smoother technology transfer to commercial-scale plants, ensuring that production can be ramped up quickly to meet market demand without encountering environmental compliance bottlenecks.

Frequently Asked Questions (FAQ)

The following questions address common technical inquiries regarding the implementation and optimization of this catalytic oxidation technology. These insights are derived directly from the experimental data and process descriptions found in the patent literature, providing a reliable foundation for process development teams evaluating this route for their specific manufacturing needs.

Q: What are the advantages of using calcium hypochlorite over NBS in this synthesis?

A: Using calcium hypochlorite eliminates the need for expensive N-bromosuccinimide (NBS) and avoids the generation of bromine-containing waste, significantly simplifying post-treatment and reducing environmental impact while maintaining high yields.

Q: Which acetate co-catalysts provide the best yield optimization?

A: Experimental data indicates that basic copper acetate, cobaltous diacetate, and nickel acetate are highly effective, with specific combinations yielding up to 92% purity under optimized temperature conditions.

Q: Is this process suitable for large-scale industrial production?

A: Yes, the process operates at mild temperatures (50-100°C) using inexpensive and readily available oxidants and carriers, making it highly scalable and cost-effective for commercial manufacturing.
