Revolutionizing Chiral Amino Acid Production: Advanced Liquid-Liquid Extraction for 3-Chloro-Phenylglycine

Revolutionizing Chiral Amino Acid Production: Advanced Liquid-Liquid Extraction for 3-Chloro-Phenylglycine

In the rapidly evolving landscape of fine chemical manufacturing, the efficient production of chiral intermediates remains a critical bottleneck for both pharmaceutical and agrochemical industries. Patent CN111153819B introduces a transformative methodology for the resolution of 3-chloro-phenylglycine enantiomers, utilizing a sophisticated liquid-liquid extraction technique that addresses long-standing inefficiencies in chiral separation. This technology leverages a novel chiral ferrocene diphosphine ligand complexed with palladium ions to achieve superior enantioselectivity compared to conventional asymmetric synthesis or crystallization methods. For R&D directors and procurement strategists, this patent represents a significant opportunity to optimize the supply chain for key alpha-amino acid derivatives used in the synthesis of penicillin, cephalosporin, and various pesticide formulations. The method not only promises enhanced purity profiles but also simplifies the operational workflow, making it an attractive candidate for cost reduction in pharmaceutical intermediate manufacturing.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the preparation of single enantiomers of 3-chloro-phenylglycine has relied heavily on asymmetric synthesis using chiral phase transfer catalysts or resolution via crystallization with chiral acids. While literature indicates that phase transfer catalysts like N-benzyl cinchonidine chloride can achieve yields exceeding 50%, these methods are plagued by significant downstream challenges, particularly regarding the recovery and recycling of the expensive chiral catalysts. Furthermore, traditional crystallization techniques often employ resolving agents such as D-camphorsulfonic acid, which, while effective in forming crystalline salts, introduce substantial cost burdens due to the high price of the resolving agent and the complexity of its recovery from the mother liquor. These legacy processes often result in lower overall throughput and generate significant chemical waste, creating friction for supply chain heads aiming to streamline production and reduce environmental impact.

The Novel Approach

The innovative approach detailed in the patent circumvents these obstacles by employing a liquid-liquid extraction system that operates entirely within a biphasic medium, eliminating the need for solid-phase handling during the critical separation step. By utilizing a specific chiral ferrocene diphosphine ligand complexed with palladium, the method achieves a separation factor greater than 1.8, which is competitive with or superior to existing extraction technologies that suffer from low partition coefficients. This liquid-liquid system allows for the continuous enrichment of enantiomers in their respective phases—organic and aqueous—thereby facilitating a more straightforward isolation process. The absence of gas evolution or solid precipitation during the extraction phase significantly reduces equipment fouling and maintenance requirements, offering a robust pathway for the commercial scale-up of complex pharmaceutical intermediates that demand high optical purity.

Mechanistic Insights into Pd-Ferrocene Catalyzed Chiral Recognition

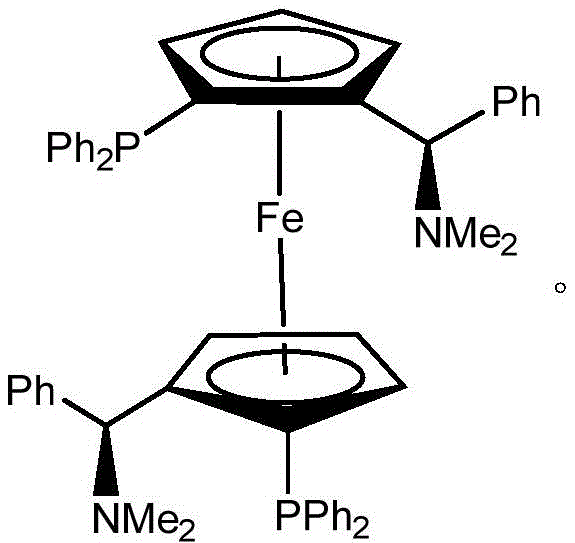

The core of this technological advancement lies in the precise molecular architecture of the chiral extractant, which functions as a highly selective host for the target amino acid enantiomer. The extractant is formed by the coordination of palladium ions with (S,S)-(-)-2,2'-bis[(R)-(N,N-dimethylamino)(phenyl)methyl]-1,1'-bis(diphenylphosphino)ferrocene, creating a rigid chiral environment capable of discriminating between the D and L forms of 3-chloro-phenylglycine. This discrimination is driven by subtle steric and electronic interactions between the bulky ferrocene backbone, the phosphine groups, and the amino acid substrate within the organic phase. The palladium center acts as a Lewis acid, coordinating with the amino and carboxyl groups of the substrate, while the chiral ligand imposes a specific spatial arrangement that favors the binding of the D-enantiomer over the L-enantiomer.

Understanding the impurity control mechanism is vital for ensuring the high quality required for high-purity pharmaceutical intermediates. The selectivity of the extraction process inherently filters out non-chiral impurities and structural analogs that do not possess the specific coordination geometry required to bind with the palladium-ligand complex. Since the separation relies on differential solubility and binding affinity rather than crystallization kinetics, the risk of occluding impurities within a crystal lattice is virtually eliminated. This results in a product stream with a cleaner impurity profile, reducing the burden on downstream purification steps such as chromatography or recrystallization. For quality assurance teams, this mechanistic robustness translates to more consistent batch-to-batch reproducibility and a lower risk of failing stringent regulatory specifications for chiral drugs.

How to Synthesize 3-Chloro-Phenylglycine Efficiently

The synthesis protocol outlined in the patent provides a clear roadmap for implementing this resolution technology in a pilot or production setting. The process begins with the in situ formation of the active chiral extractant by stirring the ferrocene ligand and a palladium source in an organic solvent such as dichloromethane or 1,2-dichloroethane for a period ranging from 12 to 24 hours. This pre-complexation step is critical to ensure that the active catalytic species is fully formed before contact with the substrate. Subsequently, the racemic 3-chloro-phenylglycine is dissolved in a buffered aqueous solution maintained at a pH between 7 and 9, which ensures the amino acid exists in a zwitterionic or anionic form suitable for coordination. The two phases are then mixed and agitated at controlled temperatures, typically around 5°C, to maximize the thermodynamic driving force for enantioselective transfer.

1. Prepare the organic phase by dissolving the chiral ferrocene diphosphine ligand and a palladium source (such as palladium acetate) in an organic solvent like dichloromethane, stirring for 12 to 24 hours to ensure complete complexation.
2. Prepare the aqueous phase by dissolving the racemic 3-chloro-phenylglycine in a buffered solution maintained at a pH between 7 and 9, utilizing salts such as sodium dihydrogen phosphate.
3. Mix the organic and aqueous phases, shake the mixture at controlled temperatures (e.g., 5°C) for 12 to 24 hours to allow enantioselective transfer, and then allow the phases to separate for enrichment.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain leaders, the transition to this liquid-liquid extraction technology offers compelling economic and operational benefits that extend beyond simple yield improvements. The elimination of solid-handling steps during the separation phase drastically simplifies the equipment requirements, allowing for the use of standard mixing tanks and settlers rather than complex filtration or centrifugation units. This simplification directly correlates to reduced capital expenditure (CAPEX) for new production lines and lower maintenance costs for existing facilities. Furthermore, the use of common organic solvents like dichloromethane, which are readily available in the global chemical market, mitigates the risk of raw material shortages that often plague specialized chiral reagents. The ability to operate under mild conditions also enhances energy efficiency, contributing to substantial cost savings in utility consumption over the lifecycle of the product.

• Cost Reduction in Manufacturing: The primary driver for cost optimization in this process is the removal of expensive resolving agents and the associated recovery processes that characterize traditional crystallization methods. By shifting to a liquid-liquid system, manufacturers can avoid the significant losses of chiral acids that are typically trapped in mother liquors, thereby lowering the variable cost per kilogram of the final product. Additionally, the high partition coefficient achieved by the ferrocene-palladium complex means that less solvent and fewer extraction stages are required to achieve the desired purity, further reducing solvent purchase and disposal costs. The qualitative improvement in process efficiency allows for a leaner manufacturing footprint, where resources are allocated more effectively towards value-added activities rather than waste management.
• Enhanced Supply Chain Reliability: Reliability in the supply of critical intermediates like 3-chloro-phenylglycine is paramount for downstream drug manufacturers who cannot afford production stoppages. This technology enhances reliability by utilizing robust, commercially available reagents such as palladium acetate and standard buffer salts, which are less susceptible to supply chain volatility compared to bespoke biocatalysts or exotic chiral auxiliaries. The simplicity of the operation also reduces the dependency on highly specialized operator skills, minimizing the risk of human error causing batch failures. Consequently, suppliers adopting this method can offer more consistent lead times and guarantee continuity of supply even during periods of market fluctuation, securing their position as a reliable agrochemical intermediate supplier.
• Scalability and Environmental Compliance: Scaling chemical processes from the laboratory to multi-ton production is often fraught with unforeseen challenges, particularly when dealing with heterogeneous systems involving solids. This homogeneous liquid-liquid extraction process scales linearly and predictably, as mass transfer dynamics in biphasic liquid systems are well-understood and easily modeled. From an environmental perspective, the process generates less solid waste and avoids the use of hazardous resolving agents that require complex neutralization and disposal procedures. The potential for solvent recycling within the closed-loop extraction system further aligns with modern green chemistry principles, helping manufacturers meet increasingly stringent environmental regulations and sustainability goals without compromising on production volume.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this chiral resolution technology. These insights are derived directly from the experimental data and beneficial effects reported in the patent documentation, providing a factual basis for decision-making. Understanding these nuances is essential for technical teams evaluating the feasibility of integrating this method into their current manufacturing workflows. The answers highlight the specific advantages in terms of separation efficiency, operational simplicity, and product quality that distinguish this approach from legacy technologies.

Q: What represents the primary advantage of this liquid-liquid extraction method over traditional crystallization?

A: Unlike traditional crystallization which often suffers from low yields and difficult recovery of resolving agents like camphorsulfonic acid, this liquid-liquid extraction method offers a higher partition coefficient and separation factor (>1.8), facilitating easier industrial scale-up without solid handling complications.

Q: Which specific enantiomer is preferentially recognized by the chiral extractant?

A: The chiral ferrocene-palladium complex described in the patent specifically recognizes and extracts the D-enantiomer of 3-chloro-phenylglycine into the organic phase, leaving the L-enantiomer enriched in the aqueous phase.

Q: Is this process suitable for large-scale pharmaceutical manufacturing?

A: Yes, the process is designed for easy industrialization as it avoids the use of gases or solids during the separation phase, relies on standard organic solvents like dichloromethane, and operates under mild conditions, making it highly adaptable for commercial scale-up.
