Advanced Synthesis of 3-Trifluoromethyl Bridged Heterocycles for Commercial API Manufacturing

The pharmaceutical industry continuously seeks robust synthetic pathways for complex bridged heterocycles, which serve as vital scaffolds in modern drug discovery. Patent CN102167700A introduces a groundbreaking methodology for the preparation of 3-trifluoromethyl-5-tert-butoxycarbonyl-2,5-diheterobicyclo[2.2.1]heptane derivatives. This technology specifically addresses the longstanding challenges associated with introducing substituents at the 3-position of the bicyclic core, a modification that was historically plagued by excessive step counts and poor overall efficiency. By leveraging a novel trifluoromethylation strategy combined with optimized cyclization conditions, this invention provides a reliable route to high-purity intermediates essential for developing next-generation analgesics and central nervous system agents. The structural rigidity imparted by the bicyclo[2.2.1]heptane framework allows for precise spatial orientation of pharmacophores, making these compounds invaluable for targeting specific biomacromolecules with high affinity.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of 3-substituted-2,5-diazabicyclo[2.2.1]heptanes has been a formidable challenge for process chemists due to the intricate stereochemical requirements and the lack of efficient functionalization methods. Prior art, such as the routes disclosed in J. Med. Chem. (1992), relied on linear sequences extending up to 15 distinct chemical transformations to install simple methyl groups. These legacy processes suffered from cumulative yield losses, often resulting in total recovery rates as low as 7.6%, which is commercially unsustainable for large-scale production. Furthermore, the reliance on multiple protection and deprotection cycles, along with harsh reduction conditions using reagents like lithium aluminum hydride without intermediate control, frequently led to complex impurity profiles that were difficult to purge. The poor water solubility of many intermediates in these older routes also complicated isolation procedures, necessitating extensive chromatographic purification that further eroded material throughput and increased waste generation significantly.

The Novel Approach

In stark contrast, the methodology outlined in CN102167700A streamlines the production of these valuable scaffolds into a concise 9-step sequence that achieves a total yield of 17.2%, representing a more than twofold improvement in material efficiency over the best available prior art. This innovative route strategically employs a Weinreb amide intermediate to facilitate a controlled reduction to the aldehyde state, thereby preventing over-reduction and ensuring high fidelity in the subsequent carbon-carbon bond-forming steps. The introduction of the trifluoromethyl group is achieved under mild conditions using trimethyl(trifluoromethyl)silane, which avoids the safety hazards associated with gaseous trifluoromethylating agents. This process not only enhances the physicochemical properties of the final molecule but also simplifies the downstream processing by generating fewer side products, thus enabling a more cost-effective and environmentally benign manufacturing protocol suitable for industrial scale-up.

Mechanistic Insights into Trifluoromethylation and Cyclization

The core innovation of this technology lies in the precise execution of the nucleophilic trifluoromethylation reaction on the aldehyde intermediate, which sets the stereochemistry for the entire bridged system. The reaction utilizes tetrabutylammonium fluoride trihydrate as a catalyst to activate the silicon reagent, generating a hypervalent silicate species that transfers the trifluoromethyl group with high regioselectivity. This step is critical because the resulting trifluoromethyl alcohol serves as the handle for the subsequent intramolecular nucleophilic substitution that forms the bridge. By converting the hydroxyl group into a mesylate leaving group under basic conditions, the molecule is primed for an intramolecular SN2 displacement by the secondary amine, which closes the ring to form the rigid bicyclic structure. The choice of solvent and base during this cyclization step is paramount to suppress intermolecular polymerization and ensure that the thermodynamic product is the desired bridged isomer rather than open-chain oligomers.

Impurity control is inherently built into this mechanistic design through the use of the dibenzyl protecting group strategy, which remains stable throughout the acidic and basic conditions of the trifluoromethylation and mesylation steps. This orthogonal protection scheme ensures that the nitrogen atoms are only revealed at the appropriate stage, preventing premature cyclization or side reactions that could lead to regioisomeric impurities. The final hydrogenolysis step removes the benzyl groups cleanly using palladium on carbon, a heterogeneous catalyst that can be easily filtered off, leaving the final product free from heavy metal contamination. This level of control over the reaction pathway is essential for meeting the stringent purity specifications required for pharmaceutical intermediates, where even trace levels of structurally related impurities can impact the safety profile of the final active pharmaceutical ingredient.

How to Synthesize 3-Trifluoromethyl-5-tert-butoxycarbonyl-2,5-diazabicyclo[2.2.1]heptane Efficiently

To implement this synthesis effectively, manufacturers must adhere to strict anhydrous conditions during the trifluoromethylation and reduction phases to prevent reagent decomposition and ensure consistent yields. The process begins with the protection of the starting pyrrolidine derivative, followed by hydrolysis and conversion to the Weinreb amide, which acts as a linchpin for the subsequent transformation. Detailed standardized operating procedures regarding temperature ramps and addition rates are critical to managing the exothermic nature of the mesylation and cyclization reactions. For a comprehensive breakdown of the specific reagent grades, stoichiometric ratios, and workup protocols validated in the patent examples, please refer to the technical guide below.

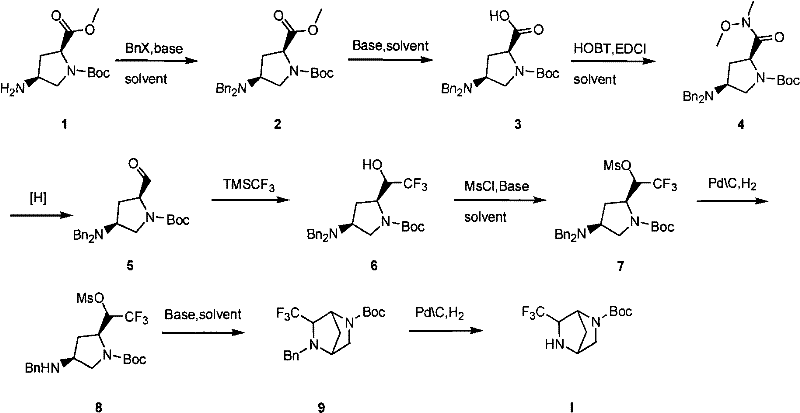

1. Protect the starting pyrrolidine derivative using benzyl bromide and perform alkaline hydrolysis to obtain the carboxylic acid intermediate.
2. Convert the acid to a Weinreb amide followed by DIBAL-H reduction to generate the critical aldehyde precursor.
3. Execute trifluoromethylation using TMSCF3 and TBAF, followed by mesylation and base-mediated cyclization to form the bridged core.

Commercial Advantages for Procurement and Supply Chain Teams

From a procurement perspective, the adoption of this synthetic route offers substantial strategic benefits by reducing the dependency on exotic reagents and minimizing the number of unit operations required. The consolidation of the synthesis into fewer steps directly correlates to a reduction in labor costs, equipment occupancy time, and utility consumption, all of which contribute to a lower cost of goods sold. By eliminating the need for lengthy chromatographic purifications that were characteristic of older methods, the process becomes more amenable to crystallization-based isolation, which is the gold standard for scalable manufacturing. This shift towards crystallization not only improves the throughput but also enhances the consistency of the physical properties of the intermediate, such as particle size distribution and polymorphic form, which are critical for downstream formulation.

• Cost Reduction in Manufacturing: The significant reduction in step count from 15 to 9 inherently lowers the cumulative material loss associated with each isolation and transfer operation. By utilizing common reagents like benzyl bromide and methanesulfonyl chloride instead of specialized chiral catalysts or expensive organometallics, the raw material cost profile is drastically optimized. Furthermore, the improved total yield means that less starting material is required to produce the same amount of final product, effectively amplifying the purchasing power of the procurement budget and reducing the overall waste disposal costs associated with unused reactants.
• Enhanced Supply Chain Reliability: The reliance on commercially available bulk chemicals for the majority of the synthesis ensures that the supply chain is resilient to market fluctuations affecting niche reagents. The robustness of the reaction conditions, which tolerate a range of temperatures and solvent grades, reduces the risk of batch failures due to minor variations in raw material quality. This reliability translates into more predictable lead times for the delivery of high-purity intermediates, allowing pharmaceutical partners to plan their clinical and commercial manufacturing schedules with greater confidence and reduced safety stock requirements.
• Scalability and Environmental Compliance: The process is designed with scalability in mind, avoiding hazardous reagents that would require specialized containment or scrubbing systems on a multi-ton scale. The use of catalytic hydrogenation for the final deprotection step generates benign byproducts and avoids the generation of stoichiometric metal waste streams typical of dissolving metal reductions. This alignment with green chemistry principles simplifies the environmental permitting process for manufacturing sites and reduces the long-term liability associated with hazardous waste management, making it a sustainable choice for long-term commercial production.

Frequently Asked Questions (FAQ)

The following questions address common technical inquiries regarding the implementation and capabilities of this patented synthesis technology. These answers are derived directly from the experimental data and claims within the patent documentation to ensure accuracy and relevance for process development teams. Understanding these nuances is crucial for evaluating the feasibility of integrating this intermediate into your existing drug substance supply chain.

Q: How does this new method improve upon previous synthesis routes for bridged heterocycles?

A: Prior art methods often required up to 15 steps with total yields below 8%. This patented approach reduces the step count to 9 while increasing the total yield to over 17%, significantly improving material efficiency.

Q: What are the key advantages of introducing a trifluoromethyl group at the 3-position?

A: The introduction of the trifluoromethyl group modifies the electronic and steric properties of the molecule, enhancing lipophilicity and metabolic stability, which are critical for pharmacophore optimization in drug design.

Q: Is the oxa-analog of this compound also accessible via this technology?

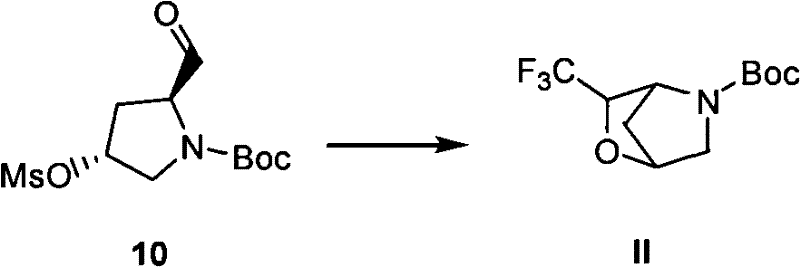

A: Yes, the patent discloses a highly efficient one-step cyclization method for the 2-oxa-5-azabicyclo[2.2.1]heptane analog, achieving yields as high as 77% from known precursors.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable 3-Trifluoromethyl-5-tert-butoxycarbonyl-2,5-diazabicyclo[2.2.1]heptane Supplier

At NINGBO INNO PHARMCHEM, we possess the technical expertise to translate complex patent methodologies like CN102167700A into robust, GMP-compliant manufacturing processes. Our engineering team has extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that the efficiencies demonstrated in the laboratory are fully realized at the plant level. We maintain stringent purity specifications and operate rigorous QC labs equipped with advanced analytical instrumentation to verify the identity and quality of every batch, guaranteeing that the bridged heterocycles you receive meet the exacting standards required for global regulatory submissions.

We invite you to engage with our technical procurement team to discuss how this optimized synthesis can enhance your project economics. By requesting a Customized Cost-Saving Analysis, you can gain visibility into the potential reductions in COGS and lead time specific to your volume requirements. We encourage you to contact us today to obtain specific COA data and route feasibility assessments tailored to your development timeline, ensuring a seamless transition from research to commercial supply.
