Advanced Recrystallization Technology for High-Purity Hepatitis C Drug Intermediates

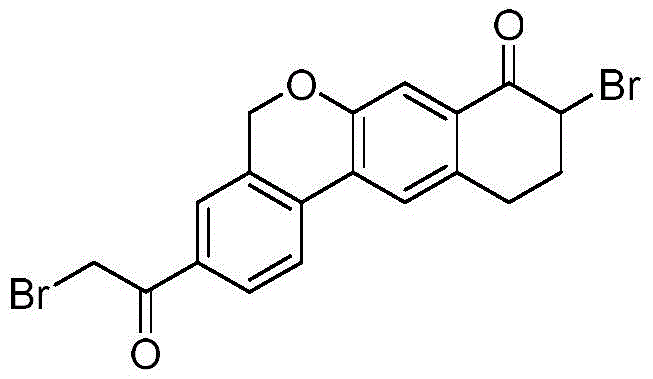

The global pharmaceutical landscape is increasingly driven by the demand for high-purity intermediates that ensure the safety and efficacy of final Active Pharmaceutical Ingredients (APIs). Patent CN109020944B introduces a transformative recrystallization methodology specifically designed for the key intermediate of the Hepatitis C virus drug Vipatavir. This technology addresses a critical bottleneck in the synthesis of 9-bromo-3-(2-bromoacetyl)-10,11-dihydro-5H-benzo[D]naphtho[2,3-B]pyran-8(9H)-one, a complex molecule where traditional purification methods often struggle to remove multi-brominated by-products. By leveraging a sophisticated mixed-solvent system combined with precise gradient cooling, this innovation delivers exceptional purity levels while simultaneously optimizing solvent consumption. For R&D directors and supply chain leaders, this represents a significant advancement in process chemistry, offering a robust pathway to secure the supply of critical antiviral medications.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the purification of complex polycyclic intermediates like the Vipatavir precursor has been plagued by significant technical challenges that impact both yield and environmental footprint. Conventional single-solvent recrystallization techniques often fail to adequately distinguish between the target molecule and structurally similar impurities, particularly multi-brominated side products generated during the upstream synthesis. These impurities possess solubility profiles that are too close to the desired product in standard solvents, leading to co-precipitation and suboptimal purity that necessitates repeated, yield-destructive purification cycles. Furthermore, traditional methods frequently rely on large volumes of organic solvents that are difficult to recover efficiently, resulting in substantial waste generation and elevated operational costs. The inability to effectively control crystal nucleation and growth in these legacy systems often leads to inconsistent particle size distribution, which can complicate downstream filtration and drying processes, ultimately creating bottlenecks in commercial manufacturing schedules.

The Novel Approach

The methodology outlined in the patent data revolutionizes this purification step by introducing a dual-solvent strategy that exploits subtle thermodynamic differences between the product and its impurities. By dissolving the crude material in a mixture of a high-solubility solvent (Solvent A), such as N-methyl pyrrolidone, and a low-solubility solvent (Solvent B), such as acetone or tetrahydrofuran, the process creates a tunable solubility environment. This approach allows for the precise manipulation of supersaturation levels through a controlled gradient cooling protocol, ensuring that only the high-purity target compound crystallizes out of the solution while impurities remain dissolved in the mother liquor. The strategic ratio of solvents, ranging from 1:1 to 1:6, provides a wide operational window that enhances process robustness and reproducibility. Additionally, the design of this process inherently facilitates the recovery of the low-solubility solvent from the mother liquor via simple distillation, transforming a waste stream into a reusable resource and significantly improving the overall atom economy of the synthesis.

Mechanistic Insights into Mixed Solvent Gradient Crystallization

The core of this technological breakthrough lies in the thermodynamic interplay between the solute and the binary solvent system during the phase transition from liquid to solid. When the crude 9-bromo-3-(2-bromoacetyl)-10,11-dihydro-5H-benzo[D]naphtho[2,3-B]pyran-8(9H)-one is dissolved at elevated temperatures (35-70°C), the high-solubility solvent ensures complete solvation of both the product and the impurities, creating a homogeneous phase. As the temperature is gradually reduced, the solubility of the target compound decreases more sharply than that of the impurities due to the specific interaction parameters of the solvent mixture. This differential solubility is the driving force for selective crystallization, where the crystal lattice of the target molecule forms with high specificity, effectively excluding the multi-brominated by-products which are sterically or electronically mismatched for incorporation into the growing crystal structure.

Furthermore, the implementation of a multi-stage gradient cooling profile is critical for controlling the kinetics of nucleation and crystal growth. Rapid cooling often leads to the formation of numerous small crystals that can trap mother liquor and impurities within their lattice defects, whereas the patented method employs a slow, stepped reduction in temperature. Initially cooling to 20-25°C and holding allows for the formation of stable nuclei without excessive supersaturation, followed by a further reduction to 0-10°C to maximize yield without compromising crystal quality. This controlled environment ensures the formation of well-defined crystals that are easier to filter and wash, thereby reducing the retention of surface impurities. The result is a product with a purity profile that consistently exceeds 99%, meeting the stringent requirements for pharmaceutical intermediates destined for final API synthesis.

How to Synthesize 9-bromo-3-(2-bromoacetyl)-10,11-dihydro-5H-benzo[D]naphtho[2,3-B]pyran-8(9H)-one Efficiently

Implementing this recrystallization protocol requires precise control over thermal parameters and solvent ratios to achieve the documented high yields and purity levels. The process begins with the preparation of the mixed solvent system, where the volume ratio is carefully adjusted to balance solubility and recovery potential. Operators must maintain strict temperature control during the dissolution phase to ensure complete solvation before initiating the critical cooling ramp. The gradient cooling steps must be executed with consistent stirring speeds to prevent localized supersaturation, which could lead to oiling out or amorphous precipitation. For a comprehensive understanding of the specific operational parameters, including exact stirring rates and drying conditions, please refer to the standardized synthesis guide provided below.

1. Dissolve the crude product in a mixed solvent system comprising a high-solubility solvent (e.g., NMP) and a low-solubility solvent (e.g., acetone) at 35-70°C.
2. Implement a gradient cooling protocol, slowly reducing temperature to 20-25°C, holding, then cooling further to 0-10°C to induce controlled crystallization.
3. Separate crystals via centrifugation, vacuum dry the solid at 30-70°C, and recover the low-solubility solvent from the mother liquor via distillation.

Commercial Advantages for Procurement and Supply Chain Teams

From a commercial perspective, this recrystallization technology offers substantial strategic advantages for procurement managers and supply chain heads looking to optimize their sourcing of pharmaceutical intermediates. The primary value driver is the significant reduction in manufacturing costs achieved through the efficient recovery and reuse of organic solvents. By distilling the mother liquor to recover the low-solubility solvent, the process drastically lowers the net consumption of raw materials, which directly translates to improved margin structures and reduced exposure to volatile solvent pricing markets. This closed-loop approach not only enhances economic efficiency but also aligns with increasingly stringent environmental regulations regarding volatile organic compound (VOC) emissions and chemical waste disposal.

• Cost Reduction in Manufacturing: The elimination of complex chromatographic purification steps and the ability to recycle solvents create a leaner manufacturing process that requires less energy and fewer resources. The high yield achieved through this method means that less starting material is wasted, maximizing the output per batch and reducing the cost per kilogram of the final intermediate. This efficiency allows suppliers to offer more competitive pricing without sacrificing quality, providing a distinct advantage in cost-sensitive procurement negotiations.
• Enhanced Supply Chain Reliability: The robustness of the mixed-solvent system ensures consistent batch-to-batch quality, which is critical for maintaining uninterrupted API production schedules. The use of common, commercially available solvents like acetone and NMP reduces the risk of supply disruptions associated with specialty reagents. Furthermore, the scalability of the process from laboratory to commercial scale ensures that supply volumes can be rapidly increased to meet market demand without the need for extensive process re-validation or new equipment investment.
• Scalability and Environmental Compliance: The process is designed with green chemistry principles in mind, minimizing waste generation and maximizing resource efficiency. The ability to recover solvents reduces the volume of hazardous waste requiring treatment, simplifying compliance with environmental standards. This sustainability profile is increasingly important for multinational corporations aiming to reduce their carbon footprint and meet corporate social responsibility goals, making this intermediate a preferred choice for eco-conscious supply chains.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation and benefits of this advanced recrystallization technology. These answers are derived directly from the patent specifications and practical application data, providing clarity on how this method compares to industry standards. Understanding these details is essential for technical teams evaluating the feasibility of integrating this intermediate into their existing manufacturing workflows.

Q: How does this recrystallization method improve impurity profiles compared to single-solvent systems?

A: The mixed solvent system utilizes differential solubility to selectively precipitate the target compound while keeping multi-brominated by-products in solution, significantly enhancing purity without complex chromatography.

Q: What are the economic benefits of the solvent recovery process described in the patent?

A: By distilling the mother liquor under reduced pressure, the low-solubility solvent (such as acetone or THF) is recovered with high efficiency, drastically reducing raw material consumption and waste disposal costs.

Q: Is this process scalable for commercial API manufacturing?

A: Yes, the process relies on standard unit operations like heating, gradient cooling, and centrifugation, which are easily transferable from laboratory scale to multi-ton commercial production without requiring exotic equipment.
