Advanced PPh3-Catalyzed Synthesis of Indole Spirocyclopentane Derivatives for Scalable Pharmaceutical Manufacturing

Introduction to Next-Generation Spiro-Indoline Synthesis

The pharmaceutical industry continuously seeks robust and scalable methodologies for constructing complex heterocyclic scaffolds, particularly those exhibiting broad-spectrum biological activities. Patent CN102875448B discloses a groundbreaking synthetic strategy for preparing indole spirocyclopentane derivatives, a privileged structural motif found in numerous natural products and bioactive agents. These compounds have demonstrated significant potential as inhibitors for NNRTIs type HIV-1, antagonists for glycine receptors, and agents with tumor inhibitory activity, making them highly valuable targets for drug discovery programs. The disclosed technology leverages a novel organocatalytic [3+2] cycloaddition reaction, utilizing readily available 3-butyn-2-one derivatives and 3-alkynyl methylene-substituted indolinone derivatives as starting materials. This approach represents a substantial advancement over existing methodologies by offering a one-step synthesis route that avoids the use of harsh reagents or expensive transition metal catalysts, thereby addressing critical pain points in process chemistry related to cost, safety, and environmental impact.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of spirocyclic indoline frameworks has relied heavily on transition metal-catalyzed processes or multi-step sequences involving unstable intermediates. Traditional methods often necessitate the use of precious metals such as palladium, rhodium, or ruthenium, which not only drive up the raw material costs significantly but also introduce stringent regulatory hurdles regarding residual metal limits in active pharmaceutical ingredients (APIs). Furthermore, many conventional protocols require rigorous anhydrous conditions, elevated temperatures, or high-pressure equipment, which complicates the scale-up process and increases energy consumption. The purification of products from these reactions can also be challenging due to the formation of complex byproduct mixtures and the difficulty in removing trace metal contaminants, leading to lower overall yields and extended production timelines. These factors collectively hinder the rapid development and commercialization of spiro-indoline-based drug candidates, creating a bottleneck for R&D teams aiming to bring new therapies to market efficiently.

The Novel Approach

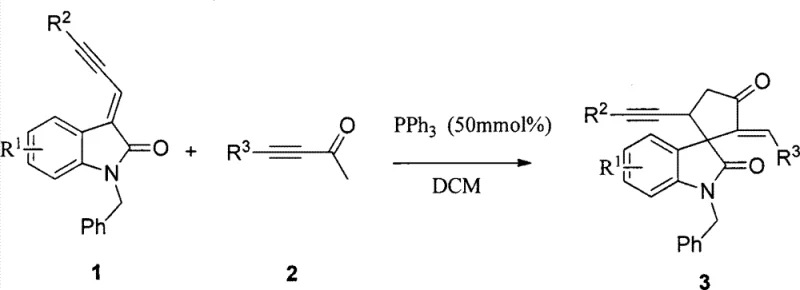

In stark contrast to these legacy techniques, the method described in patent CN102875448B utilizes triphenylphosphine (PPh3) as an inexpensive and non-toxic organocatalyst to drive the [3+2] cyclization reaction under exceptionally mild conditions. This innovative protocol operates effectively at room temperature in a benign solvent system comprising dichloromethane and ethyl acetate, eliminating the need for energy-intensive heating or cooling cycles. The reaction exhibits remarkable atom economy and step efficiency, directly converting simple starting materials into highly functionalized spirocyclic products in a single operation. By replacing expensive transition metals with a ubiquitous phosphine ligand, this approach drastically reduces the cost of goods sold (COGS) and simplifies the downstream purification process, as there is no risk of heavy metal contamination. The versatility of this method is further evidenced by its compatibility with a wide array of substituents, allowing medicinal chemists to rapidly generate diverse libraries of analogues for structure-activity relationship (SAR) studies without compromising on yield or purity.

Mechanistic Insights into PPh3-Catalyzed [3+2] Cycloaddition

The core of this transformative synthesis lies in the unique activation mode of the alkyne functionality by the nucleophilic triphenylphosphine catalyst. The mechanism initiates with the nucleophilic attack of the phosphorus atom on the electron-deficient triple bond of the 3-butyn-2-one derivative, generating a reactive zwitterionic allenoate intermediate. This key species then undergoes a regioselective conjugate addition to the exocyclic double bond of the 3-alkynyl methylene-substituted indolinone. Subsequent intramolecular cyclization and proton transfer steps facilitate the formation of the strained spirocyclopentane ring system while regenerating the phosphine catalyst to close the catalytic cycle. This mechanistic pathway is highly favorable energetically, allowing the reaction to proceed smoothly at ambient temperatures without the need for external thermal activation. The mild nature of the catalytic cycle ensures that sensitive functional groups present on the substrate molecules remain intact, preserving the chemical integrity of the final product and minimizing the formation of degradation byproducts that often plague harsher synthetic routes.

From an impurity control perspective, this organocatalytic mechanism offers distinct advantages over radical or oxidative pathways that might generate unpredictable side products. The high regioselectivity inherent in the zwitterionic intermediate formation ensures that the cyclization occurs exclusively at the desired positions, leading to a clean reaction profile with minimal isomeric impurities. The tolerance for various electronic environments on the aromatic rings—ranging from electron-donating methoxy groups to electron-withdrawing halogens like fluorine and chlorine—demonstrates the robustness of the catalytic system against electronic perturbations. This stability is crucial for maintaining consistent batch-to-batch quality during commercial manufacturing, as it reduces the sensitivity of the process to minor variations in raw material specifications. Consequently, the resulting indole spirocyclopentane derivatives exhibit high purity profiles, simplifying the analytical validation required for regulatory submissions and accelerating the timeline for clinical trial material production.

How to Synthesize Indole Spirocyclopentane Derivatives Efficiently

To implement this cutting-edge synthesis in a laboratory or pilot plant setting, operators must adhere to precise stoichiometric ratios and solvent compositions to maximize yield and reproducibility. The process begins by dissolving the indolinone derivative and the 3-butyn-2-one derivative in a specific binary solvent mixture, followed by the controlled addition of the triphenylphosphine catalyst. Maintaining the reaction at room temperature for the designated period is critical to allow the catalytic cycle to reach completion without inducing thermal decomposition. While the general procedure is straightforward, attention to detail regarding the molar ratios and purification techniques is essential for achieving the high-quality standards expected in pharmaceutical intermediate manufacturing. For a comprehensive breakdown of the standardized operating procedures, please refer to the detailed synthesis guide below.

1. Dissolve the indolinone derivative and 3-butyn-2-one derivative in a mixed solvent system of dichloromethane and ethyl acetate (9: 1 ratio).
2. Add triphenylphosphine (PPh3) as the organocatalyst at a molar ratio of 0.5 equivalents relative to the indolinone substrate.
3. Stir the reaction mixture at room temperature for approximately 48 hours until completion, then concentrate and purify via column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this PPh3-catalyzed methodology translates into tangible strategic benefits that extend far beyond simple chemical transformation. The elimination of precious metal catalysts removes a significant volatile cost component from the bill of materials, shielding the project from fluctuations in the global markets for palladium or rhodium. Furthermore, the use of common organic solvents and ambient reaction conditions reduces the dependency on specialized high-pressure reactors or cryogenic cooling systems, allowing for production in standard multipurpose facilities. This flexibility enhances supply chain resilience by enabling manufacturing across a broader network of qualified contract manufacturing organizations (CMOs), thereby mitigating the risk of single-source bottlenecks. The simplified workup and purification requirements also contribute to shorter cycle times, facilitating faster turnaround from order placement to delivery of the final intermediate.

• Cost Reduction in Manufacturing: The substitution of expensive transition metal catalysts with commodity-grade triphenylphosphine results in a drastic reduction in raw material costs, while the absence of heavy metals eliminates the need for costly scavenging resins or specialized filtration steps. This streamlined process flow reduces solvent consumption and waste disposal fees, leading to substantial overall cost savings in the manufacturing of complex pharmaceutical intermediates. Additionally, the high atom efficiency of the [3+2] cycloaddition minimizes the generation of stoichiometric byproducts, further optimizing the material balance and reducing the environmental burden associated with waste treatment.
• Enhanced Supply Chain Reliability: The starting materials required for this synthesis, including substituted indolinones and ynones, are commercially available from multiple global suppliers, ensuring a stable and competitive supply base. The robustness of the reaction conditions means that production is less susceptible to disruptions caused by utility failures or equipment maintenance, as the process does not rely on critical infrastructure like high-pressure steam or liquid nitrogen. This reliability allows for more accurate forecasting and inventory planning, ensuring that downstream API synthesis schedules are met without delay due to intermediate shortages.
• Scalability and Environmental Compliance: The mild, metal-free nature of this protocol aligns perfectly with modern green chemistry principles and increasingly stringent environmental regulations. Scaling this reaction from gram to kilogram or ton scale does not introduce significant safety hazards such as exothermic runaways or toxic gas evolution, making it ideal for large-scale commercial production. The reduced ecological footprint, characterized by lower energy consumption and simpler waste streams, facilitates easier permitting and compliance with local environmental standards, smoothing the path for long-term commercial viability.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this synthetic route, derived directly from the experimental data and beneficial effects outlined in the patent documentation. Understanding these details is crucial for R&D teams evaluating the feasibility of this route for their specific pipeline candidates and for procurement teams assessing the supply risk. The answers provided reflect the proven capabilities of the technology as demonstrated in the referenced examples, offering a realistic view of its performance envelope.

Q: What are the primary advantages of this PPh3-catalyzed method over traditional transition metal catalysis?

A: This method eliminates the need for expensive and toxic transition metals like palladium or rhodium, utilizing inexpensive triphenylphosphine instead. It operates under mild room temperature conditions without requiring inert atmospheres or high pressure, significantly simplifying the operational complexity and reducing heavy metal contamination risks in the final pharmaceutical intermediate.

Q: What is the substrate scope regarding electronic effects on the aromatic rings?

A: The reaction demonstrates excellent functional group tolerance, accommodating both electron-donating groups such as methyl and methoxy, as well as electron-withdrawing groups like fluoro, chloro, and trifluoromethyl on the aromatic rings of both the indolinone and the ynone substrates, allowing for diverse structural modifications.

Q: What are the typical reaction conditions and solvent systems employed?

A: The optimal conditions involve using a binary solvent system of dichloromethane and ethyl acetate in a 9:1 volume ratio. The reaction proceeds efficiently at room temperature with a catalyst loading of 50 mol% triphenylphosphine, typically reaching completion within 48 hours.
