Scalable Production of FPTX Energetic Materials via Novel Three-Step Nitration Strategy

The landscape of high-energy-density materials is undergoing a significant transformation with the emergence of advanced nitrogen-rich heterocycles that promise to surpass current benchmarks like CL-20. A pivotal development in this sector is detailed in patent CN116284010A, which discloses a revolutionary synthetic methodology for 1,2,9,10-tetranitropyrazolo[1,5-d:5',1'-f][1,2,3,4]tetrazine, commonly known as FPTX. This compound has garnered intense interest due to its exceptional detonation velocity of 9631 m/s and detonation pressure of 44 GPa, properties that rival or exceed those of existing state-of-the-art explosives. Furthermore, FPTX exhibits superior thermal stability with a decomposition temperature of 233°C and lower mechanical sensitivity compared to CL-20, making it an ideal candidate for next-generation propulsion and warhead applications. The patent introduces a streamlined three-step protocol involving direct nitration, amination, and oxidative coupling, which fundamentally addresses the historical challenges of low yields and hazardous multi-step sequences associated with this class of energetic materials.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

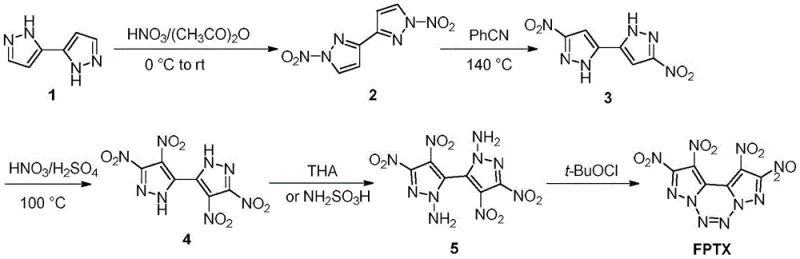

Prior to the innovations described in CN116284010A, the synthesis of FPTX was constrained by a convoluted and perilous pathway first reported in literature such as J. Am. Chem. Soc. 2017. As illustrated in the reaction scheme above, the conventional route required a tedious five-step sequence to transform the simple bipyrazole starting material into the final target. A major bottleneck in this legacy process was the construction of the tetranitro intermediate, which necessitated three distinct nitration and nitro-transfer operations. Each of these steps involved the handling of highly energetic and unstable intermediates, requiring rigorous isolation and purification protocols that drastically increased the risk of accidental detonation. Furthermore, the cumulative yield loss across five separate chemical transformations rendered the process economically unviable for large-scale manufacturing, effectively limiting FPTX to small-batch laboratory research rather than practical industrial deployment.

The Novel Approach

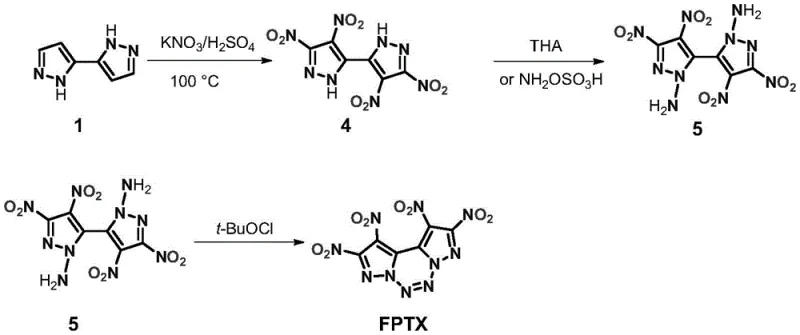

In stark contrast to the fragmented legacy workflows, the patented methodology collapses the synthesis into a concise three-step trajectory that maximizes atom economy and operational safety. The cornerstone of this innovation is the ability to achieve direct tetranitration of the bipyrazole scaffold in a single pot, bypassing the need for intermediate nitro-group migrations. By utilizing a robust potassium nitrate and sulfuric acid system, the process efficiently installs four nitro groups simultaneously, creating the critical precursor in one go. This drastic simplification not only accelerates the overall production timeline but also minimizes the number of times hazardous materials must be isolated and transferred between reactors. The subsequent amination and oxidative cyclization steps utilize standard reagents under controlled conditions, ensuring that the entire pathway remains amenable to scale-up while maintaining the high purity required for sensitive energetic applications.

Mechanistic Insights into Direct Tetranitration and Oxidative Coupling

The chemical ingenuity of this process lies primarily in the first step, where the electron-deficient bipyrazole ring undergoes aggressive electrophilic substitution. The use of a KNO3/H2SO4 mixture generates a high concentration of nitronium ions in situ, which are capable of overcoming the deactivating effects of the initial nitro groups to achieve full tetranitration. Maintaining the reaction at 100°C for an extended period (at least 72 hours) ensures complete conversion without the degradation often seen with harsher nitrating agents like fuming nitric acid alone. This thermal activation strategy allows for a cleaner reaction profile with fewer byproducts, directly contributing to a higher quality crude intermediate that requires less downstream purification. The mechanistic efficiency here is critical for R&D teams aiming to replicate the process, as it demonstrates that thermodynamic control can be leveraged to drive difficult substitutions that kinetic control might fail to achieve.

Following the formation of the tetranitro intermediate, the mechanism shifts to nucleophilic aromatic substitution and oxidative dimerization. The amination step replaces specific nitro groups with amino functionalities using reagents like hydroxylamine-O-sulfonic acid, which acts as a potent electrophilic aminating agent in the presence of a base. This transformation sets the stage for the final ring-closing event, where tert-butyl hypochlorite serves as the oxidant. This reagent facilitates the formation of the central tetrazine ring by coupling the amino groups, a process that releases the strain of the precursor and locks the molecule into its final high-energy fused architecture. Understanding these mechanistic nuances is essential for optimizing reaction parameters, such as solvent choice (acetonitrile is preferred) and stoichiometry, to ensure consistent batch-to-batch reproducibility in a commercial setting.

How to Synthesize FPTX Efficiently

Implementing this synthesis requires strict adherence to the thermal and stoichiometric parameters defined in the patent to ensure both safety and yield. The process begins with the careful preparation of the nitrating mixture at low temperatures before heating to drive the reaction to completion. Following the isolation of the tetranitro intermediate, the subsequent functionalization steps must be performed under anhydrous conditions to prevent hydrolysis of the sensitive nitro-amino species. For a comprehensive breakdown of the specific reagent quantities, addition rates, and workup procedures required to execute this chemistry safely, please refer to the standardized guide below.

1. Perform direct tetranitration of 2H,2'H-3,3'-bipyrazole using a KNO3/H2SO4 system at 100°C for over 72 hours to yield 4,4',5,5'-tetranitro-2H,2'H-3,3'-bipyrazole.
2. Conduct an amination reaction on the tetranitro intermediate using hydroxylamine-O-sulfonic acid or O-tosylhydroxylamine in acetonitrile with a base.
3. Execute the final oxidative coupling using tert-butyl hypochlorite in acetonitrile to cyclize the structure into the target FPTX molecule.
