Revolutionizing Chiral Synthesis: Scalable Production of Optically Active Spiroheterocyclic Dihydrobenzofuran Compounds for Pharmaceutical Applications

The Chinese patent CN111961060A introduces a groundbreaking synthetic methodology for producing optically active spiroheterocyclic 2,3-dihydrobenzofuran compounds, representing a significant advancement in chiral molecule construction for pharmaceutical applications. This innovative approach leverages chiral phosphonic acid or phosphonimide catalysts to facilitate an asymmetric [4+1] cyclization reaction between heterocyclic diazo compounds and p-benzoquinone methide precursors under remarkably mild conditions ranging from -20°C to 40°C. The methodology achieves high optical purity exceeding 65% ee while maintaining excellent diastereoselectivity ratios greater than 20:1 in numerous examples, addressing critical challenges in producing structurally complex chiral building blocks essential for modern drug development. Unlike conventional approaches that rely on transition metal catalysts or multi-step processes requiring stoichiometric oxidants, this single-step transformation demonstrates exceptional atom economy by generating only nitrogen gas as a byproduct, making it both environmentally favorable and economically advantageous for large-scale implementation in pharmaceutical intermediate manufacturing.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditional synthetic routes for spirocyclic dihydrobenzofuran compounds have been significantly constrained by their reliance on transition metal-catalyzed processes such as palladium-mediated asymmetric Heck coupling reactions or multi-step sequences involving organic molecular catalysis followed by separate cyclization steps. These conventional approaches typically require stoichiometric amounts of oxidants and operate under harsh conditions that can compromise product stability and increase purification complexity. The multi-step nature of existing methodologies introduces additional opportunities for racemization and impurity formation, particularly problematic when targeting high-purity pharmaceutical intermediates where strict regulatory specifications must be met. Furthermore, transition metal residues necessitate extensive purification protocols to achieve acceptable levels for pharmaceutical applications, adding significant cost and time to manufacturing processes while creating potential supply chain vulnerabilities due to catalyst availability constraints.

The Novel Approach

The patented methodology overcomes these limitations through an elegant single-step asymmetric [4+1] cyclization process that operates without transition metals under exceptionally mild conditions. By utilizing chiral phosphonic acid or phosphonimide catalysts such as Cat. D with its distinctive binaphthyl backbone and trifluoromethylphenyl substituents, this approach achieves precise stereochemical control through a dual activation mechanism involving both hydrogen bonding and ion pair interactions. The reaction proceeds efficiently in common organic solvents including toluene at temperatures as low as -20°C up to ambient conditions, demonstrating remarkable operational simplicity while consistently delivering products with high optical purity (typically >80% ee) and excellent diastereoselectivity (>20:1 dr). This streamlined process eliminates multiple purification steps required in conventional methods while avoiding costly metal catalysts and their associated removal protocols, representing a paradigm shift in sustainable manufacturing of complex chiral intermediates.

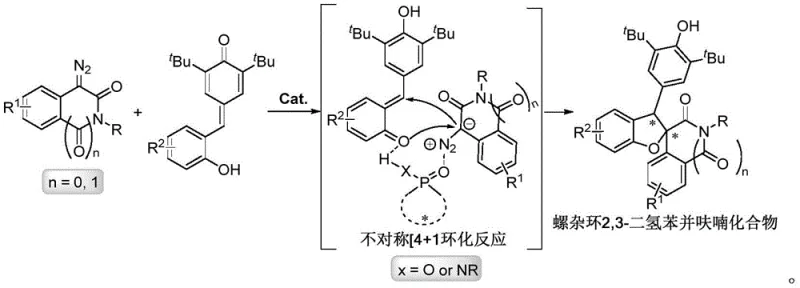

Mechanistic Insights into Asymmetric [4+1] Cyclization

The catalytic cycle begins with simultaneous activation of both reaction partners through the chiral phosphonic acid catalyst's dual functionality - the acidic proton engages in hydrogen bonding with the diazo compound while the phosphoryl oxygen coordinates with the p-benzoquinone methide through electrostatic interactions. This dual activation creates a well-defined chiral environment that directs the stereoselective formation of new carbon-carbon bonds during the cyclization process. The mechanism proceeds through a concerted asynchronous pathway where nucleophilic attack by the diazo compound on the quinone methide is followed by ring closure with simultaneous nitrogen gas evolution, all occurring within the catalyst's chiral pocket to ensure high enantioselectivity. This elegant design avoids unstable intermediates common in alternative approaches while maintaining excellent control over stereochemistry throughout the transformation.

The exceptional stereocontrol achieved in this system stems from the precise spatial arrangement within the catalyst-substrate complex that effectively differentiates between prochiral faces during bond formation. The chiral phosphonic acid's rigid binaphthyl backbone creates a well-defined asymmetric environment that guides substrate orientation through multiple non-covalent interactions including hydrogen bonding networks and π-stacking effects. This sophisticated molecular recognition capability enables consistent production of single enantiomers across diverse substrate combinations while maintaining high diastereoselectivity ratios exceeding 20:1 in most cases documented in the patent examples. The absence of transition metals eliminates potential racemization pathways associated with metal-mediated transformations while simplifying downstream processing requirements.

How to Synthesize Optically Active Spiroheterocyclic Dihydrobenzofuran Compounds Efficiently

This innovative synthetic route represents a significant advancement in producing complex chiral building blocks for pharmaceutical applications through its elegant combination of mild reaction conditions and exceptional stereocontrol. The methodology leverages carefully designed chiral phosphonic acid catalysts that enable direct conversion of readily available starting materials into highly enantioenriched products without requiring transition metals or multi-step sequences. Detailed standardized synthesis procedures have been developed based on extensive optimization studies documented in the patent examples, demonstrating consistent performance across diverse substrate combinations while maintaining excellent reproducibility essential for commercial manufacturing environments.

1. Dissolve heterocyclic diazo compound, p-benzoquinone methide, and chiral phosphonic acid catalyst in organic solvent under inert atmosphere
2. Stir the reaction mixture at controlled temperature between -20°C and 40°C for specified duration while monitoring reaction progress
3. Purify the resulting optically active spiroheterocyclic dihydrobenzofuran compound using column chromatography or other separation techniques

Commercial Advantages for Procurement and Supply Chain Teams

This novel synthetic methodology addresses critical pain points in pharmaceutical intermediate procurement by offering a streamlined manufacturing process that significantly reduces complexity while enhancing reliability and quality consistency. The elimination of transition metal catalysts removes a major source of supply chain vulnerability while simplifying quality control requirements through reduced analytical burden for metal residue testing. The single-step nature of this transformation compared to conventional multi-step approaches creates substantial operational efficiencies that translate directly into more predictable production timelines and improved resource utilization across manufacturing facilities.

• Cost Reduction in Manufacturing: The elimination of expensive transition metal catalysts along with their associated removal protocols represents significant cost optimization opportunities throughout the manufacturing process. Without requiring specialized equipment for metal removal or extensive purification steps to achieve acceptable residue levels, production costs are substantially reduced while maintaining high product quality standards essential for pharmaceutical applications.
• Enhanced Supply Chain Reliability: Utilizing readily available starting materials and common organic solvents creates a more robust supply chain foundation compared to approaches dependent on specialized catalysts or reagents with limited suppliers. The simplified process design reduces potential failure points while enabling more consistent production scheduling and delivery timelines that better align with pharmaceutical development programs.
• Scalability and Environmental Compliance: The mild reaction conditions and simple workup procedures facilitate seamless scale-up from laboratory to commercial production volumes while generating only nitrogen gas as byproduct, significantly reducing environmental impact compared to conventional methods requiring stoichiometric oxidants or producing hazardous waste streams.

Frequently Asked Questions (FAQ)

The following questions address common concerns regarding implementation of this innovative synthetic methodology based on detailed analysis of the patent's technical content and practical manufacturing considerations.

Q: How does this method achieve high optical purity without transition metals?

A: The chiral phosphonic acid catalyst employs dual activation through chiral hydrogen bond induction and ion pair interactions, enabling precise stereochemical control during the asymmetric [4+1] cyclization reaction without requiring transition metals.

Q: What are the scalability advantages of this synthetic route?

A: The process operates under mild conditions with simple workup procedures and generates only nitrogen gas as byproduct, making it inherently scalable from laboratory to commercial production volumes while maintaining consistent product quality.

Q: How does this method address traditional impurity challenges in spirocyclic compound synthesis?

A: By eliminating transition metal catalysts and their associated removal steps, this method significantly reduces metal contamination risks while the precise stereocontrol minimizes diastereomeric impurities through its unique dual activation mechanism.
