Advanced Copper-Catalyzed Route to High-Purity Pyrano[4,3-b]pyridine Intermediates with Commercial Scale-Up Capability

Patent CN113583012B introduces a novel copper-catalyzed cyclization methodology for synthesizing pyrano[4,3-b]pyridine-2,7-dione compounds—a critical class of heterocyclic scaffolds exhibiting significant biological activities including antifungal, antitumor, antiviral, and antimycobacterial properties essential for pharmaceutical development. This breakthrough directly addresses persistent challenges in traditional synthesis routes that typically involve multi-component reactions with restricted raw material availability or complex purification protocols leading to low yields and inconsistent product quality. The new approach employs readily accessible 4-amino-2-pyrone derivatives and alkynoate esters as starting materials under mild copper salt catalysis in standard organic solvents such as toluene or DMF at temperatures between 70°C and 110°C for durations of six to ten hours. By streamlining the synthetic pathway into a single cyclization step with minimal side reactions, this method achieves consistently high yields ranging from 75% to 89% while producing structurally uniform products that meet stringent pharmaceutical purity requirements without requiring hazardous reagents or specialized equipment. The innovation significantly enhances commercial viability by reducing synthetic complexity and eliminating costly purification stages inherent in prior art methodologies.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Existing synthetic methodologies for pyranopyridine derivatives frequently encounter substantial limitations that hinder their adoption in industrial-scale pharmaceutical manufacturing. Multi-component reactions often depend on scarce or unstable starting materials that create supply chain vulnerabilities while introducing significant variability in product quality across different production batches. These approaches typically require harsh reaction conditions such as high temperatures or pressures that increase energy consumption and safety risks while generating complex mixtures of byproducts that necessitate extensive chromatographic purification—resulting in low overall yields often below 60% due to cumulative losses during isolation steps. Furthermore, many conventional routes employ transition metal catalysts that risk product contamination with heavy metals requiring additional removal steps that add both cost and time to the manufacturing process. The operational complexity of these methods also creates scalability barriers as reaction parameters become increasingly difficult to control when moving from laboratory to plant scale, ultimately compromising production reliability and economic feasibility for commercial applications.

The Novel Approach

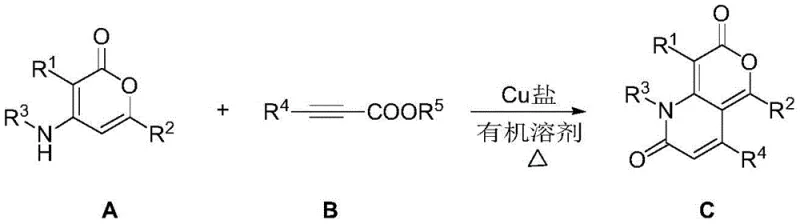

The patented copper-catalyzed cyclization method overcomes these limitations through an elegantly simplified single-step transformation that leverages the inherent reactivity of readily available starting materials under mild conditions. By utilizing common copper salts such as Cu(OTf)₂ or CuCl₂ as catalysts in standard organic solvents like toluene or DMF at moderate temperatures between 70°C and 110°C, this approach eliminates the need for hazardous reagents while maintaining excellent reaction control across diverse substrate combinations. The process achieves high regioselectivity through a concerted mechanism where the amine group of the pyrone compound undergoes nucleophilic attack on the alkyne ester followed by cyclization—producing structurally uniform products with minimal side reactions that simplify purification requirements significantly. This methodology demonstrates exceptional robustness across multiple substrate variations as evidenced by consistent yields between 75% and 89% across seven distinct implementation examples while maintaining excellent product purity without requiring specialized equipment or complex workup procedures.

Mechanistic Insights into Copper-Catalyzed Cyclization

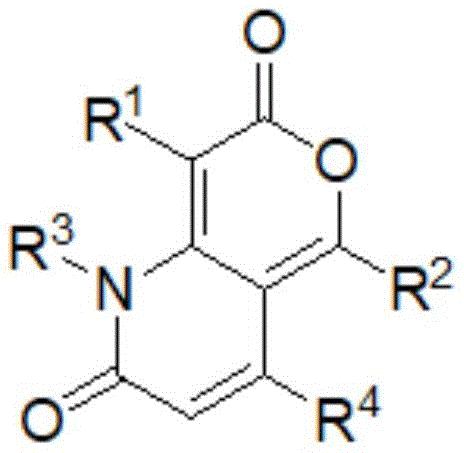

The copper-catalyzed transformation proceeds through a well-defined mechanistic pathway where the copper salt activates the alkyne ester toward nucleophilic attack by the amine group of the pyrone compound. Initial coordination of the copper catalyst to the alkyne triple bond enhances its electrophilicity, facilitating conjugate addition by the amine nitrogen at the C4 position of the pyrone ring system. This generates a key vinyl-copper intermediate that undergoes intramolecular cyclization through nucleophilic attack on the carbonyl carbon adjacent to the oxygen atom—forming the characteristic fused ring system of the pyrano[4,3-b]pyridine scaffold with simultaneous regeneration of the catalyst species. The reaction maintains high regioselectivity due to geometric constraints imposed by the copper coordination sphere that direct the cyclization trajectory toward exclusive formation of the desired six-membered ring product without competing isomerization pathways.

Impurity control is achieved through precise reaction parameter management where temperature optimization between 70°C and 110°C prevents thermal decomposition pathways while maintaining sufficient kinetic energy for complete conversion within six to ten hours as monitored by TLC analysis. The single-step nature of this cyclization minimizes opportunities for side product formation compared to multi-step conventional methods—particularly eliminating common impurities arising from over-reduction or oxidation events observed in alternative synthetic routes. Solvent selection plays a critical role in maintaining product stability during workup; polar aprotic solvents like DMF prevent hydrolysis of sensitive intermediates while facilitating efficient extraction during aqueous workup stages using dichloromethane or ethyl acetate as extractants.

How to Synthesize Pyrano[4,3-b]pyridine-2,7-dione Efficiently

This copper-catalyzed methodology represents a significant advancement over traditional synthetic approaches by providing a streamlined pathway that reduces both time and resource requirements while enhancing product quality consistency essential for pharmaceutical manufacturing standards. The process eliminates multiple intermediate isolation steps required in conventional routes through its single-reaction design that directly converts readily available starting materials into high-purity target compounds under controlled conditions easily adaptable to existing manufacturing infrastructure. Detailed standardized synthesis procedures have been developed based on extensive optimization studies documented in the patent literature; these protocols ensure reproducible results across different production scales while maintaining strict adherence to quality control parameters required for regulatory compliance in pharmaceutical applications.

1. Combine 4-amino-2-pyrone compound (1 mmol), alkynoate ester (1.2–2.0 mmol), and copper catalyst (0.1–0.25 mmol) in organic solvent (5–8 mL) within a round-bottom flask under inert atmosphere.
2. Heat the reaction mixture at controlled temperatures between 70°C and 110°C for 6–10 hours while monitoring progress via thin-layer chromatography until complete consumption of the starting material is confirmed.
3. After reaction completion, quench with saturated sodium chloride solution followed by dichloromethane extraction; dry the organic phase over anhydrous salts, concentrate under reduced pressure, and purify through column chromatography using petroleum ether/acetone mixtures.

Commercial Advantages for Procurement and Supply Chain Teams

This innovative synthesis methodology delivers substantial value across procurement and supply chain operations by addressing critical pain points inherent in traditional manufacturing approaches for complex heterocyclic intermediates used in pharmaceutical development pipelines. The simplified process design directly translates into enhanced operational efficiency through reduced raw material requirements and minimized waste generation—creating significant cost advantages without compromising product quality or regulatory compliance standards required by global health authorities.

• Cost Reduction in Manufacturing: The elimination of multi-step sequences reduces raw material consumption while avoiding expensive transition metal catalysts that require additional purification stages; this methodology achieves substantial cost savings through simplified workup procedures using common solvents and standard extraction techniques that lower both capital investment requirements and operational expenses across production cycles.
• Enhanced Supply Chain Reliability: Utilizing widely available starting materials with established global supply networks ensures consistent raw material availability while minimizing vulnerability to single-source dependencies; the robust reaction profile maintains consistent output quality across different production batches even when using alternative solvent or catalyst options within specified parameters.
• Scalability and Environmental Compliance: The process demonstrates exceptional scalability from laboratory to industrial production volumes due to its straightforward thermal management requirements and compatibility with standard manufacturing equipment; reduced waste streams containing only common organic solvents facilitate environmentally responsible disposal practices while meeting stringent regulatory standards for sustainable chemical manufacturing.

Frequently Asked Questions (FAQ)

The following questions address specific technical and commercial considerations based on detailed analysis of patent CN113583012B's experimental data and implementation protocols; these responses provide actionable insights for procurement teams evaluating this methodology's suitability for their specific manufacturing requirements.

Q: What are the key limitations of conventional synthesis methods for pyranopyridine derivatives?

A: Traditional approaches suffer from multi-step sequences requiring hazardous reagents or specialized conditions, leading to low yields due to side reactions and complex purification challenges. These methods often depend on limited-scope starting materials that restrict scalability while generating significant waste streams incompatible with modern green chemistry principles.

Q: How does the copper-catalyzed cyclization method improve yield and purity compared to traditional approaches?

A: This novel methodology achieves superior product uniformity through a single-step cyclization that minimizes side reactions while maintaining high regioselectivity. The elimination of transition metal catalysts avoids contamination risks and simplifies downstream processing, resulting in consistently high-purity outputs without requiring extensive chromatographic separation typically needed in conventional routes.

Q: What makes this synthesis method particularly suitable for commercial scale-up in pharmaceutical manufacturing?

A: The process utilizes common solvents and catalysts under ambient pressure conditions with straightforward workup procedures that translate seamlessly from laboratory to plant scale. Its robustness across diverse substrate combinations ensures reliable production continuity while reducing both capital investment requirements and operational complexity for large-volume manufacturing.
