Advanced [3+3] Cycloaddition for Chiral Spiro-1,4-Benzodiazepine-2-One Intermediates

The pharmaceutical industry continuously seeks robust methodologies for constructing complex heterocyclic scaffolds that serve as privileged structures in drug discovery. Patent CN115368371A introduces a groundbreaking approach to synthesizing chiral triazine heterocyclic spiro-conjugated 1,4-benzodiazepine-2-one compounds, a class of molecules with significant therapeutic potential. This innovation addresses a critical gap in organic synthesis by utilizing a novel [3+3] dipolar cycloaddition strategy. Unlike traditional methods that often rely on harsh conditions or multi-step sequences to functionalize the benzodiazepine core, this patented technique leverages 1,4-benzodiazepine-2-one isothiocyanates as key synthetic building blocks. The reaction proceeds under remarkably mild conditions, specifically at room temperature, utilizing an organic base additive in a polar organic solvent. This development is particularly relevant for R&D teams focused on expanding chemical libraries with high structural diversity and stereochemical complexity, offering a reliable pathway to access novel spiro-heterocyclic systems that were previously difficult to construct efficiently.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the chemical modification of the 1,4-benzodiazepine-2-one skeleton has primarily focused on functionalizing the benzene ring or the seven-membered diazepine ring through standard substitution reactions. While effective for simple derivatives, these conventional strategies often struggle to introduce complex spiro-cyclic architectures with high stereocontrol. Existing methods for constructing spiro-heterocycles on this scaffold frequently require expensive transition metal catalysts, stringent anhydrous conditions, or elevated temperatures that can compromise sensitive functional groups. Furthermore, achieving high diastereoselectivity in the formation of quaternary spiro-centers remains a persistent challenge in medicinal chemistry. The lack of literature reports on stereoselective cycloaddition reactions specifically targeting the seven-membered diazepine ring to form six-membered nitrogen-containing spiro-systems highlights a significant bottleneck. These limitations often result in prolonged development timelines, increased waste generation due to poor selectivity, and higher costs associated with purification and catalyst removal, thereby hindering the rapid exploration of this valuable pharmacophore space.

The Novel Approach

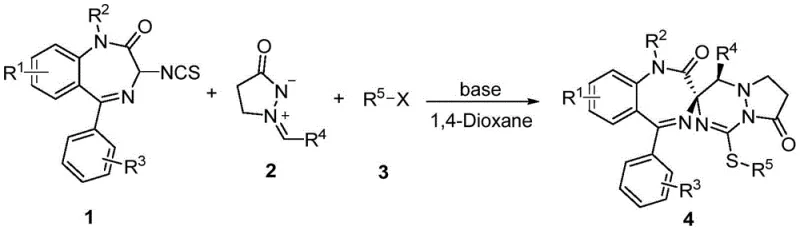

The methodology disclosed in CN115368371A represents a paradigm shift by employing a [3+3] dipolar cycloaddition between 1,4-benzodiazepine-2-one isothiocyanates and N,N'-cyclic imine 1,3-dipoles. This approach bypasses the need for transition metals, relying instead on a simple organic base like DBU to drive the reaction forward. The process is characterized by its operational simplicity, occurring at room temperature in solvents such as 1,4-dioxane, which significantly reduces energy consumption and safety risks associated with heating. Crucially, this method demonstrates excellent substrate universality, accommodating various substituents on the benzene ring and the diazepine nitrogen, as well as diverse alkyl halides for the final alkylation step. The reaction consistently delivers target compounds with moderate to good chemical yields and, most importantly, high diastereoselectivity, favoring the formation of cis-configured products. This efficiency not only accelerates the synthesis of lead compounds but also simplifies the downstream processing, making it an attractive option for both laboratory-scale discovery and potential commercial manufacturing.

Mechanistic Insights into [3+3] Dipolar Cycloaddition

The core of this synthetic breakthrough lies in the unique reactivity of the 1,4-benzodiazepine-2-one isothiocyanate synthon, which acts as an electrophilic-nucleophilic amphiphilic three-atom building block. In the presence of a base such as DBU, the N,N'-cyclic imine 1,3-dipole is generated or activated in situ, initiating a cascade of bond-forming events. The mechanism involves the nucleophilic attack of the dipole on the isothiocyanate group, followed by cyclization to form the triazine heterocyclic ring fused in a spiro-fashion to the benzodiazepine core. The subsequent addition of an alkyl halide serves to trap the intermediate, finalizing the construction of the complex spiro-framework. This tandem process is highly efficient, minimizing the formation of side products and ensuring that the stereochemical information is preserved throughout the transformation. The high diastereoselectivity observed suggests a highly organized transition state, likely governed by steric interactions between the bulky benzodiazepine scaffold and the approaching dipole, which directs the formation of the specific cis-isomer.

Impurity control is inherently managed by the chemoselectivity of the reaction components. The isothiocyanate group is highly reactive towards the specific 1,3-dipole used, reducing the likelihood of non-specific polymerization or decomposition that often plagues reactive intermediates. Furthermore, the use of mild basic conditions prevents the racemization of chiral centers that might occur under acidic or strongly basic environments. The reaction profile indicates that the initial cycloaddition is the rate-determining step, after which the alkylation proceeds rapidly. By monitoring the consumption of the starting isothiocyanate via TLC, operators can precisely time the addition of the alkyl halide, ensuring maximum conversion to the desired spiro-product. This level of control over the reaction pathway is essential for maintaining high purity standards, as it minimizes the generation of regioisomers or over-alkylated byproducts, thereby reducing the burden on purification protocols and enhancing the overall quality of the final pharmaceutical intermediate.

How to Synthesize Chiral Spiro-1,4-benzodiazepine-2-one Efficiently

To implement this synthesis effectively, precise adherence to the molar ratios and reaction sequence described in the patent is essential. The protocol typically involves dissolving the isothiocyanate and the cyclic imine dipole in dry 1,4-dioxane, followed by the addition of DBU (10 mol%). The mixture is stirred at room temperature until the starting material is fully consumed, usually within 5 to 12 hours. Subsequently, the appropriate alkyl halide is introduced, and the reaction continues for an additional 1 to 5 hours. Workup involves standard extraction and purification via column chromatography using petroleum ether and ethyl acetate mixtures.

1. Dissolve 1,4-benzodiazepine-2-one isothiocyanate and N,N'-cyclic imine 1,3-dipole in dry 1,4-dioxane.
2. Add DBU (10 mol%) as a base additive and stir the mixture at room temperature for 5-12 hours until the isothiocyanate is consumed.
3. Add the alkyl halide reactant, continue stirring for 1-5 hours, and purify the crude product via column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

From a procurement and supply chain perspective, this synthetic route offers substantial strategic advantages over traditional metal-catalyzed processes. The elimination of precious metal catalysts such as palladium or rhodium not only removes a significant cost driver but also mitigates the risk of metal contamination in the final API, a critical regulatory concern. The reliance on commodity chemicals like DBU and common solvents like 1,4-dioxane ensures a stable and resilient supply chain, less susceptible to the geopolitical fluctuations that often affect specialized catalyst availability. Moreover, the room temperature operation significantly lowers the energy footprint of the manufacturing process, aligning with modern sustainability goals and reducing utility costs associated with heating or cooling large-scale reactors. These factors collectively contribute to a more predictable and cost-effective production model for high-value pharmaceutical intermediates.

• Cost Reduction in Manufacturing: The absence of expensive transition metal catalysts drastically reduces the raw material costs associated with each batch. Additionally, the simplified purification process, which avoids complex metal scavenging steps, lowers the consumption of specialized resins and solvents. The moderate to high yields achieved across a broad substrate scope mean less raw material is wasted, further enhancing the overall economic efficiency of the process. This streamlined approach allows for significant cost optimization in the manufacturing of complex spiro-heterocycles, making them more accessible for early-stage drug development programs.
• Enhanced Supply Chain Reliability: The starting materials, including 1,4-benzodiazepine-2-one derivatives and cyclic imines, are readily accessible from established chemical suppliers, ensuring a consistent flow of inputs. The robustness of the reaction conditions, which tolerate a variety of functional groups without requiring stringent exclusion of moisture or oxygen beyond standard drying, reduces the risk of batch failures due to environmental variables. This reliability translates to shorter lead times and more dependable delivery schedules for downstream partners, securing the continuity of supply for critical drug candidates.
• Scalability and Environmental Compliance: The reaction's scalability is supported by its exothermic profile and lack of hazardous reagents, facilitating safe transfer from gram-scale laboratory experiments to kilogram or ton-scale production. The use of recyclable solvents and the generation of minimal hazardous waste align with strict environmental regulations, simplifying the permitting process for new manufacturing lines. The high diastereoselectivity reduces the need for energy-intensive separation techniques like preparative HPLC, further supporting a greener and more sustainable manufacturing lifecycle for these advanced intermediates.

Frequently Asked Questions (FAQ)

The following questions address common technical inquiries regarding the implementation and scope of this patented technology. Understanding these details is crucial for process chemists evaluating the feasibility of this route for their specific projects.

Q: What is the stereoselectivity of this [3+3] cycloaddition reaction?

A: The reaction exhibits high diastereoselectivity, predominantly yielding the cis-configured spiro-products as confirmed by NMR analysis of multiple examples.

Q: Are transition metal catalysts required for this synthesis?

A: No, the process utilizes an organocatalytic approach with DBU as a base additive, eliminating the need for expensive transition metals and simplifying purification.

Q: What is the substrate scope for the alkyl halide component?

A: The method tolerates a wide range of halogenated hydrocarbons, including aliphatic and aromatic halides such as dichloromethane, iodomethane, and allyl bromide.
