Scalable Green Synthesis of 3-Aryl-2H-Benzo[β][1,4]Benzoxazine-2-One Derivatives for Commercial Applications

Scalable Green Synthesis of 3-Aryl-2H-Benzo[β][1,4]Benzoxazine-2-One Derivatives for Commercial Applications

The pharmaceutical and agrochemical industries are constantly seeking robust, environmentally benign pathways to access complex heterocyclic scaffolds that serve as critical building blocks for bioactive molecules. A significant breakthrough in this domain is detailed in patent CN111100085A, which discloses a novel preparation method for 3-aryl-2H-benzo[β][1,4]benzoxazine-2-one compounds. These heterocycles are renowned for their diverse photophysical properties and potent biological activities, including antibacterial and antitumor effects, making them highly valuable intermediates in drug discovery. The disclosed methodology leverages Deep Eutectic Solvents (DES) to replace traditional volatile organic solvents and harsh catalysts, marking a pivotal shift towards sustainable manufacturing. For R&D directors and procurement specialists, this technology represents a dual opportunity: enhancing the purity profile of intermediates while simultaneously addressing the growing regulatory pressure for greener chemical processes. By utilizing a eutectic mixture of choline chloride and urea, the process achieves high conversion rates under mild thermal conditions, effectively solving the long-standing issues of catalyst toxicity and difficult product separation associated with conventional synthetic routes.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of benzoxazine derivatives has relied heavily on traditional organic solvents and transition metal catalysts, which present significant drawbacks for modern industrial applications. Conventional methods often require stringent reaction conditions, such as high temperatures or the use of corrosive acids, which can lead to the degradation of sensitive functional groups and the formation of complex impurity profiles. Furthermore, the reliance on heavy metal catalysts introduces a critical bottleneck in the supply chain, necessitating expensive and time-consuming purification steps to meet strict residual metal specifications required by regulatory bodies like the FDA and EMA. The environmental footprint of these legacy processes is also substantial, generating large volumes of hazardous waste that increase disposal costs and complicate compliance with increasingly rigorous environmental protection standards. Additionally, many traditional protocols suffer from limited substrate scope, failing to efficiently accommodate diverse electronic environments on the aromatic rings, which restricts the chemical space available for medicinal chemists exploring structure-activity relationships.

The Novel Approach

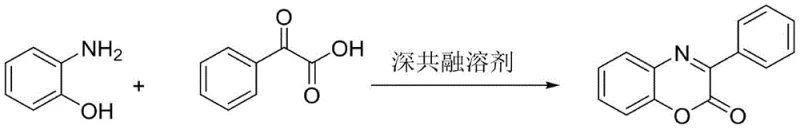

In stark contrast, the innovative approach described in the patent utilizes a Deep Eutectic Solvent (DES) composed of choline chloride and urea in a 1:2 molar ratio, creating a reaction medium that acts as both solvent and promoter. This system operates at a mild temperature of 80°C under magnetic stirring, eliminating the need for external catalysts and significantly reducing energy consumption. The reaction between the 2-aminophenol compound and the keto acid proceeds smoothly within this hydrogen-bonded network, facilitating the cyclization process with remarkable efficiency. As illustrated in the core reaction scheme below, the transformation is direct and atom-economical, converting simple starting materials into the target benzoxazine scaffold with minimal byproduct formation.

The absence of toxic metals and volatile organic compounds simplifies the downstream processing workflow, allowing for easier isolation of the target product through standard column chromatography followed by low-temperature vacuum drying. This novel methodology not only enhances the overall yield, with some substrates achieving up to 98% conversion, but also drastically improves the safety profile of the manufacturing process, making it an ideal candidate for reliable pharmaceutical intermediate supplier operations aiming for long-term sustainability.

Mechanistic Insights into Deep Eutectic Solvent-Promoted Cyclization

The efficacy of this synthesis lies in the unique physicochemical properties of the choline chloride-urea eutectic mixture, which creates a highly organized hydrogen-bonding network capable of activating the reactants. Mechanistically, the DES likely stabilizes the transition state of the condensation reaction between the amine group of the 2-aminophenol and the ketone carbonyl of the keto acid. The urea component, acting as a hydrogen bond donor, can activate the carbonyl oxygen, increasing its electrophilicity and facilitating nucleophilic attack by the amine. Simultaneously, the chloride anion may assist in proton transfer steps essential for the subsequent dehydration and cyclization that form the oxazine ring. This synergistic activation allows the reaction to proceed rapidly at 80°C, a temperature significantly lower than what is typically required for thermal cyclizations in non-polar solvents. The mildness of these conditions is crucial for preserving the integrity of sensitive substituents, ensuring that the final product retains the specific electronic characteristics designed into the precursor molecules.

From an impurity control perspective, the homogeneous nature of the DES reaction medium promotes uniform heat and mass transfer, preventing local hot spots that often lead to polymerization or decomposition side reactions. The patent data indicates that electron-withdrawing groups, such as halogens on the benzoylformic acid moiety, generally result in higher yields compared to electron-donating groups, suggesting that the electrophilicity of the keto acid is a rate-determining factor. For instance, substrates with 4-fluoro or 4-chloro substitutions demonstrated superior performance, whereas bulky or strongly donating groups like methoxy showed slightly reduced efficiency. Understanding these electronic effects allows process chemists to fine-tune reaction times and stoichiometry for specific derivatives, ensuring consistent quality across different batches. The ability to predictably manage these variables is essential for maintaining the high-purity standards demanded in the production of complex pharmaceutical intermediates.

How to Synthesize 3-Aryl-2H-Benzo[β][1,4]Benzoxazine-2-One Efficiently

Implementing this green synthesis route requires precise control over the preparation of the solvent system and the stoichiometric balance of the reactants to maximize yield and purity. The process begins with the formation of the deep eutectic solvent, followed by the addition of the substrates in a specific molar ratio, typically 1:2 for the aminophenol to keto acid. The reaction is then driven by thermal energy at 80°C, monitored to ensure complete conversion before proceeding to the isolation phase. Detailed standard operating procedures for this synthesis, including specific workup parameters and purification techniques, are outlined in the technical guide below.

1. Prepare the deep eutectic solvent by mixing choline chloride and urea in a 1: 2 molar ratio and heating to 80°C until a uniform transparent liquid forms.
2. Combine the 2-aminophenol substrate and keto acid compound in the solvent with a molar ratio of 1: 2, then magnetically stir at 80°C for at least 0.5 hours.
3. Perform post-treatment purification using column chromatography with ethyl acetate and petroleum ether, followed by vacuum drying at 30°C.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this DES-based technology offers transformative benefits that extend beyond mere technical feasibility. The elimination of expensive transition metal catalysts directly translates to a reduction in raw material costs and removes the logistical burden of sourcing and handling hazardous metallic reagents. Furthermore, the simplified purification process reduces the consumption of organic solvents during workup, leading to substantial cost savings in waste management and solvent recovery operations. The use of choline chloride and urea, which are inexpensive, non-toxic, and widely available commodity chemicals, ensures a stable and resilient supply chain that is less susceptible to market volatility compared to specialized catalytic systems. This stability is critical for maintaining continuous production schedules and meeting the just-in-time delivery requirements of global pharmaceutical clients.

• Cost Reduction in Manufacturing: The economic advantage of this process is primarily driven by the replacement of costly catalysts and the minimization of solvent usage. By utilizing a reusable or biodegradable deep eutectic solvent, manufacturers can significantly lower the operational expenditure associated with solvent purchase, storage, and disposal. The mild reaction conditions also reduce energy consumption, as heating to 80°C is far less energy-intensive than the reflux conditions often required in traditional organic synthesis. Additionally, the high yields reported for halogenated substrates mean less raw material is wasted, improving the overall material efficiency and lowering the cost per kilogram of the final active pharmaceutical ingredient intermediate.
• Enhanced Supply Chain Reliability: The reliance on commodity chemicals like urea and choline chloride mitigates the risk of supply disruptions that often plague the sourcing of exotic ligands or precious metal catalysts. This accessibility ensures that production can be scaled up rapidly without waiting for long lead times on specialized reagents. Moreover, the robustness of the reaction against various substituents means that a single platform technology can be used to produce a wide library of derivatives, allowing suppliers to respond flexibly to changing customer demands without retooling entire production lines. This versatility strengthens the supply chain by creating a more agile and responsive manufacturing infrastructure capable of adapting to new drug development pipelines.
• Scalability and Environmental Compliance: Scaling this process from laboratory to commercial production is straightforward due to the absence of exothermic hazards and the use of non-volatile solvents. The low vapor pressure of the DES minimizes emissions of volatile organic compounds (VOCs), helping facilities comply with strict environmental regulations such as REACH and TSCA without investing in expensive abatement equipment. The ease of product isolation via column chromatography and vacuum drying suggests that the process can be adapted to continuous flow chemistry or large batch reactors with minimal engineering modifications. This scalability ensures that the technology can support the transition from clinical trial materials to multi-ton commercial production, securing the long-term availability of these critical intermediates.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this deep eutectic solvent technology in industrial settings. These insights are derived directly from the experimental data and beneficial effects described in the patent documentation, providing clarity on yield optimization, substrate compatibility, and environmental impact. Understanding these details is crucial for stakeholders evaluating the feasibility of integrating this green chemistry approach into their existing manufacturing portfolios.

Q: What are the advantages of using Deep Eutectic Solvents (DES) over traditional organic solvents for benzoxazine synthesis?

A: According to patent CN111100085A, DES eliminates the need for volatile organic compounds and expensive transition metal catalysts. It provides a greener reaction medium that simplifies downstream processing and reduces environmental impact while maintaining high yields.

Q: Can this synthesis method tolerate various substituents on the aromatic ring?

A: Yes, the method demonstrates excellent substrate scope. It successfully accommodates electron-withdrawing groups like halogens (F, Cl, Br) and electron-donating groups like methyl and methoxy, achieving yields ranging from 65% to 98% depending on the specific substitution pattern.

Q: Is this process suitable for large-scale commercial manufacturing?

A: The process operates under mild conditions (80°C) without high pressure or hazardous reagents. The simplicity of the workup, involving standard column chromatography and low-temperature drying, indicates strong potential for scaling up to industrial production levels safely.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable 3-Aryl-2H-Benzo[β][1,4]Benzoxazine-2-One Supplier

At NINGBO INNO PHARMCHEM, we recognize the strategic value of adopting innovative, green synthesis technologies like the one described in patent CN111100085A to enhance our portfolio of pharmaceutical intermediates. Our team of expert process chemists possesses extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that the transition from laboratory discovery to industrial reality is seamless and efficient. We are committed to delivering high-purity benzoxazine derivatives that meet stringent purity specifications, supported by our rigorous QC labs equipped with state-of-the-art analytical instrumentation. By leveraging our expertise in deep eutectic solvent systems, we can offer our partners a sustainable supply solution that aligns with global ESG goals while maintaining the highest standards of quality and consistency.

We invite you to collaborate with us to explore how this advanced synthesis method can optimize your supply chain and reduce your overall manufacturing costs. Our technical procurement team is ready to provide a Customized Cost-Saving Analysis tailored to your specific volume requirements and purity needs. Please contact us today to request specific COA data for our benzoxazine inventory or to discuss route feasibility assessments for your custom synthesis projects. Let us be your partner in driving innovation and efficiency in the production of next-generation therapeutic agents.
