Advanced Metal-Free Synthesis of 3-Phenyl-[1,2,4]triazolo[4,3-a]pyridines for Commercial Scale-Up

The pharmaceutical industry is constantly seeking more efficient and environmentally benign pathways for synthesizing complex heterocyclic scaffolds, particularly those serving as critical intermediates for oncology therapeutics. Patent CN110183453B introduces a groundbreaking methodology for the preparation of 3-phenyl-[1,2,4]triazolo[4,3-a]pyridine compounds, a structural motif with profound significance in the treatment of gastric cancer, esophageal cancer, non-small cell lung cancer (NSCLC), and melanoma. This innovation represents a paradigm shift from traditional transition metal-catalyzed couplings to a metal-free oxidative cyclization strategy. By leveraging tert-butyl hydroperoxide (TBHP) as a promoter in a diethyl ether medium, the process achieves high efficiency at room temperature (25°C), addressing long-standing challenges regarding catalyst toxicity and removal. For R&D directors and procurement specialists, this technology offers a compelling value proposition: a streamlined synthesis that reduces operational complexity while maintaining high purity standards essential for downstream drug development.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of the triazolo[4,3-a]pyridine core has relied heavily on transition metal catalysis, often involving palladium, copper, or rhodium complexes to facilitate C-H activation and subsequent cyclization. While effective in laboratory settings, these conventional methods impose significant burdens on industrial manufacturing. The primary drawback is the stringent requirement for removing trace metal residues, which necessitates additional purification steps such as scavenging treatments or repeated recrystallizations, thereby inflating production costs and extending lead times. Furthermore, many traditional protocols require harsh reaction conditions, including elevated temperatures and inert atmospheres, which increase energy consumption and pose safety risks during scale-up. The reliance on expensive ligands and sensitive catalysts also introduces supply chain vulnerabilities, as fluctuations in the availability of precious metals can disrupt production schedules and compromise the economic viability of the final active pharmaceutical ingredient (API).

The Novel Approach

In stark contrast, the novel approach detailed in the patent data utilizes a metal-free, multi-component reaction system that fundamentally simplifies the synthetic landscape. By reacting pyridine derivatives, sodium azide, and benzaldehyde compounds in the presence of TBHP, the method bypasses the need for any transition metal catalyst entirely. This elimination of metals not only removes the costly and time-consuming purification steps associated with metal residue clearance but also significantly lowers the barrier to entry for manufacturing. The reaction proceeds smoothly in diethyl ether at ambient temperature (25°C), demonstrating exceptional functional group tolerance and operational simplicity. This mildness translates directly into reduced equipment requirements, as there is no need for specialized high-pressure reactors or extensive heating systems. Consequently, this approach offers a robust alternative that aligns perfectly with modern green chemistry principles, delivering high yields (reported between 80% and 96% in specific examples) while minimizing environmental impact and operational expenditure.

Mechanistic Insights into TBHP-Promoted Oxidative Cyclization

The mechanistic pathway of this transformation is a fascinating example of radical-mediated oxidative cyclization, distinct from the organometallic cycles seen in traditional cross-coupling. The reaction initiates with the interaction between the pyridine nitrogen and the electrophilic species generated from the decomposition of TBHP. Unlike metal-catalyzed pathways that rely on oxidative addition and reductive elimination steps, this metal-free protocol likely proceeds through a radical mechanism where the peroxide promotes the formation of reactive intermediates capable of attacking the azide and aldehyde components. The sodium azide serves as the nitrogen source for the triazole ring formation, while the benzaldehyde provides the phenyl substituent at the 3-position. The use of TBHP is critical here, acting as both an oxidant and a promoter to drive the cyclization forward without the need for external metal centers. This mechanism ensures that the final product is free from metal contamination, a crucial factor for regulatory compliance in pharmaceutical synthesis. The broad substrate scope, accommodating various substituents on both the pyridine and benzaldehyde rings, suggests a versatile mechanistic pathway that is resilient to electronic variations, making it highly reliable for generating diverse libraries of analogs.

From an impurity control perspective, the absence of metal catalysts drastically simplifies the impurity profile of the crude reaction mixture. In metal-catalyzed processes, side reactions often include homocoupling of the starting materials or incomplete catalyst turnover, leading to complex mixtures that are difficult to separate. Here, the primary byproducts are likely derived from the decomposition of the peroxide or unreacted starting materials, which are generally easier to remove via standard aqueous workup and chromatography. The patent specifies a straightforward purification protocol involving extraction with ethyl acetate and flash column chromatography using n-hexane and ethyl acetate mixtures. This simplicity in downstream processing is a major advantage for process chemists aiming to establish robust control strategies. Furthermore, the high selectivity observed across different substrates, such as those with electron-donating methoxy groups or electron-withdrawing trifluoromethyl groups, indicates that the reaction conditions are finely tuned to minimize side reactions, ensuring a clean product stream that facilitates faster regulatory approval and reduced waste generation.

How to Synthesize 3-Phenyl-[1,2,4]triazolo[4,3-a]pyridines Efficiently

To implement this synthesis effectively in a laboratory or pilot plant setting, operators must adhere to precise stoichiometric ratios and safety protocols regarding peroxide handling. The general procedure involves charging a reaction vessel with the pyridine derivative, sodium azide, and the appropriate benzaldehyde in diethyl ether, followed by the controlled addition of TBHP. The reaction is then maintained at room temperature for a duration of approximately 6 hours to ensure complete conversion. Detailed standardized operating procedures, including specific quenching methods and chromatographic conditions, are essential for reproducibility.

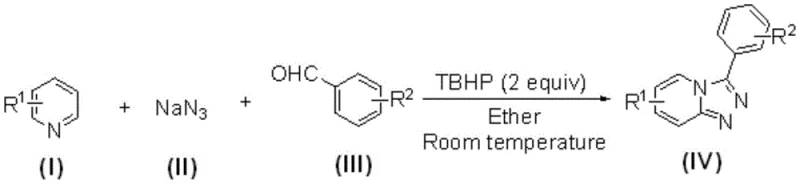

1. Combine pyridine compounds, sodium azide, and benzaldehyde derivatives in a reaction vessel with diethyl ether as the solvent medium.
2. Add tert-butyl hydroperoxide (TBHP) as the oxidant promoter and stir the mixture at room temperature (25°C) for approximately 6 hours to ensure complete conversion.
3. Perform aqueous workup using saturated sodium chloride, extract with ethyl acetate, dry over anhydrous sodium sulfate, and purify the crude product via silica gel column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this metal-free technology presents a multitude of strategic advantages that extend beyond simple chemical efficiency. The most immediate benefit is the drastic reduction in raw material costs associated with eliminating precious metal catalysts and their specialized ligands. Traditional methods often require palladium or copper salts, which are subject to volatile market pricing and geopolitical supply risks. By switching to a system based on commodity chemicals like sodium azide, benzaldehydes, and TBHP, manufacturers can stabilize their input costs and insulate themselves from supply chain disruptions. Additionally, the use of diethyl ether, a solvent with a low boiling point, facilitates energy-efficient solvent recovery and recycling, further contributing to overall cost reduction in pharmaceutical intermediate manufacturing. The simplified workflow also means less downtime for equipment cleaning and maintenance, enhancing overall plant throughput.

• Cost Reduction in Manufacturing: The elimination of transition metal catalysts removes the necessity for expensive metal scavengers and complex filtration systems, leading to substantial cost savings in the purification stage. Without the need for high-purity metal grades or inert gas protection typically required for sensitive organometallic reactions, the operational expenditure is significantly lowered. The process utilizes inexpensive and widely available reagents, ensuring that the cost of goods sold (COGS) remains competitive even at large production volumes. Furthermore, the mild reaction conditions reduce energy consumption for heating and cooling, providing an additional layer of economic efficiency that accumulates over the lifecycle of the product.
• Enhanced Supply Chain Reliability: Relying on commodity feedstocks such as substituted pyridines and benzaldehydes ensures a stable and continuous supply of raw materials, as these are produced by numerous global chemical suppliers. This diversification of the supply base mitigates the risk of single-source dependency often associated with specialized catalysts. The robustness of the reaction conditions also means that the process is less susceptible to variations in raw material quality, allowing for greater flexibility in sourcing. Consequently, supply chain managers can maintain tighter delivery schedules and reduce safety stock levels, optimizing working capital and improving responsiveness to market demand fluctuations for these critical oncology intermediates.
• Scalability and Environmental Compliance: The metal-free nature of this synthesis aligns perfectly with increasingly stringent environmental regulations regarding heavy metal discharge and waste management. Removing metals from the process stream simplifies wastewater treatment and reduces the hazardous waste footprint of the facility. The mild operating temperature of 25°C enhances process safety, reducing the risk of thermal runaways and making the technology inherently safer for commercial scale-up from kilogram to tonne quantities. This ease of scalability ensures that production can be ramped up quickly to meet clinical trial demands or commercial launch requirements without the need for extensive process re-engineering or new capital investment in specialized reactor infrastructure.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this metal-free synthesis route. These answers are derived directly from the technical specifications and experimental data provided in the patent documentation, ensuring accuracy and relevance for decision-makers evaluating this technology for their supply chains.

Q: Does this synthesis method require transition metal catalysts?

A: No, the method described in patent CN110183453B operates without any transition metal catalysis. It utilizes tert-butyl hydroperoxide (TBHP) as a promoter in an organic solvent, eliminating the need for expensive and toxic metal removal steps typically associated with palladium or copper-catalyzed routes.

Q: What are the typical reaction conditions for this triazolopyridine preparation?

A: The reaction proceeds under exceptionally mild conditions, specifically at room temperature (25°C) and normal atmospheric pressure. The process uses diethyl ether as the solvent and requires a reaction time of approximately 6 hours, making it highly energy-efficient compared to high-temperature reflux methods.

Q: Is this process suitable for large-scale pharmaceutical intermediate production?

A: Yes, the process is highly scalable due to its mild operating conditions and the use of readily available raw materials like pyridines and benzaldehydes. The absence of metal catalysts simplifies downstream processing and quality control, which is critical for meeting stringent regulatory standards in API manufacturing.
