Advanced Copper-Catalyzed Synthesis of 1,2,4-Triazole Derivatives for Commercial Scale-Up

The pharmaceutical and fine chemical industries are constantly seeking more efficient pathways to construct privileged heterocyclic scaffolds, among which the 1,2,4-triazole ring stands out due to its pervasive presence in bioactive molecules. A groundbreaking development in this domain is detailed in Chinese Patent CN114933570B, which discloses a highly efficient copper-catalyzed synthetic method for 1,2,4-triazole derivatives. This innovation leverages trifluoromethanesulfonate copper(II), commonly known as Cu(OTf)2, to facilitate a [3+2] cycloaddition reaction between diazo compounds and azo compounds within nitrile solvents. The significance of this patent lies not merely in the chemical transformation itself but in its ability to bypass the stringent conditions often associated with triazole synthesis. By utilizing azo compounds as dipolarophiles to capture the 1,3-dipole intermediates generated in situ from diazo compounds and nitrile solvents, this method achieves high yields under remarkably mild conditions. For R&D directors and process chemists, this represents a pivotal shift towards more atom-economical and operationally simple protocols that can be seamlessly integrated into complex multi-step syntheses without compromising purity or throughput.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of 1,2,4-triazole derivatives has been fraught with synthetic challenges that hinder large-scale adoption. Prior art, including notable contributions from academic groups, often necessitated the use of stoichiometric amounts of strong bases or specialized additives such as molecular sieves to drive the reaction to completion. These requirements introduce significant complications in the downstream processing stages, as the removal of solid additives and neutralization of bases add extra unit operations that increase both time and cost. Furthermore, many traditional protocols were limited in substrate scope, frequently restricted to arylazo salts which may not offer the structural diversity required for modern drug discovery campaigns. The reliance on harsh conditions also raises concerns regarding the stability of sensitive functional groups on the substrate, potentially leading to decomposition or side reactions that complicate the impurity profile. For procurement managers, these inefficiencies translate into higher raw material costs and longer lead times, while supply chain heads face risks associated with the availability of specialized reagents and the complexity of waste management.

The Novel Approach

In stark contrast, the methodology outlined in CN114933570B offers a streamlined solution that eliminates the need for external bases or desiccants. The core of this innovation is the utilization of Cu(OTf)2 as a Lewis acid catalyst which activates the diazo species effectively at room temperature. This mildness is a critical advantage, allowing for the tolerance of a wide array of functional groups including esters, amides, and halides without degradation. The reaction proceeds smoothly in common nitrile solvents like acetonitrile, which serve dual roles as both the reaction medium and a reactant contributing to the triazole ring structure. This dual functionality simplifies the reagent list and reduces the overall material cost. Moreover, the patent data indicates that the reaction is robust enough to maintain high efficiency even when scaled up to gram levels, suggesting that the kinetics are favorable for larger batch sizes. This approach fundamentally changes the economic equation of triazole synthesis by reducing the number of processing steps and enabling the use of cheaper, commercially available starting materials, thereby offering substantial cost reduction in pharmaceutical intermediate manufacturing.

Mechanistic Insights into Cu(OTf)2-Catalyzed [3+2] Cycloaddition

Understanding the mechanistic underpinnings of this transformation is crucial for optimizing the process for commercial application. The reaction initiates with the coordination of the copper catalyst to the diazo compound, facilitating the loss of nitrogen gas and the formation of a metal-carbene species. This reactive intermediate then interacts with the nitrile solvent to generate a nitrile ylide or a similar 1,3-dipole species. This step is the rate-determining phase where the efficiency of the Cu(OTf)2 catalyst is paramount, as it stabilizes the transition state and lowers the activation energy barrier. Subsequently, the azo compound acts as a dipolarophile, undergoing a concerted [3+2] cycloaddition with the generated 1,3-dipole. This cycloaddition constructs the five-membered 1,2,4-triazole core in a single stereochemical step. The elegance of this mechanism lies in its atom economy; aside from the evolution of nitrogen gas, all other atoms from the reactants are incorporated into the final product. This minimizes waste generation and aligns with green chemistry principles, a key consideration for modern regulatory compliance.

From an impurity control perspective, the specificity of the copper catalyst plays a vital role. Unlike non-catalytic thermal reactions which might proceed through radical pathways leading to polymeric by-products, the metal-mediated pathway ensures a high degree of regioselectivity. The patent examples demonstrate that varying the substituents on the diazo and azo components does not significantly alter the reaction outcome, indicating a robust catalytic cycle that is insensitive to minor electronic variations in the substrate. This consistency is invaluable for maintaining a clean impurity profile, which simplifies the purification process typically achieved via standard silica gel column chromatography. The ability to predict and control the formation of the triazole ring allows process chemists to design synthesis routes with greater confidence, reducing the risk of late-stage failures due to unforeseen side reactions.

How to Synthesize 1,2,4-Triazole Derivatives Efficiently

The practical implementation of this synthesis route is designed for ease of execution in both laboratory and pilot plant settings. The procedure involves simply mixing the diazo compound, the azo compound, and the catalyst in the chosen nitrile solvent. No rigorous exclusion of moisture or oxygen is required, which significantly lowers the barrier for entry for contract manufacturing organizations. The reaction progress can be easily monitored using thin-layer chromatography (TLC), and upon completion, the workup involves a straightforward removal of the solvent followed by purification. This simplicity makes it an ideal candidate for rapid library synthesis in drug discovery as well as for the production of key intermediates. For detailed operational parameters and specific stoichiometric ratios tailored to your specific substrate, please refer to the standardized synthesis guide below.

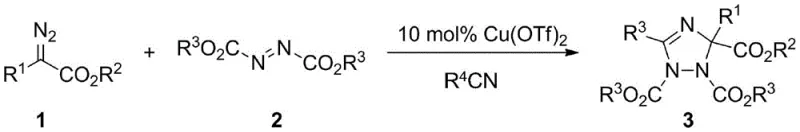

1. Combine diazo compound, azo compound, and 10 mol% Cu(OTf)2 catalyst in a nitrile solvent such as acetonitrile.
2. Stir the reaction mixture at room temperature until TLC analysis indicates complete consumption of starting materials.
3. Remove solvent under reduced pressure and purify the crude product via silica gel column chromatography using petroleum ether and ethyl acetate.

Commercial Advantages for Procurement and Supply Chain Teams

For stakeholders focused on the bottom line and supply continuity, the adoption of this copper-catalyzed technology offers compelling strategic benefits. The primary driver for cost optimization is the replacement of expensive or specialized reagents with commodity chemicals. Cu(OTf)2 is a relatively inexpensive catalyst compared to precious metal alternatives, and its loading level of 10 mol% is economically viable for large-scale production. Furthermore, the elimination of molecular sieves and bases removes entire categories of consumables from the bill of materials. This simplification extends to the waste stream; with nitrogen gas as the sole by-product, the environmental burden is drastically reduced, leading to lower disposal costs and easier compliance with environmental regulations. These factors collectively contribute to significant cost reduction in pharmaceutical intermediate manufacturing without sacrificing quality.

• Cost Reduction in Manufacturing: The economic model of this process is strengthened by the use of readily available nitrile solvents which act as reactants, thereby reducing the total number of unique raw materials required. The mild reaction conditions mean that energy consumption for heating or cooling is negligible, further driving down utility costs. Additionally, the high yields reported in the patent examples imply less raw material waste per kilogram of product, maximizing the return on investment for every batch produced. The simplified workup procedure also reduces labor hours and solvent usage during purification, creating a leaner and more cost-effective manufacturing workflow.
• Enhanced Supply Chain Reliability: Supply chain resilience is bolstered by the commercial availability of the key starting materials. Diazo compounds, azo compounds, and nitrile solvents are standard catalog items for most chemical suppliers, mitigating the risk of single-source dependency. The robustness of the reaction at room temperature means that the process is less susceptible to fluctuations in utility infrastructure, such as steam or chilled water availability, ensuring consistent production schedules. This reliability is critical for meeting the just-in-time delivery demands of downstream API manufacturers and helps in reducing lead time for high-purity pharmaceutical intermediates.
• Scalability and Environmental Compliance: The transition from bench scale to commercial production is facilitated by the inherent safety of the room temperature operation. The absence of exothermic spikes associated with strong base additions makes the process safer to scale. Moreover, the green chemistry profile of the reaction, characterized by minimal waste and non-toxic by-products, aligns perfectly with the increasing regulatory pressure on pharmaceutical companies to adopt sustainable practices. This positions manufacturers using this technology favorably in audits and sustainability assessments, enhancing their reputation as responsible partners in the global supply chain.

Frequently Asked Questions (FAQ)

To address common technical and commercial inquiries regarding this synthesis technology, we have compiled a set of answers based on the patent specifications and our internal process knowledge. These insights are intended to clarify the operational feasibility and strategic value of implementing this copper-catalyzed route in your production pipeline. Understanding these details will help in making informed decisions about process adoption and vendor selection.

Q: What are the key advantages of this copper-catalyzed method over traditional triazole synthesis?

A: Unlike conventional methods requiring harsh bases or molecular sieves, this protocol operates under mild room temperature conditions using inexpensive Cu(OTf)2, significantly simplifying the workup process and reducing operational costs.

Q: Is this synthesis method scalable for industrial production?

A: Yes, the patent data demonstrates that the reaction maintains high yields even during gram-scale synthesis without significant decline, indicating robust potential for commercial scale-up in pharmaceutical intermediate manufacturing.

Q: What is the environmental impact of this reaction pathway?

A: The process aligns with green chemistry principles as nitrogen gas is the only by-product generated during the cycloaddition, minimizing hazardous waste disposal requirements.
