Advanced Rhodium-Catalyzed Synthesis of Benzo[a]carbazole Derivatives for Commercial Scale-Up

Advanced Rhodium-Catalyzed Synthesis of Benzo[a]carbazole Derivatives for Commercial Scale-Up

The development of efficient synthetic routes for complex heterocyclic scaffolds is a cornerstone of modern pharmaceutical and material science innovation. Patent CN108610278B introduces a groundbreaking methodology for the synthesis of 6-amino-5-acylbenzo[a]carbazole compounds, a class of molecules with significant potential in drug discovery and organic light-emitting diode (OLED) technology. This technical insight report analyzes the Rh(III)-catalyzed tandem reaction described in the patent, highlighting its strategic value for R&D directors seeking robust pathways and procurement managers aiming for cost-effective supply chains. The disclosed method leverages the power of transition metal catalysis to transform simple 2-aryl-3-cyanoindole precursors into highly functionalized benzo[a]carbazole cores in a single operational step. By utilizing sulfur ylides as key coupling partners, this approach bypasses the limitations of traditional cross-coupling strategies, offering a streamlined solution for generating diverse compound libraries essential for high-throughput screening and material optimization.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of the benzo[a]carbazole skeleton has been a challenging endeavor in organic synthesis, often plagued by inefficient multi-step sequences and restrictive reaction conditions. Conventional strategies typically rely on the cyclization of pre-functionalized intermediates, such as halogenated anilines or naphthylamines, which necessitate rigorous protection and deprotection steps. These traditional routes frequently suffer from low atom economy, generating substantial amounts of chemical waste due to the stoichiometric use of activating agents and the need for intermediate purification. Furthermore, the harsh reaction conditions often required, such as high temperatures and strong acids or bases, can lead to the degradation of sensitive functional groups, thereby limiting the scope of accessible derivatives. For supply chain heads, these inefficiencies translate into higher raw material costs, extended lead times, and increased environmental compliance burdens, making the reliable supply of high-purity intermediates difficult to maintain consistently.

The Novel Approach

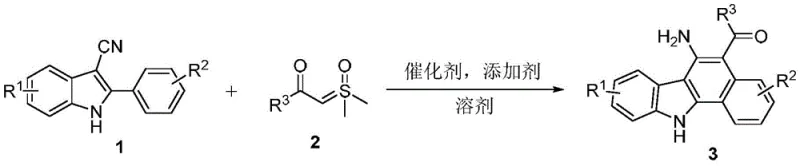

In stark contrast to these legacy methods, the invention detailed in patent CN108610278B presents a sophisticated yet operationally simple Rh(III)-catalyzed tandem reaction that fundamentally reshapes the synthetic landscape for these compounds. This novel approach utilizes 2-aryl-3-cyanoindoles and sulfur ylides as readily available starting materials, engaging them in a cascade sequence that simultaneously forms multiple bonds and constructs the tetracyclic core. As illustrated in the general reaction scheme below, the process proceeds under remarkably mild conditions, typically between 80°C and 120°C in common solvents like tetrahydrofuran (THF).This direct annulation strategy eliminates the need for pre-functionalized halides and avoids the isolation of unstable intermediates, thereby drastically simplifying the workflow. The ability to tolerate a wide range of substituents, including electron-donating and electron-withdrawing groups, ensures that this method is versatile enough to support the rapid exploration of structure-activity relationships (SAR) in drug discovery programs while maintaining high efficiency.

Mechanistic Insights into Rh(III)-Catalyzed C-H Activation and Annulation

The success of this synthetic transformation hinges on the unique reactivity profile of the pentamethylcyclopentadienyl rhodium(III) catalyst, [RhCp*Cl2]2, which facilitates a precise C-H activation event. The mechanism initiates with the coordination of the indole nitrogen to the cationic rhodium species, generated in situ with the assistance of the cesium acetate additive. This coordination directs the metal center to activate the proximal C-H bond on the 2-aryl ring through a concerted metalation-deprotonation (CMD) pathway, forming a stable five-membered rhodacycle intermediate. This step is critical for regioselectivity, ensuring that the subsequent bond formation occurs exclusively at the desired position to yield the specific benzo[a]carbazole isomer. Following C-H activation, the sulfur ylide undergoes migratory insertion into the rhodium-carbon bond, introducing the acyl functionality and extending the carbon framework. The presence of the nitrile group on the indole scaffold then allows for a subsequent intramolecular nucleophilic attack or insertion, closing the final ring and releasing the amino-acyl substituted product after protonolysis. This intricate dance of bond-breaking and bond-forming events occurs within a single reaction vessel, showcasing the elegance of modern catalytic design.

From an impurity control perspective, this mechanistic pathway offers distinct advantages over stepwise syntheses. Because the reaction proceeds through a well-defined catalytic cycle, the formation of side products associated with random radical processes or non-selective electrophilic substitutions is minimized. The use of specific additives like cesium acetate helps to buffer the reaction medium and stabilize the active catalytic species, preventing catalyst decomposition which could lead to metal contamination in the final product. Moreover, the tandem nature of the reaction means that reactive intermediates are consumed immediately as they are formed, reducing the likelihood of oligomerization or decomposition pathways that often plague multi-step sequences. For R&D directors, this implies a cleaner crude reaction profile, which simplifies downstream purification and ensures that the final high-purity pharmaceutical intermediates meet stringent regulatory specifications with less effort and resource expenditure.

How to Synthesize 6-Amino-5-acylbenzo[a]carbazole Efficiently

Implementing this synthesis in a laboratory or pilot plant setting requires careful attention to reagent quality and reaction parameters to maximize yield and reproducibility. The patent outlines a robust protocol where the 2-aryl-3-cyanoindole substrate is dissolved in anhydrous tetrahydrofuran, followed by the sequential addition of the sulfur ylide, the rhodium catalyst, and the cesium acetate additive. The reaction mixture is then sealed and heated in an oil bath, typically at 100°C, for a duration of 12 hours to ensure complete conversion. Workup involves standard aqueous quenching and extraction with ethyl acetate, followed by drying and concentration. The crude product is purified via silica gel column chromatography using a petroleum ether and ethyl acetate gradient. Detailed standardized synthesis steps for specific derivatives are provided in the guide below.

1. Dissolve the 2-aryl-3-cyanoindole substrate in tetrahydrofuran (THF) within a sealed reaction vessel under air conditions.
2. Add the sulfur ylide reagent, [RhCp*Cl2]2 catalyst, and cesium acetate additive sequentially to the reaction mixture.
3. Heat the mixture to 80-120°C for 12 hours, then cool, extract with ethyl acetate, and purify via silica gel chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this Rh(III)-catalyzed methodology represents a strategic opportunity to optimize the cost structure and reliability of the supply chain for complex heterocyclic intermediates. The primary economic driver here is the drastic reduction in process complexity; by collapsing what would traditionally be a three or four-step synthesis into a single tandem reaction, the method significantly lowers labor costs, energy consumption, and solvent usage. The elimination of intermediate isolation steps not only saves time but also reduces the physical loss of material that inevitably occurs during filtration and drying operations, leading to improved overall mass balance. Furthermore, the starting materials, specifically the 2-aryl-3-cyanoindoles and sulfur ylides, are either commercially available or can be prepared from cheap, commodity chemicals, ensuring a stable and cost-effective raw material base that is not subject to the volatility of specialized reagent markets.

• Cost Reduction in Manufacturing: The streamlined nature of this one-pot tandem reaction directly translates to substantial cost savings in manufacturing operations. By avoiding the use of expensive palladium catalysts often required for traditional cross-coupling and replacing them with a highly efficient rhodium system that operates at low loading (2.5-6 mol%), the process reduces the financial burden associated with precious metal recovery and disposal. Additionally, the mild reaction conditions (80-120°C) allow for the use of standard glass-lined or stainless steel reactors without the need for specialized high-pressure or cryogenic equipment, further lowering capital expenditure and operational overheads. The high atom economy of the transformation ensures that a greater proportion of the raw material mass ends up in the final product, minimizing waste disposal costs and enhancing the overall sustainability profile of the manufacturing process.
• Enhanced Supply Chain Reliability: Supply chain continuity is bolstered by the broad substrate scope and the use of robust, air-stable reaction conditions. Unlike sensitive organometallic reactions that require strict inert atmospheres and glovebox techniques, this protocol can be executed under air, simplifying the operational requirements for contract manufacturing organizations (CMOs) and reducing the risk of batch failures due to atmospheric leaks. The tolerance for diverse functional groups means that supply chain disruptions for specific substituted starting materials can be mitigated by switching to alternative analogs without needing to re-optimize the entire synthetic route. This flexibility ensures a reliable supply of high-purity intermediates even in fluctuating market conditions, allowing pharmaceutical companies to maintain their production schedules without interruption.
• Scalability and Environmental Compliance: Scaling this process from gram to kilogram quantities is facilitated by the simplicity of the workup procedure, which relies on standard liquid-liquid extraction and chromatography techniques familiar to process chemists. The use of tetrahydrofuran, a common industrial solvent, simplifies solvent recovery and recycling efforts, aligning with green chemistry principles. The reduction in the number of synthetic steps inherently lowers the E-factor (mass of waste per mass of product), making it easier to meet increasingly stringent environmental regulations regarding chemical waste discharge. This environmental compliance is a critical factor for long-term supply agreements, as it future-proofs the manufacturing process against tightening global standards on industrial emissions and hazardous waste management.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this patented synthesis technology. These answers are derived directly from the experimental data and technical specifications provided in the patent documentation, ensuring accuracy and relevance for decision-makers evaluating this technology for adoption. Understanding these nuances is crucial for assessing the feasibility of integrating this method into existing production workflows and for anticipating potential challenges during technology transfer.

Q: What are the primary advantages of this Rh(III)-catalyzed method over traditional synthesis?

A: This method utilizes a tandem reaction strategy that directly constructs the benzo[a]carbazole core from readily available 2-aryl-3-cyanoindoles and sulfur ylides. Unlike conventional multi-step routes that require harsh conditions and intermediate isolations, this process operates under mild temperatures (80-120°C) with high atom economy, significantly simplifying the workflow and reducing waste generation.

Q: Is this synthesis suitable for large-scale industrial production?

A: Yes, the protocol is designed for scalability. It employs common solvents like THF and operates under air conditions without the need for stringent inert atmospheres. The use of robust rhodium catalysts and simple workup procedures involving standard extraction and chromatography makes it highly adaptable for commercial scale-up of complex pharmaceutical intermediates.

Q: What is the substrate scope regarding substituents on the indole and aryl rings?

A: The reaction demonstrates broad substrate tolerance. It accommodates various substituents including hydrogen, halogens (chlorine, fluorine), alkyl groups (methyl, ethyl), and alkoxy groups (methoxy, ethoxy) at multiple positions on both the indole and the pendant aryl rings. Electron-withdrawing groups like trifluoromethyl are also tolerated, allowing for diverse functionalization of the final benzo[a]carbazole scaffold.
