Scalable Iron-Catalyzed Photocatalytic Synthesis of High-Purity Phosphazene Intermediates

The landscape of fine chemical synthesis is undergoing a significant transformation driven by the demand for greener, safer, and more cost-effective methodologies. A pivotal advancement in this domain is detailed in patent CN109762017B, which discloses a novel preparation method for iron-catalyzed phosphazene compounds. This technology represents a paradigm shift from traditional stoichiometric approaches to a catalytic, photocatalytic regime that leverages abundant iron salts and visible light energy. For R&D directors and process chemists, this innovation offers a robust pathway to access high-value phosphazene intermediates, which are critical precursors for organometallic catalysts and bioactive molecules. The core of this invention lies in the direct coupling of organic phosphine compounds with 3-substituted-1,4,2-dioxazol-5-ones, facilitated by a cheap metal iron catalyst under illumination. This approach not only circumvents the safety hazards associated with traditional azide chemistry but also streamlines the synthetic workflow into a single, efficient step, thereby addressing key pain points in modern pharmaceutical intermediate manufacturing regarding both safety and operational simplicity.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of phosphazene compounds, which serve as vital analogs to phosphorus ylides and potent ligands for transition metal catalysis, has relied heavily on the Staudinger reaction. This classical method involves the reaction of phenyl azides with triphenylphosphine to quantitatively yield phosphazenes while releasing nitrogen gas. While effective on a small laboratory scale, this methodology presents severe limitations for industrial application. The primary concern is the inherent instability and explosive potential of organic azides, which necessitates stringent safety protocols, specialized equipment, and often limits the scale of operation to prevent catastrophic accidents. Furthermore, the Staudinger reaction is inherently stoichiometric, meaning it generates significant amounts of waste relative to the product formed, conflicting with modern green chemistry principles. Other alternative synthetic routes have been reported in literature, yet they frequently suffer from low overall yields, narrow substrate scopes, and the requirement for harsh reaction conditions or expensive reagents. These factors collectively contribute to high production costs and supply chain vulnerabilities, making the reliable sourcing of high-purity phosphazene intermediates a persistent challenge for procurement teams in the fine chemical sector.

The Novel Approach

In stark contrast to these legacy methods, the technology described in patent CN109762017B introduces a groundbreaking photocatalytic strategy that fundamentally alters the reaction landscape. By utilizing 3-substituted-1,4,2-dioxazol-5-ones as stable nitrogen sources instead of hazardous azides, the process eliminates the risk of explosion and simplifies handling procedures significantly. The reaction is driven by a cheap metal iron catalyst, such as ferrous chloride or iron phthalocyanine, under mild illumination conditions, typically using light sources with wavelengths between 280 nm and 500 nm. This photocatalytic activation allows for the direct construction of the phosphorus-nitrogen double bond in a single step, achieving high yields without the need for additional complex ligands. The operational simplicity is further enhanced by the use of common organic solvents like toluene, acetonitrile, or dichloromethane, and the reaction proceeds efficiently at temperatures ranging from 10°C to 100°C. This novel approach not only improves the safety profile of the synthesis but also drastically reduces the environmental footprint by avoiding toxic oxidants and minimizing waste generation, positioning it as an ideal candidate for sustainable commercial manufacturing.

Mechanistic Insights into Fe-Catalyzed Photocatalytic Nitrene Transfer

The mechanistic underpinning of this iron-catalyzed transformation is a fascinating interplay between photo-excitation and transition metal coordination chemistry. Upon irradiation, the iron catalyst, potentially in conjunction with the dioxazolone substrate, absorbs photon energy to reach an excited state. This excitation facilitates the homolytic or heterolytic cleavage of the weak N-O bond within the 1,4,2-dioxazol-5-one ring, generating a reactive nitrene or nitrenoid species coordinated to the iron center. Unlike thermal decomposition which often requires high energy input, the photocatalytic pathway lowers the activation energy barrier, allowing the reaction to proceed under remarkably mild conditions. The phosphine compound then acts as a nucleophile, attacking the electrophilic nitrogen atom of the iron-nitrenoid complex. This attack results in the formation of the P=N double bond characteristic of phosphazenes, while the oxygen atom is likely sequestered by the iron catalyst or released as a benign byproduct, depending on the specific oxidation state changes of the metal during the catalytic cycle. The versatility of the iron catalyst, which can cycle through various oxidation states (e.g., Fe(II)/Fe(III)), ensures that the catalytic turnover is maintained efficiently throughout the reaction duration.

From an impurity control perspective, this mechanism offers distinct advantages over traditional routes. The specificity of the photocatalytic activation minimizes side reactions such as over-oxidation of the phosphine to phosphine oxide, which is a common impurity in non-catalytic oxidative couplings. Furthermore, the use of stable dioxazolones prevents the formation of azide-derived byproducts or polymeric tars that often complicate the purification of Staudinger reaction products. The mild reaction temperatures (10-100°C) also suppress thermal degradation pathways, ensuring that sensitive functional groups on the aromatic rings, such as methoxy, bromo, or trifluoromethyl groups, remain intact. This high level of chemoselectivity is crucial for R&D directors aiming to synthesize complex intermediates for drug discovery, where the presence of trace impurities can derail biological testing or downstream coupling reactions. The result is a crude product profile that is significantly cleaner, reducing the burden on downstream purification processes like silica gel chromatography and enhancing the overall mass balance of the manufacturing process.

How to Synthesize N-(Triphenyl-λ5-phosphanylidene) Benzamides Efficiently

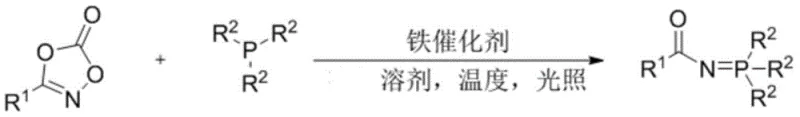

The practical implementation of this iron-catalyzed protocol is straightforward and amenable to standard laboratory and pilot plant setups. The general procedure involves accurately weighing the 3-substituted-1,4,2-dioxazol-5-one substrate and the phosphine reagent, typically in a molar ratio ranging from 1:1.0 to 1:6.0, although optimized ratios often favor a slight excess of phosphine to drive the reaction to completion. These reagents are charged into a reaction vessel, such as a Schlenk flask, along with a catalytic amount of the iron source, where the molar ratio of substrate to catalyst is typically between 1:0.01 and 1:0.5. A suitable solvent is added to achieve a concentration of 0.01 to 2 mmol/mL, ensuring adequate solubility and light penetration. The detailed standardized synthesis steps, including specific workup procedures and purification parameters for various substrates, are outlined in the guide below.

1. Charge a Schlenk flask with 3-substituted-1,4,2-dioxazol-5-one, triphenylphosphine, and an iron catalyst such as ferrous chloride.
2. Add an appropriate solvent like toluene or dichloromethane to achieve a concentration of 0.01-2 mmol/mL.
3. Illuminate the reaction mixture with light (280-500 nm) at temperatures between 10-100°C for 1-36 hours, then purify via silica gel chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this iron-catalyzed photocatalytic technology translates into tangible strategic benefits that extend beyond mere technical novelty. The shift from hazardous azides to stable dioxazolones fundamentally de-risks the supply chain by removing the need for specialized storage and handling of explosive materials, thereby lowering insurance and compliance costs. Moreover, the reliance on iron, one of the most abundant and inexpensive metals on earth, replaces costly noble metal catalysts or stoichiometric reagents, leading to a substantial reduction in raw material expenditure. The simplicity of the post-treatment process, which often involves merely removing the solvent and performing a standard column chromatography, reduces labor hours and solvent consumption, further driving down the cost of goods sold (COGS). These factors combined create a more resilient and cost-efficient supply model for high-purity phosphazene intermediates.

• Cost Reduction in Manufacturing: The elimination of expensive ligands and the use of commodity iron salts drastically lower the catalyst cost per kilogram of product. Additionally, the avoidance of hazardous azide synthesis steps removes entire unit operations from the production line, significantly reducing capital expenditure and operational overhead. The mild reaction conditions also imply lower energy consumption for heating or cooling compared to traditional thermal methods, contributing to long-term operational savings.
• Enhanced Supply Chain Reliability: The starting materials, specifically 3-substituted-1,4,2-dioxazol-5-ones and various phosphines, are commercially available or easily synthesized from bulk chemicals, ensuring a stable and continuous supply of feedstock. The robustness of the reaction against moisture and air, typical of many iron-catalyzed systems, reduces the stringency of inert atmosphere requirements, simplifying logistics and storage. This reliability ensures that lead times for high-purity phosphazene intermediates can be consistently met, preventing production bottlenecks for downstream customers.
• Scalability and Environmental Compliance: The photocatalytic nature of the reaction is inherently scalable using modern flow chemistry or large-scale batch photoreactors, allowing for seamless transition from gram-scale R&D to ton-scale commercial production. The process generates minimal hazardous waste, aligning with increasingly strict global environmental regulations and ESG (Environmental, Social, and Governance) goals. The absence of heavy metal residues in the final product simplifies the regulatory filing process for pharmaceutical applications, accelerating time-to-market for new drug candidates.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the iron-catalyzed synthesis of phosphazene compounds. These answers are derived directly from the experimental data and beneficial effects reported in the patent literature, providing a clear understanding of the technology's capabilities and limitations. Understanding these details is essential for technical teams evaluating the feasibility of integrating this method into their existing manufacturing workflows.

Q: What are the advantages of using iron catalysts over traditional methods for phosphazene synthesis?

A: Traditional Staudinger reactions often require unstable organic azides and produce nitrogen gas, posing safety risks. The iron-catalyzed method uses stable dioxazolones, operates under mild photocatalytic conditions, and avoids hazardous reagents, significantly improving process safety and substrate compatibility.

Q: Can this photocatalytic process be scaled for industrial production?

A: Yes, the process utilizes inexpensive iron salts and common solvents like toluene or acetonitrile. The reaction conditions are mild (10-100°C) and do not require complex ligands or extreme pressures, making it highly suitable for commercial scale-up in standard photoreactors.

Q: What is the substrate scope for this iron-catalyzed reaction?

A: The method demonstrates excellent substrate compatibility, accommodating various aryl, alkyl, and heterocyclic groups on the dioxazolone ring, as well as different phosphine substituents including aryl and alkoxy groups, yielding products with high purity.
