Scalable Copper-Catalyzed Synthesis of 1,2,3-Triazole Derivatives for Commercial Pharmaceutical Production

Introduction to Advanced Triazole Synthesis Technology

The pharmaceutical and agrochemical industries continuously seek robust synthetic methodologies that balance high yield with operational safety and cost efficiency. A significant breakthrough in this domain is detailed in patent CN109867632B, which discloses a novel method for synthesizing 1,2,3-triazole derivatives. These heterocyclic compounds are pivotal scaffolds in medicinal chemistry, known for their antiviral, anticancer, and antibacterial properties. The disclosed technology utilizes S,N-substituted internal olefins and aryl diazonium salts as starting materials, employing a copper salt catalyst to drive cyclization in the presence of an alkali and an oxidant. This approach represents a paradigm shift from traditional azide-based chemistry, offering a pathway that is not only chemically efficient but also inherently safer for large-scale manufacturing environments where hazard mitigation is paramount.

The strategic value of this invention lies in its ability to bypass the use of unstable organic azides, which have historically posed significant safety risks and regulatory hurdles in process chemistry. By leveraging stable diazonium salts and designing specific substrate configurations, the method achieves high reaction yields under remarkably mild conditions, typically around 25°C. For R&D directors and process chemists, this translates to a streamlined workflow that reduces the complexity of reaction monitoring and post-reaction purification. Furthermore, the broad substrate scope allows for the introduction of diverse functional groups, enabling the rapid generation of compound libraries for drug discovery programs without the need for extensive re-optimization of reaction parameters for each new analog.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of 1,2,3-triazole compounds has relied heavily on transition metal-catalyzed 1,3-dipolar cycloaddition reactions involving organic azides and alkynes. While effective on a small laboratory scale, these conventional methods present substantial challenges when translated to industrial production. The primary concern is the inherent instability of organic azides, which can be shock-sensitive and explosive, necessitating expensive safety infrastructure and rigorous handling protocols. Additionally, alternative methods involving N-p-toluenesulfonylhydrazone compounds often require harsh reaction conditions or complex multi-step sequences that degrade overall process efficiency. These limitations result in increased production costs, longer lead times, and a higher environmental footprint due to the generation of hazardous waste streams that require specialized disposal.

The Novel Approach

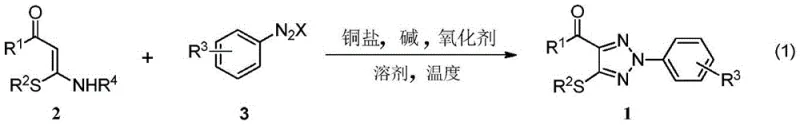

In stark contrast, the novel approach described in the patent utilizes a copper-catalyzed cyclization of S,N-substituted internal olefins with aryl diazonium salts. This methodology eliminates the need for explosive azide synthons, replacing them with stable and commercially accessible diazonium salts. The reaction proceeds efficiently in common organic solvents like acetonitrile, utilizing inexpensive copper salts such as CuBr2 as catalysts and potassium persulfate as a green oxidant. The operational simplicity is further enhanced by the ability to run the reaction at ambient temperatures (25°C) under an oxygen atmosphere, removing the need for energy-intensive heating or inert gas protection. This shift not only mitigates safety risks but also simplifies the engineering controls required for reactor design, making the process highly attractive for cost-sensitive manufacturing sectors.

Mechanistic Insights into Copper-Catalyzed Oxidative Cyclization

The core of this technological advancement is the copper-catalyzed oxidative cyclization mechanism, which facilitates the formation of the triazole ring through a radical-mediated pathway. The process initiates with the activation of the aryl diazonium salt by the copper catalyst, generating an aryl radical species. This highly reactive intermediate subsequently attacks the electron-rich double bond of the S,N-substituted internal olefin. The presence of the sulfur and nitrogen substituents on the olefin is critical, as they stabilize the intermediate radical species and direct the regioselectivity of the cyclization. Following the initial addition, an intramolecular cyclization occurs, closing the triazole ring structure. The final step involves an oxidative aromatization driven by the persulfate oxidant and oxygen atmosphere, which restores the aromaticity of the triazole system and regenerates the active copper catalyst for the next turnover.

From an impurity control perspective, this mechanism offers distinct advantages over traditional routes. The mild reaction conditions minimize thermal degradation of sensitive functional groups, thereby reducing the formation of complex by-product profiles that are difficult to separate. The use of a specific base, such as potassium phosphate, helps to neutralize acidic by-products generated during the diazonium decomposition, maintaining a stable pH environment that favors the desired cyclization over competing side reactions. Furthermore, the high selectivity of the copper catalyst ensures that the reaction proceeds cleanly to the target 1,2,3-triazole derivative, as evidenced by the high isolated yields reported in the patent examples. This level of control is essential for meeting the stringent purity specifications required for pharmaceutical intermediates, where even trace impurities can impact the safety and efficacy of the final drug product.

How to Synthesize 1,2,3-Triazole Derivatives Efficiently

To implement this synthesis effectively, precise control over stoichiometry and reaction parameters is essential. The patent outlines a robust protocol where the S,N-substituted internal olefin and aryl diazonium salt are combined in a molar ratio ranging from 1:1.2 to 1:3.0. The reaction is conducted in acetonitrile with a catalyst loading of copper bromide between 0.1 to 3.0 equivalents relative to the substrate. The addition of an oxidant like potassium persulfate and a base like potassium phosphate is critical for driving the reaction to completion. The following section details the standardized operational procedure derived from the optimized examples in the patent, providing a clear roadmap for laboratory and pilot-scale execution.

1. Prepare the reaction mixture by combining S,N-substituted internal olefin, aryl diazonium salt, copper catalyst (e.g., CuBr2), base (e.g., K3PO4), and oxidant (e.g., K2S2O8) in acetonitrile solvent.
2. Maintain the reaction under an oxygen atmosphere at 25°C for approximately 5 hours to facilitate the oxidative cyclization process.
3. Upon completion, remove the solvent under reduced pressure and purify the crude product via silica gel column chromatography to isolate the high-purity 1,2,3-triazole derivative.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain leaders, the adoption of this synthetic route offers compelling economic and logistical benefits. The elimination of hazardous organic azides removes a significant bottleneck in the supply chain, as sourcing and transporting explosive materials often involve specialized logistics providers and inflated costs. By switching to stable diazonium salts and simple olefins, companies can leverage existing commodity chemical supply chains, ensuring consistent availability and reducing the risk of production stoppages due to raw material shortages. Furthermore, the mild reaction conditions translate directly into lower energy consumption, as the process does not require high-temperature heating or cryogenic cooling, contributing to a more sustainable and cost-effective manufacturing profile.

• Cost Reduction in Manufacturing: The process utilizes inexpensive and abundant copper salts as catalysts instead of precious metals like palladium or rhodium, which significantly lowers the raw material cost per kilogram of product. Additionally, the simplified workup procedure, which involves standard solvent removal and silica gel chromatography, reduces the consumption of expensive purification resins and solvents. The high yield of the reaction, reaching up to 90 percent in optimized examples, minimizes material loss and maximizes the throughput of the manufacturing facility, leading to substantial overall cost savings.
• Enhanced Supply Chain Reliability: The raw materials required for this synthesis, including aryl diazonium salts and substituted olefins, are structurally diverse and readily available from multiple global suppliers. This diversity prevents single-source dependency and allows procurement teams to negotiate better pricing terms. The stability of these starting materials also means they can be stored for extended periods without degradation, allowing for strategic stockpiling to buffer against market volatility and ensure uninterrupted production schedules for critical pharmaceutical intermediates.
• Scalability and Environmental Compliance: The reaction operates under atmospheric pressure and moderate temperatures, making it inherently scalable from gram to ton quantities without the need for specialized high-pressure reactors. The use of oxygen or air as a co-oxidant and the generation of benign inorganic by-products align with green chemistry principles, simplifying waste treatment and reducing the environmental compliance burden. This ease of scale-up ensures that the technology can seamlessly transition from R&D to commercial production, supporting the rapid market entry of new drug candidates.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this copper-catalyzed triazole synthesis. These answers are derived directly from the experimental data and technical specifications provided in the patent documentation, ensuring accuracy and relevance for decision-makers evaluating this technology for their production pipelines.

Q: Why is this copper-catalyzed method safer than traditional triazole synthesis?

A: Traditional methods often rely on organic azides, which are unstable and potentially explosive. This patented process utilizes stable aryl diazonium salts and S,N-substituted internal olefins, significantly enhancing operational safety and reducing hazard management costs.

Q: What are the optimal reaction conditions for maximum yield?

A: The patent data indicates that using CuBr2 as the catalyst, K3PO4 as the base, and K2S2O8 as the oxidant in acetonitrile at 25°C under an oxygen atmosphere yields up to 90% conversion, demonstrating high efficiency under mild conditions.

Q: Can this synthesis method be scaled for industrial production?

A: Yes, the process features mild temperatures (25-40°C), common solvents like acetonitrile, and readily available raw materials, making it highly suitable for commercial scale-up without requiring specialized high-pressure or cryogenic equipment.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable 1,2,3-Triazole Derivative Supplier

At NINGBO INNO PHARMCHEM, we recognize the transformative potential of this copper-catalyzed synthesis for the production of high-value pharmaceutical intermediates. As a leading CDMO partner, we possess extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that your transition from laboratory discovery to market supply is seamless and efficient. Our facilities are equipped with state-of-the-art rigorous QC labs capable of verifying stringent purity specifications, guaranteeing that every batch of 1,2,3-triazole derivative meets the highest international quality standards required by regulatory bodies.

We invite you to collaborate with us to leverage this advanced synthetic technology for your specific project needs. Our technical procurement team is ready to provide a Customized Cost-Saving Analysis tailored to your volume requirements, demonstrating how this route can optimize your bill of materials. Please contact us today to request specific COA data for our reference standards and to discuss route feasibility assessments for your target molecules, ensuring a secure and competitive supply chain for your critical intermediates.
